ODEJOI D16 MP3 Player User Manual

1. Introduction

Thank you for choosing the ODEJOI D16 MP3 Player. This manual provides detailed instructions to help you set up, operate, and maintain your device, ensuring you get the most out of its features. Please read this manual thoroughly before using the product.

The ODEJOI D16 is a versatile portable music player featuring Hi-Fi sound quality, Bluetooth 5.3 connectivity, a built-in HD speaker, FM radio, voice recording, and 18 soothing white noise sounds for relaxation. It comes with 64GB of internal storage, expandable up to 128GB via a TF card, and a long-lasting battery for extended playback.

2. Product Overview

Familiarize yourself with the components and controls of your ODEJOI D16 MP3 Player.

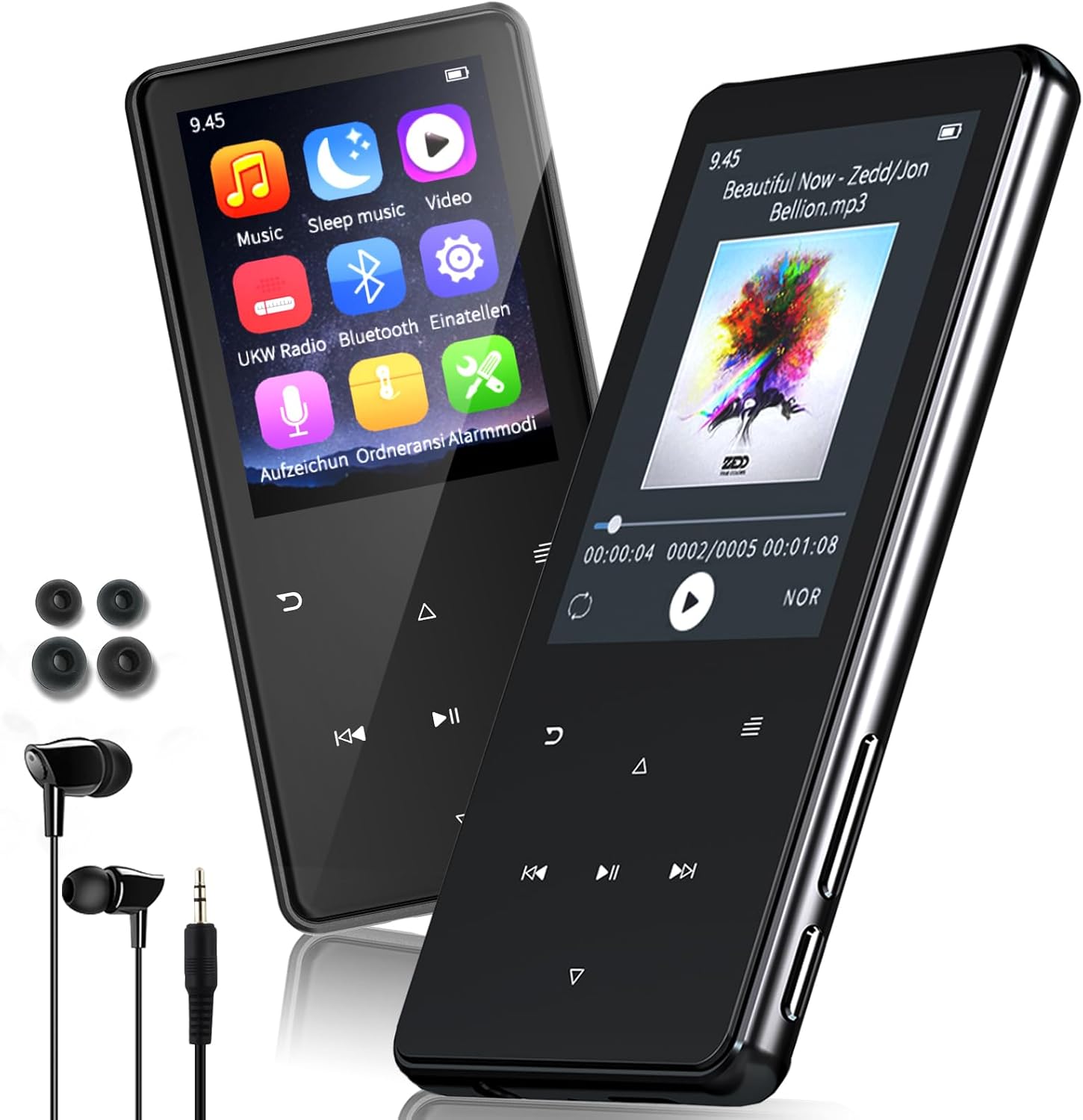

Figure 2.1: ODEJOI D16 MP3 Player with included earphones and ear tips, showcasing its sleek design and accessories.

2.1 Package Contents

• ODEJOI D16 MP3 Player
• Type-C Charging Cable
• 3.5mm Earphones (with 2 earplugs)
• User Manual (this document)

2.2 Device Features

• Display: 2.4-inch color screen
• Storage: 64GB internal, expandable up to 128GB via TF card
• Connectivity: Bluetooth 5.3
• Audio: Hi-Fi sound quality, built-in HD speaker
• Special Functions: 18 white noise/sleep sounds, FM radio, voice recorder, e-book reader, pedometer, alarm, video playback
• Battery: 500mAh Lithium-polymer, up to 45 hours playback
• Casing: Durable metal casing with glass front

Figure 2.2: The multi-functional interface of the ODEJOI D16 MP3 Player, highlighting icons for Sleep Music, Speaker, FM Radio, Recording, Equalizer, Alarm, Pedometer, and Folder.

3. Setup

3.1 Charging the Device

Before first use, fully charge your MP3 player. Connect the provided Type-C charging cable to the device's charging port and the other end to a USB power adapter (not included) or a computer's USB port. A full charge takes approximately 2.5 hours and provides up to 45 hours of playback time.

3.2 Power On/Off

• To Power On: Press and hold the power button located on the side of the device until the screen lights up.
• To Power Off: Press and hold the power button until the power-off prompt appears, then confirm.

3.3 Initial Setup

Upon first power-on, you may be prompted to select your preferred language and set the date/time. Follow the on-screen instructions using the touch buttons or physical navigation buttons.

3.4 Memory Expansion (TF Card)

The device supports TF (Micro SD) cards up to 128GB for additional storage. Locate the TF card slot on the side of the player and gently insert the card until it clicks into place. To remove, push the card in slightly until it springs out.

Figure 3.1: Illustration of the ODEJOI D16 MP3 Player's 64GB built-in memory and support for up to 128GB TF card expansion.

4. Operating Instructions

4.1 Music Playback

Navigate to the 'Music' icon on the main menu. Select a song, album, or artist to begin playback. The D16 supports Hi-Fi lossless audio formats, providing clear and rich sound.

• Volume Control: Use the dedicated volume buttons on the side of the device.
• Navigation: Use the touch buttons below the screen for play/pause, next/previous track.
• Equalizer: Access the equalizer settings from the music playback interface to customize sound profiles.

Figure 4.1: Enjoying music with the ODEJOI D16 MP3 Player, highlighting its Hi-Fi sound quality for a superior listening experience.

4.2 Bluetooth Connectivity

The D16 features Bluetooth 5.3 for stable and fast connections to wireless headphones, speakers, or car audio systems.

1. Go to the 'Bluetooth' menu from the main screen.
2. Turn on Bluetooth.
3. The player will scan for available devices. Select your desired device from the list to pair.
4. Once paired, audio will be routed through the connected Bluetooth device.

Figure 4.2: The ODEJOI D16 MP3 Player demonstrating its Bluetooth 5.3 capability for seamless connection to multiple devices.

4.3 White Noise & Sleep Sounds

The D16 includes 18 soothing sounds, such as white noise, ocean waves, rain, and bird songs, designed to aid relaxation and sleep for all ages.

1. Select 'Sleep Music' from the main menu.
2. Choose from the available 18 soothing sounds.
3. You can set a timer for automatic shutdown or enable continuous playback.

Figure 4.3: The ODEJOI D16 MP3 Player's 18 soothing sounds feature, illustrated with various natural soundscapes and a sleeping child, promoting relaxation.

4.4 FM Radio

To use the FM radio, ensure wired earphones are connected as they act as the antenna.

1. Plug in the 3.5mm earphones.
2. Select 'FM Radio' from the main menu.
3. Use the scan function to find available stations or manually tune to a frequency.

4.5 Voice Recorder

The built-in microphone allows for clear voice recordings.

1. Select 'Recording' from the main menu.
2. Press the record button to start and stop recording.
3. Recordings are saved and can be played back from the 'Folder' or 'Recording' menu.

4.6 Other Functions

• E-book: Supports TXT format. Navigate to 'E-book' to read text files. Features breakpoint playback and bookmarking.
• Pedometer: Track your steps and activity. Activate from the 'Pedometer' menu.
• Video: Supports AMV/AVI video formats. Access from the 'Video' menu.
• Alarm: Set alarms for reminders or wake-up calls.
• File Transfer (OTG): Connect the MP3 player to a compatible smartphone or computer using the Type-C cable to transfer files directly.

Figure 4.4: A visual representation of the ODEJOI D16 MP3 Player's diverse functions, including FM Radio, Voice Records, E-Book reading, and Pedometer.

5. Maintenance

• Cleaning: Use a soft, dry cloth to clean the device. Avoid liquid cleaners or abrasive materials.
• Storage: Store the MP3 player in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the device frequently. Charge it regularly, even if not in use for extended periods.
• Avoid Impact: While the metal casing is durable, avoid dropping or subjecting the device to strong impacts.

6. Troubleshooting

If you encounter issues with your ODEJOI D16 MP3 Player, please refer to the following common problems and solutions:

If the problem persists, please contact customer support for further assistance.

7. Specifications

8. Warranty and Support

The ODEJOI D16 MP3 Player comes with a 12-month warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

For technical support, warranty claims, or any questions regarding your device, please contact our customer service team. We offer friendly 24-hour customer service to assist you.

Please retain your proof of purchase for warranty validation.
