LLPParts Blower Tube Set Instruction Manual

1. Product Overview

This instruction manual provides guidance for the LLPParts Blower Tube Set, designed as a replacement for STIHL BR500, BR550, and BR600 backpack blowers. The set includes the middle tube, top tube, and nozzle components necessary for directing the blower's air output.

Note: This tube assembly does not include the internal wire that may be present in some original equipment manufacturer (OEM) versions.

Figure 1: The complete LLPParts Blower Tube Set, including the middle tube, top tube, and nozzle.

2. Setup and Installation

Follow these steps to properly assemble and install the blower tube set onto your compatible STIHL backpack blower.

1. Prepare the Blower: Ensure your STIHL BR500, BR550, or BR600 backpack blower is turned off and cooled down before beginning installation.
2. Remove Old Tubes (if applicable): If replacing an existing tube set, carefully detach the old middle tube, top tube, and nozzle from the blower's air outlet and from each other.
3. Connect Middle Tube: Attach the wider end of the new middle tube to the air outlet of your blower. Ensure it is securely fastened, typically with a twisting motion or by aligning tabs and locking mechanisms.
4. Connect Top Tube: Slide the top tube onto the open end of the middle tube. Verify that the connection is firm and that the tubes are aligned correctly.
5. Attach Nozzle: Finally, attach the nozzle to the end of the top tube. This is the component that directs the airflow. Ensure it is securely in place.
6. Verify Connections: Gently tug on each connection point to confirm that all components are securely attached and will not detach during operation.

Figure 2: Two main sections of the blower tube set, ready for assembly or showing a partial assembly.

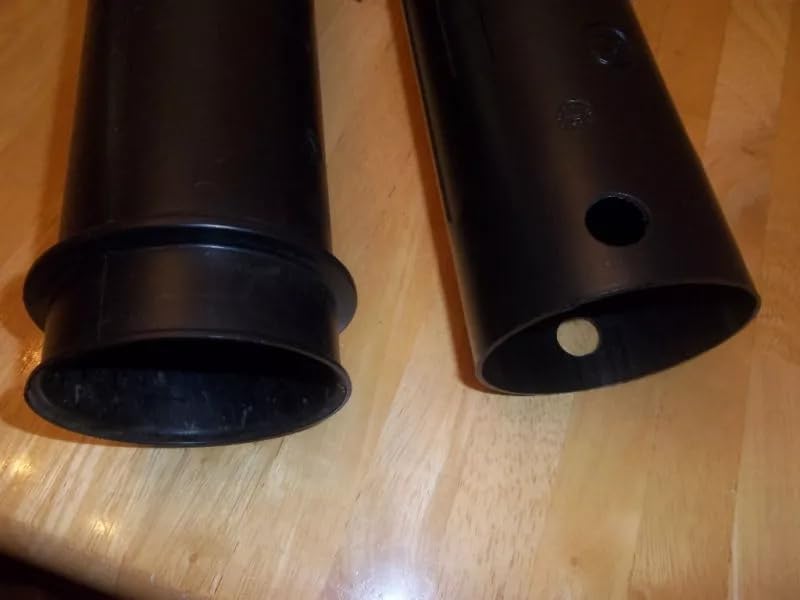

Figure 3: Detailed view of the ends of the blower tubes, illustrating the connection points for secure attachment.

3. Operating Instructions

Once the LLPParts Blower Tube Set is securely installed, operate your STIHL BR500, BR550, or BR600 backpack blower according to the instructions provided in your blower's original owner's manual. The tube set functions as an air conduit and does not alter the operational procedures of the blower itself.

• Always wear appropriate personal protective equipment (PPE) when operating a leaf blower.
• Ensure all connections of the tube set are tight before starting the blower.
• Direct the nozzle away from people, animals, and fragile objects.

4. Maintenance

Regular maintenance of your blower tube set will ensure its longevity and optimal performance.

• Cleaning: Periodically inspect the inside and outside of the tubes and nozzle for debris, such as leaves, twigs, or dirt. Clean as needed with a damp cloth.
• Inspection: Before each use, check the tubes for any cracks, damage, or signs of wear. Ensure all connection points remain secure.
• Storage: Store the blower tube set in a clean, dry place when not in use, away from direct sunlight and extreme temperatures.

5. Troubleshooting

If you encounter issues with your blower tube set, consider the following common problems and solutions:

• Reduced Airflow:
  • Check for blockages within the tubes or nozzle.
  • Ensure all tube connections are tight and there are no air leaks.
• Tubes Detaching During Use:
  • Verify that each tube section is fully engaged and locked into place according to the installation instructions.
  • Inspect connection points for wear or damage that might prevent a secure fit.

6. Specifications

7. Warranty and Support

The LLPParts Blower Tube Set comes with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets quality standards.

For warranty claims, technical assistance, or any questions regarding the product, please contact LLPParts customer support through your original point of purchase or the manufacturer's official channels.
