Introduction
The Husqvarna 215iL is a high-performance, battery-powered grass trimmer designed for efficient lawn edge trimming and clearing tall grass in large gardens. Its balanced design and intuitive controls ensure ease of use and maneuverability. The telescopic shaft allows for ergonomic adjustment to suit various users and simplifies storage and transport. The innovative trimmer head design facilitates quick and easy line loading without disassembly.
Figure 1: The Husqvarna 215iL Grass Trimmer, showcasing its ergonomic design and battery integration.
Safety Information
Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before using the Husqvarna 215iL Grass Trimmer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Personal Protective Equipment (PPE): Always wear eye protection, hearing protection, and sturdy footwear. Long pants and gloves are also recommended.
- Work Area: Keep the work area clean and well-lit. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Bystanders: Keep children, bystanders, and pets at a safe distance (at least 15 meters/50 feet) from the operating area.
- Battery Safety: Use only the specified battery and charger. Do not expose batteries to fire or excessive heat. Do not short-circuit the battery terminals.
- Tool Condition: Inspect the trimmer for damage before each use. Do not operate if any parts are damaged or missing.
- Handling: Always hold the trimmer firmly with both hands during operation.
- Maintenance: Disconnect the battery before performing any maintenance, cleaning, or when storing the tool.
Package Contents
Verify that all components are present in the package:
- Husqvarna 215iL Grass Trimmer Unit
- 4Ah Lithium-Ion Battery (36V)
- Battery Charger
- Trimmer Head (R25B)
- Operator's Manual (this document)
Setup
1. Charging the Battery
Before first use, fully charge the 4Ah Lithium-Ion battery. Connect the charger to a power outlet and insert the battery into the charger. The indicator lights on the charger will show the charging status. A full charge typically takes a few hours.
Figure 2: The Husqvarna battery charger, designed for efficient and safe charging of the 36V Lithium-Ion battery.
2. Installing the Battery
Once charged, slide the battery into the battery compartment on the trimmer handle until it clicks securely into place. Ensure it is fully seated to prevent accidental disconnection during operation.
Figure 3: A hand inserting the 4Ah battery into the Husqvarna 215iL grass trimmer's battery slot.
3. Adjusting the Telescopic Shaft
The 215iL features a telescopic shaft for customized ergonomics. Loosen the locking collar, extend or retract the shaft to a comfortable working height, and then securely tighten the collar. This adjustment also aids in compact storage.
Operating
1. Starting the Trimmer
The trimmer is equipped with an intuitive keypad. Press the power button to turn on the unit. The trimmer head will begin to spin when the trigger is engaged. Always ensure a clear area around the trimmer head before starting.
2. Trimming Techniques
For best results, use a sweeping motion, moving the trimmer from side to side. Maintain a consistent height above the ground. For edging, tilt the trimmer head to cut along the edge of paths or flowerbeds. The balanced design of the 215iL makes it easy to maneuver for precise cuts.
Figure 4: A user demonstrating the proper technique for operating the Husqvarna 215iL grass trimmer in a garden setting.
3. Stopping the Trimmer
Release the trigger to stop the trimmer head. For complete power off, press the power button on the keypad. Always remove the battery when not in use or before performing any adjustments.
Maintenance
1. Trimmer Line Replacement
The R25B trimmer head is designed for easy line loading without needing to be taken apart. Refer to the markings on the trimmer head for the correct line diameter and winding direction. Feed the new line directly through the eyelets until an equal length protrudes from both sides, then twist the head to wind the line.

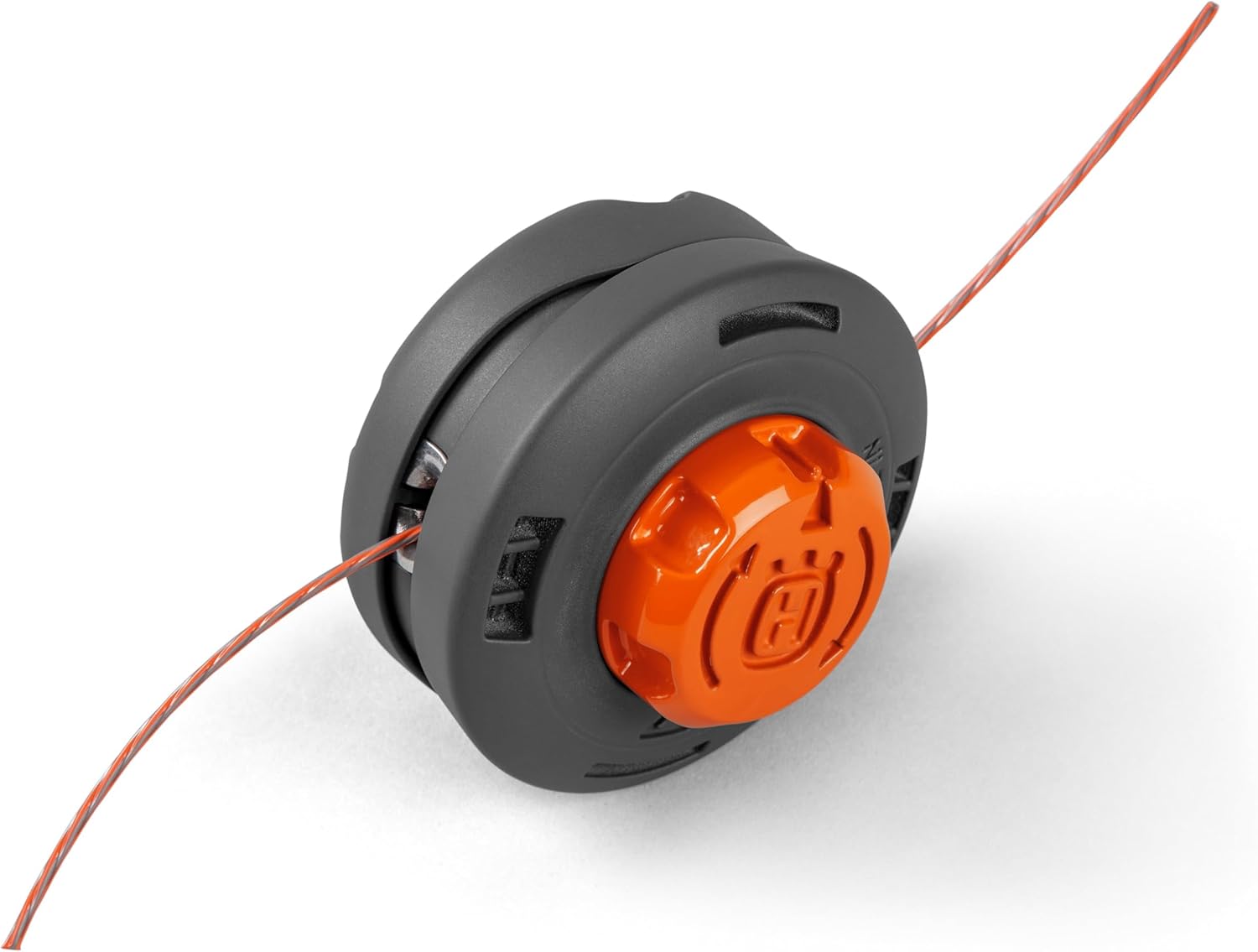

Figure 5: Close-up view of the Husqvarna R25B trimmer head, showing the line and its easy-load design.
2. Battery Care and Storage
To prolong battery life, store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged. Charge the battery periodically if not used for extended periods.
Figure 6: The Husqvarna 4Ah Lithium-Ion battery, featuring charge indicator lights.
3. Cleaning the Trimmer
After each use, remove the battery and clean the trimmer. Use a damp cloth to wipe down the exterior. Remove any grass clippings or debris from the trimmer head and guard. Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start. | Battery not inserted correctly or discharged. | Ensure battery is fully seated. Charge the battery. |
| Trimmer line not feeding. | Line tangled or too short. Incorrect line installation. | Check for tangles. Replace line if too short. Re-spool line correctly. |
| Reduced cutting performance. | Worn or incorrect trimmer line. Debris in trimmer head. | Replace with new, correct diameter line. Clean trimmer head. |
| Excessive vibration. | Damaged trimmer head or unbalanced line. | Inspect trimmer head for damage. Ensure line is evenly distributed. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 970536007 |
| Power Source | Battery Powered (36V Lithium Ion) |
| Battery Type | 4Ah Lithium Ion |
| Cutting Width | 31 cm |
| Trimmer Head | R25B |
| Weight (Excl. Battery) | 2.9 kg |
| Product Dimensions | 167 x 60 x 12.7 cm |
| Item Weight | 3 Kilograms |
| Sound Power Level, Guaranteed (LWA) | 92 dB(A) |
| Assembly Required | Yes |
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Husqvarna website. For technical support, spare parts, or service, please contact your authorized Husqvarna dealer or visit the Husqvarna support page.
You can find more information and support resources on the Husqvarna Store on Amazon or the official Husqvarna website.
