User Manual: 2-Tier Shoe Storage Bench with Cushion

1. Introduction

Thank you for purchasing the choayun 2-Tier Shoe Storage Bench with Cushion. This versatile furniture piece is designed to provide both convenient shoe storage and a comfortable seating area for your entryway, hallway, bedroom, or living room. Its compact design and sturdy construction make it an ideal solution for organizing your footwear while adding functionality to your space.

Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation. Keep this manual for future reference.

2. Safety Instructions

• Adult Assembly Required: This product requires adult assembly. Keep small parts away from children during assembly.
• Weight Limit: Do not exceed the recommended weight capacity for the bench. Overloading may cause damage or injury.
• Stable Placement: Always place the bench on a flat, stable, and level surface to prevent tipping.
• Avoid Moisture: Do not expose the product to excessive moisture or direct sunlight for prolonged periods, as this may cause warping or damage to the materials.
• Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten as necessary.
• Proper Use: Use the bench only for its intended purpose as a shoe storage and seating unit. Do not stand on the bench.

3. Package Contents

Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x Shoe-changing Bench Frame (MDF components)
• 4 x Support Feet (Beech Wood)
• 1 x Cushion (Sponge, Linen)
• All necessary accessories for assembly (screws, wrench, etc.)

Figure 3.1: Overview of all included components for assembly.

4. Setup and Assembly

Follow these steps carefully to assemble your shoe storage bench. It is recommended to assemble the unit on a soft, clean surface to prevent scratching.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Refer to Figure 3.1 to identify all components.
2. Assemble the Main Frame: Connect the side panels to the top and bottom panels using the provided screws. Ensure all connections are secure but do not overtighten.
3. Install Shelves: Slide the two internal shelves into the designated slots within the main frame. The shelves should fit snugly.
4. Attach Support Feet: Screw the four beech wood support feet into the pre-drilled holes on the underside of the bench frame. Ensure they are tightened securely to provide stability.


   Figure 4.1: Detail of an attached support foot.

5. Place Cushion: Position the cushioned seat on top of the assembled bench frame. The cushion is designed to rest securely on the top surface.


   Figure 4.2: Detail of the cushion fabric.
6. Final Check: Once assembled, gently shake the bench to ensure it is stable. If there is any wobbling, recheck all connections and tighten screws as needed.

Figure 4.3: Fully assembled shoe storage bench.

5. Operating Instructions

The choayun 2-Tier Shoe Storage Bench is designed for dual functionality:

• Shoe Storage: Utilize the two spacious tiers to organize and store your shoes. The open design allows for easy access and ventilation.
• Seating Area: The cushioned top provides a comfortable spot to sit while putting on or taking off your shoes.

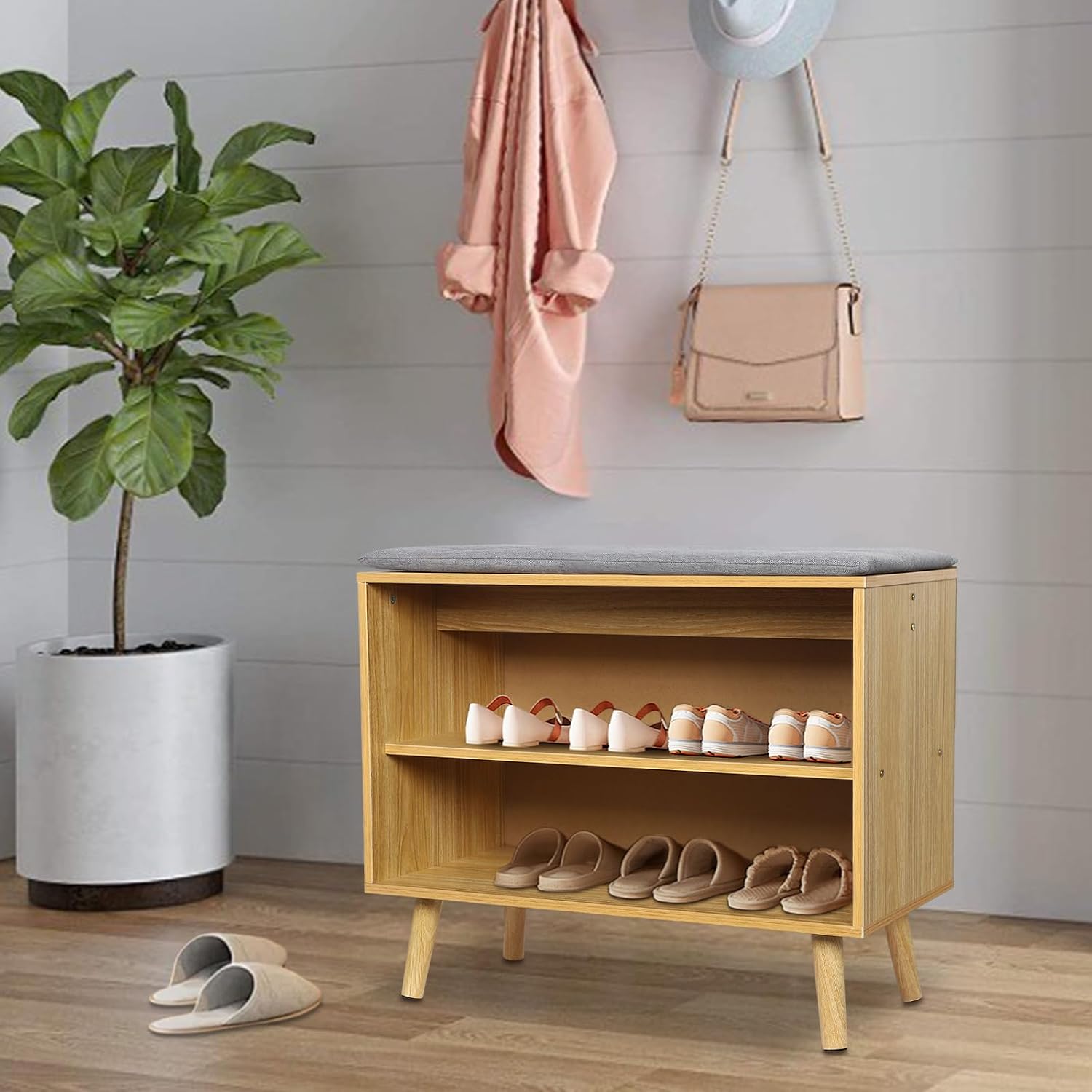

Figure 5.1: Bench in an entryway setting.

Figure 5.2: Bench in a hallway setting.

6. Maintenance

To ensure the longevity and appearance of your shoe storage bench, follow these maintenance guidelines:

• Cleaning the Frame: Wipe the MDF and beech wood surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Cushion Care: The linen cushion can be spot cleaned with a mild detergent and water. Allow it to air dry completely. Do not machine wash or tumble dry.
• Environmental Conditions: Place the product in a dry place and avoid long-term exposure to direct sunlight, which can cause fading or material degradation.
• Regular Checks: Periodically inspect all screws and joints for tightness. Retighten any loose connections to maintain structural integrity.

7. Troubleshooting

If you encounter any issues with your shoe storage bench, refer to the following common problems and solutions:

• Bench is Wobbly:
  • Ensure all support feet are securely tightened.
  • Verify that the bench is placed on a flat and even surface. Adjust the position if necessary.
  • Check all internal frame connections and tighten any loose screws.
• Difficulty Assembling:
  • Review the assembly instructions (Section 4) carefully, paying attention to the orientation of each part.
  • Ensure you are using the correct hardware for each step.
  • Do not force parts together; if they don't fit, recheck the instructions.
• Cushion Slides Off:
  • Ensure the cushion is properly centered on the bench top.
  • The cushion is designed to rest on the surface; if excessive movement occurs, consider adding non-slip pads to the underside of the cushion (not included).

8. Specifications

Detailed specifications for the choayun 2-Tier Shoe Storage Bench:

Figure 8.1: Product dimensions.

9. Warranty and Support

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.

For technical support, missing parts, or any inquiries regarding your choayun 2-Tier Shoe Storage Bench, please contact choayun customer service through the retailer's platform or their official website. Please have your model number (JJTKNJ23) and purchase information ready when contacting support.
