1. Introduction
Thank you for choosing the YTEATH PRO Sonic Electric Toothbrush. This manual provides essential information for the safe and effective use of your new toothbrush. Please read it thoroughly before first use and keep it for future reference.
The YTEATH PRO Sonic Electric Toothbrush is designed to provide exceptional oral hygiene. It features a powerful motor delivering 50,000 vibrations per minute (VPM) for thorough cleaning, 5 distinct brushing modes, and a long-lasting battery life of up to 120 days on a single charge. It also includes a smart timer to ensure optimal brushing duration and is IPX7 waterproof for easy cleaning and safe use.
Image 1.1: The YTEATH PRO Sonic Electric Toothbrush utilizes high-frequency vibrations for effective plaque removal.
Image 1.2: Consistent use of the toothbrush can contribute to improved tooth whiteness.
2. What's in the Box
Carefully unpack your YTEATH PRO Sonic Electric Toothbrush and ensure all items are present:
- 1 x YTEATH PRO Electric Toothbrush Handle
- 8 x Replacement Toothbrush Heads (various types)
- 1 x USB-C Charging Cable
- 1 x User Manual (this document)
- 1 x Travel Case
- 1 x Wall Mount Toothbrush Holder
Image 2.1: The travel case provides a hygienic storage solution for your toothbrush and two brush heads.
Image 2.2: The wall mount holder helps keep the toothbrush dry and saves counter space.
3. Setup
3.1 Attaching the Brush Head
- Align the brush head with the metal shaft on the toothbrush handle.
- Push the brush head down firmly until it clicks into place. Ensure it is securely attached.
3.2 Initial Charging
Before first use, fully charge your toothbrush. Refer to the 'Charging' section for detailed instructions.
3.3 Installing the Wall Mount Holder
The included wall mount holder can be affixed to a clean, dry, smooth surface (e.g., tile, mirror) using its adhesive backing. Ensure the surface is free of dust and moisture for optimal adhesion. Press firmly for 30 seconds after placement.
4. Operating Instructions
4.1 Powering On/Off
- To turn on the toothbrush, press the power button once. It will start in the last used mode.
- To turn off the toothbrush, press and hold the power button for 2 seconds, or cycle through all modes until it turns off.
4.2 Changing Brushing Modes
The toothbrush features 5 distinct modes:
- Clean: Standard daily cleaning for plaque removal.
- Sensitive: Gentle cleaning for sensitive teeth and gums.
- White: Designed to remove surface stains for brighter teeth.
- Polish: For polishing teeth and enhancing shine.
- Massage: Gently massages gums to improve circulation.
To switch between modes, press the power button repeatedly while the toothbrush is on. The indicator light next to the current mode will illuminate.

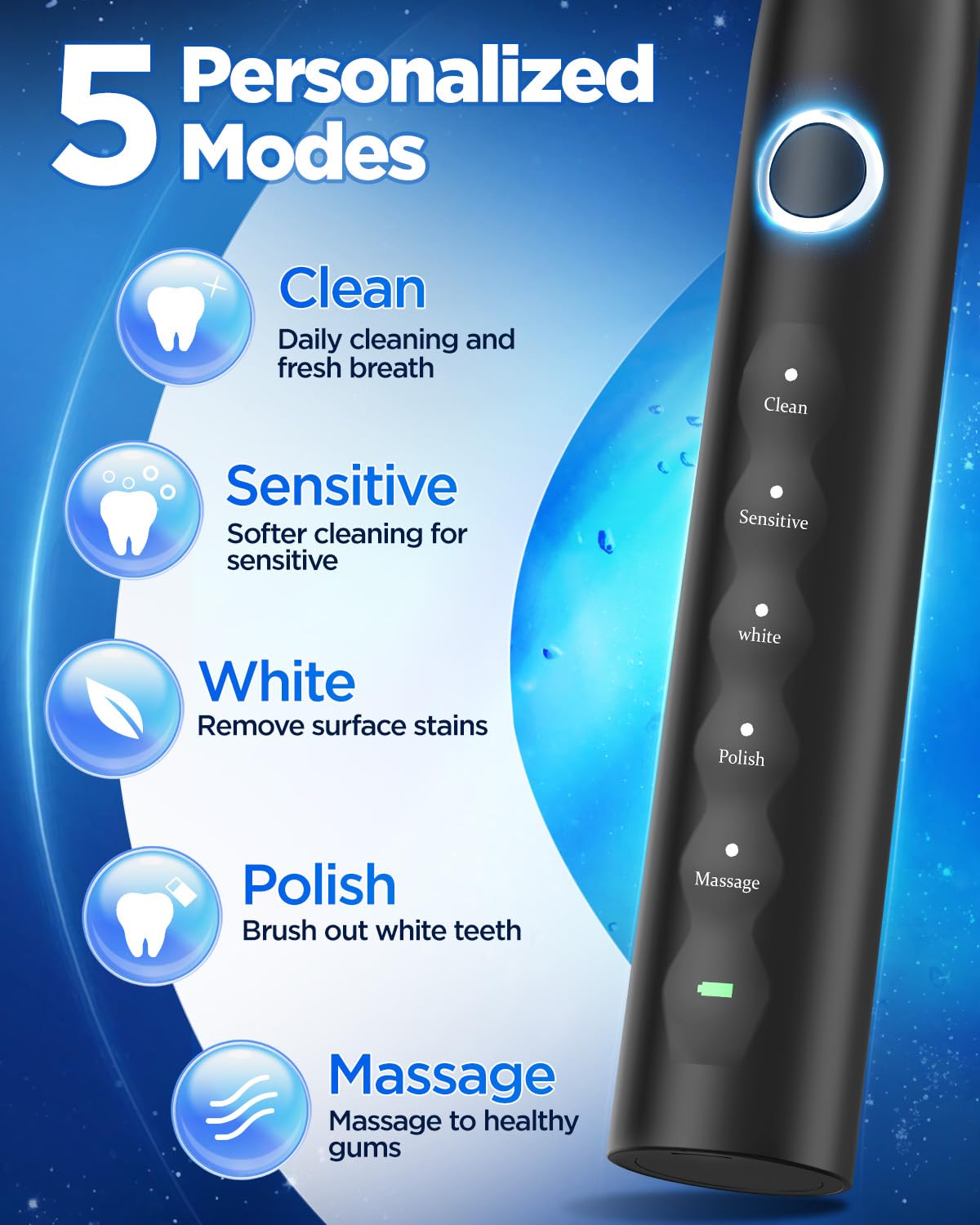

Image 4.1: The toothbrush offers five modes to cater to different oral care needs.
4.3 Brushing Technique
- Wet the brush head and apply a small amount of toothpaste.
- Place the brush head against your teeth at a slight angle towards the gum line.
- Turn on the toothbrush.
- Gently guide the brush head slowly across each tooth, allowing the sonic vibrations to do the cleaning. Do not scrub aggressively.
- Brush all surfaces of your teeth: outer, inner, and chewing surfaces.
4.4 Smart Timer and Quadpacer
The toothbrush features a built-in 2-minute smart timer, which is the dentist-recommended brushing time. It also includes a 30-second interval pause (Quadpacer) to remind you to move to a different quadrant of your mouth, ensuring an even and thorough clean.
Image 4.2: The smart timer guides you through a complete brushing cycle.
5. Charging
The YTEATH PRO Sonic Electric Toothbrush offers an impressive battery life of up to 120 days with typical use (twice a day for 2 minutes). When the battery is low, the red LED charging indicator will light up.
- Connect the provided USB-C charging cable to the charging port at the bottom of the toothbrush handle.
- Plug the other end of the USB-C cable into a 5V USB power adapter (not included) or a compatible USB port.
- A full charge takes approximately 3.5 hours. The indicator light will change to solid green when fully charged.
Image 5.1: The toothbrush features convenient USB-C fast charging.
6. Maintenance
6.1 Cleaning the Brush Head and Handle
- After each use, rinse the brush head thoroughly under running water to remove any toothpaste residue and debris.
- Wipe the toothbrush handle with a damp cloth. Do not immerse the handle in water for extended periods, despite its IPX7 rating.
- Ensure the charging port cover is securely closed when not charging to maintain water resistance.
6.2 Replacing Brush Heads
It is recommended to replace your toothbrush head every 3 months, or sooner if the bristles become frayed or worn. The included 8 replacement brush heads provide up to 24 months of use.
- To remove an old brush head, pull it straight up from the handle.
- To attach a new brush head, align it with the metal shaft and push down firmly until it clicks into place.
Image 6.1: The toothbrush comes with a generous supply of replacement brush heads.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Toothbrush does not turn on. | Battery is depleted. | Charge the toothbrush fully. |
| Toothbrush does not charge. | Charging cable or adapter issue; improper connection. | Ensure the USB-C cable is securely connected to both the toothbrush and a working 5V adapter. Try a different cable or adapter. |
| Weak vibration or reduced performance. | Low battery; worn brush head. | Charge the toothbrush. Replace the brush head if it is old or worn. |
| Brush head falls off during use. | Brush head not securely attached. | Ensure the brush head is pushed down firmly until it clicks into place. |
8. Specifications
- Model Number: Y08U
- Vibrations: Up to 50,000 VPM (Vibrations Per Minute)
- Brushing Modes: 5 (Clean, Sensitive, White, Polish, Massage)
- Battery Life: Up to 120 days (based on 2 minutes, twice daily use)
- Charging Time: Approximately 3.5 hours
- Charging Type: USB-C
- Waterproof Rating: IPX7
- Included Brush Heads: 8
- Power Source: Battery Powered (1 A battery included)
- Item Weight: 350 g
- Package Dimensions: 20.7 x 11.7 x 4.2 cm
- Recommended Age Range: 12 Years Old +
- Bristle Material: Nylon
- Handle Material: Plastic
9. Warranty and Support
YTEATH PRO provides a 2-year warranty for this product. For any questions, concerns, or technical support, please contact our customer service. We offer 24-hour after-sales service on working days.
Please retain your proof of purchase for warranty claims.
