Uadme Model 728 Mini Electric Sewing Machine User Manual

Introduction

This user manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of your Uadme Model 728 Mini Electric Sewing Machine. Please read this manual thoroughly before using the machine to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

Important Safety Instructions

• Always unplug the sewing machine from the power outlet immediately after use and before cleaning, servicing, or making any adjustments.
• Never leave the sewing machine unattended when plugged in.
• Keep fingers away from all moving parts, especially the needle, while the machine is operating.
• Use only accessories recommended by the manufacturer as described in this manual.
• Do not operate the machine if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
• Keep the machine dry. Do not operate in wet or damp conditions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Product Overview

Familiarize yourself with the components of your Uadme Model 728 sewing machine.

Figure 1: Labeled components of the Uadme Model 728 Sewing Machine. Key parts include the stitch selection dial, hand wheel, backstitch button, tension adjustment wheel, thread cutter, machine needle, presser foot, bobbin cover, line rod, reverse button, automatic tailor fast/slow gear button, pedal jack, and power jack.

Figure 2: Front view of the Uadme Model 728 Mini Electric Sewing Machine, showcasing its compact design and stitch selection dial.

Figure 3: Dimensions of the Uadme Model 728 Sewing Machine, approximately 285mm in length and 248mm in height.

Package Contents

Upon unboxing, ensure all the following items are present:

• 1 x Uadme Model 728 Sewing Machine
• 1 x Extension Table
• 1 x Power Supply Adapter
• 1 x Foot Pedal
• 2 x Needles
• 1 x Needle Threader
• 3 x Large Bobbins
• 3 x Lock Cylinders (pre-wound bobbins)
• 1 x User Manual

Figure 4: All items included in the Uadme Model 728 Sewing Machine package, including the machine, extension board, manual, power supply, pedal, needles, threader, large coils, and lock cylinders.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or transport.
2. Placement: Place the sewing machine on a stable, flat surface.
3. Attach Extension Table: Slide the extension table onto the free arm of the sewing machine until it clicks into place. This provides a larger work surface for bigger projects.
4. Connect Power: Insert the power supply adapter into the power jack on the machine (refer to Figure 1) and plug it into a suitable electrical outlet. The LED light will illuminate automatically upon connection.
5. Connect Foot Pedal: Insert the foot pedal plug into the pedal jack on the machine (refer to Figure 1). The foot pedal allows for hands-free speed control.

Operating Instructions

1. Threading the Machine

Proper threading is crucial for smooth operation and quality stitches.

Upper Threading:

1. Raise the needle to its highest position by turning the hand wheel towards you.
2. Place a spool of thread on the spool pin.
3. Guide the thread through the upper thread guide.
4. Pass the thread down through the tension adjustment wheel (refer to Figure 1).
5. Bring the thread up and through the take-up lever from right to left.
6. Guide the thread down through the remaining thread guides to the needle.
7. Thread the needle from front to back using the provided needle threader if needed.

Bobbin Winding and Insertion:

1. Place an empty bobbin onto the bobbin winder spindle.
2. Guide thread from the spool through the bobbin winding tension disc.
3. Wrap the thread around the bobbin a few times, then push the bobbin winder spindle to the right.
4. Press the foot pedal or power button to start winding. Stop when the bobbin is full.
5. Remove the bobbin and trim the thread.
6. Open the bobbin cover (refer to Figure 1) and insert the wound bobbin, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
7. Pull the bobbin thread through the tension spring and out of the bobbin case.
8. Close the bobbin cover.
9. Hold the upper thread, turn the hand wheel to lower and raise the needle, catching the bobbin thread. Pull both threads under the presser foot.

2. Stitch Selection

Your Uadme Model 728 offers 14 different stitch patterns. To select a stitch, simply turn the stitch selection dial (refer to Figure 1) to the desired number.

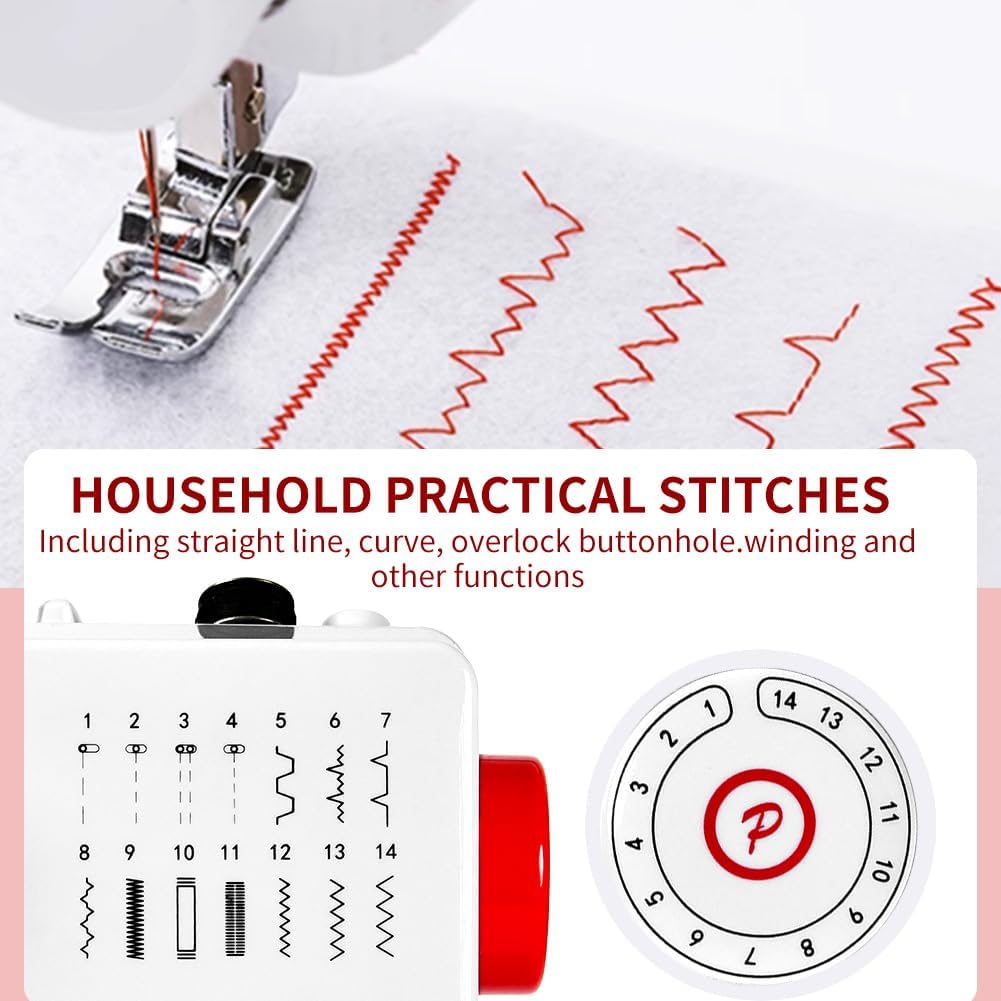

Figure 5: The stitch selection dial allows you to choose from 14 different household practical stitches, including straight lines, curves, and buttonholes.

The machine includes various stitch types suitable for different sewing needs, such as straight stitches, zigzag stitches, and a four-step buttonhole function.

Figure 6: Demonstrates the versatility of the 14 different types of straight lines and curves that can be sewn with this machine.

3. Sewing Techniques

• Starting to Sew: Place your fabric under the presser foot. Lower the presser foot lever. Gently press the foot pedal or use the automatic tailor fast/slow gear button to start sewing.
• Reverse Sewing: To reinforce stitches at the beginning and end of a seam, press and hold the backstitch button (refer to Figure 1) while sewing. Release the button to sew forward again.
• Speed Adjustment: Use the automatic tailor fast/slow gear button to switch between two sewing speeds.
• Handling Fabrics: This machine is designed to handle a variety of fabrics, including cotton, linen, cashmere, silk, denim, knitted fabrics, and leather.

Figure 7: The Uadme Model 728 can handle a variety of fabrics with ease, including cotton, linen, cashmere, silk, denim, knitted fabric, and leather fabric.

The machine is capable of sewing through up to 6 layers of thick fabric.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your sewing machine.

• Cleaning: Regularly clean lint and dust from the bobbin area and feed dogs using a small brush. Always unplug the machine before cleaning.
• Needle Replacement: Replace the needle frequently, especially if it becomes bent, dull, or if you notice skipped stitches. To replace, loosen the needle clamp screw, remove the old needle, insert a new needle with the flat side facing the back, and tighten the screw.
• Presser Foot Replacement: The presser foot is replaceable. To change, lift the presser foot lever, press the release button (if applicable), remove the old foot, and snap the new one into place.

Troubleshooting Guide

Refer to this section for solutions to common issues.

Specifications

Warranty and Support

Specific warranty information for the Uadme Model 728 Mini Electric Sewing Machine is not provided in this manual. For warranty details, product support, or to inquire about spare parts, please refer to the product packaging, the seller's website, or contact Uadme customer service directly.
