Pildegro PD-70S Smoke Detector with Heat Monitor User Manual

1. Introduction

Thank you for choosing the Pildegro PD-70S Smoke Detector with Heat Monitor. This device is designed to provide dual protection against fire hazards by detecting both smoke and abnormal heat rises. Its compact design and 10-year battery life offer reliable and hassle-free safety for your home or office. Please read this manual thoroughly before installation and use to ensure proper operation and safety.

2. Safety Information

• This device is intended for indoor use only.
• Do not paint the device. Paint may clog the openings and interfere with the sensor's ability to detect smoke or heat.
• Do not install in areas with high humidity, excessive dust, or near sources of combustion or extreme temperatures.
• Test the alarm regularly (at least once a month) to ensure proper functionality.
• Replace the battery immediately when a low battery alert is indicated.
• Never ignore any alarm. Investigate the cause immediately.
• In case of a non-fire alarm, press the Test/Mute button to silence it.
• The device features an anti-tamper alarm. If the back cover bracket separates from the main unit before proper installation, a yellow LED will flash and 3 beeps will sound every 40 seconds. This indicates improper installation or unauthorized disassembly.

3. Product Features

• Dual Protection: Combines high-precision photoelectric smoke detection with a smart heat monitor for comprehensive fire safety.
• Wide Coverage: Stable smoke detection in 16 directions, covering an area of 50m² (0.15 dB/m sensitivity).
• Heat Alarm: Triggers if heat exceeds 65°C (149°F) persistently, even without smoke, or enhances smoke detection with rapid temperature rises.
• Intuitive Alerts: Bright LED indicator and an 80dB loud alarm with increasing frequency as smoke levels rise.
• 10-Year Battery Life: Powered by a replaceable CR123A battery, offering long-term operation with minimal maintenance.
• Compact Design: Small and lightweight (3.00 oz, 2.78" x 2.78" x 1.14") for discreet placement.
• Hassle-Free Installation: Detachable snap-on bracket allows for easy setup using screws or the included double-sided adhesive pad.
• Mistake-Proofing Build: The bracket locks only after the battery is correctly installed, preventing improper setup.
• Anti-Tamper Alarm: Alerts users if the device is improperly removed from its bracket.

4. Package Contents

• Pildegro PD-70S Smoke Detector x1
• CR123A Battery (Pre-installed) x1
• Screws and Expansion Anchors x2
• Double-sided Adhesive Pad x1
• User Manual x1

Image: Contents of the Pildegro PD-70S package, showing the smoke detector, pre-installed CR123A battery, mounting screws, expansion anchors, double-sided adhesive pad, and user manual.

5. Setup and Installation

5.1 Battery Activation

1. Gently twist the top cover counter-clockwise to remove it from the main unit. Refer to the arrows on the back for "OPEN" and "CLOSE" indicators.
2. Locate the pre-installed CR123A battery. Remove the insulation tab from the battery compartment.
3. Ensure the battery is correctly seated with the positive (+) and negative (-) terminals aligned.
4. Replace the top cover by aligning the tabs and twisting clockwise until it locks securely.

Image: The Pildegro PD-70S smoke detector with its cover removed, revealing the CR123A battery and the internal components. This illustrates the battery installation process.

5.2 Mounting Location

Install the smoke detector in areas where smoke or heat is likely to be detected first, such as hallways, bedrooms, and living areas. Avoid installing near kitchens, bathrooms, or garages where steam, cooking fumes, or exhaust might cause false alarms. For optimal heat detection, consider placing it in areas where high-heat fires are a risk.

5.3 Mounting the Device

The detachable snap-on bracket allows for two installation methods:

1. Using Screws:
   • Mark the positions for drilling holes using the mounting bracket as a template.
   • Drill two holes and insert the expansion anchors.
   • Secure the mounting bracket to the wall or ceiling with the provided screws.
   • Align the smoke detector with the mounted bracket and twist clockwise until it clicks into place.
2. Using Adhesive Pad:
   • Ensure the mounting surface is clean, dry, and smooth.
   • Peel off the protective film from one side of the double-sided adhesive pad and attach it to the back of the mounting bracket.
   • Peel off the remaining protective film and firmly press the bracket onto the desired mounting location for at least 30 seconds.
   • Align the smoke detector with the mounted bracket and twist clockwise until it clicks into place.

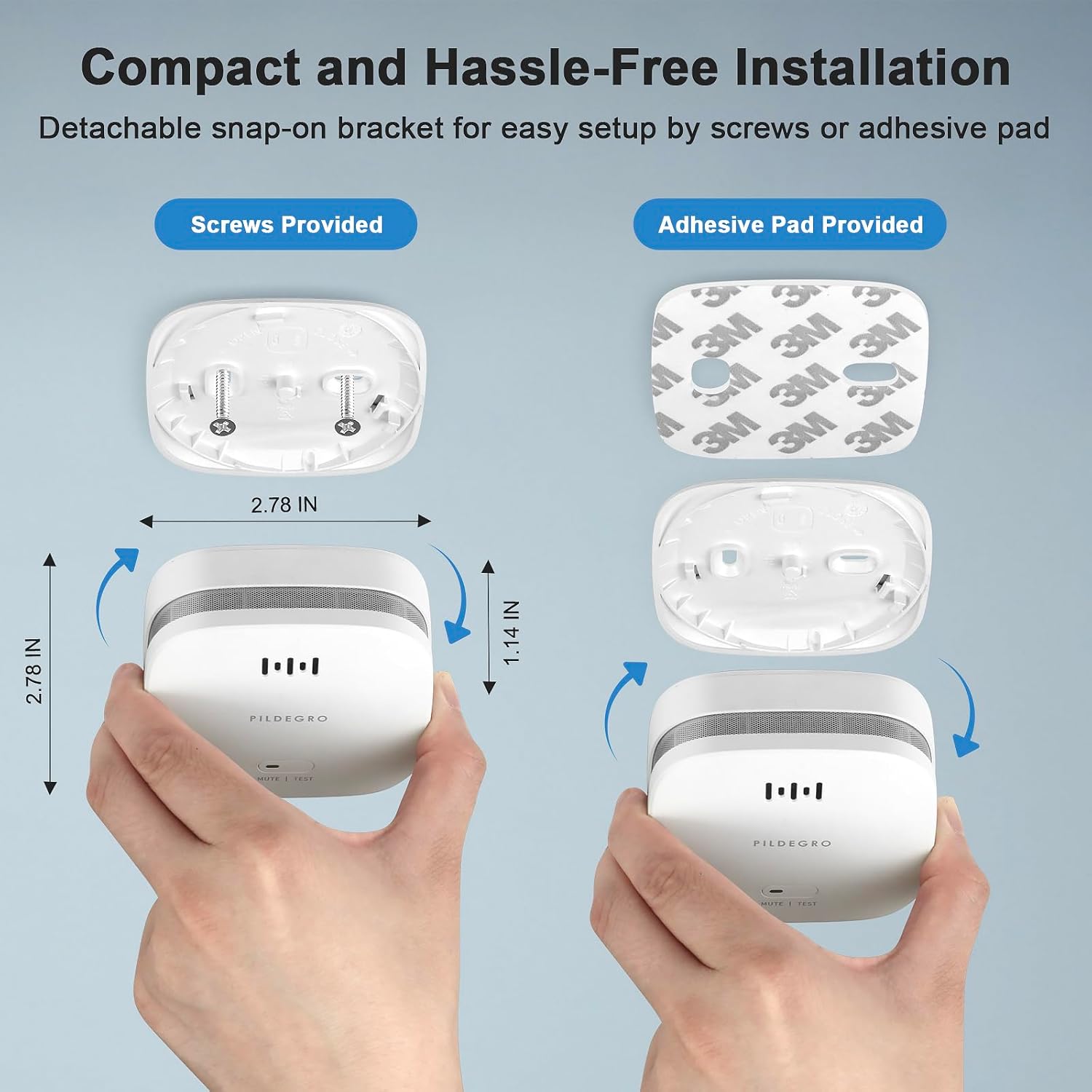

Image: Visual guide demonstrating how to install the Pildegro PD-70S smoke detector using either screws and expansion anchors or a double-sided adhesive pad. The image highlights the detachable snap-on bracket.

The device's bracket is designed to lock only after the battery is installed, preventing incorrect setup.

6. Operating Instructions

6.1 Self-Test Function

Press and hold the "Mute | Test" button for a few seconds. The device will emit a loud alarm sound and the LED indicator will flash, confirming that the alarm is functioning correctly. Release the button to stop the alarm.

6.2 Alarm Indications

Image: An overview of the Pildegro PD-70S's key features, including its dual smoke and heat detection, 10-year battery, LED indicator, 80dB alarm, and test/mute button.

7. Maintenance

7.1 Cleaning

Regularly clean the device to prevent dust or debris buildup, which can affect sensor performance. Use a soft cloth to wipe the exterior. Do not use liquids or cleaning sprays directly on the device.

7.2 Battery Replacement

When the device indicates a low battery alert (yellow LED flashes and 3 short beeps every 40 seconds), replace the CR123A battery immediately. To replace the battery:

1. Twist the top cover counter-clockwise to remove it.
2. Remove the old CR123A battery.
3. Insert a new CR123A battery, ensuring correct polarity (+/-).
4. Replace the top cover by aligning the tabs and twisting clockwise until it locks securely.
5. Test the alarm after battery replacement to confirm proper operation.

Image: Details on the 10-year battery life, the replaceable CR123A battery, the test/mute button, and the mistake-proofing bracket design that ensures proper battery installation before mounting.

8. Troubleshooting

9. Specifications

• Model: PD-70S
• Brand: Pildegro
• Power Source: Battery Powered (1 x CR123A, 3V)
• Battery Life: Up to 10 years (standby)
• Sensor Type: Photoelectric (Smoke) + Temperature (Heat)
• Smoke Sensitivity: 0.15 dB/m
• Heat Alarm Threshold: 65°C (149°F)
• Alarm Volume: 80dB at 3 meters
• Product Dimensions: 1.14"D x 2.78"W x 2.78"H
• Item Weight: 3.04 ounces
• Material: ABS
• Color: White/Classic
• Operating Temperature: -10°C to +55°C
• Operating Humidity: ≤95% RH (non-condensing)

10. Warranty and Support

Pildegro provides a 12-month service for this product. For any questions, concerns, or technical assistance, please contact our customer support team. We are committed to ensuring your satisfaction and safety.

Manufacturer: Shenzhen Tiramik Technology Co., Ltd

Address: 2001, Block B, Building 3, Kangqiao Road, Shangyuan, 4568 Bao'an Avenue, Guxing Community, Xixiang Street, Bao'an District, Shenzhen

For the most up-to-date support information, please refer to the official Pildegro website or contact your retailer.
