Ranbomer Single Serve Coffee Maker User Manual

Introduction

Thank you for choosing the Ranbomer Single Serve Coffee Maker. This appliance is designed for convenient and efficient brewing of both K-Cup pods and ground coffee. Please read this manual thoroughly before operation to ensure proper use, maintenance, and to maximize the lifespan of your coffee maker.

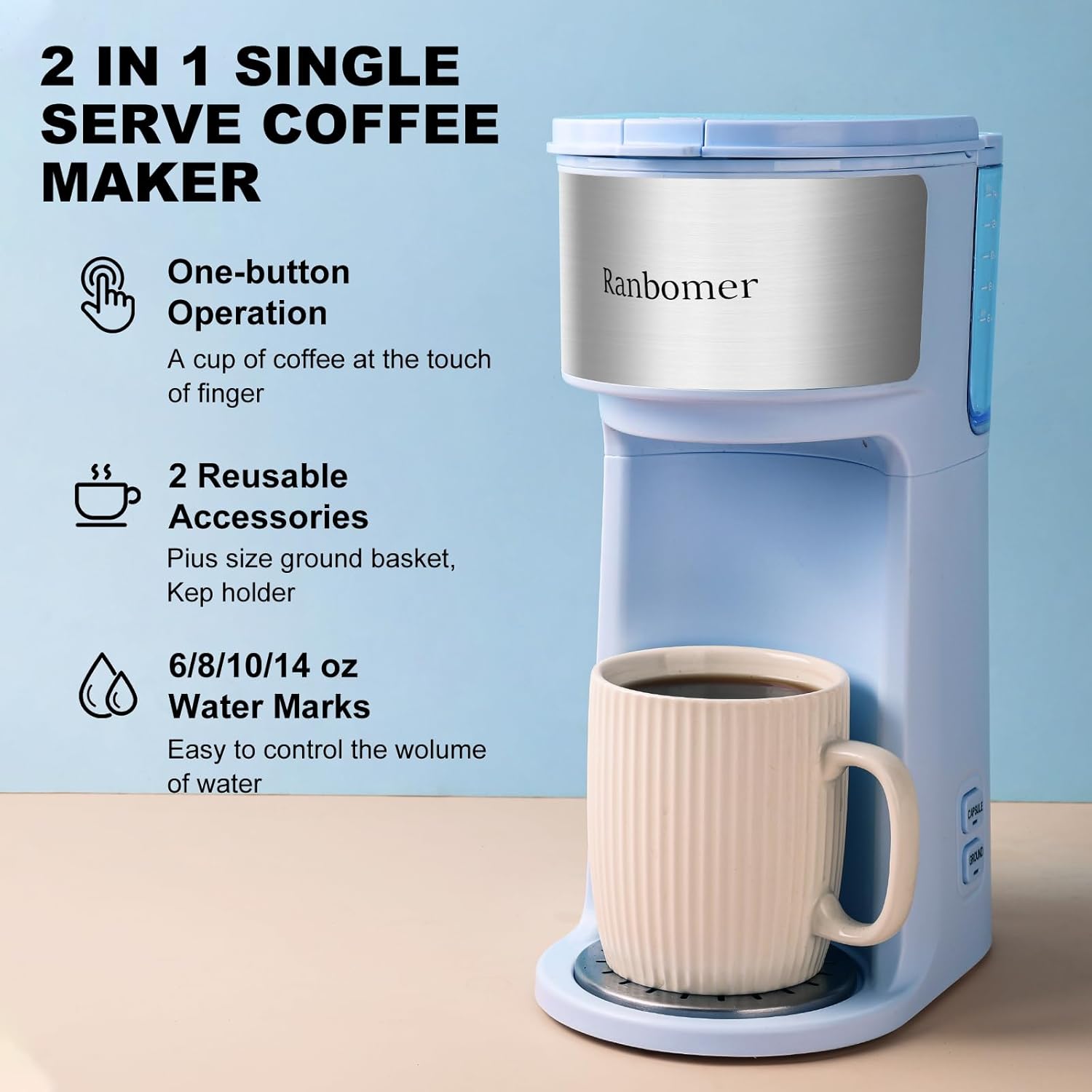

Image: The Ranbomer Single Serve Coffee Maker, highlighting its 2-in-1 functionality for K-Cup and ground coffee, with water level markings on the side.

Important Safety Information

Please observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.
• Ensure the appliance is placed on a stable, level surface during operation.
• The water tank is not detachable. Do not attempt to remove it.

Image: Certification logo indicating the product is BPA Free.

Product Overview

Familiarize yourself with the components of your Ranbomer Single Serve Coffee Maker:

• Water Reservoir: Integrated tank with clear markings for 6, 8, 10, 12, and 14 oz brew sizes.
• Lid: Covers the water reservoir and brewing chamber.
• Brewing Chamber: Area where K-Cup pods or the ground coffee basket are placed.
• K-Cup Holder: Removable holder for K-Cup pods.
• Ground Coffee Basket: Reusable filter basket for ground coffee.
• Drip Tray: Removable tray to catch drips and support various mug sizes.
• Control Buttons: "CAPSULE" button for K-Cup brewing and "GROUND" button for ground coffee brewing.
• Power Cord: For connecting to an electrical outlet.

Image: The coffee maker shown with its accessories, including a K-Cup pod, ground coffee, and the reusable ground coffee filter basket.

Image: A detailed view of the "Plus Size Brew Basket" designed for ground coffee, capable of holding up to 25g (0.88oz).

Setup

Before first use, follow these steps:

1. Unpack: Carefully remove all packaging materials and inspect the coffee maker for any damage.
2. Clean: Wash the removable drip tray, K-Cup holder, and ground coffee basket with warm, soapy water. Rinse thoroughly and dry.
3. First Rinse Cycle:
   • Ensure the coffee maker is unplugged.
   • Open the lid and fill the water reservoir with clean water up to the MAX (14 oz) line.
   • Close the lid securely.
   • Place a large mug (at least 14 oz capacity) on the drip tray.
   • Plug the coffee maker into a grounded electrical outlet.
   • Press either the "CAPSULE" or "GROUND" button to start a brew cycle without coffee. This will flush the internal components.
   • Discard the hot water.
4. Your coffee maker is now ready for use.

Image: Illustrates the process of pouring water into the integrated water reservoir of the coffee maker.

Image: An internal view of the coffee maker's water tank, emphasizing its non-detachable design.

Operating Instructions

Your Ranbomer coffee maker offers two brewing options:

Brewing with K-Cup Pods:

1. Fill Water: Open the lid and fill the water reservoir with fresh water to your desired brew size (6, 8, 10, 12, or 14 oz). Do not exceed the MAX line.
2. Insert K-Cup: Place a K-Cup pod into the K-Cup holder. Ensure it is seated correctly.
3. Close Lid: Close the lid firmly until it clicks.
4. Place Mug: Position your coffee mug on the drip tray.
5. Brew: Press the "CAPSULE" button. The indicator light will illuminate, and brewing will begin.
6. Enjoy: Once brewing is complete, the light will turn off. Carefully remove your mug.

Brewing with Ground Coffee:

1. Fill Water: Open the lid and fill the water reservoir with fresh water to your desired brew size (6, 8, 10, 12, or 14 oz). Do not exceed the MAX line.
2. Add Ground Coffee: Open the reusable ground coffee basket and fill it with your preferred ground coffee. Do not overfill; ensure the lid can close properly.
3. Insert Basket: Place the filled ground coffee basket into the brewing chamber.
4. Close Lid: Close the lid firmly until it clicks.
5. Place Mug: Position your coffee mug on the drip tray.
6. Brew: Press the "GROUND" button. The indicator light will illuminate, and brewing will begin.
7. Enjoy: Once brewing is complete, the light will turn off. Carefully remove your mug.

Note: A 12 oz brew cycle typically takes approximately 120 seconds to complete.

Image: A hand initiating a brew cycle by pressing the "CAPSULE" button on the coffee maker.

Image: A close-up view of a finger pressing one of the coffee maker's brew selection buttons.

Image: A detailed shot of the "CAPSULE" and "GROUND" buttons, showing their illuminated indicator lights during operation.

Maintenance

Regular cleaning and maintenance will ensure optimal performance and longevity of your coffee maker.

Daily Cleaning:

• Drip Tray: Remove and empty the drip tray after each use. Wash with warm, soapy water and dry thoroughly.
• K-Cup Holder/Ground Basket: After each use, remove and rinse the K-Cup holder or ground coffee basket. Wash with warm, soapy water as needed.
• Exterior: Wipe the exterior of the coffee maker with a damp cloth. Do not use abrasive cleaners.

Descaling (Recommended Monthly or Bi-Monthly):

Mineral deposits from water can build up over time, affecting performance. Descaling helps remove these deposits.

1. Prepare Solution: Mix 1 cup of white vinegar with 2 cups of water.
2. Fill Reservoir: Pour the vinegar solution into the water reservoir up to the 14 oz line.
3. Run Cycles: Place a large mug on the drip tray. Run several brew cycles (without coffee) until the reservoir is empty.
4. Rinse Cycles: Fill the reservoir with fresh, clean water and run several more brew cycles to rinse out any remaining vinegar solution.
5. Repeat the rinse cycles until no vinegar smell remains.

Note: The coffee maker has a self-cleaning function. Refer to the product's specific instructions for activating this feature if available, or follow the manual descaling process above.

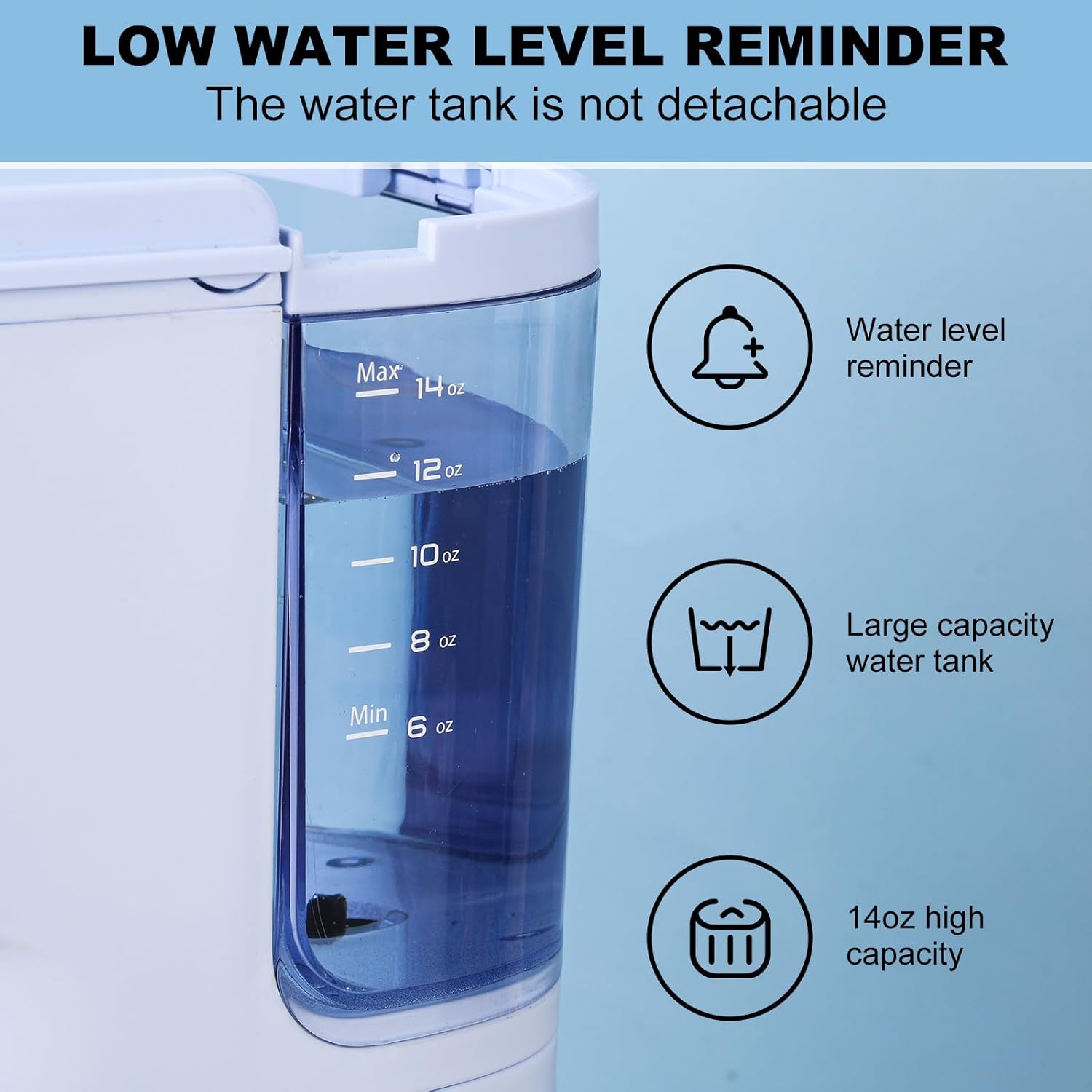

Image: The water reservoir with clear markings for various brew sizes (6-14 oz) and an icon indicating a low water level reminder.

Troubleshooting

If you encounter issues with your coffee maker, refer to the following common problems and solutions:

Specifications

• Model: CMK1030
• Brand: Ranbomer
• Product Dimensions: 5.1 x 7.3 x 11.8 inches
• Item Weight: 2.61 pounds
• Operation Mode: Fully Automatic
• Brew Sizes: 6, 8, 10, 12, 14 oz
• Compatibility: K-Cup pods and Ground Coffee
• Material: BPA Free certified components

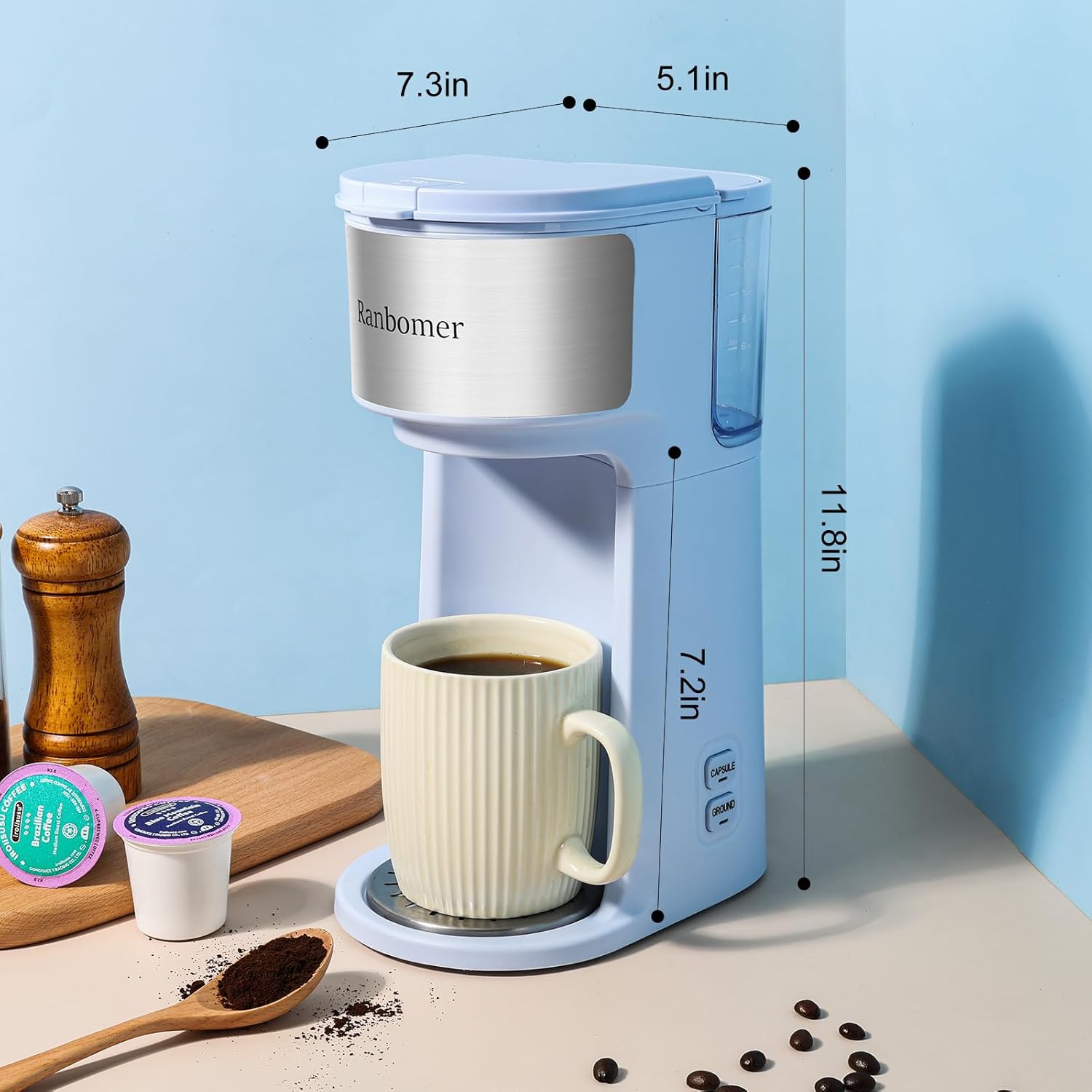

Image: The Ranbomer coffee maker with its physical dimensions clearly marked for reference.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Ranbomer website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact Ranbomer customer service through their official channels.
