Introduction
Introducing the all-new WYBOT F1 (2025)—a smart, high-tech robotic pool skimmer designed to efficiently remove debris from pool surfaces, purify water quality, and restore pools to a pristine condition. Compatible with pools of all shapes, it connects to an app for real-time indoor monitoring, ensuring effortless maintenance and top-tier performance.
Safety Information
- Prohibition of Solar Charging On Shore: Do not charge the device using solar power while it is out of the water. Ensure the robot is in the pool for solar charging.
- Always ensure the charging port is securely sealed before placing the robot in water.
- Keep hands and loose clothing away from moving parts during operation.
- Store the robot in a cool, dry place when not in use.
What's in the Box
Upon opening the package, you will find the following components:
Image: The WYBOT F1 robotic pool skimmer with its solar panel visible, alongside a smartphone displaying the companion app interface. This image shows the main unit and its digital control.
- WYBOT F1 Robotic Pool Skimmer (Main Unit)
- User Manual & Quick Start Guide
- Retrieval Hook (for easy removal from pool)
- Charging Cable (Note: DC charger may not be included and might need to be purchased separately based on some user experiences.)
- Debris Basket (7-liter capacity)
Product Overview
The WYBOT F1 is equipped with advanced features for efficient pool surface cleaning:
- Solar-Powered: Features 33W high-efficiency solar panels for automatic charging, extending operational time.
- App Remote Control: Bluetooth and WiFi connectivity for real-time monitoring, navigation, activation, docking, and customizable cleaning paths.
- Dual Cleaning Modes: Offers Smart Mode (24 hours with 10-min work/10-min rest cycle) and Standard Mode (8 hours continuous).
- Dual Edge-Hugging Technology: Advanced algorithms for obstacle avoidance and precision cleaning along edges and corners.
- Anti-Backflow/Leakage Design: Built-in baffle prevents debris and water backflow, ensuring zero-tangle operation.
- Durable & Weather-Resistant: Constructed with UV-resistant materials and a motor tested for saltwater/chlorine resistance.
- Superior Debris Handling: 7-liter oversized filter basket with 180μm filtration mesh for large volumes of debris and enhanced water clarity.
Image: A visual representation of the WYBOT F1's app connection features, showing battery level, start/stop, docking, and remote control options for precise and efficient cleaning.

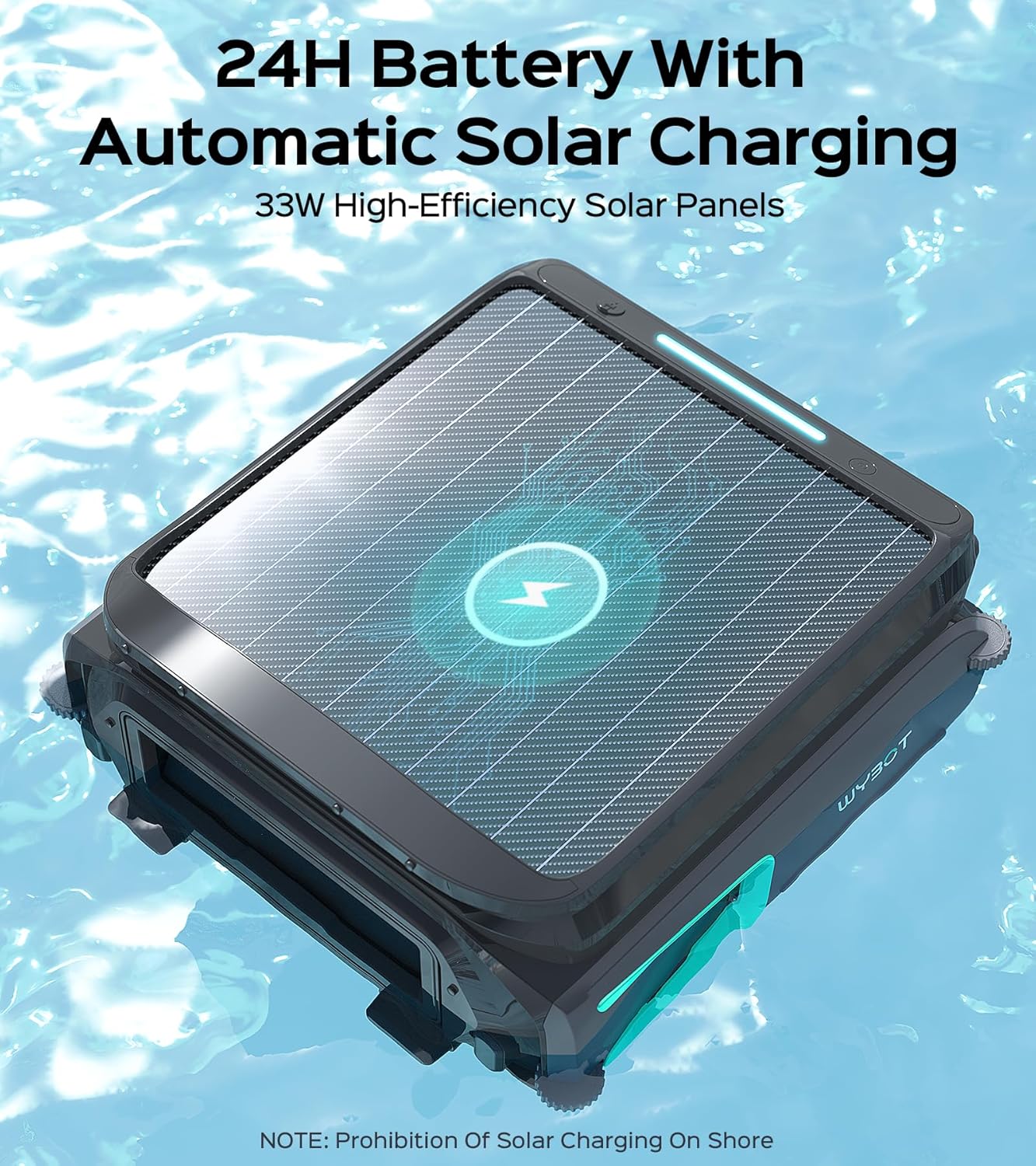

Image: The WYBOT F1 floating in a pool, highlighting its 33W high-efficiency solar panels for automatic 24-hour battery charging. A note emphasizes not to charge on shore.
Image: The WYBOT F1 skimmer in action on a pool surface, illustrating its effectiveness in collecting various debris types such as leaves, pet hair, twigs, and dead bugs.
Image: A close-up of the WYBOT F1 highlighting its durable anti-UV material and salt-tolerant motors, emphasizing its reliability in various pool conditions.

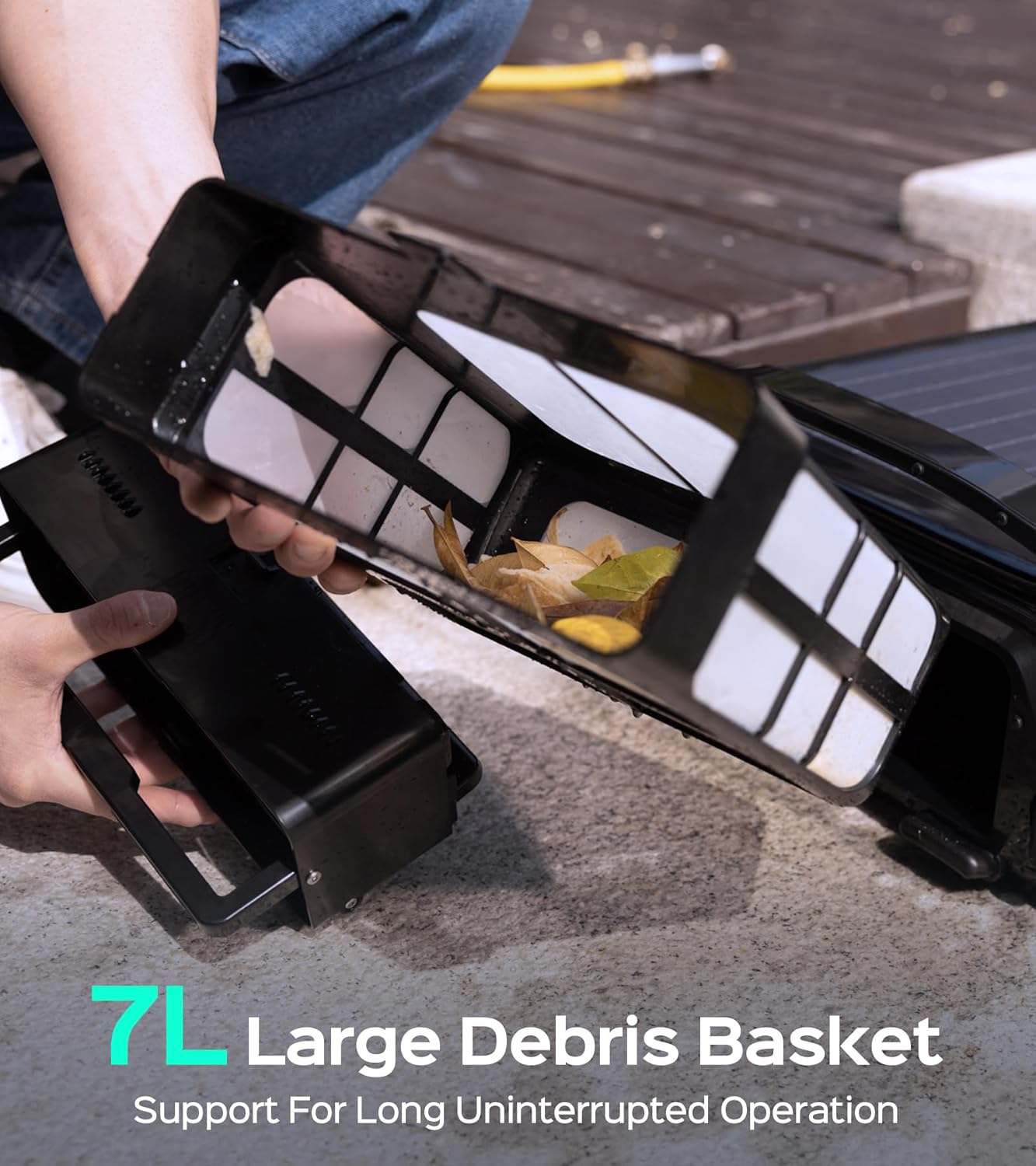

Image: A person demonstrating the removal and capacity of the WYBOT F1's 7-liter oversized debris basket, showing collected leaves and emphasizing support for long uninterrupted operation.

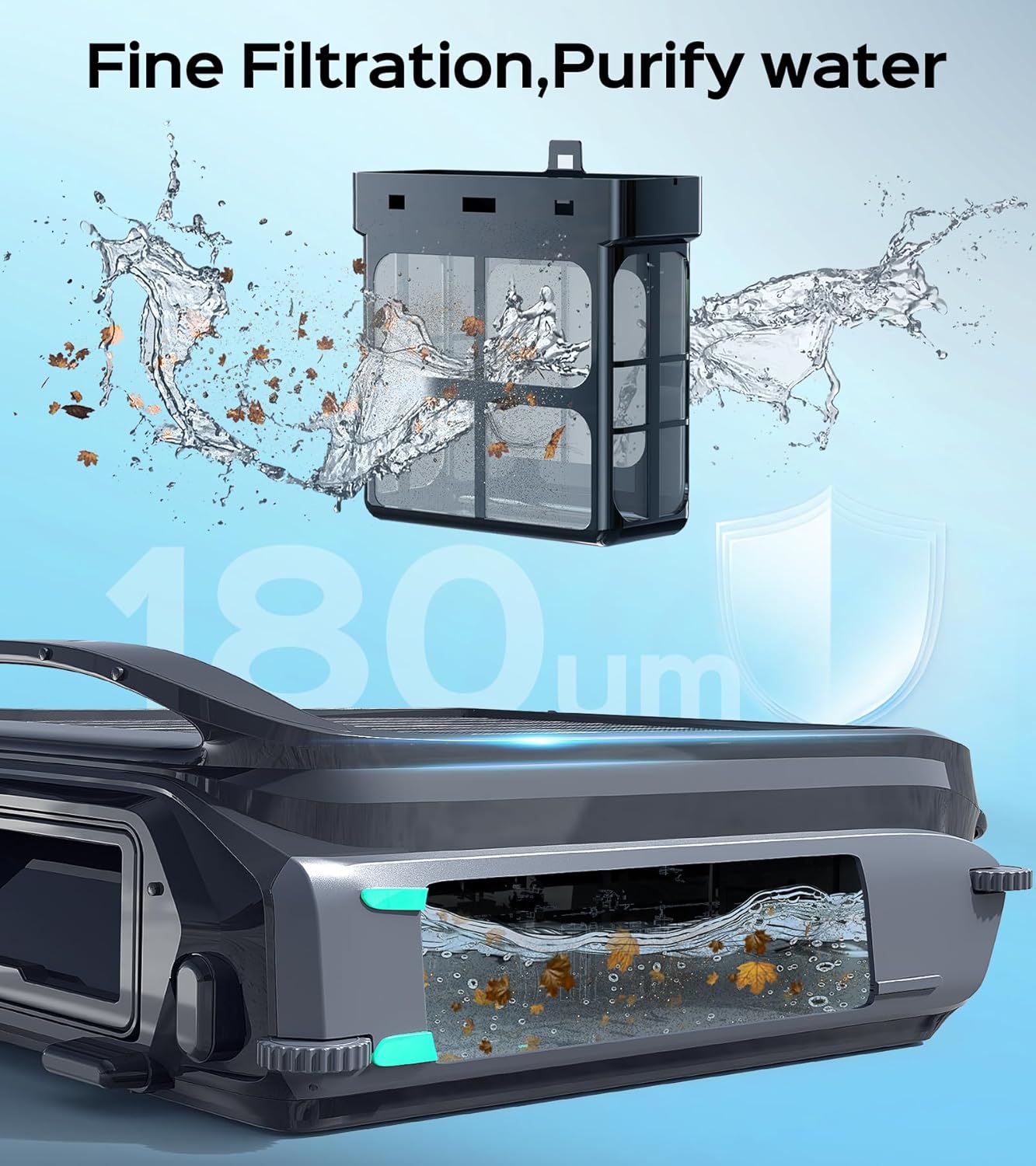

Image: An illustration detailing the WYBOT F1's fine filtration system, showcasing its 180μm filtration mesh designed to purify water by capturing microscopic particles.
Image: Two WYBOT F1 units in a pool, illustrating the automatic obstacle avoidance feature with rapid sensing and autonomous extrication capabilities.
Image: A diagram showing the adjustable anti-stranding setting of the WYBOT F1, designed for shallow water protection, with a close-up of the adjustable mechanism (0-1.2 inches).
Setup Guide
- Unboxing: Carefully remove all components from the packaging. Verify all items listed in the "What's in the Box" section are present.
- Initial Charge: Before first use, ensure the WYBOT F1 is fully charged. Connect the provided charging cable to the robot's charging port. The indicator lights will show charging status.
- App Connection: Download the WYBOT app from your device's app store. Follow the in-app instructions to connect your F1 robot via Bluetooth and WiFi. This enables remote control and monitoring.
- Placement in Pool: Gently place the WYBOT F1 onto the surface of your pool. Ensure it floats freely and is not obstructed.
Operating Modes
The WYBOT F1 offers two primary cleaning modes:
- Smart Mode (Default): In this mode, the robot operates for 24 hours with a cycle of 10 minutes of work followed by 10 minutes of rest. This mode is designed for continuous, energy-efficient cleaning.
- Standard Mode: For continuous cleaning, select Standard Mode. The robot will run continuously for up to 8 hours on a full charge.
You can switch between modes and control the robot's movement using the dedicated mobile application.
Maintenance
Regular maintenance ensures optimal performance and longevity of your WYBOT F1:
- Emptying the Debris Basket: Regularly check and empty the 7-liter debris basket. To remove, unlatch the basket from the robot and dispose of collected debris. Rinse the basket and filter mesh thoroughly with clean water. Ensure it is dry before reinserting.
- Cleaning the Robot: Periodically wipe down the exterior of the robot with a soft, damp cloth. Avoid using harsh chemicals.
- Charging Port: Ensure the charging port cover is clean and securely sealed when not charging to prevent water ingress.
- Storage: When storing the robot for extended periods, ensure it is clean, dry, and fully charged. Store in a cool, dry place away from direct sunlight.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Robot not charging via solar. | Insufficient sunlight; robot not in water; dirty solar panel. | Ensure direct sunlight exposure in the pool. Clean the solar panel. Verify the robot is in the water. |
| Robot stops frequently or has short run time. | Low battery; debris basket full; Smart Mode active. | Fully charge the robot. Empty and clean the debris basket. Check if Smart Mode (10-min work/10-min rest) is enabled. |
| Debris basket difficult to reinsert. | Misalignment or debris obstruction. | Ensure the basket is correctly aligned with the internal guides. Apply firm, even pressure. Clear any obstructions. |
| Charging port cover is loose. | Wear and tear; improper sealing. | Ensure the cover is fully inserted and sealed. Contact customer support if it remains loose or compromised. |
| Robot not avoiding obstacles. | Sensor obstruction or malfunction. | Clean the robot's sensors. If the issue persists, contact customer support. |
Specifications
- Model: WYBOT-F1
- Power Source: Battery Powered (1 Lithium Polymer battery included)
- Battery Energy Content: 57 Watt Hours
- Charging Time: 5 Hours (via cable)
- Special Feature: Self Propelled, App Control, Smart Obstacle Avoidance, Edge Cleaning
- Debris Basket Capacity: 7 Liters
- Filtration Mesh: 180µm
- Product Dimensions: 17"L x 8"W x 16"H
- Item Weight: 20.1 pounds
- Material: Plastic
- Color: Green in Black
Warranty and Support
The WYBOT F1 is backed by a 12-month maintenance service for added reliability.
For technical support, warranty claims, or further assistance, please refer to the contact information provided in your product's quick start guide or visit the official WYBOT website.
For additional information and resources, you may visit the WYBOT Store on Amazon.
