Aequanta Pallet Jack Instruction Manual

1. Product Overview

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Aequanta 5500-Lb Capacity Pallet Truck. Please read this manual thoroughly before initial use to ensure proper handling and to maximize the lifespan of your equipment.

Figure 1.1: Aequanta 5500-Lb Capacity Pallet Jack (Model P-1007)

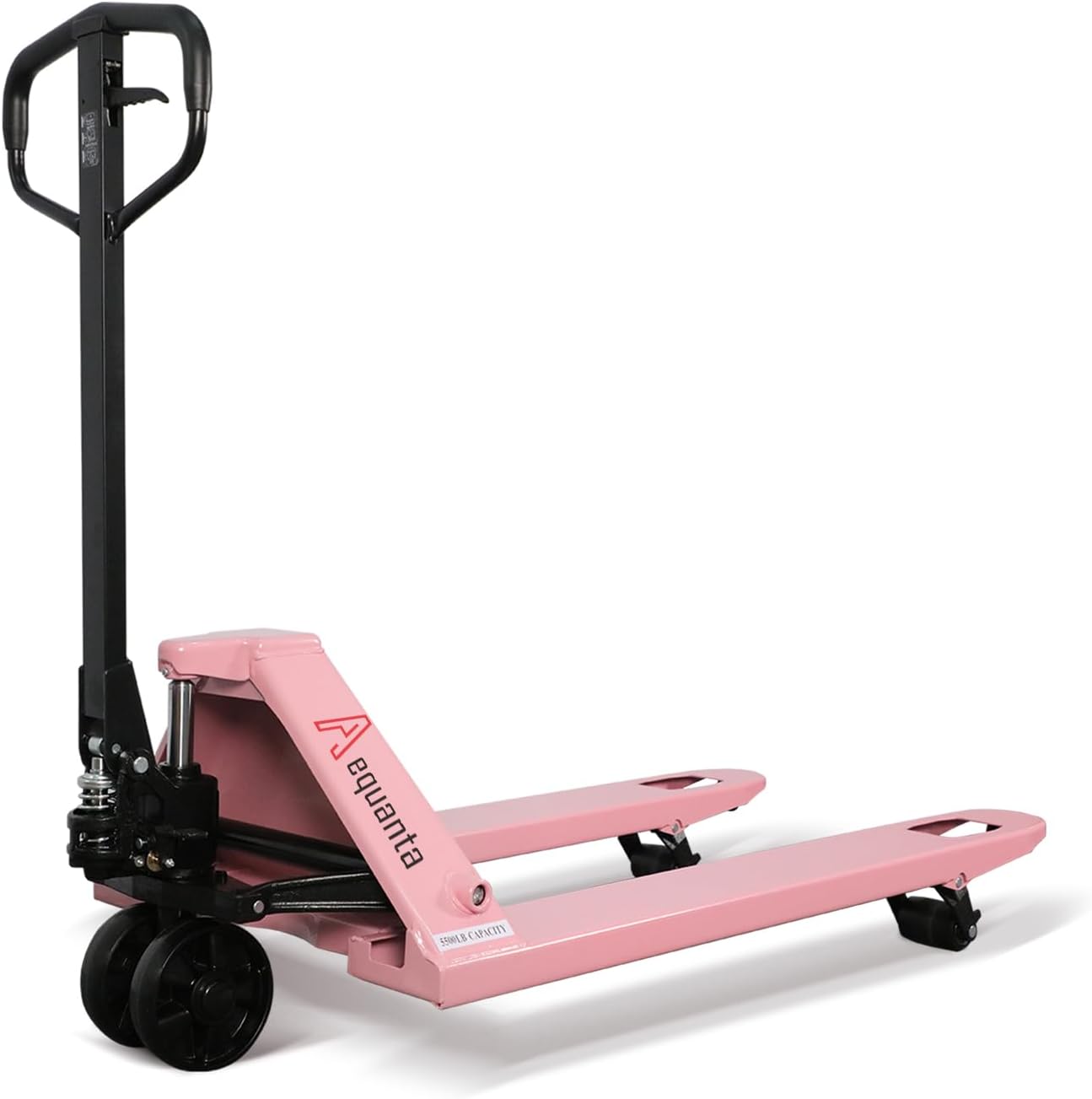

This image shows the complete Aequanta pallet jack, highlighting its pink color and robust design, ready for industrial use.

2. Safety Information

Always prioritize safety when operating the pallet jack. Failure to follow these guidelines may result in injury or damage to the equipment.

• Load Capacity: Do not exceed the maximum load capacity of 5500 lbs. Overloading can cause structural damage and instability.
• Stable Loads: Ensure loads are stable and centered on the forks before lifting or moving.
• Clear Path: Always ensure a clear path free of obstructions, personnel, and uneven surfaces.
• Proper Footwear: Wear appropriate safety footwear to protect against potential foot injuries.
• Controlled Lowering: Utilize the controllable fork lowering speed to prevent sudden drops and damage to goods.
• Overload Valve: The integrated overload valve is designed to prevent overloading. Do not attempt to bypass or tamper with this safety feature.
• Handle Installation: The handle is separately packaged for transportation protection. Ensure it is securely installed before operation.

3. Components and Features

Familiarize yourself with the main components and features of your Aequanta Pallet Jack.

•

  3.1 Key Dimensions

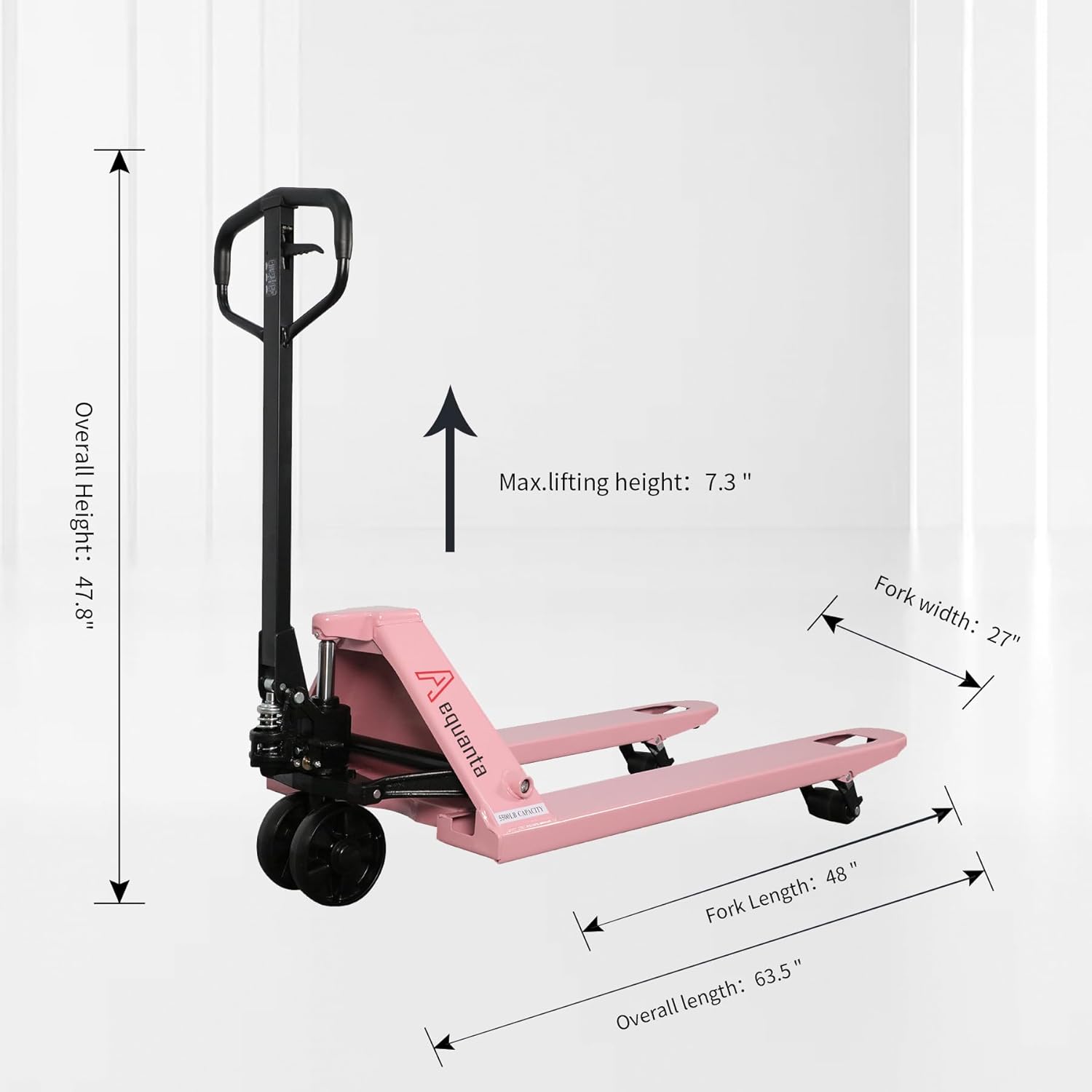

  This image illustrates the overall height (47.8"), max lifting height (7.3"), fork width (27"), and overall length (63.5") of the pallet jack, crucial for understanding its operational footprint.

•

  3.2 Fork Specifications

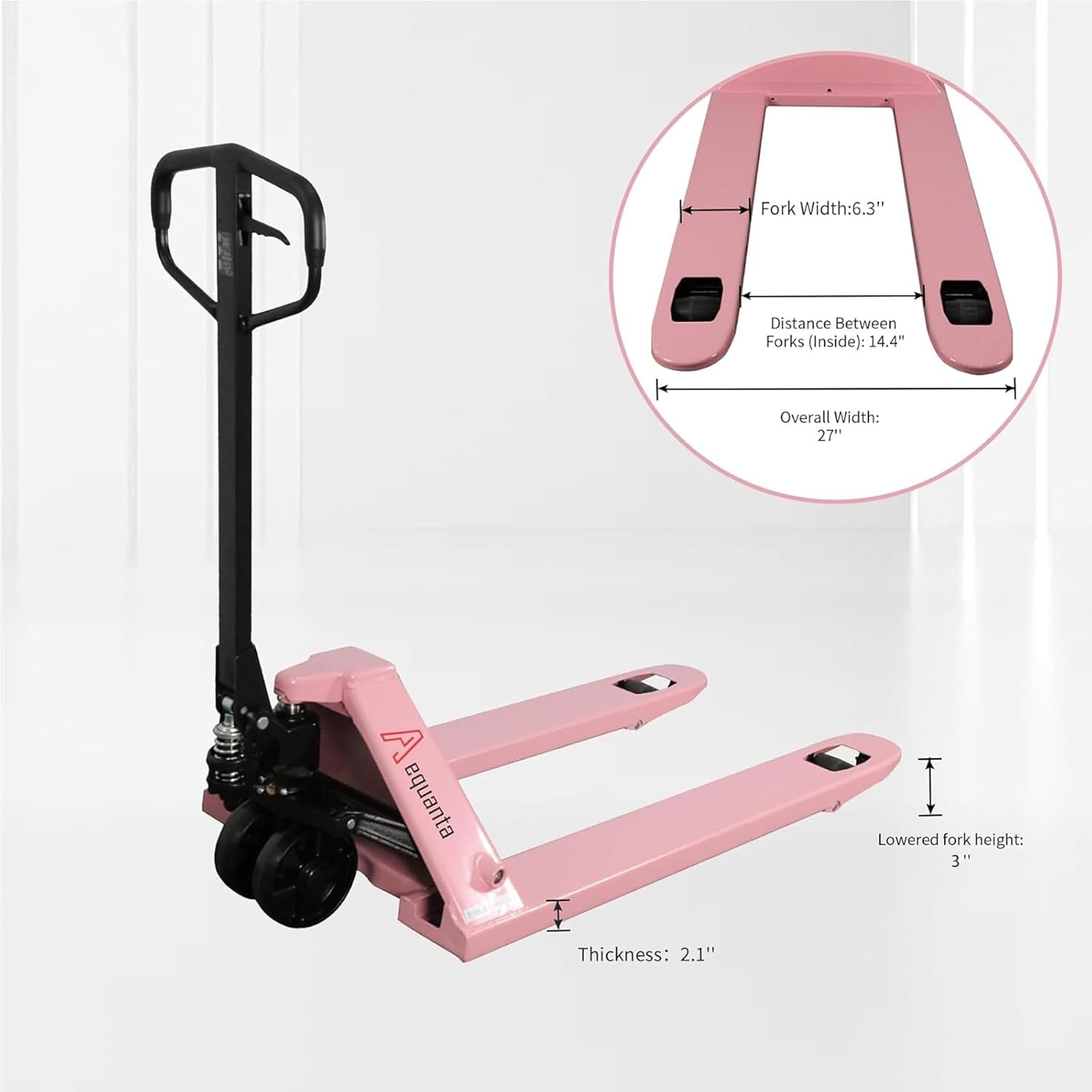

  Detailed view of the forks, showing fork width (6.3"), distance between forks (14.4"), overall width (27"), lowered fork height (3"), and thickness (2.1"). These dimensions are vital for compatibility with various pallet types.

•

  3.3 Hydraulic System

  Features an integrated pump and a dependable hydraulic system designed to prevent oil leaks, ensuring reliable performance. The image highlights the hand-operated hydraulic valve and the welding oil pump.
•

  3.4 One-Piece Leak-Proof Cast Hydraulic Pump

  This image emphasizes the robust, one-piece cast hydraulic pump, designed for durability and to prevent leaks, contributing to the long-term reliability of the pallet jack.

•

  3.5 Robust Welded Frame

  The frame features smooth welding for enhanced strength and durability, ensuring the pallet jack can withstand rigorous industrial use.

•

  3.6 Guide Rollers

  The front end of the forks is designed with guide rollers for easy entry and exit from various pallets, reducing effort and preventing damage.

4. Setup and Assembly

The pallet jack handle is separately packaged for protection during transportation and requires self-installation.

1. Unpack Components: Carefully remove all components from the packaging. Verify that all parts are present according to the packing list (not provided in this manual, refer to product packaging).
2. Attach Handle: Align the handle assembly with the main body of the pallet jack. Insert the handle into the designated slot on the pump housing.
3. Secure Handle: Secure the handle using the provided pins or bolts. Ensure it is firmly attached and does not wobble.
4. Check Hydraulic Fluid: Verify the hydraulic fluid level. If low, consult the maintenance section for proper fluid type and refilling procedure.
5. Test Controls: Before first use, test the 3-position hand control (Raise, Lower, Neutral) and the foot pedal to ensure proper functionality of the lifting and lowering mechanisms.

5. Operating Instructions

Follow these steps for safe and effective operation of your pallet jack.

5.1 Lifting a Load

1. Position Forks: Lower the forks completely by setting the hand control to the "Lower" position or pressing the foot pedal. Carefully slide the forks under the pallet, ensuring they are fully inserted and centered. The guide rollers on the fork tips assist with easy entry.
2. Engage Lift: Set the hand control to the "Raise" position.
3. Pump Handle: Pump the handle up and down to lift the forks and the load. Continue pumping until the pallet is clear of the ground and ready for transport.

5.2 Moving a Load

1. Neutral Position: Once the load is lifted, set the hand control to the "Neutral" position. This disengages the hydraulic pump and allows for easy steering.
2. Transport: Pull or push the pallet jack to the desired location. The 52.9" small turning radius allows for efficient work in tight spaces.
3. Maintain Control: Always maintain a firm grip on the handle and be aware of your surroundings.

Figure 5.1: Pallet Jack in Operation

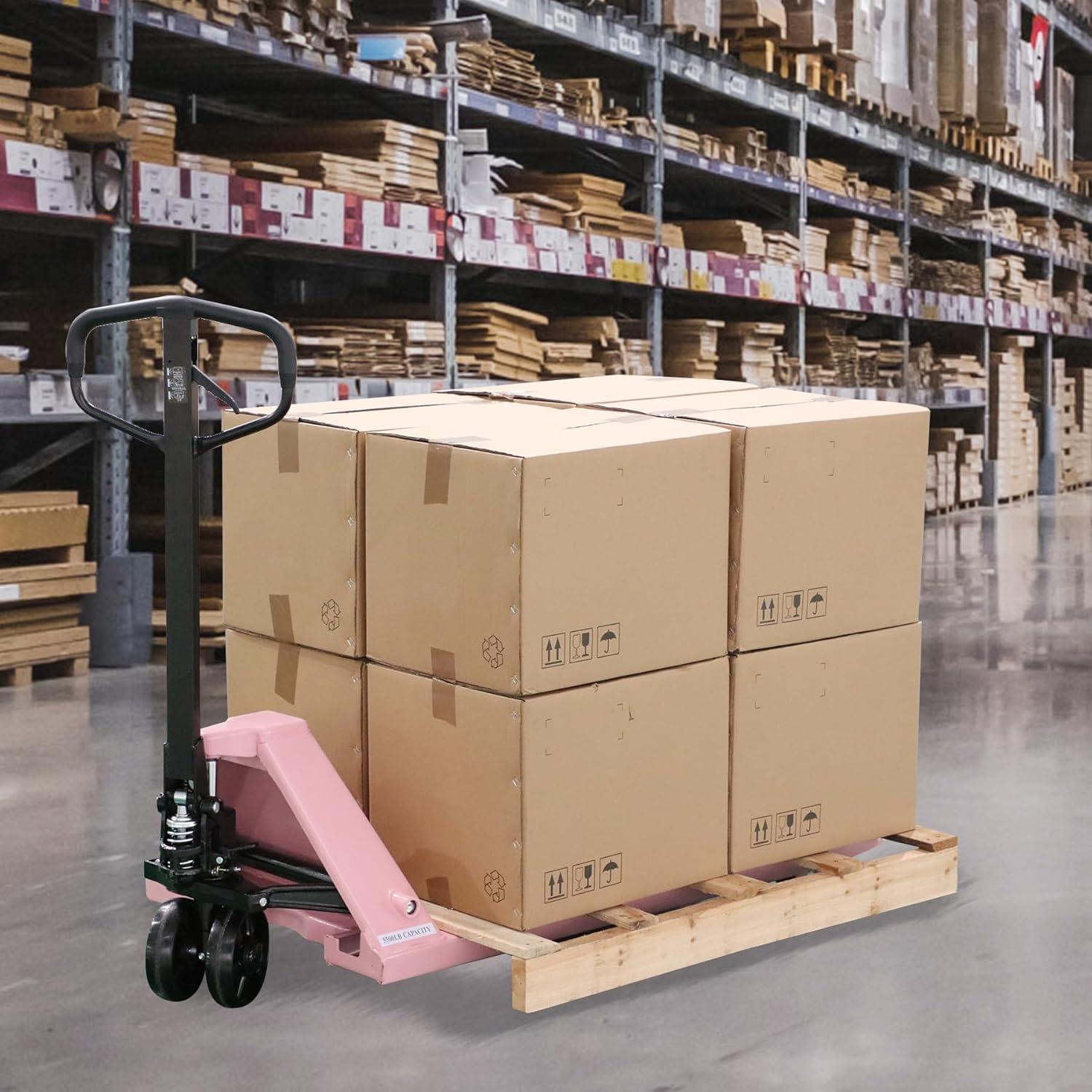

This image demonstrates the pallet jack being used to transport stacked boxes on a wooden pallet within a warehouse environment.

5.3 Lowering a Load

1. Position Load: Carefully position the load over its destination.
2. Lower Control: Set the hand control to the "Lower" position. The forks will descend. The lowering speed is controllable, allowing for gentle placement. Alternatively, use the foot pedal for lowering.
3. Clear Forks: Once the load is fully on the ground, pull the pallet jack away, ensuring the forks are clear of the pallet.

5.4 Operational Video

Watch the official product video for a visual guide on operating the Aequanta Pallet Jack, demonstrating key features and usage scenarios.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pallet jack.

• Lubrication: Periodically lubricate all moving parts, including wheels, bearings, and pivot points, with appropriate grease or oil.
• Hydraulic Fluid Check: Check the hydraulic fluid level regularly. If low, refill with high-quality hydraulic oil (e.g., ISO VG 32 or equivalent). Consult a qualified technician if frequent refilling is required, as this may indicate a leak.
• Wheel Inspection: Inspect wheels for wear, damage, or debris. Clean or replace as necessary to ensure smooth movement.
• General Cleaning: Keep the pallet jack clean and free of dirt, dust, and corrosive materials.
• Bolt and Fastener Check: Periodically check all bolts, nuts, and fasteners for tightness. Tighten any loose components.

7. Troubleshooting

This section addresses common issues you might encounter with your pallet jack.

8. Specifications

9. Warranty and Support

Aequanta is committed to providing high-quality products and customer satisfaction.

• Returns: This product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for detailed instructions.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact Aequanta customer support through the platform where you purchased the product or visit the official Aequanta store page.
• Protection Plans: Extended protection plans may be available for purchase. Check product listing for details.

For more information, visit the Aequanta Store on Amazon.
