XINJISHIMIN Replacement Remote Control User Manual

Introduction

This manual provides comprehensive instructions for the XINJISHIMIN Replacement Remote Control, model C124110901D15. This remote is specifically designed as a replacement for the Paramount Electric Fireplace model DBL-2000-MS. It features oversized buttons for enhanced usability and requires no programming for immediate operation.

Please read this manual thoroughly before using your new remote control to ensure proper function and longevity.

Setup

Battery Installation

The remote control requires two (2) AAA 1.5V batteries (not included). Follow these steps to install the batteries:

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the latch (if present) to open the compartment.
3. Insert two AAA 1.5V batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Replace the battery compartment cover by sliding it back into place until it clicks securely.

Figure 1: Battery compartment for AAA 1.5V batteries. Ensure correct polarity when inserting.

For optimal performance, use new, high-quality AAA batteries. The design of this remote control supports a battery life of approximately 3-5 years with standard AAA 1.5V batteries, offering a longer lifespan compared to older coin cell designs.

Figure 2: Battery type comparison, highlighting the extended life of AAA batteries.

Operating Instructions

This remote control is designed for straightforward operation with your Paramount Electric Fireplace DBL-2000-MS. No complex programming is required; simply install batteries and point the remote towards the fireplace.

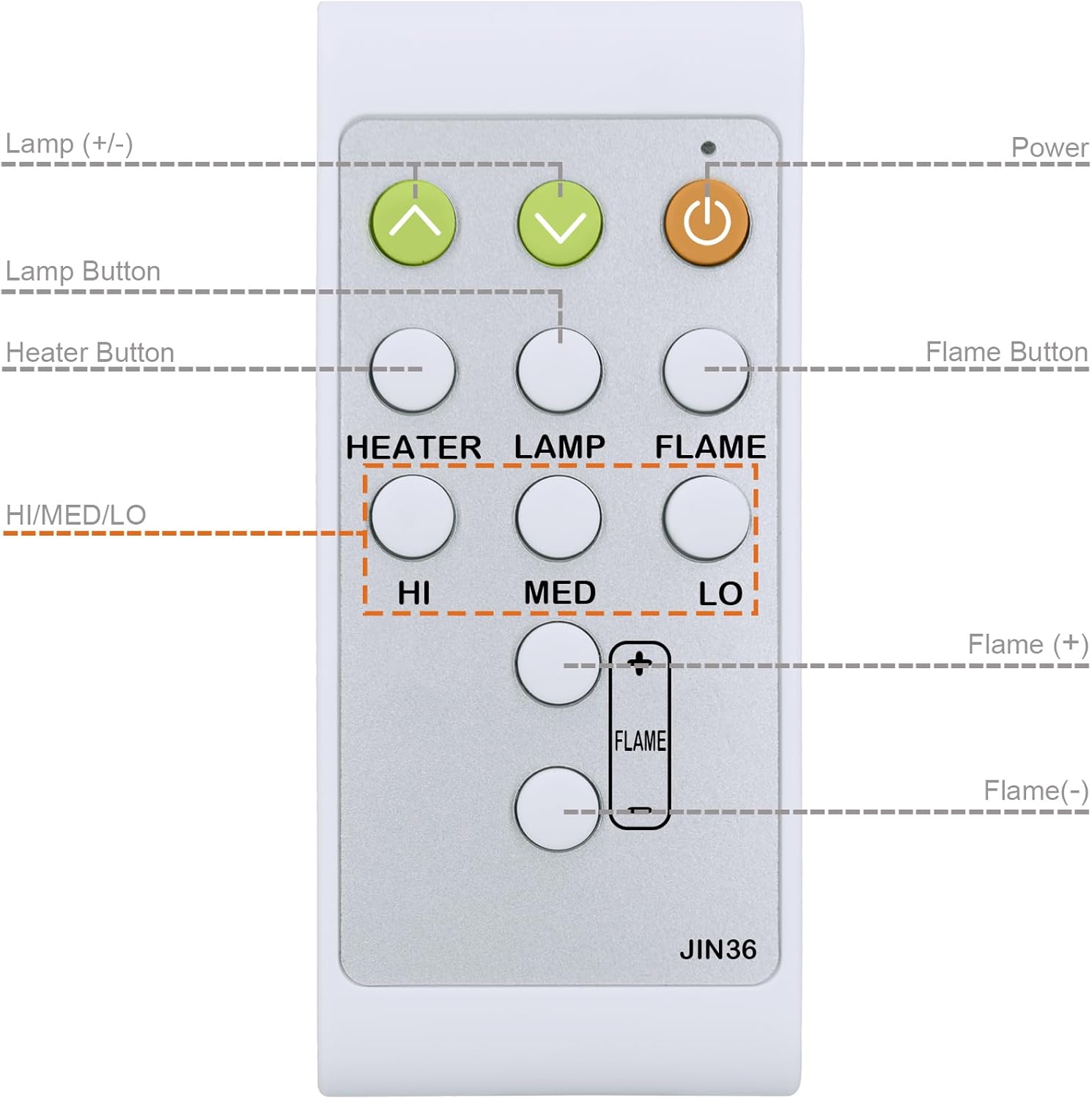

Figure 3: Remote Control Button Layout and Functions.

Button Functions:

• Power Button (Orange): Turns the electric fireplace ON or OFF.
• Lamp Buttons (Green Arrows, Up/Down): Adjusts the brightness or intensity of the fireplace's internal lighting.
• HEATER Button: Activates or deactivates the heating function.
• LAMP Button: Controls the fireplace's lamp feature.
• FLAME Button: Controls the fireplace's flame effect.
• HI / MED / LO Buttons: Selects the heat output level (High, Medium, Low) when the heater is active.
• FLAME (+/-) Buttons: Adjusts the intensity or speed of the flame effect.

The oversized silicone buttons are designed for easy pressing and provide a tactile response, making operation simple and comfortable, especially for users with limited dexterity.

Figure 4: Comparison of button types, emphasizing the benefits of silicone buttons.

Maintenance

• Cleaning: Wipe the remote control with a soft, dry cloth. Do not use abrasive cleaners, solvents, or wet cloths, as these can damage the surface or internal components.
• Battery Replacement: Replace batteries when the remote's range decreases or if the fireplace does not respond consistently. Always replace both batteries at the same time with new AAA 1.5V batteries.
• Storage: If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage. Store the remote in a cool, dry place away from direct sunlight.
• Avoid Drops: While designed for durability, avoid dropping the remote control, as this can damage internal circuitry.

Troubleshooting

Common Issues and Solutions:

• Remote is not responding:
  • Ensure the batteries are correctly installed with the proper polarity.
  • Replace old batteries with new AAA 1.5V batteries.
  • Ensure there is a clear line of sight between the remote control and the electric fireplace's receiver. Obstructions can block the signal.
  • Verify that the remote control is pointed directly at the fireplace.
• Fireplace responds intermittently:
  • This often indicates low battery power. Replace the batteries.
  • Check for potential interference from other electronic devices.
• Remote buttons feel sticky or unresponsive:
  • Clean the remote control surface as described in the Maintenance section.

If issues persist after following these troubleshooting steps, please contact the seller or manufacturer for further assistance.

Specifications

Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Specific warranty terms are provided by the seller or manufacturer at the time of purchase.
