1. Introduction
This manual provides essential information for the safe and efficient operation of your MINRS SY-8 8L 1500W Electric Water Heater. Please read these instructions carefully before installation and use, and retain them for future reference. This electric water heater is designed to provide hot water for various domestic applications, primarily for under-sink use in kitchens and bathrooms.
Figure 1: Front view of the MINRS SY-8 Electric Water Heater, showing the digital display and temperature control knob.
Key Features:
- High Efficiency: 1500W power with 316 stainless steel heating tube for rapid water heating.
- Energy Saving: Polyurethane foam insulation and 304 stainless steel inner lining for excellent heat retention. Heating element positioned near the outlet to minimize waste.
- High Safety: Features anti-high voltage, anti-temperature, dry burning protection, anti-leakage functions, and IPX4 waterproof rating.
- 8L Capacity: Sufficient for daily hot water needs in kitchens or bathrooms.
- Easy Operation: Digital temperature display and adjustable knob for setting temperatures between 0-65°C.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, injury, or property damage, please observe the following safety precautions:
- Read all instructions before using this appliance.
- Electrical Safety: Ensure the power supply matches the voltage and frequency specified on the product label (220-240V, 50-60Hz). The appliance must be properly grounded. Do not use extension cords.
- Installation: Installation must be performed by a qualified professional in accordance with local plumbing and electrical codes.
- Water Pressure: The rated pressure is 0.75 Mpa. Ensure your water supply pressure is within acceptable limits.
- Vertical Installation: This water heater must be installed vertically to ensure proper operation and longevity. Do not install it at an angle or upside down.
- Usage: This appliance is suitable for hand washing, dishwashing, and face washing. It is not suitable for shower use.
- Temperature: The adjustable temperature range is 0-65°C. Be cautious of hot water to prevent scalding.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
- Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Damage: Do not operate the water heater if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged. Contact customer support.
3. Package Contents
Please check the package contents upon receipt. If any items are missing or damaged, contact your retailer.
- 1 x MINRS Electric Water Heater (Model SY-8)
- 1 x English Instruction Manual
- All necessary installation accessories (e.g., inlet/outlet connectors, pressure relief valve)

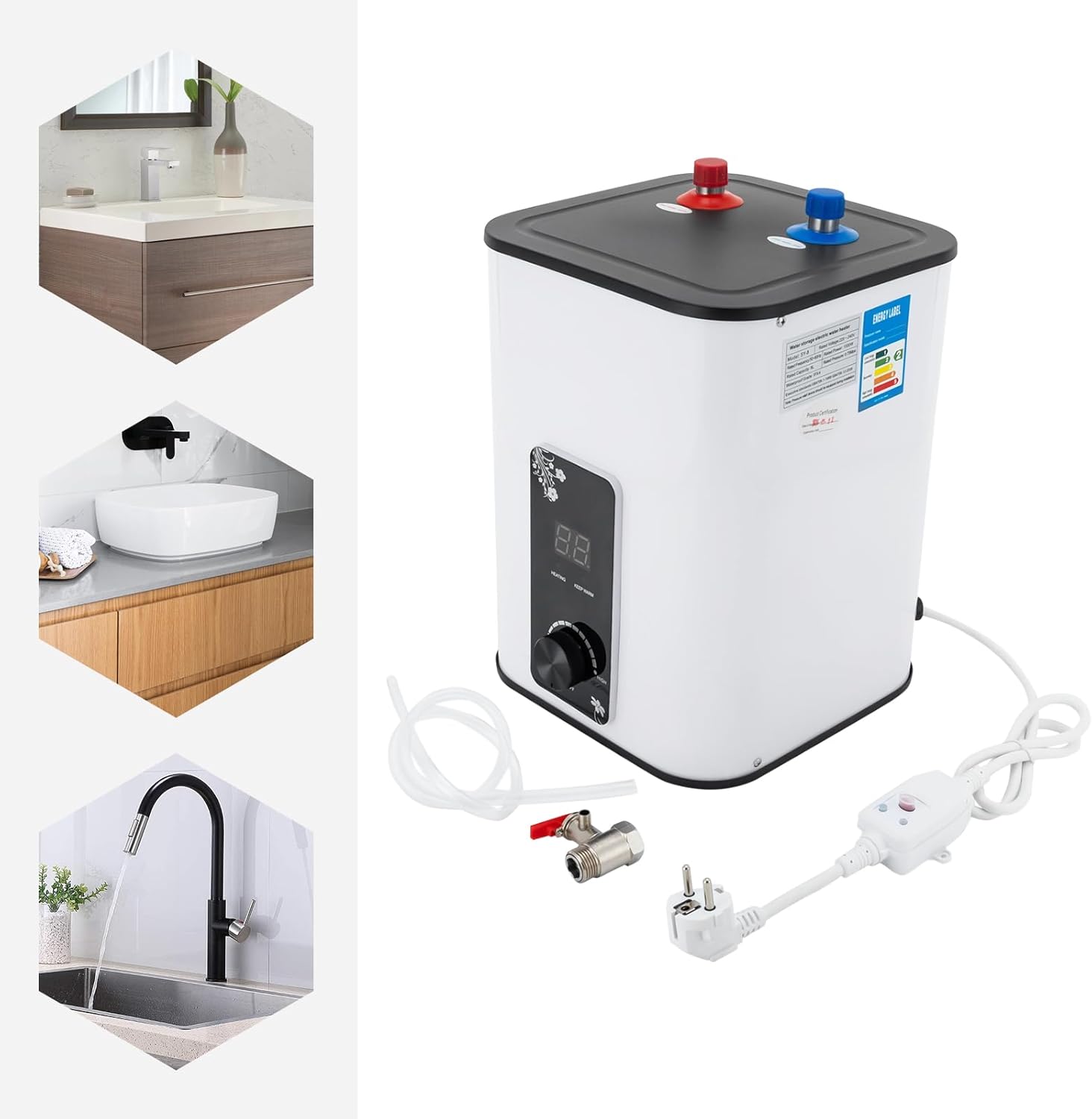

Figure 2: The MINRS SY-8 Electric Water Heater shown with its power cord, plug, and some installation accessories.
4. Technical Specifications
| Feature | Specification |
|---|---|
| Model | SY-8 |
| Color | White, Black |
| Material | ABS Casing, 304 Stainless Steel Inner Tank, 316 Stainless Steel Heating Element |
| Rated Voltage | 220-240 V |
| Rated Frequency | 50-60 Hz |
| Rated Power | 1500 W |
| Rated Pressure | 0.75 Mpa |
| Waterproof Level | IPX4 |
| Adjustable Temperature Range | 0-65 ℃ (32-149 ℉) |
| Capacity | 8 L (1.76 Gallons) |
| Power Cord Length | 1-1.3 m (3.28-4.27 ft) |
| Product Dimensions (L x W x H) | 24 x 24 x 35 cm (9.45 x 9.45 x 13.78 inches) |
| Net Weight | 3.7 kg (8.16 lbs) |

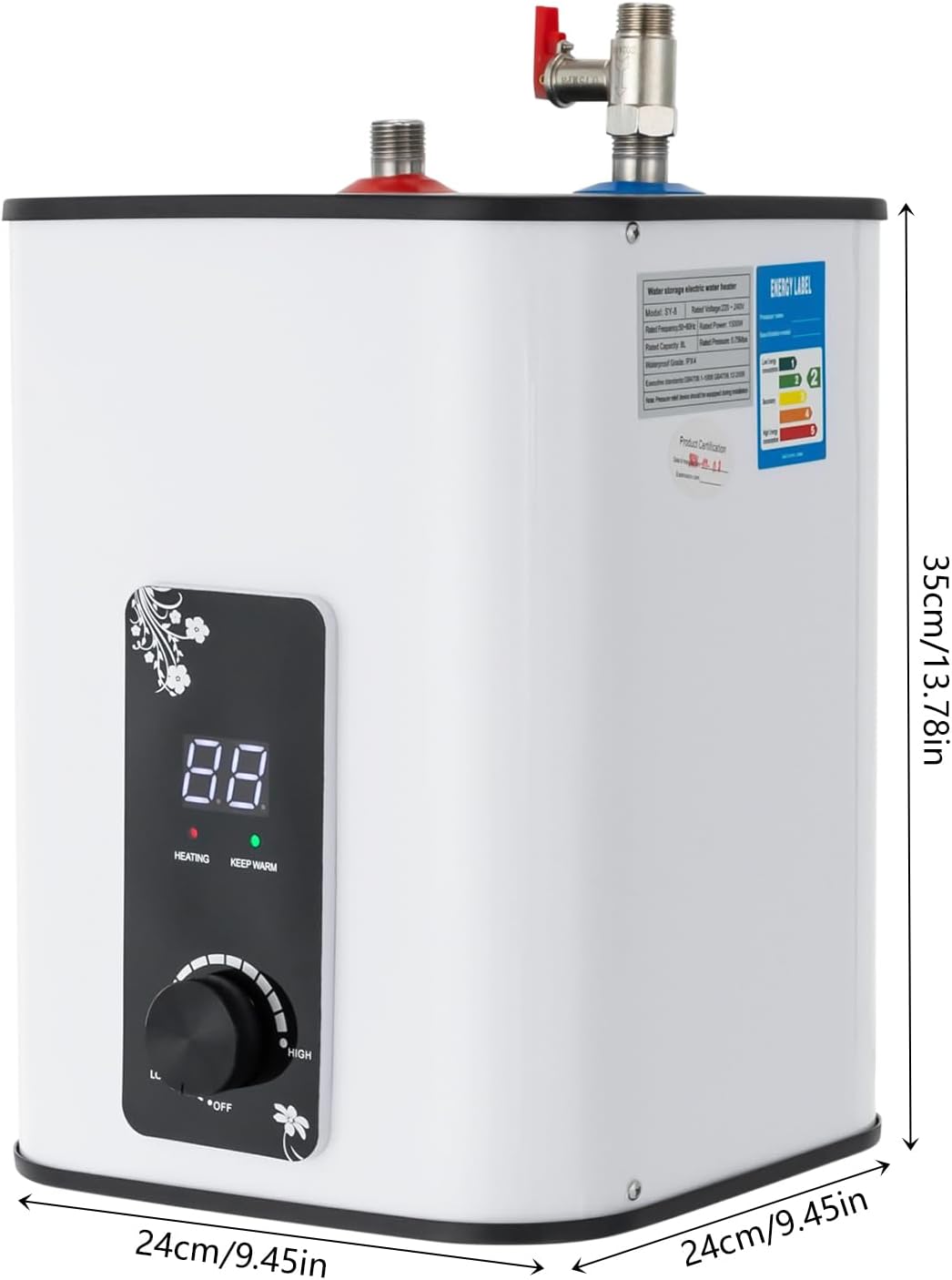

Figure 3: Dimensions of the MINRS SY-8 Electric Water Heater.
5. Installation Guide
Important: Installation should only be carried out by a qualified plumber or electrician in compliance with all local regulations and safety standards.
5.1 Choosing an Installation Location
- The water heater is designed for under-sink installation in kitchens or bathrooms.
- Ensure the location is stable, level, and can support the weight of the unit when full of water (approx. 11.7 kg / 25.8 lbs).
- Maintain adequate clearance around the unit for ventilation and maintenance.
- The unit must be installed vertically. Do not install horizontally or at an angle.
- Ensure there is a grounded electrical outlet nearby.
Figure 4: Example of the water heater installed vertically under a kitchen sink.
5.2 Plumbing Connections
- Turn off the main water supply before beginning any plumbing work.
- Connect the cold water inlet (blue marking) to your cold water supply line. It is recommended to install a shut-off valve on the cold water inlet for future maintenance.
- Connect the hot water outlet (red marking) to the hot water faucet.
- Install the pressure relief valve (if included and required by local codes) on the cold water inlet line or as specified in the local regulations.
- Ensure all connections are tight and leak-free. Use appropriate sealing tape or compound.
Figure 5: Top view of the water heater showing the red (hot) and blue (cold) water connections.
5.3 Filling the Tank
Before connecting to power, the water heater tank must be completely filled with water.
- Open a hot water faucet in your sink.
- Slowly turn on the main water supply.
- Allow water to flow from the hot water faucet until all air is purged from the tank and a steady stream of water flows.
- Close the hot water faucet.
- Check all plumbing connections again for leaks.
5.4 Electrical Connection
- Ensure the water heater is completely filled with water before connecting to power. Operating the unit dry will cause damage.
- Plug the power cord into a properly grounded electrical outlet (220-240V, 50-60Hz).
- Do not use adapters or extension cords.
6. Operating Instructions
6.1 Powering On and Initial Setup
- Once the unit is installed and filled with water, plug it into the power outlet.
- The digital display will illuminate, showing the current water temperature.
- The "HEATING" indicator light will turn on when the unit is actively heating water.
- The "KEEP WARM" indicator light will turn on when the water has reached the set temperature and is being maintained.
6.2 Adjusting Temperature
The temperature can be adjusted using the control knob on the front panel.
- Rotate the knob towards "HIGH" to increase the desired water temperature.
- Rotate the knob towards "LOW" to decrease the desired water temperature.
- The digital display will show the current temperature. The unit will heat the water to the temperature set by the knob, within the range of 0-65°C.
- To turn off the heating function, rotate the knob to the "OFF" position.
Figure 6: Close-up of the control panel with digital display, heating indicators, and temperature knob.
7. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater.
7.1 Cleaning
- Always disconnect the power supply before cleaning.
- Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals.
- Do not spray water directly onto the unit.
7.2 Descaling (Recommended Annually)
Depending on your water hardness, mineral deposits (limescale) can build up inside the tank and on the heating element, reducing efficiency. Descaling should be performed by a qualified technician.
- Turn off power and water supply to the unit.
- Drain the water heater completely.
- Access the heating element and tank interior (this may require specialized tools and knowledge).
- Carefully remove any scale buildup.
- Reassemble and refill the unit before restoring power.
7.3 Pressure Relief Valve Check (If applicable)
If a pressure relief valve is installed, it should be checked periodically (e.g., every six months) to ensure it is not blocked and operates correctly. Follow the manufacturer's instructions for the specific valve.
8. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water / Unit not heating |
|
|
| Water not hot enough |
|
|
| Water leaking from unit |
|
|
| Unusual noises |
|
|
If the problem persists after attempting these solutions, please contact customer support or a qualified technician.
9. Warranty and Customer Support
Specific warranty details for your MINRS SY-8 Electric Water Heater are typically provided in a separate warranty card or within the included manual. Please refer to that document for information regarding warranty coverage, terms, and conditions.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your retailer or the MINRS customer support channel provided at the point of purchase.
