HSA Series 3 Sided Electric Fireplace Part

1. Introduction

Thank you for purchasing the HIRESC HSA Series 70-inch Electric Fireplace Front Plastic Accessory. This manual provides essential information for the proper installation, maintenance, and care of your new fireplace part. Please read these instructions carefully before proceeding with installation to ensure safe and correct usage.

2. Product Overview

This product is a replacement front plastic panel designed specifically for HIRESC HSA Series 70-inch electric fireplaces. It serves as a protective and aesthetic component for the fireplace unit.

Key Features:

• Designed to fit HIRESC HSA Series 70-inch fireplaces.
• Includes one fireplace front plastic panel.
• Constructed from high-quality plastic material.
• Dimensions: Approximately 69.53 inches (width) x 12.68 inches (height) x 0.08 inches (depth).
• Engineered for safe and easy replacement.

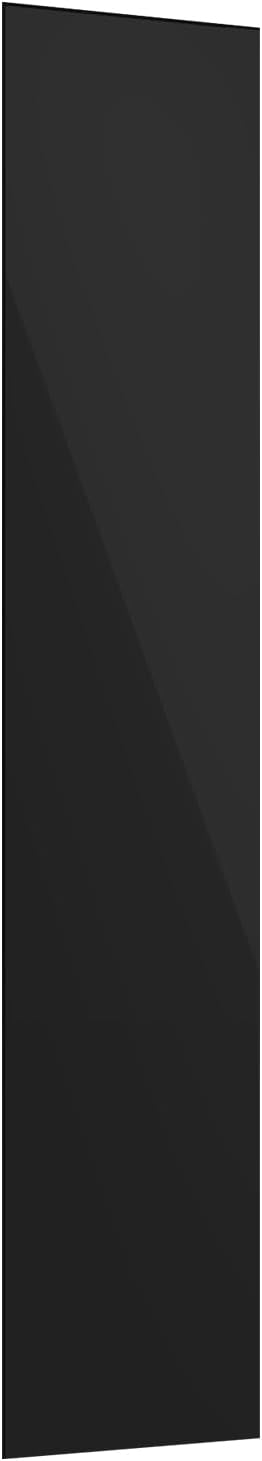

Image 2.1: The HIRESC HSA Series 70-inch Electric Fireplace Front Plastic Accessory.

3. Specifications

Image 3.1: Detailed dimensions of the front plastic accessory.

4. Installation Instructions

This section outlines the steps for replacing or installing the front plastic panel on your HIRESC HSA Series 70-inch electric fireplace. It is recommended to watch the accompanying video for a visual guide.

Tools Required:

• Screwdriver (electric or manual, appropriate bit for small screws)

Procedure:

1. Preparation: Ensure the electric fireplace unit is turned off and unplugged from the power source before beginning any installation or replacement.
2. Remove Existing Panel (if applicable):
   • Locate the small screws securing the existing front plastic panel. These are typically found along the top and bottom edges of the panel, within the fireplace frame.
   • Carefully unscrew all retaining screws using a suitable screwdriver.
   • Once all screws are removed, gently slide or lift the old plastic panel out of its position. Set it aside.
3. Install New Panel:
   • Align the new HIRESC Front Plastic Accessory with the opening on the fireplace unit. Ensure the panel fits snugly into the designated grooves or slots.
   • Carefully insert the panel, making sure it is properly seated and flush with the fireplace frame.
   • Re-insert and tighten the retaining screws along the top and bottom edges of the panel. Do not overtighten, as this may damage the plastic.
4. Final Check: Once the panel is securely installed, ensure there are no gaps and that it is firmly in place.

Image 4.1: The front plastic accessory (labeled "Front PS Plate") installed on the electric fireplace unit.

Installation Video Guide:

5. Operating Instructions

As this product is a replacement part (front plastic accessory) for an electric fireplace, it does not have independent operating functions. Please refer to the instruction manual of your HIRESC HSA Series Electric Fireplace for operating instructions related to the fireplace unit itself.

6. Maintenance

To maintain the appearance and longevity of your front plastic accessory, follow these simple cleaning guidelines:

• Cleaning: Use a soft, damp cloth to wipe down the plastic surface. For stubborn marks, a mild, non-abrasive cleaner can be used.
• Avoid: Do not use harsh chemicals, abrasive cleaners, or rough cloths, as these can scratch or damage the plastic finish.
• Dusting: Regularly dust the surface with a dry, soft cloth to prevent dust buildup.

7. Troubleshooting

This accessory is a passive component. Most issues would relate to installation or physical damage.

• Panel Does Not Fit:
  • Ensure you have the correct size (70-inch) and model (HSA Series) accessory for your fireplace.
  • Check for any obstructions in the fireplace frame or on the panel itself that might prevent proper seating.
  • Verify the panel's orientation.
• Panel is Loose After Installation:
  • Ensure all retaining screws are properly tightened.
  • Check if the panel is correctly seated in its grooves.
• Physical Damage:
  • If the panel arrives damaged, contact the seller or manufacturer immediately for a replacement.

8. Warranty and Support

For information regarding the warranty of this product, please refer to the documentation provided with your original HIRESC HSA Series Electric Fireplace or contact HIRESC customer support directly. Keep your purchase receipt as proof of purchase.

For further assistance or technical support, please visit the official HIRESC website or contact their customer service department. Contact details are typically found on the product packaging or the main fireplace manual.

Manufacturer: HIRESC
