Introduction
Thank you for purchasing the LOFTEK Cordless Table Lamp. This manual provides essential information for the safe and efficient use of your lamp. Please read it thoroughly before operation and retain it for future reference.
This lamp features a 5200mAh battery, 3 adjustable height options, 3 color temperatures (warm white, daylight white, natural white), and stepless dimming. It is designed for both indoor and outdoor use, offering portability and versatility.
What's in the Box
Verify that all components are present upon unpacking:
- LED Table Lamp (1 unit)
- USB A to USB C Cable (1 unit)
- User Manual (1 unit)
- Support Rods (3 units for height adjustment)
Image: Contents of the LOFTEK Cordless Table Lamp package.
Product Features
- Adjustable Height: Customize the lamp's height with three available options.
- Multifunctional Color Temperatures: Easily switch between 3000K (warm white), 4000K (daylight white), and 6000K (natural white).
- Smooth Dimming: Adjust brightness steplessly from 10% to 100%.
- Long-Lasting Battery: Equipped with a 5200mAh battery, providing 8-30 hours of continuous use depending on brightness.
- Durable Construction: Features a metal body and a lampshade designed to protect eyes.
- Waterproof Design: Suitable for both indoor and outdoor environments.
- Touch Control: Simple touch interface for power, color temperature, and brightness adjustments.
Image: The lamp demonstrating its three adjustable height options.
Image: Detailed view of the lamp's construction and components.
Setup and Assembly
The LOFTEK Cordless Table Lamp is designed for easy assembly. Follow these steps:
- Connect Rods: Rotate the three connecting rods clockwise to securely join them together.
- Attach to Base: Tighten the assembled connecting rod to the lamp base by turning the internal and external threads clockwise until secure.
- Attach Lamp Head: Tighten the lamp head to the top of the connecting rod clockwise.
Image: Visual guide for lamp assembly.
Operating Instructions
The lamp is controlled via a touch sensor located on the top of the lampshade.
- Power On/Off and Color Change: Tap the touch sensor once to turn the lamp on or off. When the lamp is on, tap the sensor again to cycle through the three color temperatures: 3000K Warm White, 4000K Daylight White, and 6000K Natural White.
- Brightness Adjustment (Dimming): When the lamp is on, press and hold the touch sensor to smoothly adjust the brightness from 10% to 100%. Release your finger when the desired brightness is reached.
Image: Touch control functions for the lamp.

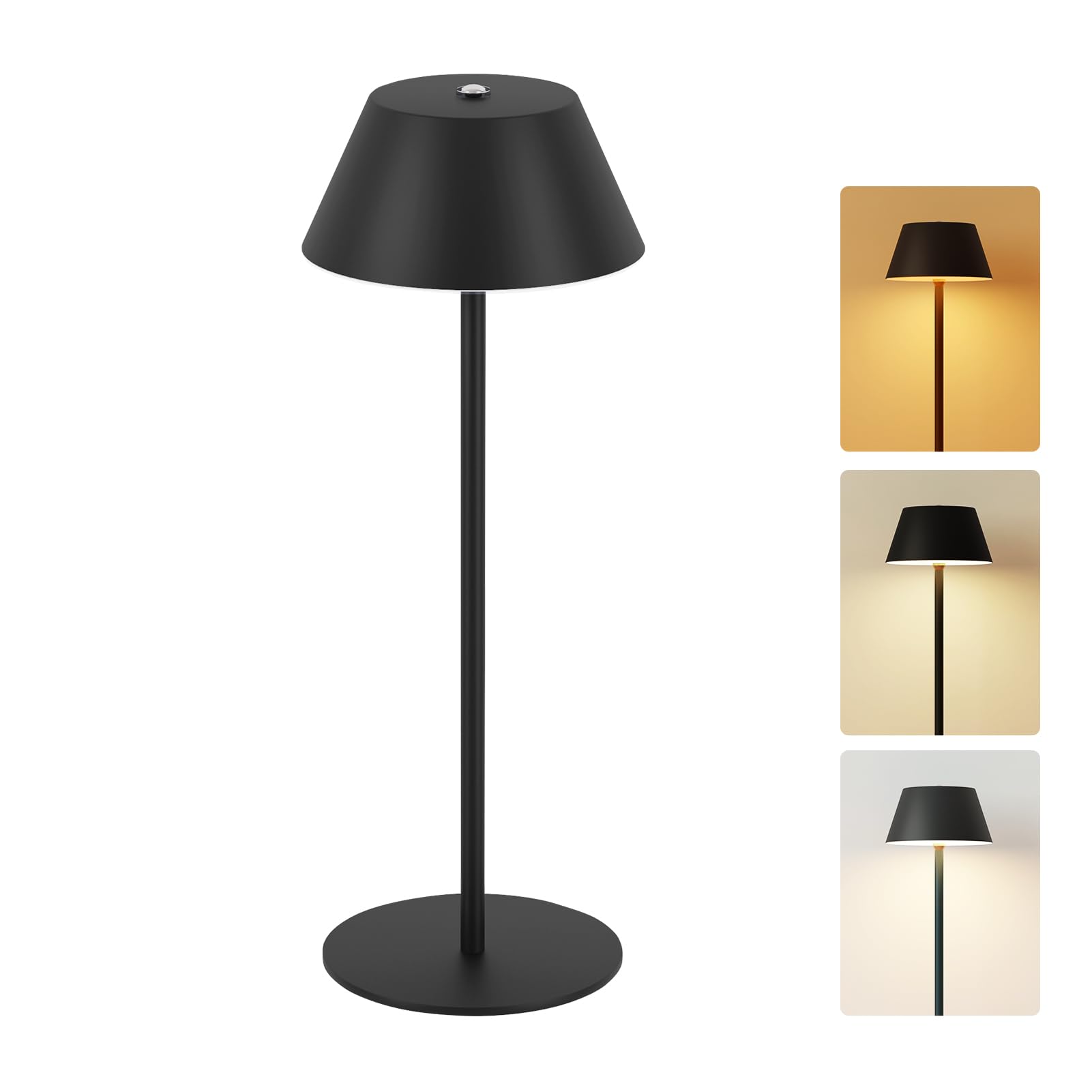

Image: Visual representation of color temperature options.
Image: Visual representation of brightness dimming capability.
Product Overview Video
Video: An overview of the LOFTEK Cordless Table Lamp, demonstrating its features including different light colors and metal body construction.
Charging Instructions
- Initial Charge: Fully charge the lamp before its first use. This helps optimize battery life.
- Charging Port: Locate the USB-C charging port on the lamp head.
- Connect Cable: Use the provided USB A to USB C cable to connect the lamp to a compatible USB power adapter (not included).
- Charging Indicator: The lamp will typically have an indicator light that changes color (e.g., red to green) to show charging status.
- Charging Time: A full charge typically takes 4-8 hours.
- Battery Life: Once fully charged, the lamp provides 8-30 hours of continuous use, depending on the selected brightness level.
Maintenance
- Cleaning: Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Water Exposure: While the lamp is waterproof, avoid submerging it in water. Ensure the charging port is dry before charging.
- Storage: Store the lamp in a cool, dry place when not in use for extended periods.
- Battery Care: To prolong battery life, avoid completely draining the battery frequently. Charge it regularly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Battery is depleted. | Charge the lamp fully using the provided USB-C cable. |
| Lamp does not charge. | Faulty cable or power adapter. Charging port obstruction. | Try a different USB-C cable and power adapter. Ensure the charging port is clean and free of debris. |
| Brightness or color temperature cannot be adjusted. | Incorrect operation. Touch sensor malfunction. | Refer to the "Operating Instructions" section. Ensure you are using a single tap for color and a long press for brightness. If the issue persists, contact customer support. |
| Lamp flickers or light is unstable. | Low battery. Internal component issue. | Charge the lamp fully. If flickering continues, discontinue use and contact customer support. |
Specifications
| Model Number | LK9301971 |
| Brand | LOFTEK |
| Battery Capacity | 5200mAh |
| Working Time | 8-30 hours (depending on brightness) |
| Charging Time | 4-8 hours |
| Color Temperatures | 3000K (Warm White), 4000K (Daylight White), 6000K (Natural White) |
| Brightness | 10% - 100% Stepless Dimming (Max 156 Lumens) |
| Power Source | Battery Powered |
| Material | Acrylic, Metal |
| Product Dimensions | 3.8"D x 3.8"W x 17.5"H (Maximum Height) |
| Item Weight | 1.3 Pounds |
| Water Resistance Level | Waterproof |
| Control Method | Touch |
Warranty and Support
LOFTEK is committed to providing high-quality products and customer satisfaction. For any inquiries, technical support, or warranty claims, please contact LOFTEK customer service through the retailer where the product was purchased or visit the official LOFTEK website.
Please retain your proof of purchase for warranty purposes.
