Product Overview
This manual provides instructions for the YOWMOFT Wireless Cat Water Fountain, Model YMW03. This 3-liter capacity pet water dispenser features a built-in UV light for water purification, a quiet pump, multiple watering modes, a motion sensor, and a double power source for flexible placement.
Key Features:
- Dual Water Source Protection: Integrated UV light and vertical filtration system for hygienic water.
- Double Wall Inner Design: Facilitates easy cleaning and helps maintain water temperature.
- Three Watering Modes: Sensing, Regular, and Continuous water discharge options.
- Ultra-Quiet Operation: Pump operates at approximately 23dB.
- Double Power Source: Operates via Type-C cable or wirelessly with a rechargeable battery.
Image: The YOWMOFT Wireless Cat Water Fountain, showcasing its sleek black design and included filters.
Setup Instructions
- Unpack Components: Carefully remove all parts from the packaging. Ensure you have the main fountain body, inner water tank, pump, filter, and power cable.
- Clean Before First Use: Wash the inner water tank and all removable parts (excluding the pump and main body with electronics) with mild soap and water. Rinse thoroughly.
- Install Filter: Place one of the provided filters into its designated slot within the inner water tank. Ensure it is seated correctly.
- Assemble Inner Tank: Insert the clean inner water tank into the main fountain body. The double-wall design allows for easy placement.
- Fill with Water: Fill the inner tank with clean water up to the maximum fill line. Do not overfill. The capacity is 3 liters (101oz).
- Connect Power: Connect the Type-C cable to the fountain and a suitable power adapter (not included) or ensure the internal battery is charged for wireless operation.
- Initial Operation: Press the power button to turn on the fountain. The pump will begin circulating water.
Image: The YOWMOFT Cat Water Fountain placed in a home environment, demonstrating its compact size.
Operating Instructions
The YOWMOFT Cat Water Fountain offers three distinct watering modes to suit your pet's needs and conserve energy.
- Sensing Water Outlet (Motion Sensor Mode):
When the motion sensor detects movement from a living body, the fountain will discharge water continuously. If no movement is detected for 2 minutes, the water flow will stop. This mode conserves power and ensures fresh water when needed. - Regular Water Discharge (Timed Mode):
In this mode, the fountain will discharge water for 2 minutes every hour. This provides periodic hydration without constant flow. - Continuous Water Discharge:
The water will flow continuously in this mode, providing a constant stream of fresh water.
To switch between modes, refer to the control panel on the fountain. The UV light operates internally to purify the water and may not be visibly illuminated from the exterior.
Image: Visual representation of the three watering modes: Timed Mode (3 min waterflow every hour), Continuous Mode (water flows continuously), and Sensor Mode (water runs when cats approach).
Image: A cat drinking from the fountain, illustrating the 20-degree angled design that helps prevent water from splashing out.
Maintenance
Regular maintenance ensures the longevity and hygienic operation of your YOWMOFT Cat Water Fountain.
- Daily Water Check: Ensure the water level is sufficient. Refill as needed.
- Weekly Cleaning (Inner Tank): The double-wall inner design allows for easy cleaning. Simply lift out the inner tank, empty any remaining water, and wash it with mild soap and water. Rinse thoroughly to remove all soap residue.
- Monthly Cleaning (Entire Unit): Disassemble the fountain completely. Clean the pump according to its specific instructions (usually involves disassembling and cleaning the impeller). Clean the main body and all other components.
- Filter Replacement: Replace the filter every 2-4 weeks, or more frequently if you have multiple pets or notice reduced water flow/quality. Rinse new filters before installation.
- UV Light Maintenance: The UV light is designed for long-term use. If you suspect an issue, refer to the troubleshooting section or contact customer support.

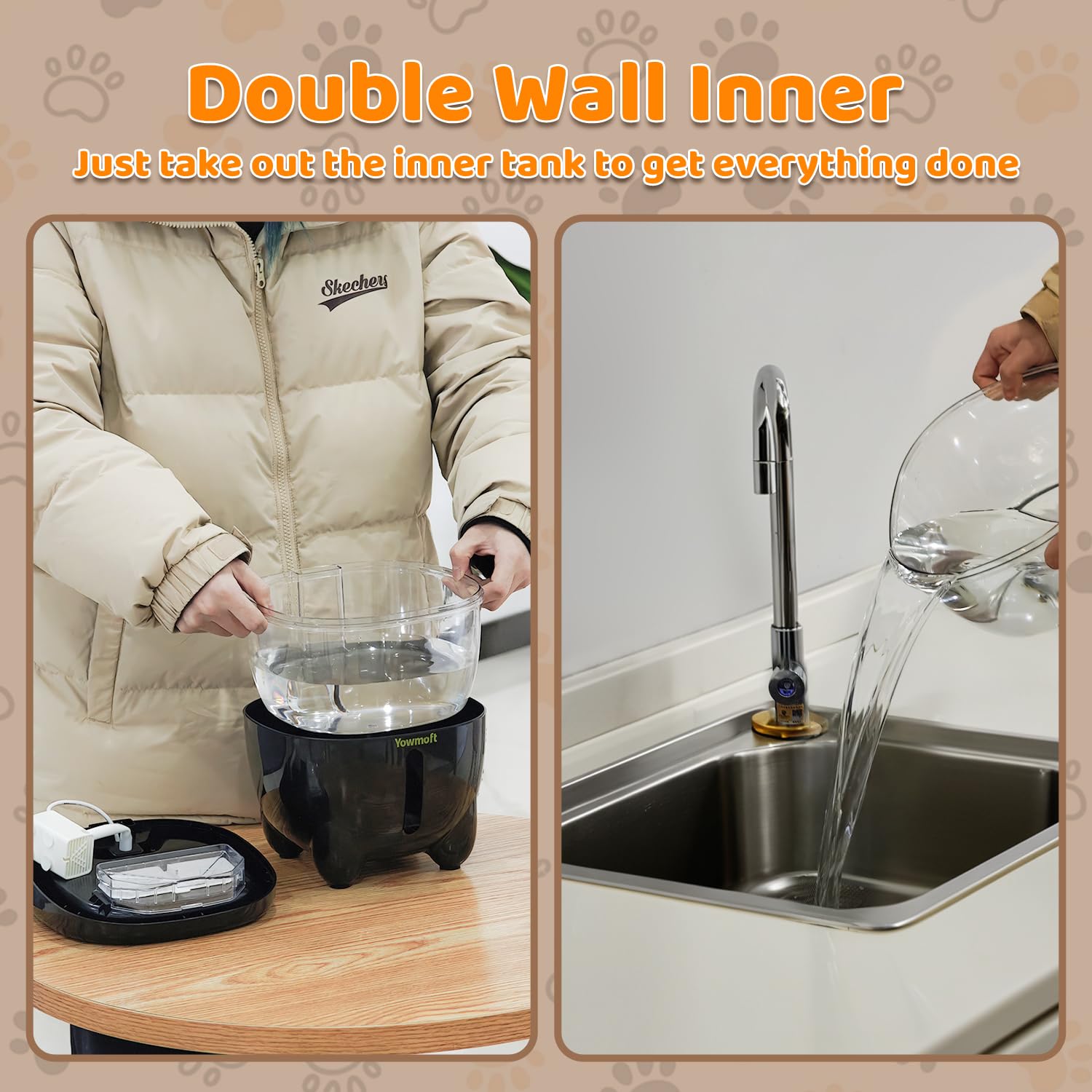

Image: Demonstration of the double-wall inner design, showing how to easily remove the inner tank for cleaning without disassembling the entire unit.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fountain not turning on | No power, low battery, or power button not pressed. | Ensure Type-C cable is securely connected or battery is charged. Press the power button. |
| No water flow or weak flow | Low water level, clogged filter, dirty pump, or incorrect mode. | Refill water. Replace filter. Clean pump. Check selected watering mode. |
| Fountain is noisy | Low water level, dirty pump, or improper assembly. | Ensure water level is adequate. Clean the pump and impeller. Reassemble components correctly. |
| UV light not visible | UV light operates internally. | The UV light is designed for internal water purification and may not emit visible light from the exterior. This is normal operation. Ensure the fountain is powered. |
| Motion sensor not activating | Obstruction, sensor dirty, or pet not close enough. | Ensure sensor is clean and unobstructed. Pet needs to be within sensor range. Consider using Timed or Continuous mode if preferred. |
Specifications
| Feature | Detail |
|---|---|
| Brand | YOWMOFT |
| Model Number | YMW03 |
| Capacity | 3 Liters (101 oz) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | Black |
| Product Dimensions | 20.3L x 19.1W x 20.3H Centimeters |
| Item Weight | 998 g (2.2 Pounds) |
| Power Source | Battery Powered (Rechargeable) / Type-C Cable |
| Indoor/Outdoor Usage | Indoor |
| Noise Level | Approximately 23dB |
| Included Components | Cat Water Fountain (main unit, inner tank, pump, filter) |
Warranty and Support
For warranty information, technical support, or any product-related inquiries, please contact YOWMOFT customer service directly. Refer to the product packaging or the official YOWMOFT website for contact details.
