Wikene Grass Trimmer Cutter Head and Replacement Blades Instruction Manual

1. Introduction

This manual provides instructions for the Wikene Grass Trimmer Cutter Head and Replacement Blades. This product is designed for use with compatible grass trimmers, including Parkside PRTA 20-LiA1, LIDL IAN 311046, and 91099406 models. Please read these instructions carefully before installation and use to ensure proper function and safety.

2. Product Overview and Package Contents

The package includes one (1) Mower Cutter Head and twenty (20) Plastic Replacement Blades. These components are designed for simple snap-on installation.

Image: Wikene Grass Trimmer Cutter Head with two red plastic blades attached.

Image: Stack of twenty red plastic replacement blades.

3. Setup and Installation

Always ensure your grass trimmer is turned off and disconnected from its power source (battery removed or unplugged) before attempting any installation or maintenance.

3.1 Installing the Cutter Head

1. Locate the existing cutter head on your grass trimmer.
2. Carefully remove the old cutter head according to your trimmer's manufacturer instructions.
3. Align the Wikene Mower Cutter Head with the trimmer's shaft.
4. Securely attach the new cutter head. Ensure it is firmly seated and tightened to prevent detachment during operation.

3.2 Installing Replacement Blades

1. The plastic blades feature a simple snap-on design. Locate the attachment points on the cutter head.
2. Insert the connector hole of a new plastic blade onto the designated pin or slot on the cutter head.
3. Push firmly until the blade snaps securely into place. Ensure the blade can pivot freely.
4. Repeat for all desired blade positions.

Image: Wikene Grass Trimmer Cutter Head installed on a grass trimmer.

4. Operating

Once the cutter head and blades are securely installed, refer to your grass trimmer's original instruction manual for operating procedures. Ensure all safety precautions are followed during operation, including wearing appropriate personal protective equipment.

5. Maintenance

• Blade Replacement: For optimal cutting performance, regularly inspect and change your trimmer blades as they show signs of wear or damage. Worn blades reduce efficiency and can strain the trimmer motor.
• Cleaning: After each use, clean the cutter head and blades to remove grass clippings, dirt, and debris. This prevents buildup and ensures smooth operation.
• Storage: Store the cutter head and unused blades in a dry, safe place away from direct sunlight and extreme temperatures.

6. Troubleshooting

• Poor Cutting Performance: If the trimmer is not cutting effectively, inspect the blades. They may be dull, worn, or damaged and require replacement.
• Blades Breaking Frequently: Ensure blades are correctly installed and that the trimmer is not being used on excessively thick or hard materials beyond its intended capacity. Avoid hitting hard objects like rocks or fences.
• Cutter Head Wobbling: Verify that the cutter head is securely attached to the trimmer shaft. Re-tighten if necessary.

7. Specifications

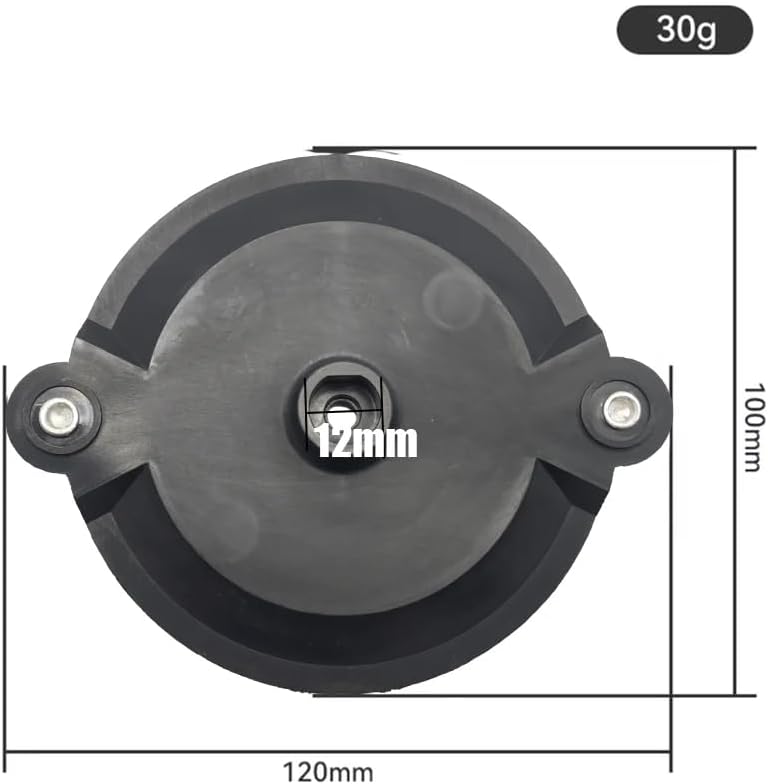

Image: Dimensions of the Mower Cutter Head.

Image: Dimensions of a single Plastic Replacement Blade.

8. Warranty and Support

For product support, inquiries, or information regarding potential warranties, please contact your retailer or the manufacturer, Wikene, directly. Keep your purchase receipt for any warranty claims.
