Bear Purple Clay Steamer Set Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Bear Purple Clay Steamer Set. This electric stew pot is designed to prepare nutritious and flavorful meals using natural mineral purple clay, which helps release deep-layer nutrients from ingredients. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The ceramic pots are fragile; handle with care to prevent breakage.

Product Components

Your Bear Purple Clay Steamer Set includes the following components:

• Main Electric Base Unit
• Large 4.5L Purple Clay Stew Pot
• Four 0.5L Small Purple Clay Stew Pots
• Glass Lid (for large pot)
• Ceramic Lid (for large pot)
• Steaming Rack

Image: Exploded view showing the main electric base, large purple clay pot, ceramic lid, glass lid, and steaming rack.

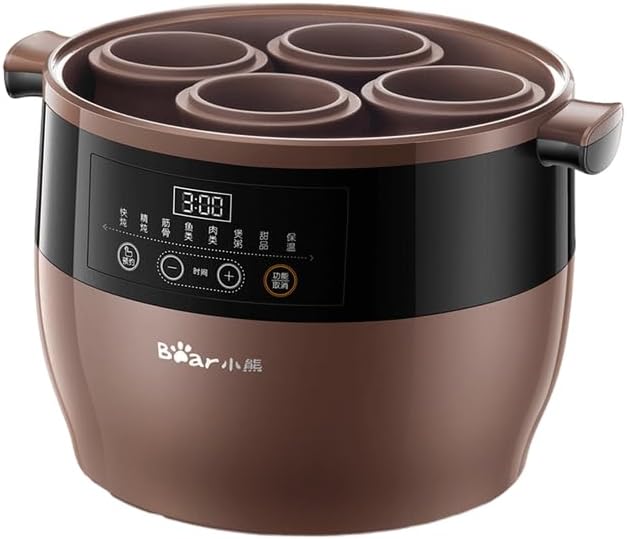

Image: The electric stew pot with the four smaller 0.5L purple clay pots placed inside, ready for use.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or return if necessary.
2. Initial Cleaning: Before first use, wash all purple clay pots, lids, and the steaming rack with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main electric base unit with a damp cloth. Do not immerse the electric base in water.
3. Placement: Place the electric base unit on a stable, flat, heat-resistant surface, away from water sources and direct heat. Ensure adequate ventilation around the unit.
4. Assembly:
   • Place the steaming rack inside the main electric base unit.
   • Pour water into the main electric base unit, ensuring it reaches the recommended fill line (refer to markings inside the unit). Do not overfill.
   • Place either the large 4.5L purple clay pot or the four 0.5L small purple clay pots onto the steaming rack.

Operating Instructions

The Bear Purple Clay Steamer Set offers 7 nourishing menus for various cooking needs. The control panel allows for easy selection and adjustment.

1. Prepare Ingredients: Place your desired ingredients into the purple clay pot(s). For the large 4.5L pot, it is suitable for 2-6 people.
2. Place Pot(s): Carefully place the filled purple clay pot(s) onto the steaming rack inside the main electric base unit.
3. Add Water: Ensure the water level in the main electric base unit is between the minimum and maximum fill lines. This water creates the steam for cooking.
4. Cover: Place the appropriate lid (glass or ceramic) securely on top of the pot(s).
5. Connect Power: Plug the power cord into a suitable electrical outlet. The display on the control panel will illuminate.
6. Select Function: Use the control panel buttons to select your desired cooking function from the 7 available menus. The display will show the default cooking time for the selected function.
7. Adjust Time (Optional): If needed, use the time adjustment buttons (e.g., '+' and '-') to modify the cooking duration.
8. Start Cooking: Press the 'Start' or 'Power' button to begin the cooking process. The appliance will automatically maintain the correct temperature and steam level.
9. Monitoring: The display will show the remaining cooking time. Avoid opening the lid frequently to maintain consistent cooking temperature.
10. Completion: Once cooking is complete, the appliance may beep and switch to a 'Keep Warm' mode (if available).
11. Serve: Carefully remove the lid, using oven mitts as steam will be hot. Use caution when handling the hot purple clay pot(s).

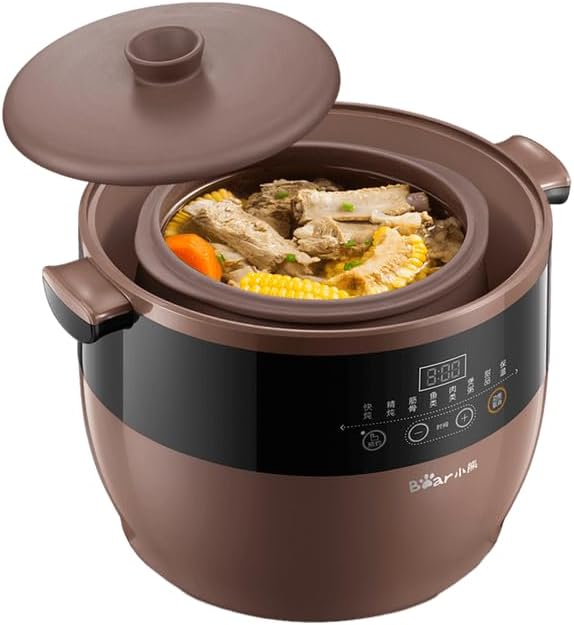

Image: The large purple clay pot filled with ingredients such as ribs and corn, placed inside the electric base unit with its ceramic lid partially open.

Image: The electric stew pot with four smaller purple clay pots inside, covered by the transparent glass lid, showing the control panel.

Image: A person's hands carefully placing ingredients, including chicken and red dates, into one of the small purple clay pots.

Maintenance and Care

Proper care ensures the longevity and performance of your purple clay steamer set.

• Cleaning Pots and Lids: All purple clay pots and lids are made of natural ceramic and are Hand Wash Only. Use a soft sponge and mild detergent. Rinse thoroughly and dry completely before storage. Do not use abrasive cleaners or scouring pads, as these can damage the ceramic surface.
• Not Dishwasher Safe: The purple clay pots and lids are not dishwasher safe. Dishwasher detergents and high temperatures can damage the ceramic.
• Cleaning Electric Base: Ensure the electric base unit is unplugged and completely cooled before cleaning. Wipe the exterior with a soft, damp cloth. Do not immerse the electric base in water or any other liquid.
• Descaling: Over time, mineral deposits may accumulate in the water reservoir of the electric base. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the appliance on a short cycle without any food pots. After the cycle, discard the solution, rinse the reservoir thoroughly with clean water, and wipe dry.
• Storage: Store the appliance and its components in a clean, dry place when not in use. Ensure all parts are dry to prevent mold or mildew.
• Not Oven Safe: The purple clay pots are not oven safe. Do not place them in a conventional oven or microwave.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the retailer where the product was acquired. Keep your purchase receipt as proof of purchase for any warranty claims.
