LINGXIAO 2-Speed SPA Pump 4HP (Model: 56WUA400-2/6) Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LINGXIAO 2-Speed SPA Pump, Model 56WUA400-2/6. This energy-efficient pump is designed for hot tubs and spas, featuring a 4HP high-speed and 0.3HP low-speed setting, operating at 220-240V with 2-inch ports. Please read all instructions carefully before use.

Image 1.1: The LINGXIAO 2-Speed SPA Pump (Model: 56WUA400-2/6) showing its low speed (0.3HP) and high speed (4.0HP) capabilities, designed for hot tub applications.

2. Safety Information

Always prioritize safety during installation, operation, and maintenance. This pump operates on high voltage (220-240V) and should only be installed by a qualified electrician in accordance with local electrical codes. Ensure the power supply is disconnected before performing any service or maintenance.

• Electrical Safety: Disconnect power before servicing. Ensure proper grounding.
• Water Safety: Do not run the pump dry. Ensure proper water flow to prevent damage.
• Installation: Follow all plumbing and electrical guidelines.
• Children: Keep children away from the pump and electrical connections.

3. Installation

3.1 Pre-Installation Checks

• Verify that the pump model (56WUA400-2/6) is compatible with your hot tub or spa system. Refer to your OEM model specifications or contact technical support if unsure.
• Ensure the installation area is dry, well-ventilated, and protected from direct sunlight and extreme weather.
• Confirm the power supply matches the pump's requirements (220-240V).

3.2 Plumbing Connection

The pump is designed with 2-inch ports. A free set of 2-inch unions is provided to facilitate quick connection to your existing plumbing system. Ensure all connections are watertight to prevent leaks.

Image 3.1: Illustration of the 2-inch plumbing connections and the pump's flow capabilities, ranging from a minimum of 55 gal/min to a maximum of 203 gal/min. The image also shows how to adjust the discharge location.

• Connect the intake and discharge pipes to the pump using the provided 2-inch unions.
• Tighten all connections securely, but do not overtighten.
• The discharge location can be adjusted to suit your plumbing configuration. Refer to the diagram for typical adjustment points (9:00, 12:00, 3:00 positions).

3.3 Electrical Connection

Electrical installation must be performed by a licensed professional. Ensure the power supply is off at the circuit breaker before making any connections.

• Connect the pump to a dedicated 220-240V, 60Hz power supply.
• Ensure proper grounding to prevent electrical shock.
• All wiring must comply with national and local electrical codes.

Image 3.2: Detailed installation dimensions of the LINGXIAO SPA pump, showing various measurements for proper fitting and placement.

4. Operation

The LINGXIAO SPA pump features two speeds for versatile operation:

• Low Speed (0.3HP): Ideal for filtration cycles, heating, and maintaining water circulation with reduced energy consumption and quieter operation.
• High Speed (4.0HP): Provides maximum power for jets, hydrotherapy, and rapid water circulation.

To operate the pump, ensure all plumbing connections are secure and the hot tub/spa is filled with water. Turn on the power supply to the pump. Use your hot tub's control panel to select the desired pump speed.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your LINGXIAO SPA pump.

5.1 Motor Care

The pump is equipped with a pure copper winding motor, designed for long service life. It features an anti-creep bearing for quieter operation and a thermal protector from Texas Instruments for safety. No specific user maintenance is required for the sealed motor unit, but ensure it remains free from debris and has adequate ventilation.

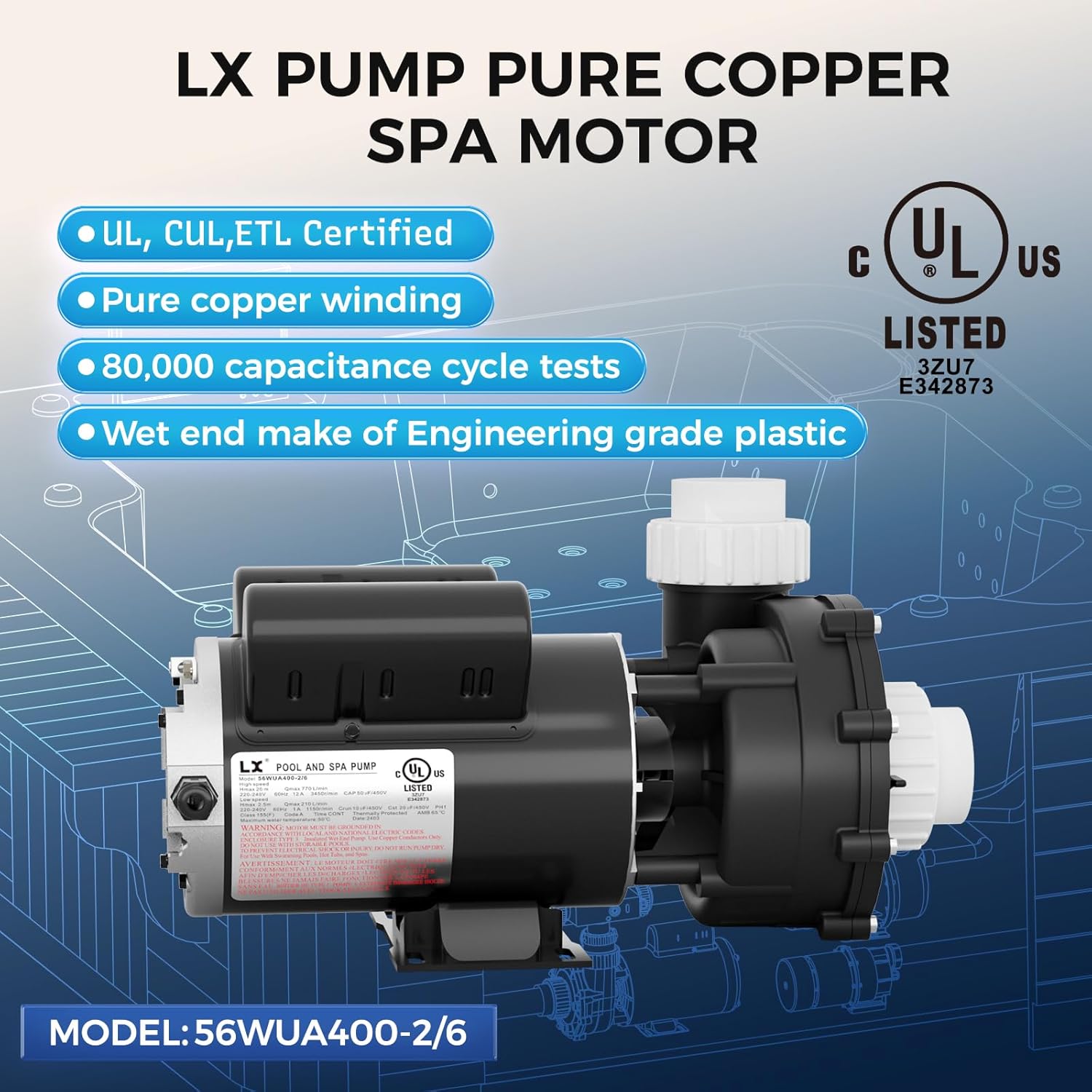

Image 5.1: The LX Pump Pure Copper SPA Motor, highlighting its UL, CUL, and ETL certifications, pure copper winding, 80,000 capacitance cycle tests, and wet end made of engineering-grade plastic.

5.2 General Cleaning

• Periodically inspect the pump for any signs of wear, damage, or leaks.
• Keep the pump exterior clean and free of dirt, dust, and chemical residues.
• Ensure the air vents on the motor are not obstructed to allow for proper cooling.

6. Troubleshooting

If you encounter issues with your LINGXIAO SPA pump, consider the following common problems:

• Pump Not Starting: Check electrical connections, circuit breaker, and ensure the pump is receiving power. Verify no debris is obstructing the impeller.
• Excessive Noise: Inspect for loose components, air in the system, or foreign objects in the wet end. Ensure the pump is properly mounted.
• Low Flow/No Flow: Check for clogged filters, closed valves, or airlock in the system. Ensure the water level in the spa is adequate.
• Leaks: Inspect all plumbing connections for tightness. Check O-rings and gaskets for damage.

For complex issues or if troubleshooting steps do not resolve the problem, please contact LINGXIAO PUMP Support.

7. Specifications

8. Manufacturing Process Overview

The LINGXIAO SPA Pump is manufactured using advanced automated processes to ensure high quality and durability. This includes automated motor production and integrated pump body molding.

8.1 Pure Copper Motor Manufacturing

8.2 Automated Production Process

9. Warranty and Support

Your LINGXIAO SPA Pump comes with a 1-Year Warranty for full replacement protection.

Should you require any assistance, technical support, or have questions regarding installation, operation, or troubleshooting, please contact LINGXIAO PUMP Support through Amazon's "Ask a question" feature. Our team is available to help and provide technology solutions within 24 hours.

Image 9.1: The LINGXIAO Care program, emphasizing a 1-Year Full Replacement Protection, 24-hour service, rapid logistics, and industry technician support for customer satisfaction.
