1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your HZLIMJDQ Ignition Coils, compatible with specific Toyota Camry models. These ignition coils are designed to deliver reliable performance and enhance your vehicle's ignition system.
The HZLIMJDQ Ignition Coil (OEM 90919-02244) is a critical component in your vehicle's ignition system, responsible for converting the battery's low voltage into the thousands of volts required to create an electric spark in the spark plugs. This spark ignites the fuel-air mixture in the engine's cylinders, initiating combustion.

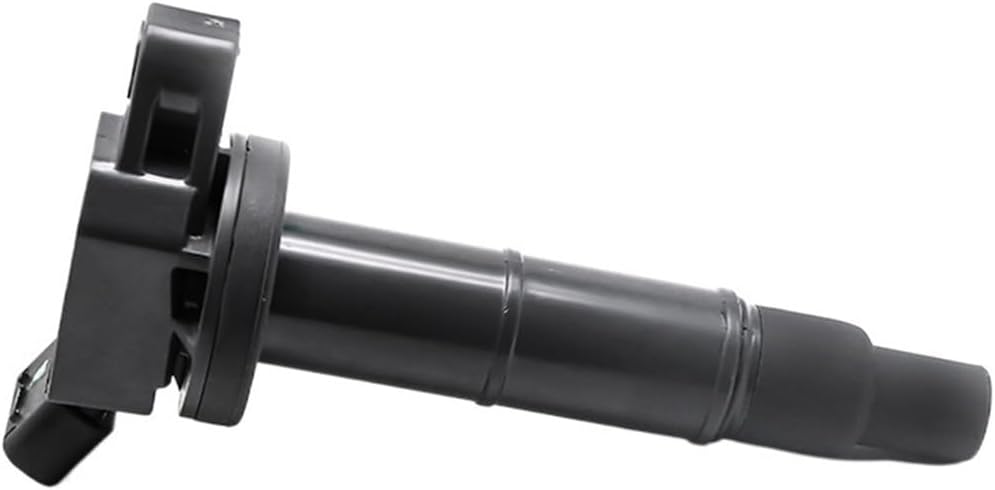

Image 1: Side view of the HZLIMJDQ Ignition Coil. This image shows the overall shape and connection points of the coil.
2. Compatibility
These ignition coils are specifically designed to be compatible with the following Toyota Camry engine codes:
- Toyota Camry with 1AZ-FE Engine (2.0L)
- Toyota Camry with 2AZ-FE Engine (2.4L)
It is crucial to verify your vehicle's engine code and OEM part number (90919-02244) before purchasing and installing these coils to ensure proper fitment and function.
3. Product Features
- Exceptional Durability: Crafted with high-density rubber sleeves, boasting superior wear resistance and hardness, ensuring a long-lasting, rust-resistant solution.
- Enhanced Stability: Designed for smooth operation and optimal heat insulation, effectively dissipating heat and supporting balanced vehicle weight distribution, resulting in improved stability and performance.
- Optimized Energy Efficiency: Innovative design enhances engine efficiency, providing a smoother driving experience that minimizes vibrations and ensures durability.
- Rapid Ignition Technology: Advanced technical treatment eliminates interference, enabling quick and reliable ignition to resolve common driving issues efficiently.
- Superior Engine Performance: Significantly boosts engine performance, delivering a seamless and enjoyable driving experience.

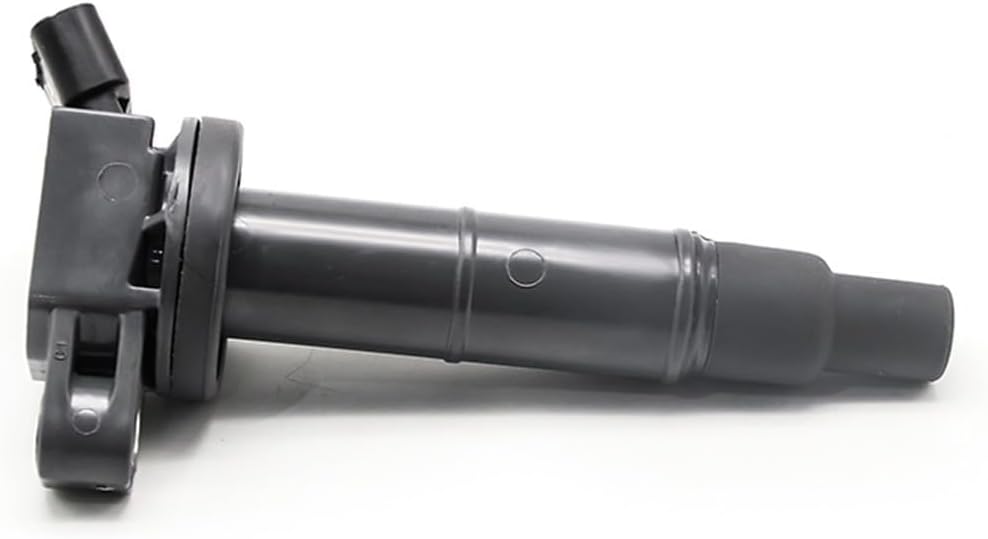

Image 2: Angled view of the HZLIMJDQ Ignition Coil, highlighting its robust construction.
4. Installation Guide
Replacing ignition coils requires mechanical aptitude and specific tools. If you are not confident in performing this procedure, it is highly recommended to seek assistance from a qualified automotive technician.
4.1 Safety Precautions
- Always disconnect the negative terminal of the vehicle's battery before starting any electrical work.
- Ensure the engine is cool to the touch before beginning work.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Avoid touching hot engine components.
4.2 General Installation Steps (Consult a service manual for specific vehicle instructions)
- Locate Ignition Coils: Identify the location of the ignition coils on your engine. They are typically mounted directly on top of the spark plugs or connected via spark plug wires.
- Disconnect Electrical Connector: Carefully disconnect the electrical connector from each ignition coil.
- Remove Mounting Bolts: Remove any bolts or fasteners securing the ignition coil to the engine.
- Remove Old Coil: Gently pull the old ignition coil straight up to remove it from the spark plug well.
- Inspect Spark Plug Well: Inspect the spark plug well for any debris or oil. Clean if necessary.
- Install New Coil: Insert the new HZLIMJDQ ignition coil into the spark plug well, ensuring it seats properly onto the spark plug.
- Secure Mounting Bolts: Reinstall and tighten the mounting bolts for the new coil.
- Reconnect Electrical Connector: Reconnect the electrical connector to the new ignition coil, ensuring it clicks into place.
- Repeat for all coils: If replacing multiple coils, repeat the process for each.
- Reconnect Battery: Reconnect the negative terminal of the vehicle's battery.
- Test: Start the engine and check for proper operation and any diagnostic trouble codes (DTCs).
Image 3: Top view of the HZLIMJDQ Ignition Coil, showing the electrical connector.
5. Operation
Once installed, the HZLIMJDQ Ignition Coils operate automatically as part of your vehicle's engine management system. When the engine is running, the vehicle's computer (ECU) sends a signal to each ignition coil at the precise moment a spark is needed in its corresponding cylinder.
The coil then rapidly transforms the low voltage from the battery into a high voltage pulse, which is sent to the spark plug. This high voltage creates a spark across the spark plug's electrodes, igniting the air-fuel mixture and driving the engine's combustion cycle. Proper functioning of all ignition coils is essential for smooth engine operation, optimal fuel efficiency, and reduced emissions.
Image 4: Bottom view of the HZLIMJDQ Ignition Coil, showing the boot that connects to the spark plug.
6. Maintenance
Ignition coils are generally maintenance-free components. However, their lifespan can be affected by other engine conditions. To ensure the longevity and optimal performance of your HZLIMJDQ Ignition Coils:
- Regular Spark Plug Replacement: Worn or improperly gapped spark plugs can put excessive strain on ignition coils, leading to premature failure. Follow your vehicle manufacturer's recommended spark plug replacement intervals.
- Address Engine Issues Promptly: Misfires, rough idling, or check engine lights should be investigated and resolved quickly, as these can indicate underlying issues that may affect ignition coil health.
- Keep Engine Bay Clean: While coils are sealed, excessive dirt, oil, or moisture in the spark plug wells can potentially lead to issues over time.
7. Troubleshooting Common Issues
If you experience issues after installing new ignition coils or if your vehicle exhibits symptoms of ignition system problems, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine Misfire / Rough Idling | Faulty ignition coil, worn spark plug, wiring issue, fuel system problem. | Check for diagnostic trouble codes (DTCs). Inspect spark plugs. Verify electrical connections to coils. |
| Check Engine Light (CEL) On | Various engine issues, including ignition coil failure. | Scan for DTCs using an OBD-II scanner. Codes like P030X (misfire in cylinder X) often point to ignition coil issues. |
| Reduced Fuel Economy | Inefficient combustion due to weak spark. | Ensure all coils are functioning optimally. Check spark plugs. |
| Difficulty Starting Engine | Weak or no spark from one or more coils. | Inspect coils and connections. Test battery voltage. |
For persistent issues, it is recommended to consult a professional mechanic for diagnosis and repair.
8. Specifications
| Attribute | Value |
|---|---|
| Brand | HZLIMJDQ |
| Model Number | maifengling |
| OEM Part Number | 90919-02244 |
| Package Quantity | Pack of 4 |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Weight | 1.76 ounces (50 Grams) |
| Country of Origin | China |
| First Available | November 8, 2024 |
9. Warranty and Support
This product is subject to the return policy of the retailer from which it was purchased. Please refer to your purchase documentation for specific return and refund details. As per the provided information, a return policy of 30 days (refund/replacement) is typically offered.
For technical support or inquiries regarding the HZLIMJDQ Ignition Coils, please contact the seller or manufacturer through the platform where the purchase was made. Provide your order number and a detailed description of your issue for efficient assistance.
Seller: maifengling
For further assistance, you may visit the seller's page: maifengling Seller Information
