Harebery LE-AP001

Harebery True HEPA Replacement Filter Set User Manual

Model: LE-AP001 Compatible Filters

Introduction

This manual provides essential information for the installation, maintenance, and optimal use of your Harebery True HEPA Replacement Filter Set. This set is specifically designed to be compatible with the VCK LE-AP001 Air Cleaner Purifier, ensuring continued high performance and improved indoor air quality.

Product Overview

The Harebery replacement filter set includes:

4 x True HEPA Filters (H13 Grade): These filters are designed to capture airborne particles.
8 x Activated Carbon Pre-Filters: These pre-filters are designed to reduce common odors.

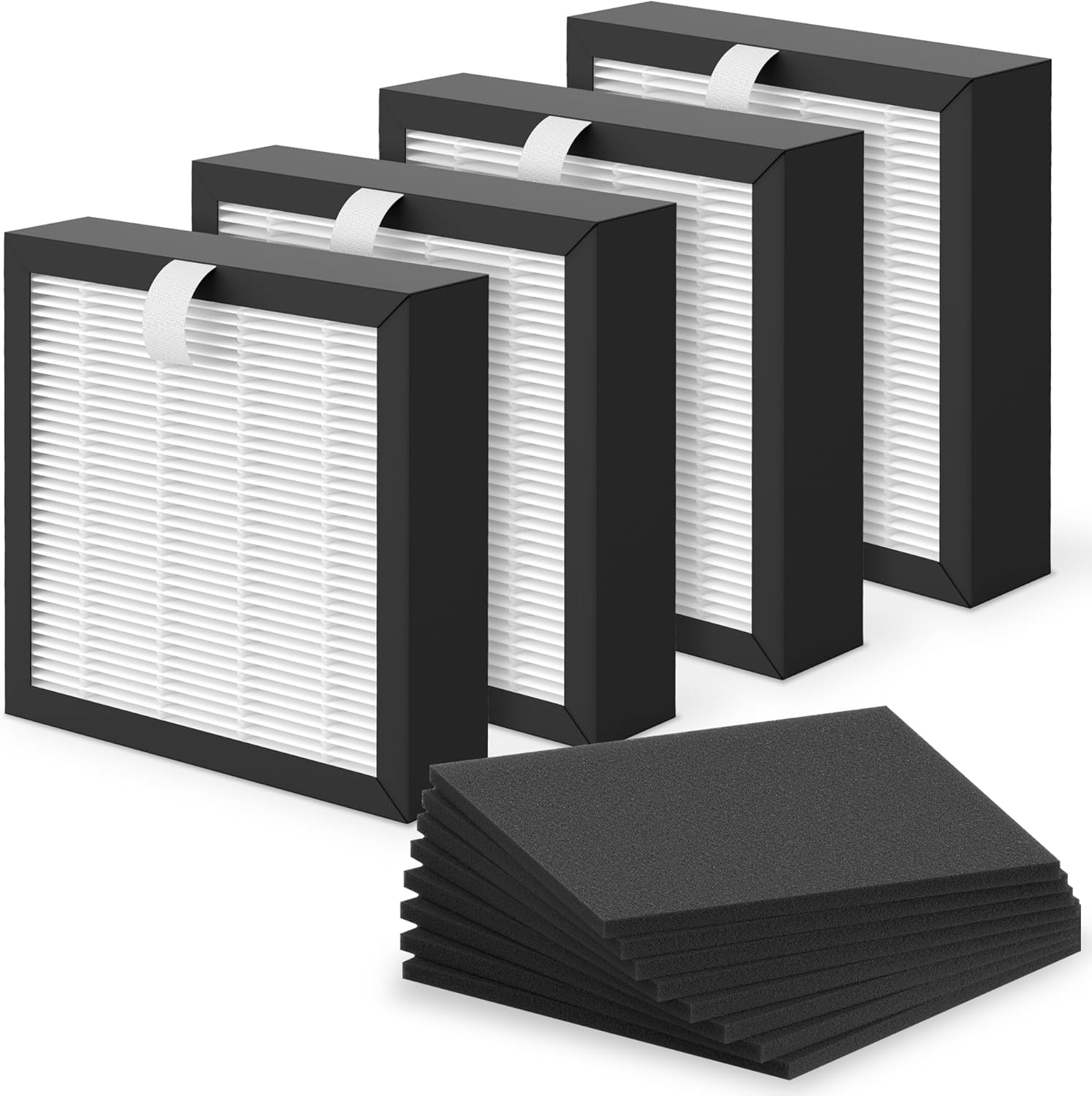

Four True HEPA filters and eight activated carbon pre-filters laid out on a white surface.

Image: Contents of the Harebery True HEPA Replacement Filter Set, showing four rectangular HEPA filters with white filter media and black frames, alongside eight flat, square activated carbon pre-filters.

Compatibility

This filter set is specifically compatible with the VCK Air Purifier model LE-AP001. Ensure your air purifier model matches this specification for proper fit and optimal performance.

Image: A graphic illustrating the compatibility of the filters with the VCK Air Purifier, model LE-AP001, highlighting the dual filter design with active carbon and H13 HEPA filter components.

Features

Efficient Filtration: The H13 True HEPA filter captures airborne particles as small as 0.3 microns, including dust, pollen, pet dander, and smoke.
Odor Reduction: The activated carbon pre-filter effectively reduces common household odors from pets, smoking, and cooking, contributing to improved indoor air quality.
Cost-Effective Solution: This package provides 4 True HEPA filters and 8 Activated Carbon Pre-filters, offering a practical solution for maintaining your air purifier's performance.

Diagram showing the True HEPA filter capturing particles and the Activated Carbon filter reducing VOCs and odors.

Image: A detailed view of the True HEPA filter and Activated Carbon filter, explaining that the HEPA filter captures up to 99.97% of airborne particles as small as 0.3 microns, while the Activated Carbon filter reduces VOCs and odors.

Infographic showing H13 True HEPA and Activated Carbon trapping various microscopic particles and odors.

Image: An infographic illustrating the effectiveness of H13 True HEPA and Activated Carbon filters in trapping 99.97% of microscopic particles as small as 0.3 microns, including hair, lint, dust, pet fur, smoke, cooking smells, wildfire gases, and car exhaust.

Image showing the value combo pack with 4 H13 True HEPA Filters and 8 Activated Carbon Filters.

Image: A visual representation of the "Value Combo Pack," clearly showing 4 packs of H13 True HEPA Filters and 8 packs of Activated Carbon Filters included in the set.

Setup and Installation

Follow these steps to replace the filters in your VCK LE-AP001 Air Purifier:

Power Off and Unplug: Before beginning, ensure your air purifier is turned off and unplugged from the power outlet to prevent electric shock.
Locate Filter Compartment: Refer to your VCK LE-AP001 Air Purifier's original manual to locate and open the filter compartment. This is typically on the back or bottom of the unit.
Remove Old Filters: Carefully remove the used HEPA filter and activated carbon pre-filter. Dispose of them according to local regulations.
Install New Activated Carbon Pre-filter: Place a new activated carbon pre-filter into its designated slot. Ensure it is seated correctly.
Install New True HEPA Filter: Insert a new True HEPA filter into the compartment. Ensure the pull tab (if present) is facing outwards for easy removal next time.
Close Compartment: Securely close the filter compartment door or cover.
Power On: Plug the air purifier back into the power outlet and turn it on.
Reset Filter Indicator (if applicable): If your air purifier has a filter replacement indicator, consult its manual on how to reset it after installing new filters.

Image showing a filter being installed into an air purifier, with icons for easy installation, quality assured, cost-effective, and service life.

Image: A visual demonstrating the ease of installing the filter into an air purifier, accompanied by icons highlighting key benefits: Easy To Install, Quality Assured, Cost-effective, and a Service Life of 3-4 Months.

Maintenance

Regular filter replacement is crucial for maintaining the efficiency and longevity of your air purifier.

True HEPA Filter: It is recommended to replace the True HEPA filter every 3-4 months for optimal performance.
Activated Carbon Pre-filter: It is recommended to replace the activated carbon pre-filter every 1-2 months.

Replacement frequency may vary depending on air quality, usage duration, and the presence of pets or smokers in your environment.

Troubleshooting

Issue	Possible Cause	Solution
Filter does not fit into the air purifier.	Slight dimensional variations or incorrect filter orientation.	1. Double-check that you have the correct model (VCK LE-AP001) and that the filter is oriented correctly. 2. While these filters are designed for compatibility, minor manufacturing tolerances can occur. If the filter is just slightly too large (e.g., 5" instead of 4.9" for a tight fit), carefully inspect if the cardboard framing can be adjusted or gently compressed without damaging the filter media. If the issue persists, contact customer support.
Air purifier performance seems reduced after filter replacement.	Filter not installed correctly, filter indicator not reset, or other air purifier issues.	1. Ensure filters are fully seated and the compartment is securely closed. 2. Reset the filter replacement indicator on your air purifier, if applicable. 3. Refer to your air purifier's original manual for other troubleshooting steps.
Odors persist after replacing carbon pre-filter.	Source of odor is strong or filter needs more time to work.	1. Ensure the pre-filter is installed correctly. 2. Allow the air purifier to run for an extended period in the affected area. 3. Consider the frequency of replacement; very strong or continuous odors may require more frequent pre-filter changes.

Issue

Possible Cause

Solution

Filter does not fit into the air purifier.

Slight dimensional variations or incorrect filter orientation.

1. Double-check that you have the correct model (VCK LE-AP001) and that the filter is oriented correctly.

2. While these filters are designed for compatibility, minor manufacturing tolerances can occur. If the filter is just slightly too large (e.g., 5" instead of 4.9" for a tight fit), carefully inspect if the cardboard framing can be adjusted or gently compressed without damaging the filter media. If the issue persists, contact customer support.

Air purifier performance seems reduced after filter replacement.

Filter not installed correctly, filter indicator not reset, or other air purifier issues.

1. Ensure filters are fully seated and the compartment is securely closed.

2. Reset the filter replacement indicator on your air purifier, if applicable.

3. Refer to your air purifier's original manual for other troubleshooting steps.

Odors persist after replacing carbon pre-filter.

Source of odor is strong or filter needs more time to work.

1. Ensure the pre-filter is installed correctly.

2. Allow the air purifier to run for an extended period in the affected area.

3. Consider the frequency of replacement; very strong or continuous odors may require more frequent pre-filter changes.

Specifications

Product Dimensions: 4.9 x 1.1 x 4.9 inches (per HEPA filter)
Item Weight: Approximately 11.3 ounces (total package)
Filter Type: H13 True HEPA and Activated Carbon
Compatibility: VCK LE-AP001 Air Purifier
Manufacturer: Harebery
Country of Origin: China

Warranty and Support

If you have any questions or encounter any issues with your Harebery replacement filter set, please do not hesitate to contact us. Our customer support team is available to assist you.

For contact information, please refer to the packaging or the seller's page where you purchased the product.
