Introduction
This user manual provides detailed instructions for the assembly, operation, and maintenance of your Coleshome L-shaped LED Gaming Desk. Designed for both work and gaming, this versatile desk features integrated LED lighting, convenient power outlets, and a reversible design to fit various room layouts. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation.
Safety Instructions
- Always follow assembly instructions carefully.
- Ensure all screws and fasteners are securely tightened before use.
- Do not overload the desk or shelves beyond their weight capacity.
- Keep liquids away from electrical components (LED strip, USB ports, power outlets).
- Use only the provided power cord and avoid using damaged cords.
- Place the desk on a level surface to prevent tipping. Adjustable feet are provided for stability on uneven floors.
- Keep small parts away from children during assembly.
Package Contents
Upon unpacking, please verify that all components listed below are present. If any parts are missing or damaged, please contact customer support immediately.
- Desk Panels (MDF Board)
- Metal Frame Components
- LED Light Strip with Controller
- Power Outlet and USB Charging Hub
- Monitor Stand
- Storage Shelves
- Headphone Hook
- Assembly Hardware (Screws, Allen Wrench, etc.)
- Instruction Manual
Setup and Assembly
The Coleshome L-shaped gaming desk is designed for straightforward assembly. All components are clearly labeled with letters for easy identification. Follow the step-by-step instructions provided in the included assembly guide.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and identify each part using the provided labels and the assembly diagram.
- Choose Orientation: This desk features a reversible design, allowing you to configure the L-shape with the longer side to either the left or right, depending on your room layout. Decide on your preferred orientation before starting assembly.
- Assemble Frame: Begin by assembling the metal frame components according to the instructions. Ensure all connections are secure but do not fully tighten screws until all parts are aligned.
- Attach Desk Panels: Securely attach the MDF desk panels to the assembled frame.
- Install Shelves and Monitor Stand: Attach the storage shelves and monitor stand as indicated in the manual.
- Install Electrical Components: Mount the LED light strip, USB charging hub, and power outlets. Connect the necessary cables.
- Final Tightening: Once all components are in place and aligned, fully tighten all screws and fasteners.
- Adjust Leveling Feet: Adjust the anti-slip leveling feet at the bottom of the desk legs to ensure the desk is stable and level on your floor.

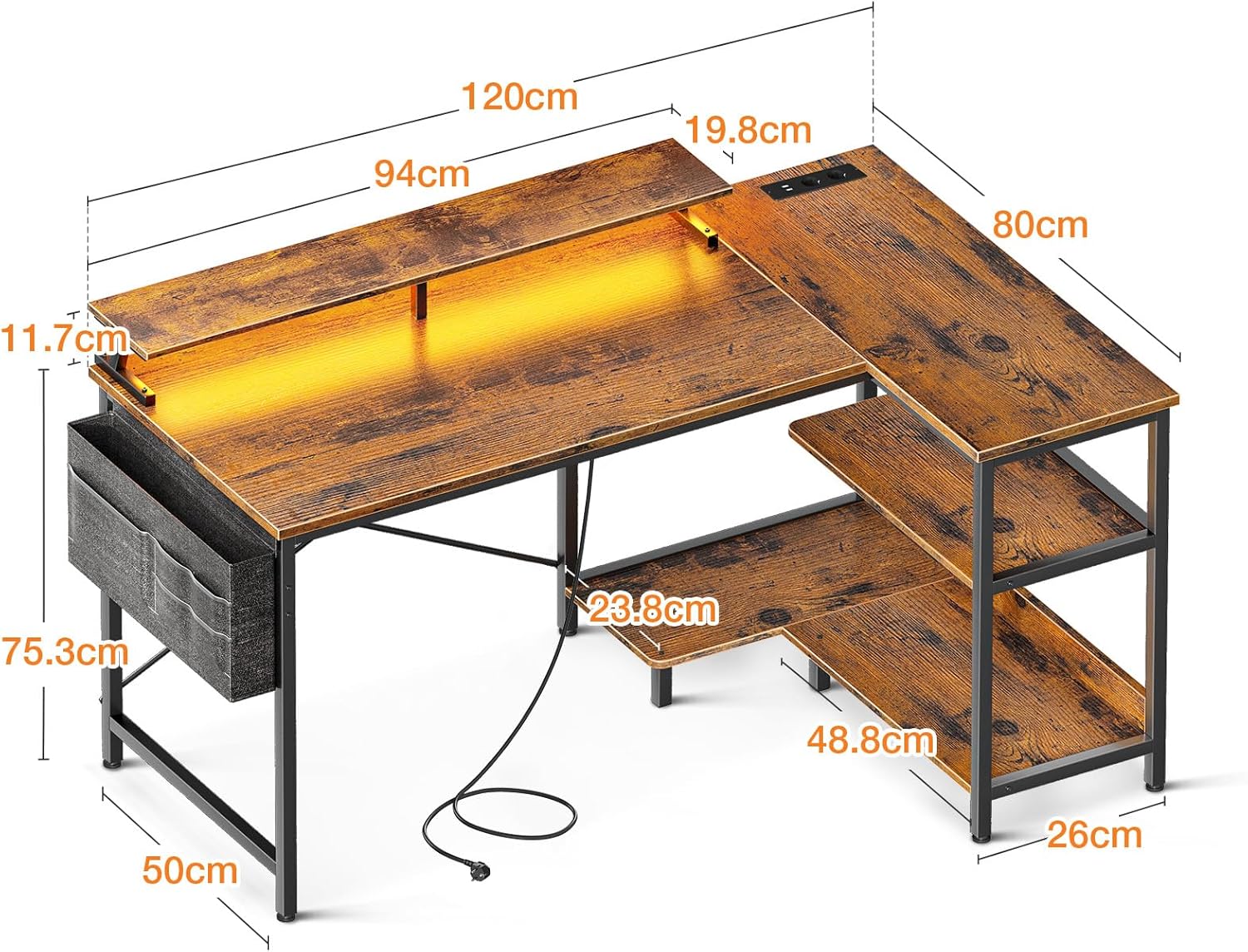

Image: Detailed view of the Coleshome L-shaped gaming desk, illustrating its dimensions and key features such as the reversible design, integrated shelves, and power/USB hub.

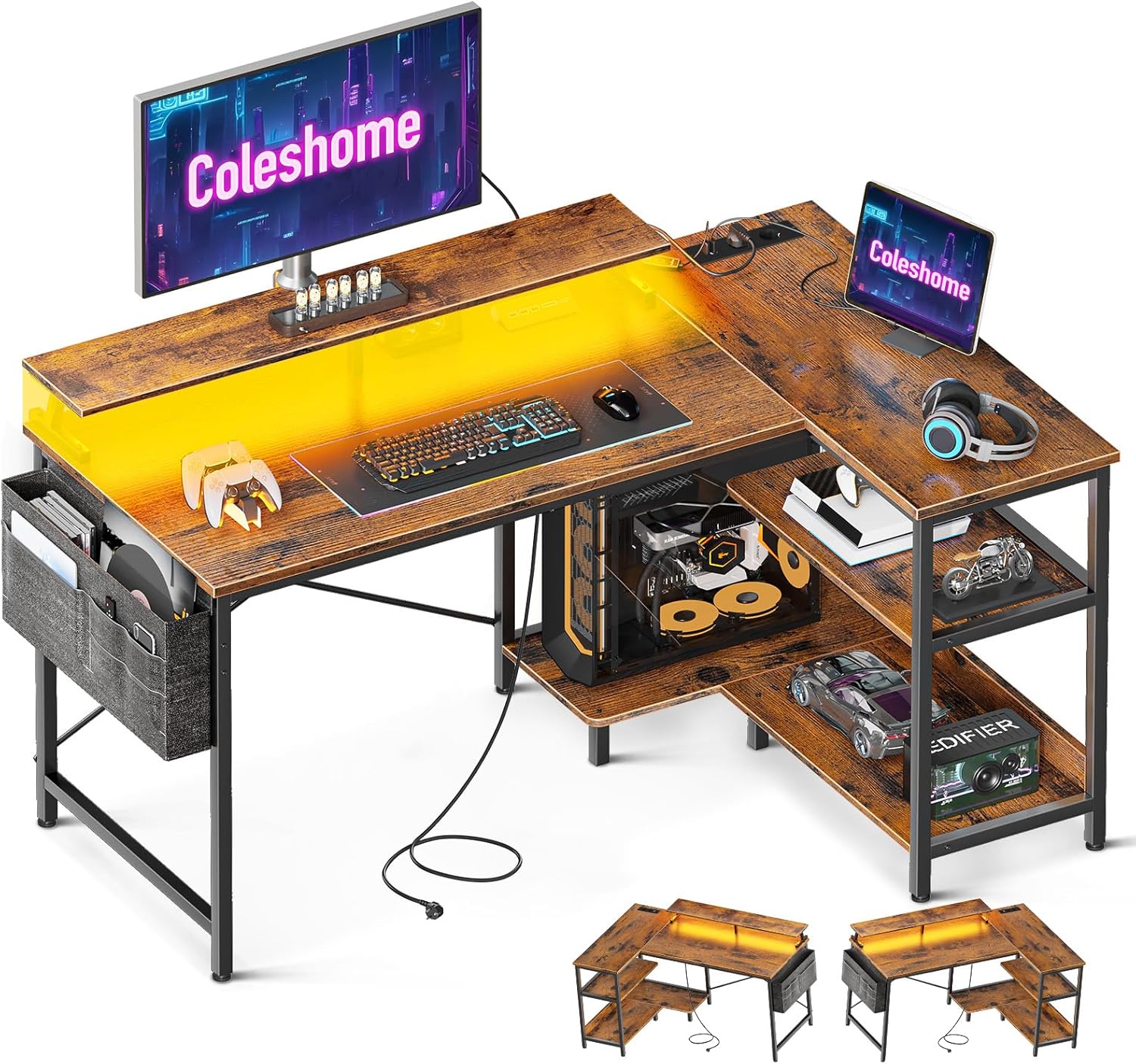

Image: The Coleshome L-shaped gaming desk fully assembled, showcasing the LED lighting in operation, the monitor stand, and the integrated storage solutions.
Operating Instructions
LED Lighting System
The integrated LED light strip enhances your gaming or working environment. It is controlled via a switch panel located on the desk.
- Power On/Off: Press the power button on the controller to turn the LEDs on or off.
- Color Selection: Cycle through 10 static colors by pressing the color selection button.
- Brightness Adjustment: Adjust the brightness across 6 levels using the dedicated brightness buttons.
- Dynamic Modes: Choose from 10 dynamic lighting modes for various effects.
- Memory Function: The system retains your last selected settings (color, brightness, mode) even after being powered off.
USB Charging Ports and Power Outlets
The desk is equipped with 2 standard power outlets and 2 USB charging ports to conveniently power your devices.
- Power Outlets: Plug in your computer, monitor, or other electronic devices directly into the integrated outlets.
- USB Ports: Use the USB ports to charge smartphones, tablets, gaming controllers, and other USB-powered accessories.
- Ensure the desk's main power cord is securely plugged into a wall outlet for these features to function.
Monitor Stand and Storage
- Monitor Stand: Utilize the elevated monitor stand to position your screen at an ergonomic height, reducing neck strain.
- Storage Shelves: The integrated shelves provide convenient storage for books, gaming accessories, or decorative items.
- Headphone Hook: Use the versatile hook to hang your headphones, keeping your desk tidy.
Maintenance
- Cleaning: Wipe the desk surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Dusting: Regularly dust the LED strip and electrical components to ensure optimal performance and prevent dust buildup.
- Tighten Fasteners: Periodically check and re-tighten all screws and fasteners to maintain the desk's stability.
- Cable Management: Organize cables to prevent tripping hazards and ensure proper airflow around electronic devices.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working | Power cord not plugged in; loose connection; faulty LED strip. | Ensure the desk's main power cord is securely plugged into a wall outlet. Check all connections to the LED strip and controller. If issues persist, contact customer support. |
| USB ports or power outlets not functioning | Desk not powered; faulty hub. | Verify the desk's main power cord is plugged in. Test with different devices. Contact customer support if the issue continues. |
| Desk is wobbly | Uneven floor; loose fasteners. | Adjust the leveling feet at the bottom of the desk legs. Check and tighten all assembly screws. |
| Missing or damaged parts upon arrival | Shipping damage; packaging error. | Do not proceed with assembly. Contact Coleshome customer support immediately with your order details. |
Specifications
- Brand: Coleshome
- Model Number: B01060101031
- Color: Brown
- Product Dimensions (L x W x H):
- Main Desk Length: 120 cm (47.2 inches)
- Main Desk Depth: 80 cm (31.5 inches)
- Overall Height: 75.3 cm (29.6 inches)
- L-extension Depth: 48.8 cm (19.2 inches)
- L-extension Width: 26 cm (10.2 inches)
- Item Weight: 16.68 Kilograms (36.77 lbs)
- Base Material: Metal
- Top Material Type: Engineered Wood (MDF)
- Number of Shelves: 1 (main shelf under L-extension)
- Power Outlets: 2
- USB Charging Ports: 2
- LED Lighting: 10 static colors, 6 brightness levels, 10 dynamic modes, memory function.
Warranty and Support
Coleshome is committed to providing high-quality products and excellent customer service. While specific warranty details are not provided in this manual, we offer comprehensive support for our products.
If your L-shaped desk arrives damaged, with missing parts, or scratched, please do not hesitate to contact our professional customer support team. We are dedicated to helping you resolve any issues within 24 hours.
For assistance, please refer to the contact information provided with your purchase or visit the official Coleshome website.
