FORENSICS DETECTORS FD-600-CO2 Carbon Dioxide Analyzer User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of the FORENSICS DETECTORS FD-600-CO2 Carbon Dioxide Analyzer. This device is designed for accurate measurement of CO2 concentrations in various industrial and environmental applications.

2. Safety Information

Please read and understand all safety warnings and instructions before operating the FD-600-CO2 analyzer. Failure to do so may result in injury or damage to the device.

• Ensure the device is used in well-ventilated areas unless specifically sampling in confined spaces.
• Do not expose the device to extreme temperatures, humidity, or corrosive environments.
• Avoid dropping or subjecting the device to severe impact.
• Only use the provided charging cable and power adapter.
• Do not attempt to open or repair the device yourself. Refer to qualified service personnel.

3. Package Contents

Verify that all items are present in your package:

• FORENSICS DETECTORS FD-600-CO2 Carbon Dioxide Analyzer
• Telescopic Sampling Probe with Tubing
• USB Charging Cable
• Calibration Certificate (NIST Traceable)
• Aluminum Carry Case
• User Manual

Image 3.1: Complete FD-600-CO2 kit including the analyzer, probe, and accessories in its protective aluminum carry case.

4. Product Overview

The FD-600-CO2 is a robust, handheld carbon dioxide analyzer featuring a built-in pump for active sampling and a Non-Dispersive Infrared (NDIR) sensor for precise measurements. It offers a wide detection range and high resolution, suitable for various professional applications.

Image 4.1: Front view of the FD-600-CO2 Carbon Dioxide Analyzer with the telescopic probe attached.

Image 4.2: Detailed diagram illustrating the components of the FD-600-CO2, including the air inlet, USB port, display, buttons, and alarms.

Image 4.3: Rear view of the analyzer, showcasing the robust metal belt clip for secure attachment during use.

Image 4.4: The FD-600-CO2 analyzer conveniently clipped to a user's belt, demonstrating its portability.

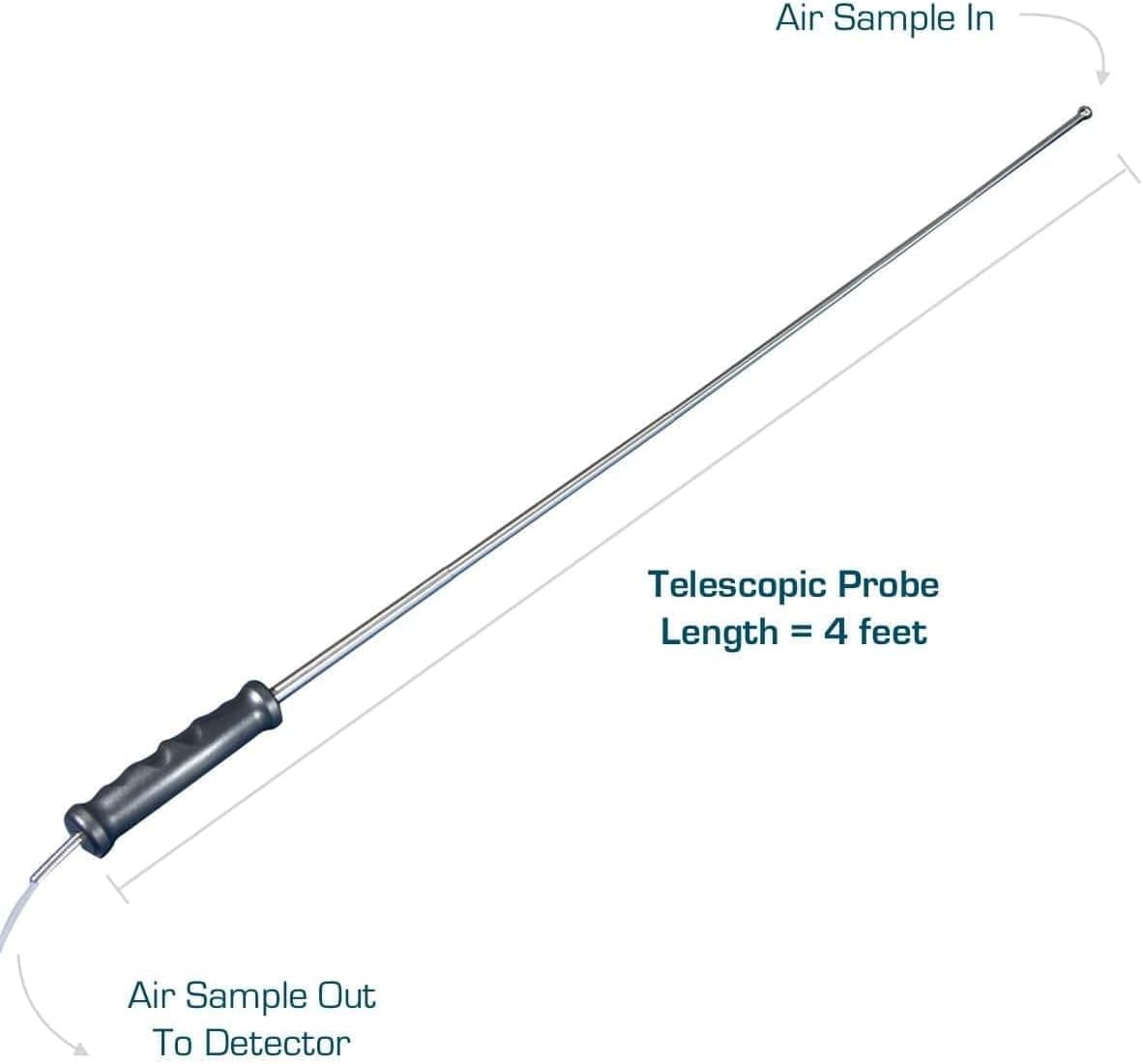

Image 4.5: Diagram illustrating the telescopic probe, indicating the air sample inlet and outlet connections to the analyzer.

5. Setup

Follow these steps for initial setup of your FD-600-CO2 analyzer:

1. Charging the Device: Connect the USB charging cable to the analyzer's USB port and a suitable power source. The battery indicator on the display will show charging status. Ensure the device is fully charged before first use.
2. Attaching the Probe: Connect the tubing from the telescopic probe to the air inlet barb connector on the top of the analyzer. Ensure a secure fit to prevent air leaks.
3. Powering On: Press and hold the ON/OFF button until the display illuminates. The device will perform a self-test before entering measurement mode.

6. Operating Instructions

The FD-600-CO2 analyzer is designed for straightforward operation. The built-in pump actively draws air samples through the probe for analysis.

1. Measurement Mode: Once powered on, the device will display the current CO2 concentration. The NDIR sensor provides accurate readings.
2. Using the Telescopic Probe: Extend the telescopic probe to the desired length to reach the sampling area. Position the probe's tip to draw air from the target location. The built-in pump will pull the sample through the tubing to the analyzer.
3. Display Information: The color display shows CO2 concentration (in %VOL or PPM), battery status, and other relevant information. Use the navigation buttons to access different functions or view historical data graphs.
4. Alarms: The device features bright LED, buzzer, and vibration alarms to alert users to high CO2 levels. Alarm thresholds can typically be configured in the device settings.

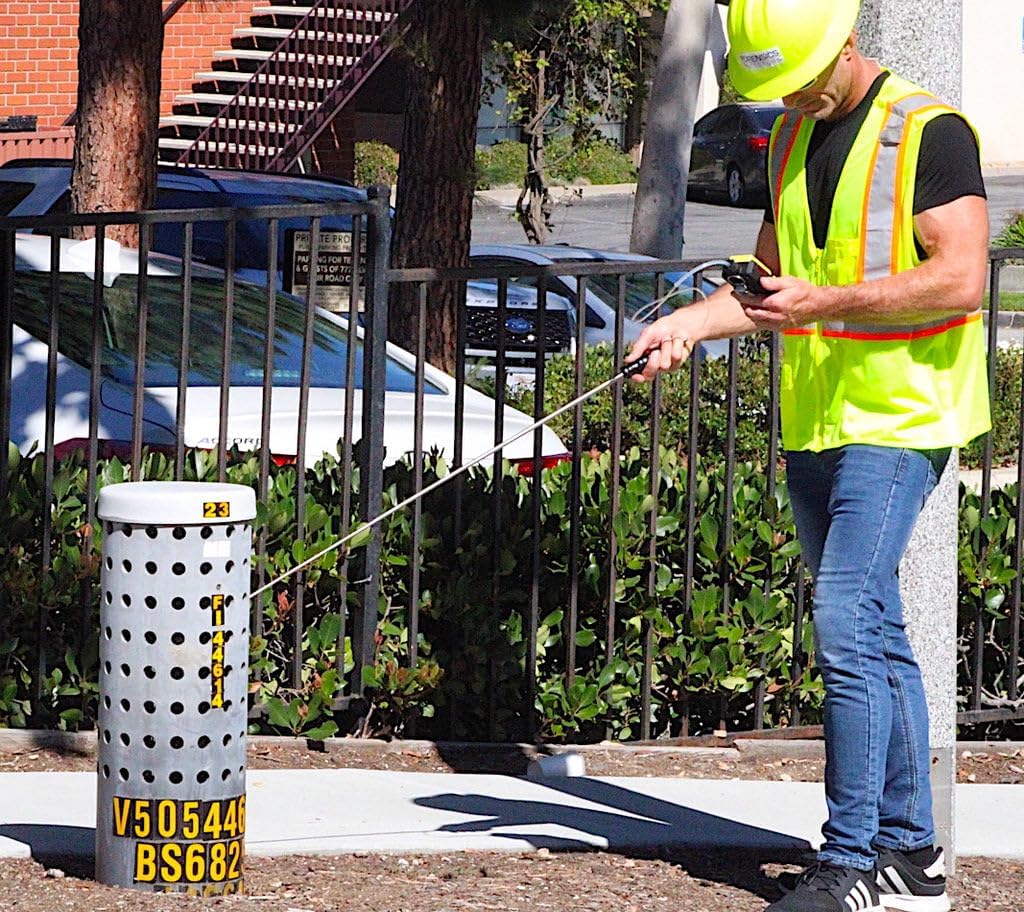

Image 6.1: An operator using the FD-600-CO2 analyzer with its extended probe to detect CO2 leaks in an industrial setting.

7. Maintenance

Proper maintenance ensures the longevity and accuracy of your FD-600-CO2 analyzer.

• Cleaning: Wipe the device exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents. Keep the air inlet and sensor areas free from dust and debris.
• Calibration: The device comes with a NIST traceable calibration certificate. Regular calibration is crucial for maintaining accuracy. Refer to FORENSICS DETECTORS for recommended calibration intervals and services.
• Battery Care: Recharge the Lithium Polymer battery regularly. Avoid fully discharging the battery for extended periods. Store the device in a cool, dry place when not in use.

8. Troubleshooting

If you encounter issues with your FD-600-CO2 analyzer, refer to the following common problems and solutions:

• Device not powering on: Ensure the battery is charged. Connect to a power source and try again. If the issue persists, contact support.
• Inaccurate readings: Check for blockages in the probe or tubing. Ensure the device is within its operating temperature range. Consider if recalibration is due.
• Pump not operating: Verify the tubing is correctly attached and not kinked. Check battery level.
• Display issues: If the display is blank or flickering, try restarting the device. If the problem continues, contact support.

9. Specifications

10. Warranty and Support

The FORENSICS DETECTORS FD-600-CO2 Carbon Dioxide Analyzer comes with a 1-year limited warranty. This warranty covers defects in materials and workmanship under normal use.

For technical support, warranty claims, or service inquiries, please contact FORENSICS DETECTORS directly. Refer to the contact information provided with your product or visit the official FORENSICS DETECTORS website.
