1. Product Overview
This manual provides instructions for the installation and maintenance of Caltric Deck Rollers, part numbers 03114100 and 039563. These deck rollers are designed as replacement parts for various Ariens and Gravely zero-turn lawn mower models, ensuring proper deck support and smooth operation.

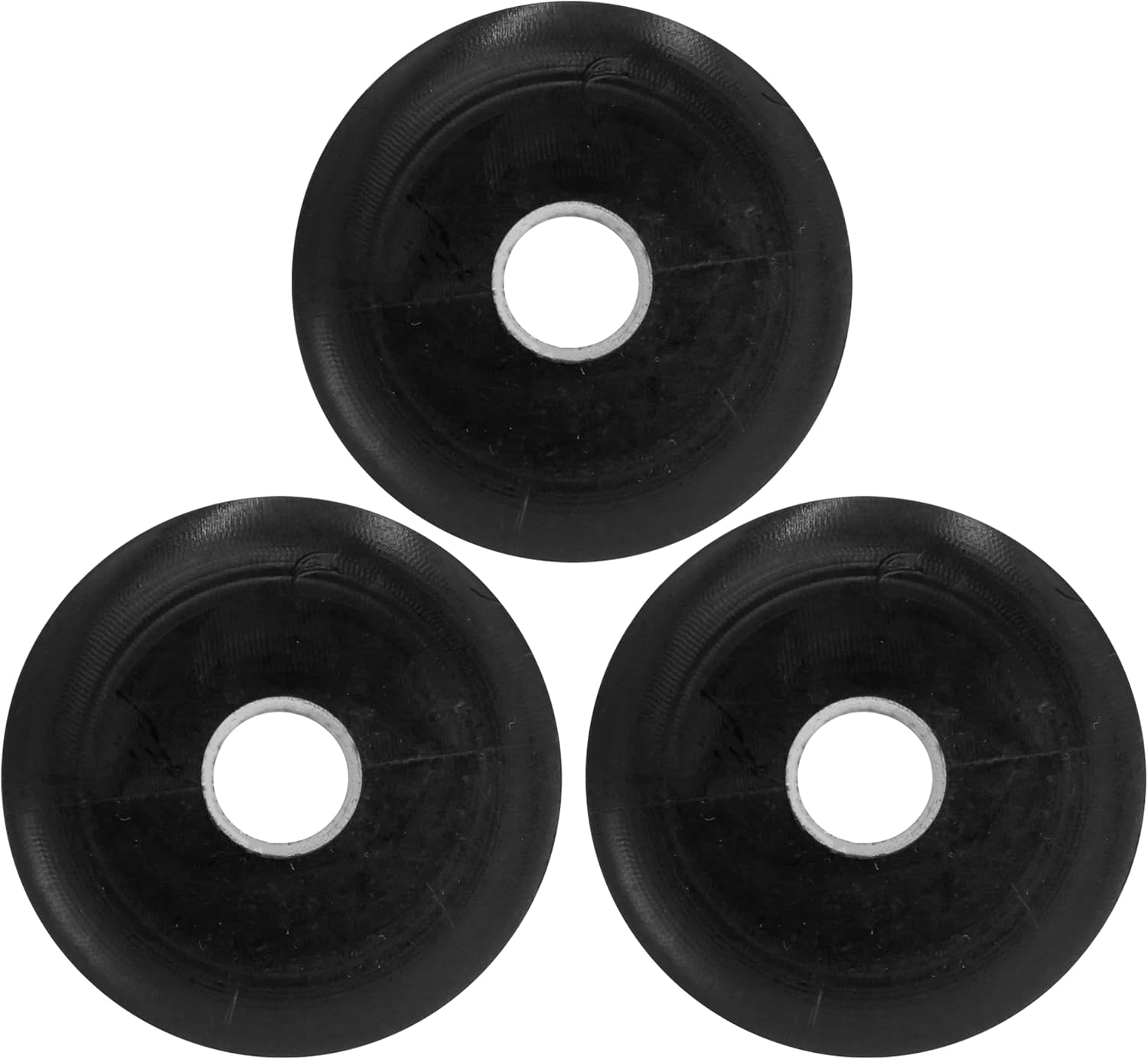

Image 1.1: Three Caltric Deck Rollers. These rollers are essential for supporting the mower deck and preventing scalping.
1.1. Compatibility
The Caltric Deck Rollers (03114100, 039563) are compatible with the following Ariens and Gravely models. Please verify your specific model and serial number range for exact fitment.
- Compatible with Ariens:
- 831001 831011 - 42" (SN: 000101 & Above)
- 831002 831012 - 48" (SN: 000101 & Above)
- 831026 - 60" (SN: 000101 - 003096)
- 831028 - 48" (SN: 000101 & Above)
- 831031 - 48" (SN: 002481 - 003049)
- 831301 834001 834008 834016 - 48" (SN: 000101 & Above)
- EZR1648 - 48" (SN: 000201 & Above)
- 834010 834017 - 60" (SN: 000101 & Above)
- 834002 834011 834015 834022 - 42" (SN: 000101 & Above)
- EZR1440 - 40" (SN: 000201 & Above)
- EZR1540 - 40" (SN: 000101 & Above)
- Compatible with Gravely:
- ZT1634 - 34" (SN: 000101 & Above)
- ZT1734 - 34" (SN: 000102 & Above)
- ZT1540 ZT1740 HVZ1840 ZT1840 - 40" (SN: 010000 & Above)
- ZT1640 - 40" (SN: 020000 & Above)
- ZT1840 - 40" (SN: 020000 - 035000)
- ZT1944 ZT2148 - 44" (SN: 010000 & Above)
- ZT2044 ZT2348 - 44" (SN: 020000 - 035000)
- ZT2350 - 50" (SN: 000101 - 001000)
- ZT2352 - 52" (SN: 010000 - 035000)
- 49139 49141 (1232) - 32"
- 915036 (ZT 1844) - 44" (SN: 000101 & Above)
- 831033 915025 915038 (ZT2048) - 48" (SN: 000101 & Above)
- 915040 (ZT2252) - 52" (SN: 000101 & Above)
2. Package Contents
Each order of Caltric Deck Rollers includes the following items:
- 3 x Deck Roller (Part Numbers: 03114100, 039563)
3. Installation Instructions
Proper installation of deck rollers is crucial for the performance and longevity of your lawn mower deck. Always prioritize safety during installation.
3.1. Safety Precautions
- Always turn off the engine and remove the spark plug wire(s) before performing any maintenance or installation.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Ensure the mower is on a flat, stable surface and properly supported if lifting is required.
3.2. Replacement Procedure
- Prepare the Mower: Park the mower on a level surface, engage the parking brake, turn off the engine, and disconnect the spark plug wire(s).
- Access the Deck Rollers: Depending on your mower model, you may need to raise the deck or remove it entirely to access the rollers. Consult your mower's specific owner's manual for detailed instructions on deck removal if necessary.
- Remove Old Rollers: Locate the worn or damaged deck rollers. Typically, they are held in place by a bolt, pin, or clip. Carefully remove the fasteners and extract the old rollers. Note the orientation of any washers or spacers.
- Compare New and Old Parts: Before installing, compare the new Caltric deck rollers with the old ones to ensure they match in size and design. Refer to the dimensions provided in Section 6. Specifications.
- Install New Rollers: Insert the new Caltric deck rollers into position. Reinstall any washers or spacers in their original configuration. Secure the rollers with the appropriate fasteners, ensuring they are tightened to the manufacturer's specifications (if available in your mower's manual). Do not overtighten.
- Reassemble and Test: Reattach the mower deck if it was removed. Reconnect the spark plug wire(s). Lower the deck and check that the new rollers spin freely and support the deck correctly.
Image 3.1: Caltric Deck Roller Dimensions. Verify these measurements against your existing rollers for proper fitment.
4. Maintenance
Regular maintenance of your deck rollers will extend their lifespan and ensure optimal performance of your mower deck.
- Regular Inspection: Periodically inspect the deck rollers for signs of wear, cracks, or damage. Check if they spin freely. Replace any rollers that show significant wear or damage.
- Cleaning: After each use, clean any grass clippings, dirt, or debris from around the rollers and their mounting points. Accumulated debris can hinder their rotation and cause premature wear.
- Lubrication: While these rollers are typically maintenance-free, if your mower's design includes grease fittings for the roller axles, follow your mower's manual for lubrication schedules.
5. Troubleshooting
If you encounter issues with your deck rollers, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Rollers not spinning freely | Accumulated debris, worn axle/bushing, overtightened fasteners | Clean rollers and mounting area. Inspect axle/bushing for wear and replace if necessary. Loosen fasteners slightly if overtightened. |
| Excessive noise from rollers | Worn rollers, damaged bearings/bushings, loose mounting hardware | Inspect rollers for wear and replace if needed. Check and tighten all mounting hardware. |
| Mower deck scalping or uneven cut | Worn or damaged rollers, incorrect deck height adjustment | Inspect and replace worn rollers. Ensure deck height is properly adjusted according to your mower's manual. |
| Rollers falling off | Loose or missing fasteners, incorrect installation | Re-secure rollers with correct fasteners. Ensure proper installation as per Section 3. |
6. Specifications
Key specifications for the Caltric Deck Roller (Part Numbers: 03114100, 039563):
- Part Numbers: 03114100, 039563
- Product Dimensions: Approximately 7 x 3 x 3 inches (L x W x H)
- Item Weight: Approximately 3 pounds (for the set of 3)
- Length: 6.79 inches (172.5 mm)
- Outer Diameter: 2.53 inches (64.3 mm)
- Inner Diameter: 0.71 inches (18.1 mm)
- Manufacturer: Caltric
