1. Product Overview
This manual provides essential information for the installation, operation, and maintenance of the JYJJEJSB Remanufactured 8HP45, 8HP70, and 8HP90 ZF 8-speed Transmission Valve Body. This component is crucial for the proper functioning of your vehicle's automatic transmission, controlling fluid flow to enable smooth gear changes.
The valve body is a precision-engineered part designed to directly replace original or damaged units, ensuring high precision and stable performance.
2. Compatibility
This remanufactured transmission valve body is compatible with various vehicle models equipped with ZF 8HP45, 8HP70, or 8HP90 8-speed automatic transmissions. Verified compatibility includes:
- BMW vehicles
- AUDI/Jaguar vehicles
- Land Rover vehicles
Always verify the specific part number and compatibility with your vehicle's make, model, and year before installation.
3. Setup and Installation
Important: Installation of a transmission valve body is a complex procedure that requires specialized tools, technical knowledge, and experience. It is highly recommended that installation be performed by a certified automotive technician or a qualified professional. Improper installation can lead to severe transmission damage and safety hazards.
3.1 Pre-Installation Checks
- Ensure the new valve body matches the original unit in terms of part numbers and physical configuration.
- Inspect the valve body for any visible shipping damage.
- Confirm all necessary gaskets, seals, and bolts are available and in good condition.
3.2 General Installation Steps (Professional Guidance Recommended)
- Safely lift and secure the vehicle.
- Drain the transmission fluid.
- Remove the transmission oil pan and filter.
- Carefully disconnect electrical connectors and mounting bolts from the old valve body.
- Remove the old valve body.
- Clean the transmission case mating surface thoroughly.
- Install the new valve body, ensuring all electrical connections are secure and bolts are torqued to manufacturer specifications.
- Install a new transmission filter and gasket, then reattach the oil pan.
- Refill the transmission with the correct type and amount of transmission fluid as specified by the vehicle manufacturer.
- Perform necessary adaptation procedures using diagnostic equipment to ensure the transmission recognizes the new valve body.

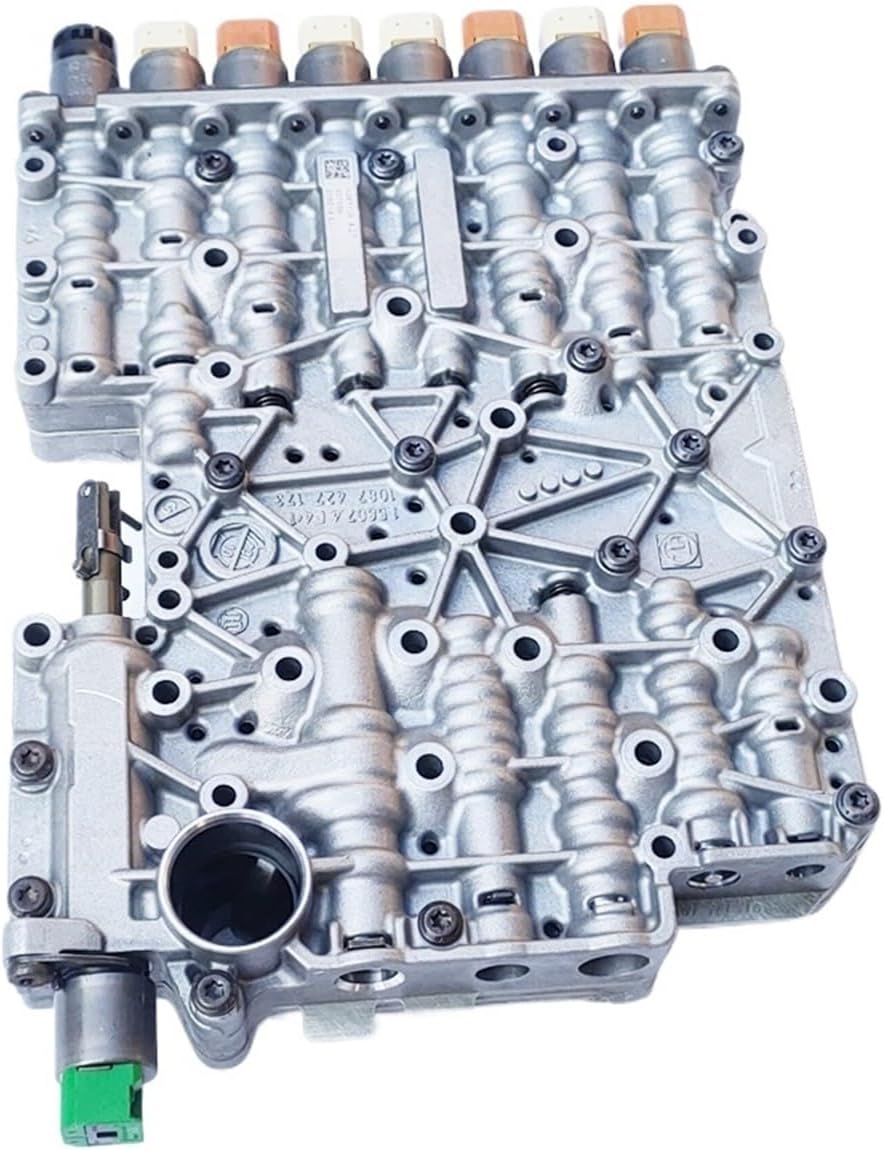

Figure 1: Top view of the ZF 8-speed transmission valve body, illustrating the complex internal structure and solenoid arrangement.
Figure 2: Side view of the valve body, showing the array of solenoids and their electrical connections.
4. Operation
The transmission valve body is an electro-hydraulic control unit responsible for directing transmission fluid to various clutches and bands within the automatic transmission. This precise fluid routing enables the transmission to shift gears smoothly and efficiently based on signals from the vehicle's Transmission Control Unit (TCU).
Once properly installed and adapted, the valve body operates automatically as part of the transmission system. Its function is to ensure optimal gear engagement, disengagement, and overall transmission performance, contributing to a better driving experience.
Figure 3: Underside view of the valve body, revealing the complex fluid pathways.
5. Maintenance
Proper maintenance of your vehicle's transmission system is vital for the longevity and performance of the valve body and the entire transmission. While the valve body itself does not require direct user maintenance, adherence to the vehicle manufacturer's recommended transmission service schedule is crucial.
- Transmission Fluid: Regularly check and maintain the transmission fluid level and quality. Use only the fluid type specified by your vehicle manufacturer. Contaminated or low fluid levels can severely impact valve body function.
- Fluid and Filter Changes: Adhere to the recommended intervals for transmission fluid and filter changes. A clean filter and fresh fluid prevent debris from circulating and damaging the delicate components within the valve body.
- Professional Inspections: Have your transmission inspected by a qualified technician during routine vehicle maintenance to identify potential issues early.
Figure 4: Angled view of the valve body, showcasing its complete assembly.
6. Troubleshooting
If you experience transmission issues after valve body installation, or if new symptoms arise, consult a professional automotive technician immediately. Common symptoms that may indicate a valve body issue or related transmission problem include:
- Harsh or delayed gear shifts
- Slipping gears
- Transmission stuck in a single gear (limp mode)
- Check Engine Light or Transmission Warning Light illumination
- Unusual noises from the transmission
Note: Many transmission issues can stem from various components, not just the valve body. A professional diagnosis using specialized diagnostic tools is essential to accurately identify the root cause of any problem.
Figure 5: Another perspective of the valve body, highlighting its precision-machined surfaces.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | JYJJEJSB |
| Model | xiaopeng898 shop (Remanufacturing) |
| Compatible Transmissions | ZF 8HP45, 8HP70, 8HP90 (8-speed) |
| Item Weight | 1.76 ounces |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Country of Origin | China |
| ASIN | B0DLYMBRCZ |
| Manufacturer | xiaopeng898 shop |
Figure 6: Top-down view of the valve body, providing a comprehensive look at its design.
8. Warranty and Support
For information regarding warranty coverage, returns, or technical support for this remanufactured transmission valve body, please contact the seller directly. The seller for this product is xiaopeng898 shop.
When contacting support, please provide your purchase details, including the ASIN (B0DLYMBRCZ) and date of purchase, to facilitate a quicker resolution.
