NAMMARO 35-in-1 3.6V Cordless Electric Screwdriver Kit

1. Important Safety Instructions

Please read and understand all safety warnings and instructions before operating this electric screwdriver. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Disconnect the plug from the power source and/or remove the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

2. Product Overview

The NAMMARO 35-in-1 Electric Screwdriver Kit is a versatile tool designed for various repair and assembly tasks. It features a cordless design, adjustable torque, and an integrated LED light for enhanced visibility.

Image 1: Overview of the NAMMARO Electric Screwdriver Kit, including the screwdriver, bit storage box, and portable carry case.

Package Contents:

• Electric Screwdriver (x1)
• Bits Storage Box (with 30 S2-Steel Magnetic Bits) (x1)
• Extension Rod (x1)
• 1/4 Adapter Sleeve (x1)
• USB Charging Cable (Type-C) (x1)
• Magnetizer (x1)
• Portable Storage Bag (x1)

Image 2: Detailed view of the 30 high-quality S2-steel magnetic screwdriver bits included in the kit, categorized by type.

Key Features:

• Powerful Motor: 300rpm speed for efficient operation.
• Adjustable Torque: 5-gear rotary knob, up to 5N.m in electric mode and 8N.m in manual mode.
• Instant Stop: Prevents over-rotation and potential damage.
• Long-lasting Battery: 2000mAh capacity, supports 1000+ screws on a full charge.
• Fast Charging: Type-C USB charging with clear battery indicator.
• LED Shadowless Light: 360° illumination with four light beads for dark environments.
• Ergonomic Design: Anti-slip surface for comfortable, one-handed grip.

3. Setup

3.1 Charging the Screwdriver

1. Locate the Type-C charging port at the base of the screwdriver.
2. Connect the provided USB charging cable to the screwdriver and a suitable USB power adapter (not included).
3. The charging indicator light at the tail of the screwdriver will illuminate. It will flash red for 10 seconds when the battery level is below 20% and turn green when fully charged.
4. Allow approximately 2-3 hours for a full charge. Disconnect the cable once charging is complete.

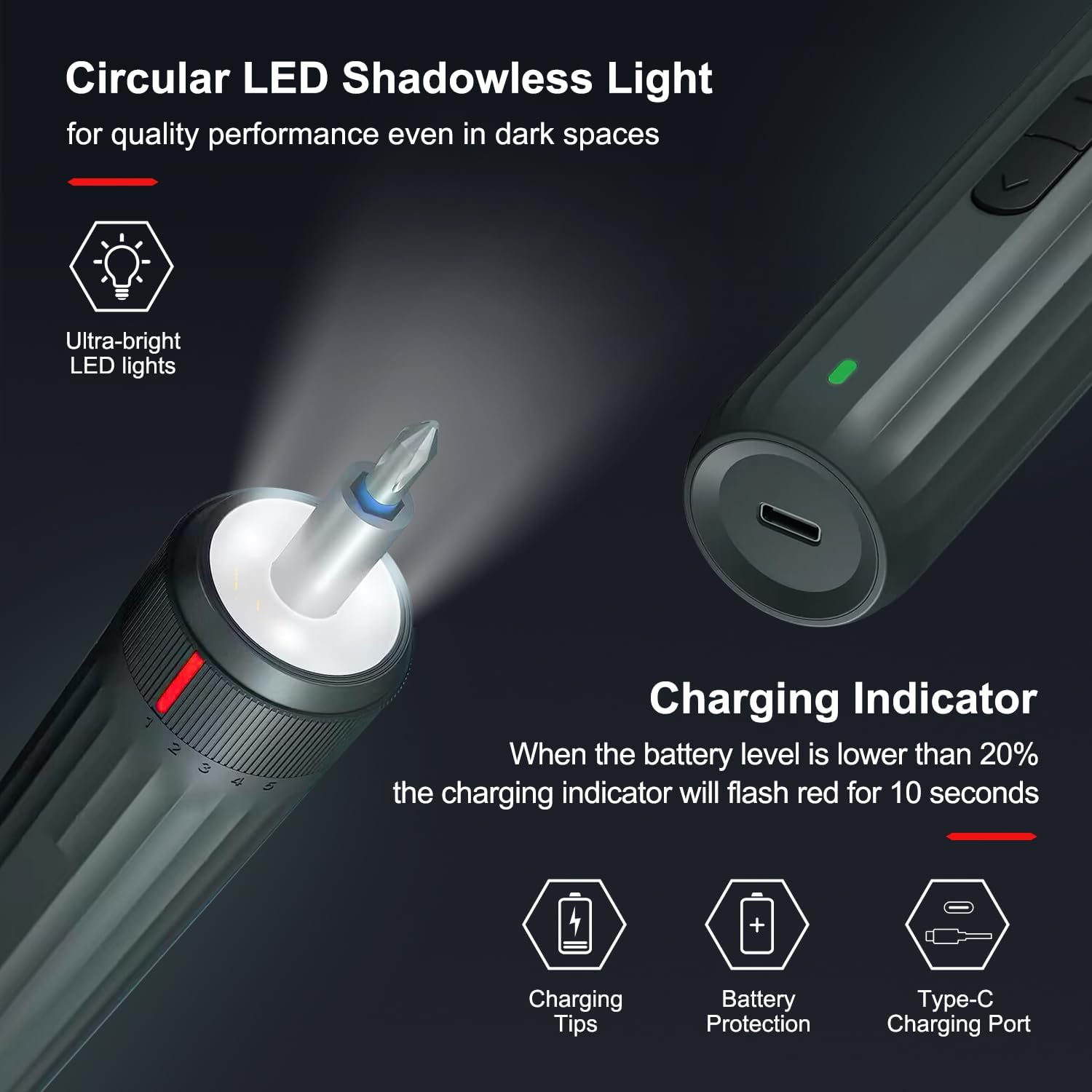

Image 3: The screwdriver's circular LED shadowless light and the Type-C charging port with its indicator light.

3.2 Inserting Screwdriver Bits

1. Select the appropriate S2-Steel magnetic bit from the bits storage box for your task.
2. Insert the bit firmly into the magnetic chuck at the front of the screwdriver. The magnetic chuck will hold the bit securely.
3. To remove, simply pull the bit straight out.

3.3 Using the Extension Rod and Magnetizer

• Extension Rod: For reaching screws in deep or narrow spaces, insert the extension rod into the magnetic chuck first, then insert the desired bit into the extension rod.
• Magnetizer: If a bit loses some of its magnetic properties over time, use the included magnetizer to re-magnetize it. Pass the bit through the '+' opening to magnetize, and through the '-' opening to demagnetize.

4. Operation

4.1 Powering On/Off and Direction Control

The screwdriver operates by pressing the forward or reverse buttons. There is no separate power on/off switch; the tool is active when a button is pressed.

• Press the upper button (usually marked with an arrow pointing forward) to drive screws in (clockwise rotation).
• Press the lower button (usually marked with an arrow pointing backward) to loosen screws (counter-clockwise rotation).
• The screwdriver features an instant stop function; releasing the button immediately stops the rotation.

4.2 Torque Adjustment

The screwdriver features a 5-gear precise torque adjustment mechanism, allowing you to select the appropriate torque for different tasks.

1. Locate the rotary knob at the top of the screwdriver, just below the bit chuck.
2. Rotate the knob to select one of the five torque settings (marked 1 to 5).
3. Setting 1 provides the lowest torque, suitable for delicate tasks, while setting 5 provides the maximum electric torque of 5N.m for more demanding applications.

Image 4: Close-up view of the mechanical knob for 5-gear precise torque adjustment, indicating settings from 1 to 5.

4.3 Manual Mode Operation

For tasks requiring higher torque or precise control, the screwdriver can be used in manual mode.

• When the electric motor is not engaged, the screwdriver can be manually rotated to tighten or loosen screws.
• In manual mode, the screwdriver can achieve a maximum torque of 8N.m.

4.4 LED Shadowless Light

The integrated 360° LED shadowless light automatically illuminates the work area when the screwdriver is in operation.

• The four light beads provide bright, even illumination, reducing shadows in dark environments.
• The light will automatically turn off approximately 5 seconds after operation ceases to conserve battery power.

5. Maintenance

5.1 Cleaning

• Always disconnect the screwdriver from any charging source before cleaning.
• Wipe the exterior of the screwdriver with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure no moisture enters the charging port or other openings.
• Clean the screwdriver bits regularly to remove debris and ensure proper fit.

5.2 Storage

• Store the screwdriver and all accessories in the provided portable storage bag.
• Keep the kit in a cool, dry place, away from direct sunlight and extreme temperatures.
• Store out of reach of children.

5.3 Battery Care

• To prolong battery life, avoid completely draining the battery before recharging.
• If storing for extended periods, charge the battery to approximately 50% every 3-6 months.
• Do not attempt to open or replace the internal battery.

6. Troubleshooting

If you encounter issues with your NAMMARO electric screwdriver, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support for further assistance.

7. Specifications

Image 5: Infographic highlighting the screwdriver's large capacity battery, rotational speed, maximum torque, and screw capacity per charge.

• Model: 05Y9
• Brand: NAMMARO
• Voltage: 3.6V
• Battery Capacity: 2000mAh
• Max Electric Torque: 5N.m
• Max Manual Torque: 8N.m
• No-load Speed: 300rpm
• Torque Settings: 5-gear adjustable
• Charging Port: Type-C USB
• Bit Material: S2-Steel (60HRC hardness)
• LED Light: 360° Shadowless LED with 4 beads
• Color: Gray

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the retailer/manufacturer directly. Keep your purchase receipt as proof of purchase.
