Silver Crest 2-in-1 Food Processor Blender SC-1589 Instruction Manual

Introduction

Thank you for choosing the Silver Crest 2-in-1 Food Processor Blender SC-1589. This versatile appliance is designed to simplify your food preparation tasks, offering powerful blending and grinding capabilities. With its 4500W motor and 2-liter capacity, it is ideal for a wide range of recipes, from smoothies and juices to grinding nuts and preparing baby food. Please read this manual carefully before use to ensure safe and optimal operation.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not immerse the motor base in water or other liquids.
• Always unplug the appliance from the power outlet before cleaning, assembling, or disassembling parts.
• Keep hands and utensils out of the container while blending to reduce the risk of severe personal injury and/or damage to the blender. A scraper may be used but only when the blender is not running.
• Blades are sharp. Handle with care.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Close supervision is necessary when any appliance is used by or near children.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• This appliance is not dishwasher safe. Refer to the cleaning section for proper maintenance.

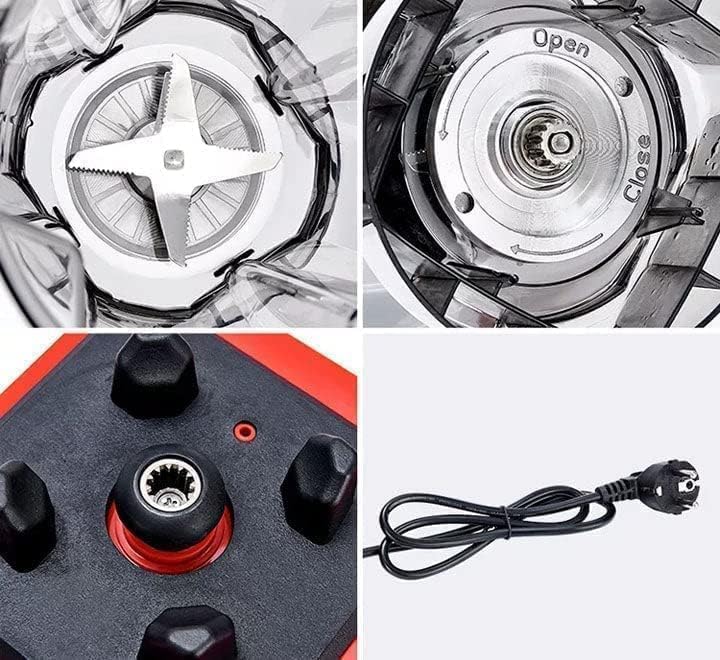

Product Components

The Silver Crest 2-in-1 Food Processor Blender SC-1589 comes with several key components designed for efficient food preparation:

• Motor Base: The main unit housing the powerful 4500W motor and control panel.
• 2-Liter Blending Jar: A large capacity, BPA-free plastic jar for blending liquids and soft ingredients.
• Grinder Attachment: A separate attachment for grinding dry ingredients like nuts, coffee beans, and spices.
• Stainless Steel Blades: Durable, multi-speed blades for effective processing.
• Lid with Filler Cap: For secure blending and adding ingredients during operation.

Setup

Follow these steps to set up your Silver Crest Food Processor Blender:

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Clean: Before first use, wash the blending jar, grinder attachment, and blades with warm, soapy water. Rinse thoroughly and dry. Wipe the motor base with a damp cloth.
3. Assemble Blending Jar: Place the blade assembly securely into the bottom of the blending jar. Ensure it is tightly fastened to prevent leaks.
4. Place Jar on Base: Position the assembled blending jar onto the motor base. Ensure it is seated correctly and locked into place.
5. Connect Power: Plug the power cord into a suitable electrical outlet.

Operating Instructions

Your Silver Crest blender offers 6 speeds and 15 functions for diverse culinary needs.

General Blending

1. Add Ingredients: Place your desired ingredients into the blending jar. Do not exceed the maximum fill line.
2. Secure Lid: Place the lid firmly on the blending jar and ensure the filler cap is in place.
3. Select Speed: Use the variable speed control dial to select your desired blending speed. Start with a lower speed and gradually increase as needed.
4. Blend: Press the 'ON' button to start blending. Use the 'PULSE' function for short bursts of power.
5. Stop: Press the 'OFF' button or turn the speed dial to 'OFF' when done.

Using the Grinder Attachment

1. Assemble Grinder: Attach the grinding blade to the grinder cup.
2. Add Ingredients: Place dry ingredients (e.g., coffee beans, nuts, spices) into the grinder cup. Do not overfill.
3. Secure on Base: Invert the grinder cup and securely attach it to the motor base, twisting to lock it in place.
4. Grind: Select a suitable speed or use the 'PULSE' function for grinding.
5. Remove: Once grinding is complete, turn off the appliance, unplug it, and carefully remove the grinder attachment from the base.

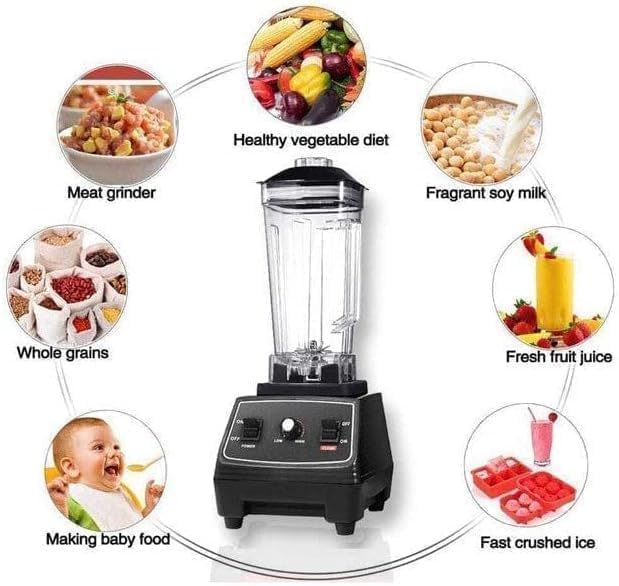

The blender's powerful motor and variable speed control allow for various applications, including cream emulsion, frozen dessert mix, baby food, nut and coffee grinding, salad chopping, dips, hot soups, ice crushing, and batter mix for pancakes, waffles, cookies, and cakes.

Maintenance and Cleaning

Proper cleaning and maintenance will extend the life of your appliance.

1. Unplug: Always unplug the blender before cleaning.
2. Disassemble: Separate the blending jar/grinder from the motor base. Remove the blade assembly from the jar/grinder.
3. Wash Parts: Wash the blending jar, grinder cup, lid, and blades with warm, soapy water. Use a brush to safely clean around the blades. Rinse thoroughly.
4. Dry: Ensure all parts are completely dry before reassembling or storing.
5. Clean Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water.
6. Storage: Store the assembled blender in a dry, safe place.

Note: This appliance is NOT dishwasher safe.

Troubleshooting

If you encounter issues with your blender, refer to the following common problems and solutions:

• Blender does not turn on:
  • Ensure the power cord is securely plugged into a working outlet.
  • Check that the blending jar or grinder is correctly assembled and locked onto the motor base.
• Ingredients are not blending smoothly:
  • Add more liquid if the mixture is too thick.
  • Use the 'PULSE' function to break down larger pieces.
  • Ensure the blades are clean and free from obstructions.
• Motor smells or overheats:
  • Do not operate the blender continuously for extended periods. Allow it to cool down.
  • Reduce the load by removing some ingredients or adding more liquid.
  • If the smell persists, discontinue use and contact customer support.
• Leaking from the bottom of the jar:
  • Ensure the blade assembly is tightly screwed onto the bottom of the blending jar.
  • Check for any damage to the sealing gasket.

Specifications

Warranty and Support

Your Silver Crest 2-in-1 Food Processor Blender SC-1589 comes with a limited warranty.

• Warranty Description: Two-year limited warranty.
• For warranty claims or technical support, please refer to the contact information provided at the point of purchase or visit the official Silver Crest website.
• Optional extended protection plans may be available from third-party providers.
