LKJJHGF Midea Washing Machine Pulsator 180 Agitator Instruction Manual

1. Introduction

This manual provides essential information for the installation, maintenance, and troubleshooting of the LKJJHGF Midea Washing Machine Pulsator 180 Agitator. This component is designed for compatibility with Midea washing machines, featuring 11 teeth and a 37.5 cm outer diameter. Proper installation and care ensure optimal washing machine performance.

2. Safety Information

• Disconnect Power: Always unplug the washing machine from the power outlet before attempting any installation, removal, or maintenance.
• Wear Protective Gear: Use gloves and eye protection to prevent injury during handling and installation.
• Professional Assistance: If you are unsure about any step, consult a qualified technician to avoid damage to the appliance or personal injury.
• Handle with Care: The pulsator may have sharp edges; handle carefully to prevent cuts.

3. Product Overview

The LKJJHGF Midea Washing Machine Pulsator 180 Agitator is a crucial component responsible for creating the water currents necessary for effective laundry cleaning. It features a robust design with 11 teeth for secure attachment and a 37.5 cm outer diameter for broad water agitation.

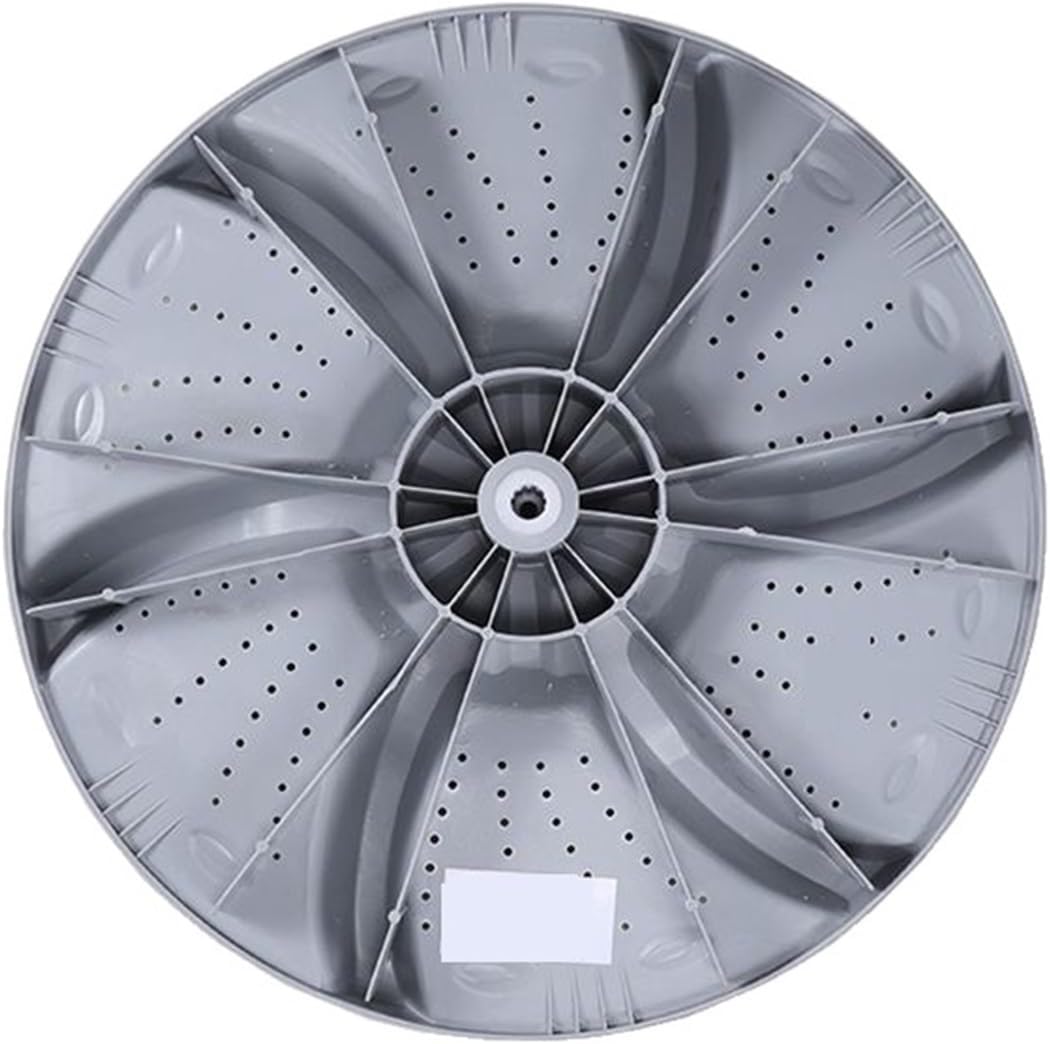

Figure 3.1: Top view of the pulsator, illustrating its vanes and central shaft connection point. This view highlights the design responsible for water movement during the wash cycle.

Figure 3.2: Another top view of the pulsator, showing the central screw for attachment. The perforations on the surface aid in water circulation and debris removal.

Figure 3.3: Side profile of the pulsator, indicating its overall height and structural integrity. Red lines may indicate measurement points for verification.

4. Installation Guide

Follow these steps carefully to replace the pulsator in your Midea washing machine.

4.1. Preparation

1. Disconnect Power: Unplug the washing machine from the electrical outlet.
2. Drain Water: Ensure the washing machine tub is empty and dry.
3. Gather Tools: You will typically need a screwdriver (often Phillips head) and possibly a socket wrench or pliers, depending on your specific washing machine model.

4.2. Removing the Old Pulsator

1. Locate the Pulsator Cap: Many pulsators have a central cap that covers the mounting screw. Carefully pry this cap off using a flat-head screwdriver or your fingers.
2. Unscrew the Pulsator: Use the appropriate screwdriver to remove the central screw holding the pulsator in place. Keep the screw in a safe place.
3. Remove the Pulsator: Gently lift the old pulsator straight up and out of the wash tub. If it's stuck, try wiggling it slightly or using a pulsator removal tool if available. Avoid excessive force to prevent damage to the tub or shaft.

4.3. Installing the New Pulsator

1. Inspect the Shaft: Ensure the washing machine's drive shaft is clean and free of debris.
2. Align the Pulsator: Carefully lower the new LKJJHGF pulsator onto the drive shaft, aligning the 11 teeth on the pulsator with the grooves on the shaft. It should slide down smoothly. Do not force it.
3. Secure the Pulsator: Reinsert the central screw and tighten it firmly. Do not overtighten, as this can strip the threads or damage the pulsator.
4. Replace the Cap: Snap the pulsator cap back into place if your model has one.

4.4. Post-Installation Check

1. Reconnect Power: Plug the washing machine back into the electrical outlet.
2. Test Run: Run a short, empty wash cycle to ensure the pulsator rotates correctly and there are no unusual noises or vibrations.

5. Maintenance

Regular maintenance helps prolong the life of your pulsator and ensures efficient washing.

• Clean Regularly: Periodically remove the pulsator (following installation steps 4.1 and 4.2) to clean underneath it and the wash tub. Lint, detergent residue, and small items can accumulate.
• Inspect for Wear: Check the pulsator for cracks, excessive wear on the vanes, or damage to the central teeth. Replace if significant wear is observed.
• Avoid Overloading: Overloading the washing machine can put undue stress on the pulsator and other components.

6. Troubleshooting

If you encounter issues after installing the new pulsator, consider the following:

• Pulsator Not Moving:
  • Ensure the central screw is securely tightened.
  • Verify the pulsator's teeth are correctly engaged with the drive shaft.
  • Check for any obstructions beneath the pulsator.
• Unusual Noises (Grinding, Clicking):
  • The pulsator might not be seated correctly. Re-seat it.
  • A foreign object might be trapped under the pulsator. Remove and inspect.
  • The drive shaft or transmission might have an issue (requires professional diagnosis).
• Poor Washing Performance:
  • Ensure the pulsator is rotating freely and vigorously.
  • Check for proper water levels and detergent usage.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please contact the seller or manufacturer directly through your purchase platform. Keep your purchase receipt or order details handy for faster service.
