1. Introduction
This manual provides essential information for the safe and efficient use of the FPBIGCHA ZXS14 Harmonic Reducer Harmonic Drive. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper function and longevity of the product. This model is specifically designed for a 42mm step motor with a 100 to 1 reduction ratio.
2. Safety Information
Always observe the following safety precautions to prevent injury to personnel and damage to equipment:
- Ensure all power is disconnected before installation, maintenance, or inspection.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves.
- Do not exceed the specified load, torque, or speed ratings.
- Ensure the reducer is securely mounted to a stable surface.
- Keep hands and loose clothing away from moving parts during operation.
- Consult a qualified technician for any complex repairs or modifications.
3. Product Overview
The FPBIGCHA ZXS14 Harmonic Reducer is a high-precision, compact, and lightweight harmonic drive system. It is engineered for industrial automation applications requiring accurate speed reduction and high torque transmission. Its design features a simple internal structure, contributing to smooth and reliable operation. This unit is a cup-type harmonic drive equipped with a flange plate for versatile mounting.
Figure 3.1: Internal view of the harmonic reducer, highlighting the precision bearing and gear components.
4. Specifications
The following table details the technical specifications for the ZXS14 Harmonic Reducer with a 100 to 1 ratio:
| Parameter | Value |
|---|---|
| Model | ZXS14 |
| Speed Ratio | 100:1 |
| Backlash | ≤10 arcsec |
| Weight | 0.5 kg (approx. 1.1 lbs) |
| Rated Torque (2000r/min input) | 0.7 Nm |
| Permissible Torque (Start/Stop) | 1 Nm |
| Max Allowable Average Load Torque | 1.4 Nm |
| Instantaneous Max Allowable Torque | 7.2 Nm |
| Oil Lubrication Life | 14000 hours |
| Grease Lubrication Life | 6500 hours |
| Allowable Input Speed | 3500 rpm |
| Allowable Average Input Speed | 1000 rpm |
| Moment of Inertia | 0.033 x 10-4 kgm2 |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Model Number (Manufacturer's Internal) | FPBIGCHA |
| Assembly Required | No (unit is pre-assembled, but requires installation) |
| Number of Pieces | 1 (reducer unit) |

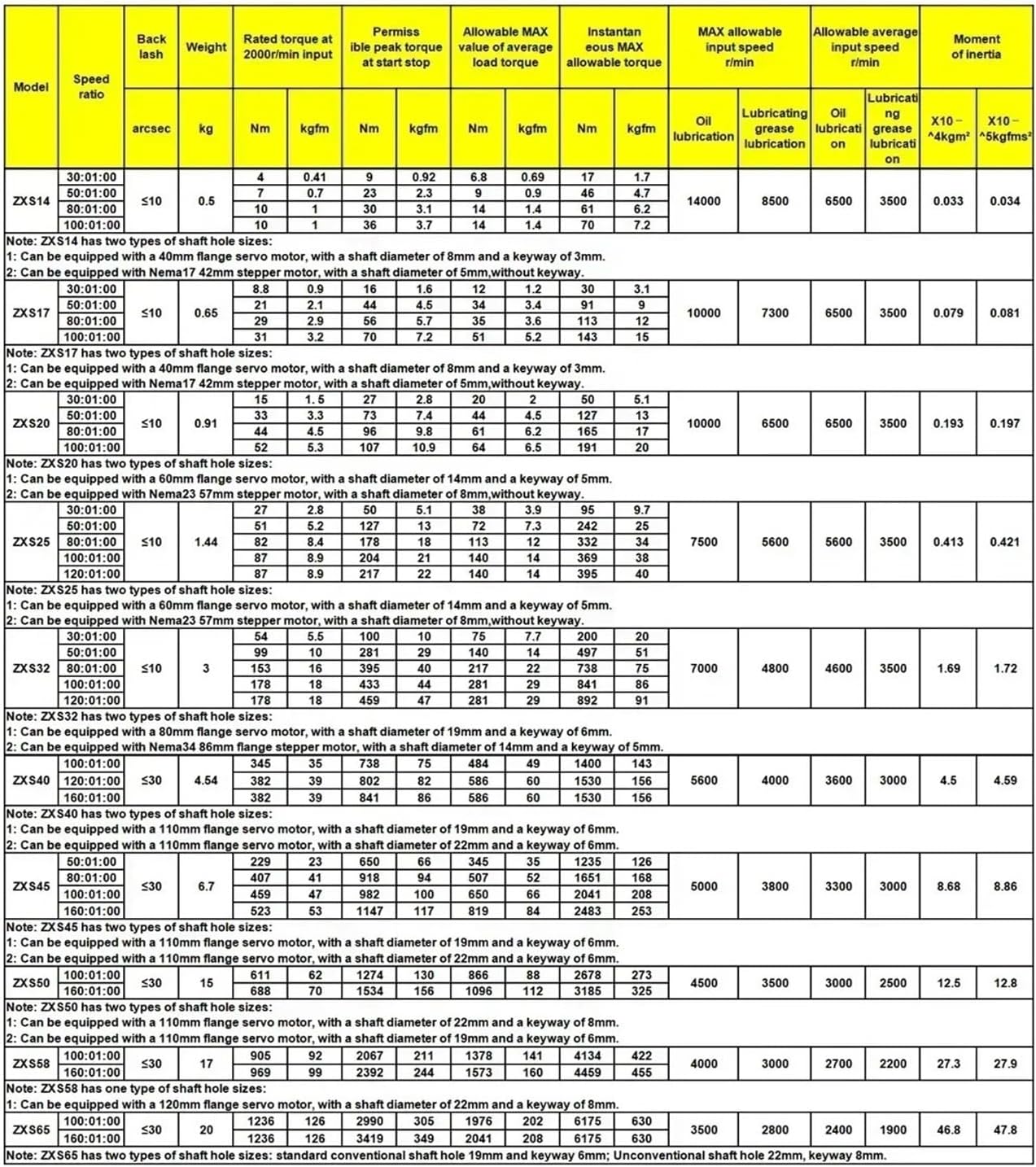

Figure 4.1: Comprehensive specification table for FPBIGCHA Harmonic Reducers.
5. Setup and Installation
The ZXS14 Harmonic Reducer is designed for easy assembly due to its compact size. Proper installation is crucial for optimal performance and safety.
5.1 Component Identification
Before installation, identify all components. The unit typically includes the harmonic reducer body and a flange plate.

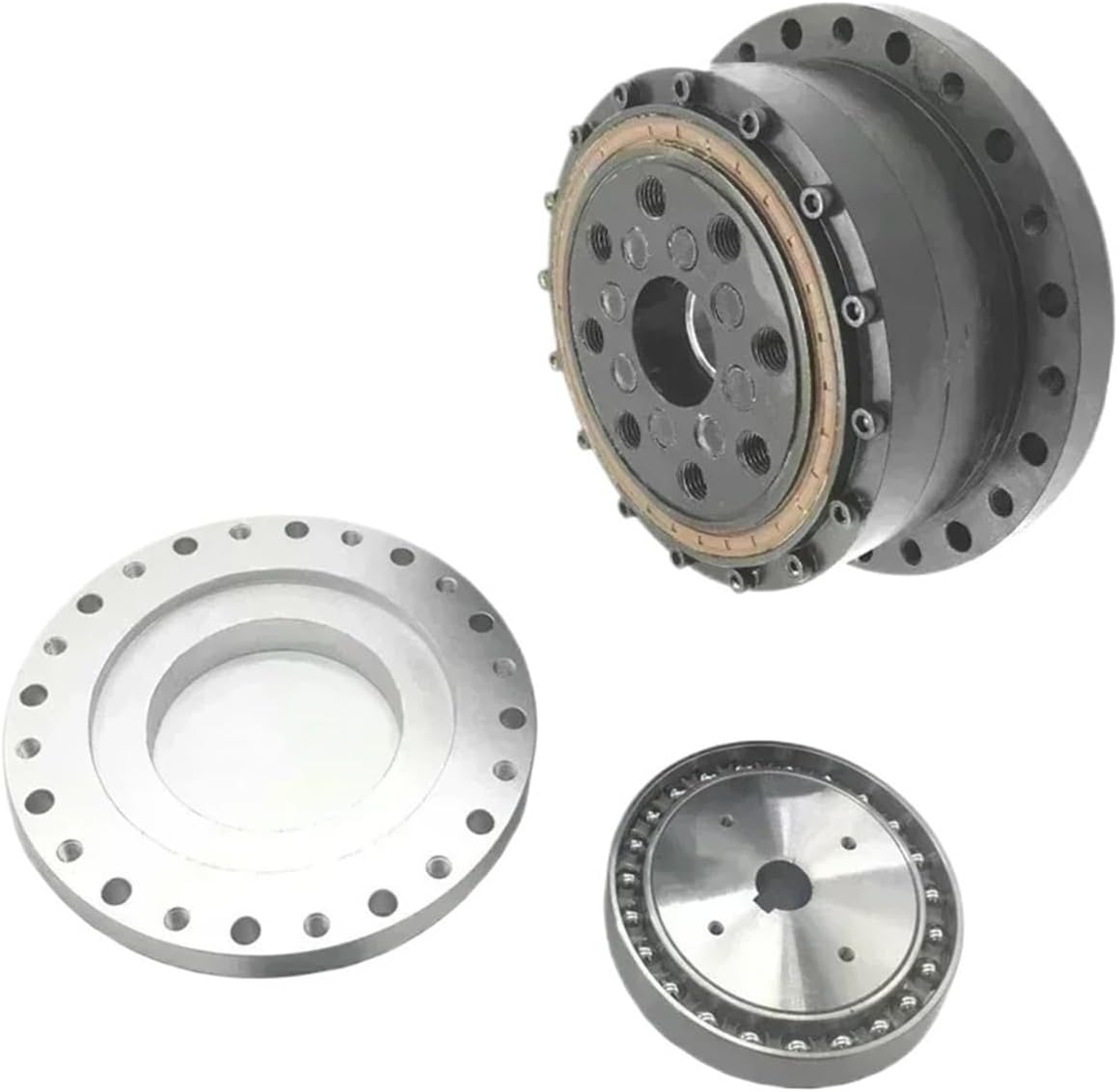

Figure 5.1: Main components of the harmonic reducer.
5.2 Mounting and Dimensions
The ZXS14 model is compatible with Nema-17 stepper motors, featuring a 5mm shaft and a 42mm flange, with an installation circle of 43.8mm. Refer to the detailed dimensional drawing for precise mounting hole patterns and overall dimensions.

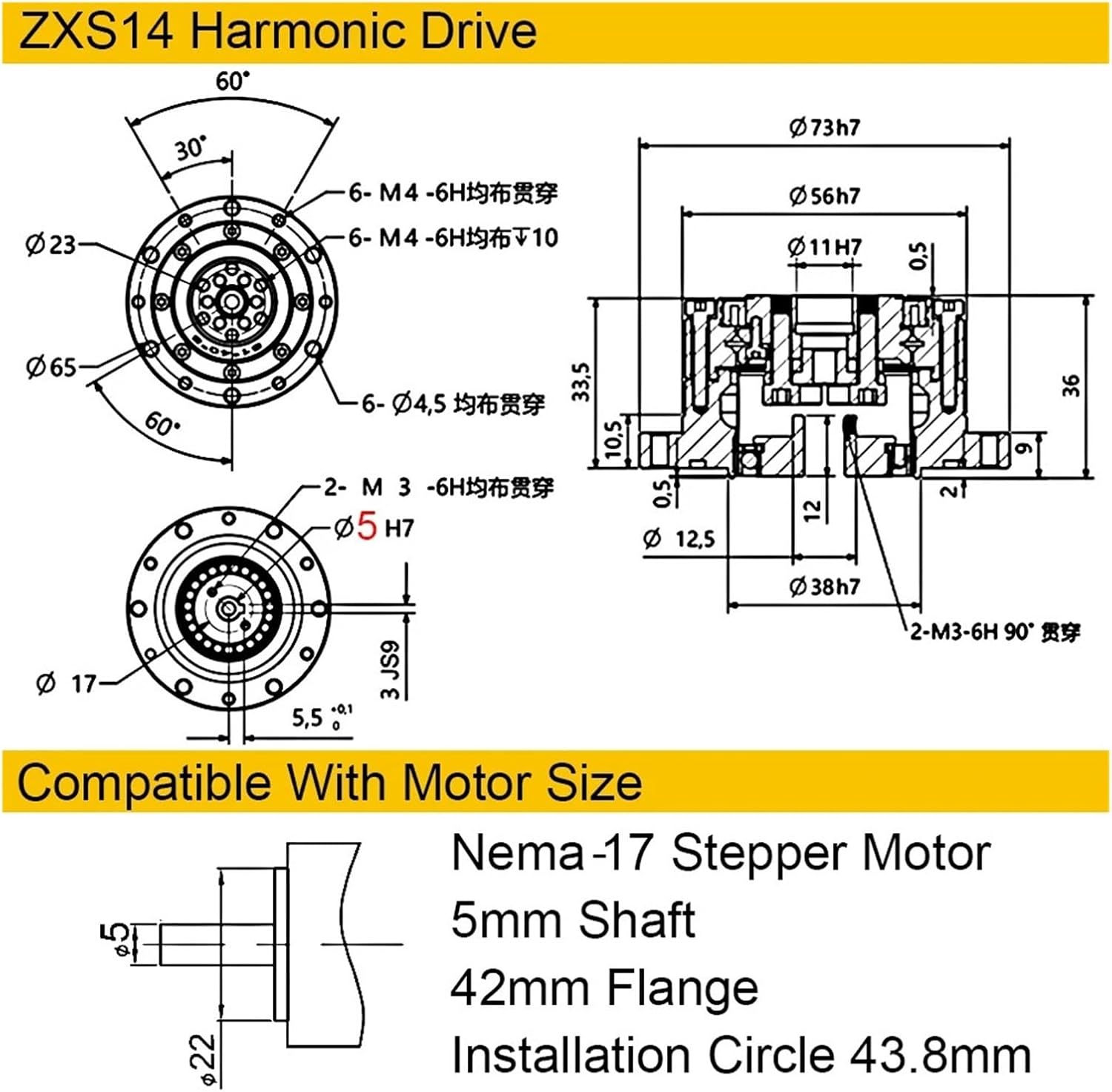

Figure 5.2: ZXS14 Harmonic Drive dimensions for Nema-17 Stepper Motor.
For alternative servo motor compatibility, specifically 50W-100W servo motors with an 8mm shaft and 40mm flange, refer to the following diagram:
Figure 5.3: ZXS14 Harmonic Drive dimensions for 50W-100W Servo Motor.
- Prepare Mounting Surface: Ensure the mounting surface is clean, flat, and rigid enough to support the reducer and connected motor.
- Attach Flange: Secure the flange plate to the reducer body using the provided fasteners, if not pre-assembled.
- Mount Motor: Align the motor shaft with the reducer's input shaft. Carefully slide the motor onto the reducer, ensuring proper engagement. Secure the motor to the reducer's flange using appropriate bolts.
- Secure Reducer: Mount the entire assembly to your equipment using the designated mounting holes on the reducer's flange. Ensure all fasteners are tightened to the manufacturer's recommended torque specifications.
- Check Alignment: Verify that there is no misalignment or excessive stress on the shafts or mounting points.
6. Operation
The harmonic reducer functions to precisely reduce the rotational speed from the input motor to the output, thereby increasing torque. It is crucial to operate the unit within its specified limits to ensure optimal performance and prevent damage.
- Load Management: Do not exceed the rated or maximum allowable torque values. Overloading can lead to premature wear or failure.
- Speed Control: Maintain input speeds within the allowable range (up to 3500 rpm instantaneous, 1000 rpm average).
- Environmental Conditions: Operate the reducer within suitable temperature and humidity ranges. Avoid environments with excessive dust, moisture, or corrosive substances.
- Monitoring: During initial operation and periodically thereafter, monitor for unusual noises, vibrations, or excessive heat, which may indicate an issue.
For detailed selection and operational considerations, including load cycle analysis, refer to the selection process flowchart:
Figure 6.1: Harmonic Drive Selection Process and Load Cycle Diagram.
7. Maintenance
Regular maintenance ensures the longevity and reliable performance of your harmonic reducer.
- Lubrication: The ZXS14 model is pre-lubricated. For oil-lubricated units, the oil life is approximately 14,000 hours. For grease-lubricated units, the grease life is approximately 6,500 hours. Follow manufacturer guidelines for re-lubrication intervals and type of lubricant if applicable for your specific unit.
- Inspection: Periodically inspect the reducer for any signs of wear, damage, or loose fasteners. Check for oil leaks or unusual residue.
- Cleaning: Keep the exterior of the reducer clean and free from dust, debris, and contaminants.
- Storage: If storing the unit, ensure it is kept in a dry, clean environment, protected from extreme temperatures and humidity.
8. Troubleshooting
If you encounter issues with your harmonic reducer, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unusual Noise/Vibration | Misalignment, loose mounting bolts, worn bearings, excessive load. | Check alignment, tighten bolts, inspect for wear, reduce load. |
| Overheating | Excessive load, insufficient lubrication, high ambient temperature. | Reduce load, check lubrication levels/type, improve ventilation. |
| Failure to Transmit Power | Input shaft not engaged, internal damage, motor failure. | Verify shaft engagement, inspect for internal damage (professional service recommended), check motor function. |
| Reduced Accuracy | Excessive backlash, wear in components. | Inspect for wear, consider professional recalibration or replacement. |
If problems persist after attempting these solutions, contact customer support.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the product's purchase documentation or contact FPBIGCHA customer service directly. Ensure you have your product model number (ZXS14) and purchase date available when contacting support.
Manufacturer: FPBIGCHA
Model Number: ZXS14
