12.3 inch Digital Dashboard User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your new 12.3 inch Digital Dashboard. Please read this manual thoroughly before installation and use to ensure proper function and safety. This digital dashboard is designed to enhance your driving experience by providing clear, real-time vehicle information.

2. Product Overview and Key Features

The WBFRYEE 12.3 inch Digital Dashboard is a state-of-the-art replacement for your vehicle's traditional instrument cluster, offering advanced functionality and a modern interface.

Figure 2.1: The 12.3 inch Digital Dashboard unit, showcasing its sleek design and integrated screen.

Key Features:

• High-Resolution Display: Features a 12.3-inch anti-glare screen with 1920x720 resolution for clear visibility.

• Linux Operating System: Ensures stable and efficient performance.

• Real-time Information: Displays vehicle status, fault warnings, and maintenance tips dynamically.

• Quick Startup: Achieves fast response and quick start, typically less than 3 seconds from car ignition.

• Intuitive Interface: Reasonable layout and clear icon design for easy information comprehension.

• Driving Data Recording: Records essential driving data for later analysis.

• Multiple UI Options: Offers various user interface designs to personalize your dashboard view.

• Steering Wheel Control Compatibility: Integrates seamlessly with existing steering wheel controls.

Figure 2.2: Visual representation of the digital dashboard emphasizing its 12.3-inch anti-glare screen, Linux operating system, high-definition resolution, steering wheel control integration, and customizable UI options.

3. Safety Information

Please observe the following safety precautions to prevent damage to the product or vehicle, and to ensure personal safety:

• Professional Installation Recommended: Due to the complexity of automotive electrical systems, professional installation is highly recommended to avoid damage to the vehicle's wiring or the product itself.

• Disconnect Battery: Always disconnect the vehicle's negative battery terminal before beginning any electrical installation work.

• Correct Voltage: Ensure the vehicle's electrical system voltage matches the product's specified voltage (12V).

• Avoid Distractions: Do not operate or adjust the digital dashboard while driving. Always pull over to a safe location if adjustments are necessary.

• Handle with Care: The screen is a delicate component. Avoid applying excessive pressure or sharp objects to the display.

• Ventilation: Ensure proper ventilation around the unit to prevent overheating.

4. Installation Guide

The digital dashboard is designed for a "Plug & Play" installation, making the process as straightforward as possible. However, careful attention to detail is required.

4.1 Pre-Installation Checklist:

• Ensure the vehicle is turned off and the battery is disconnected.

• Gather necessary tools (e.g., trim removal tools, screwdrivers).

• Confirm compatibility with your Toyota Prado model (2010-2017 years).

4.2 Installation Steps:

1. Disassemble Original Instrument Panel: Carefully pull out the steering wheel. Use a trim removal tool to pry open the two buckles securing the original instrument panel. Gently remove the old instrument panel.



Figure 4.1: Illustration of the easy disassembly process and the plug-and-play connection for the new digital dashboard.

2. Connect New Digital Dashboard: Connect the new digital dashboard to the original car line using the provided consistent plugs. Ensure all connections are secure and properly seated. The product is designed for a direct, lossless connection.

3. Reassemble: Carefully place the new digital dashboard into position and secure it with the buckles. Reassemble any trim pieces removed during the process.

4. Reconnect Battery: Once installation is complete and all connections are verified, reconnect the vehicle's negative battery terminal.

5. Test Functionality: Turn on the vehicle ignition and verify that the new digital dashboard powers on and displays information correctly. Check all functions as described in the Operation section.

Figure 4.2: Comparison of the vehicle's dashboard before and after the installation of the new digital display, showing the improved appearance.

5. Operation

The digital dashboard is designed for intuitive operation, providing essential vehicle information at a glance.

5.1 Initial Startup:

Upon turning the ignition, the digital dashboard will perform a self-check. The system typically starts up in less than 3 seconds, providing immediate access to driving information.

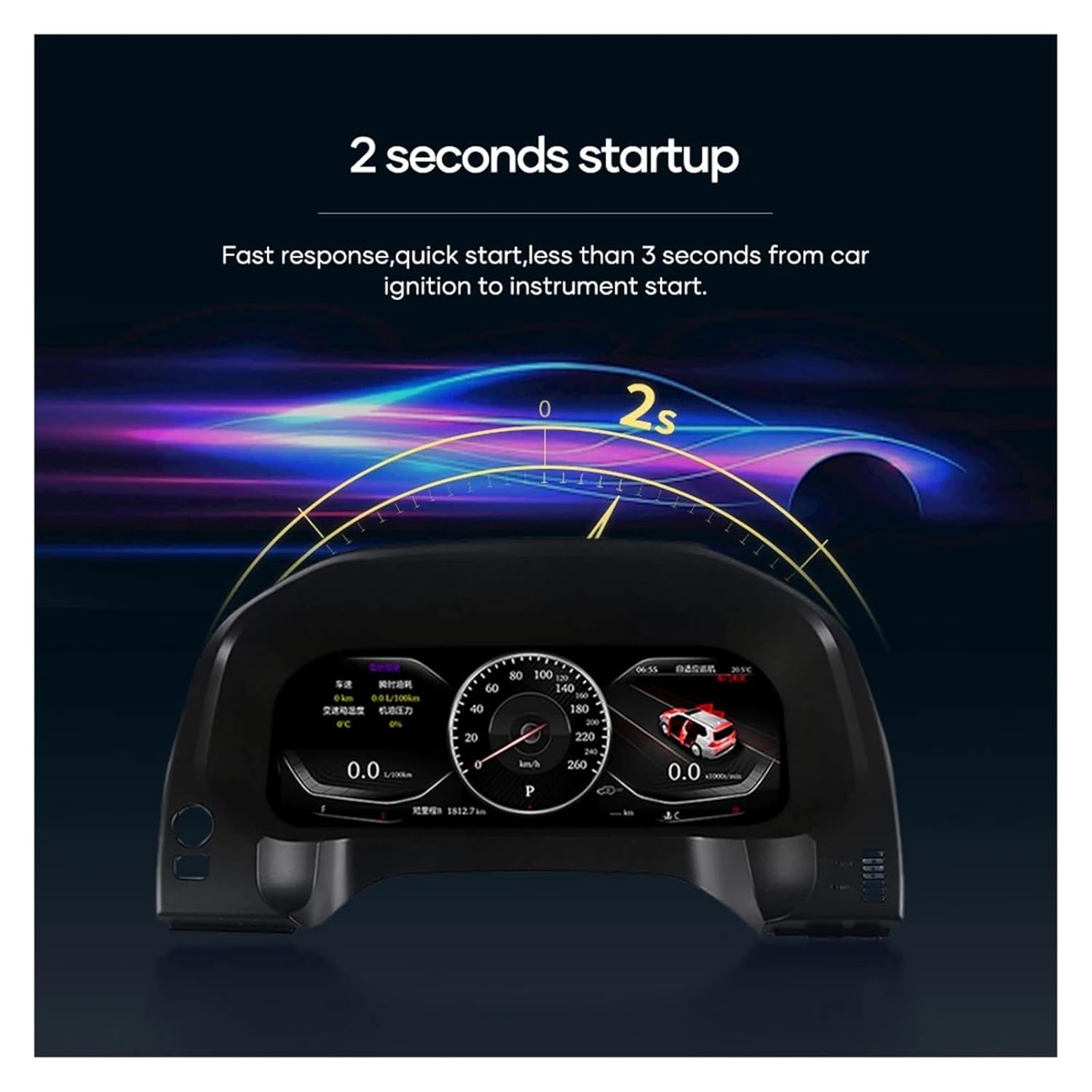

Figure 5.1: Depiction of the rapid startup capability of the digital dashboard, activating in approximately 2 seconds.

5.2 Display Modes and Information:

The dashboard dynamically adjusts its display based on driving conditions and user preferences. Key information displayed includes:

• Speedometer and Tachometer: Digital and analog representations of vehicle speed and engine RPM.

• Fuel Consumption: Real-time and average fuel consumption data.

• Door Status: Visual indicators for open/closed doors.

• Tire Pressure: Displays current tire pressure and angle information.

• Adaptive Cruise Control Status: Information related to adaptive cruise control if your vehicle is equipped.

• System Settings: Access to various system configurations and preferences.

• Fault Warnings: Real-time alerts for vehicle malfunctions or warnings.

• Maintenance Tips: Reminders for scheduled maintenance.

Figure 5.2: Example of the dashboard interface displaying door status and fuel consumption data.

Figure 5.3: Example of the dashboard interface displaying tire pressure and angle, and options for system settings.

5.3 Customization:

The dashboard offers multiple UI options, allowing you to select a display layout that best suits your preference. Refer to the on-screen system settings for customization options.

6. Maintenance

To ensure the longevity and optimal performance of your digital dashboard, follow these maintenance guidelines:

• Cleaning: Use a soft, lint-free cloth to gently wipe the screen. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaner. Avoid harsh chemicals or abrasive materials.

• Avoid Extreme Temperatures: Do not expose the unit to extreme heat or cold for prolonged periods, as this can affect electronic components.

• Software Updates: Check the manufacturer's website or contact support for information on available software updates, which may improve performance or add new features.

• Regular Checks: Periodically check all connections to ensure they remain secure.

7. Troubleshooting

If you encounter issues with your digital dashboard, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support for further assistance.

8. Specifications

9. Warranty and Support

This product is covered by the manufacturer's standard warranty. Please refer to the warranty card included with your purchase or visit the official WBFRYEE website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact WBFRYEE customer service through their official channels. Keep your purchase receipt and product model number (ShunNeng XuanHua) ready when contacting support.
