ACTFLAME Electric Wheelchair (Model B0DLNHPGVJ) User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use of your ACTFLAME Foldable Electric Wheelchair, Model B0DLNHPGVJ. Please read this manual thoroughly before operating the wheelchair to ensure proper function and user safety. The ACTFLAME electric wheelchair features dual 500W motors, a 15+ mile travel range, a 360° joystick for precise control, durable wheels for various terrains, and integrated safety features including a safe belt, hand brake, and anti-tipping wheels. Its foldable design allows for compact storage and easy transport.

2. Setup and Assembly

Follow these steps to set up your ACTFLAME Electric Wheelchair:

1. Unfolding the Wheelchair: Carefully unfold the wheelchair frame until it locks into place. When pressing the cushion to a flat surface, be careful to avoid pinching your hand. Ensure all locking mechanisms are secure.
2. Attaching the Controller: Mount the joystick controller onto the armrest. Secure it firmly using the provided knob.
3. Installing Anti-Flip Wheels: Insert the anti-flip wheels into their designated slots at the rear of the wheelchair. These provide additional stability. The pins that hold the anti-flip wheels are located on the wheelchair frame near the rear wheels.
4. Connecting Power: Locate the red power cord and connect it securely. Ensure all electrical connections are firm to prevent operational issues or charging problems. Failure to properly connect the red power cord may result in the charging indicator lighting up while charging, but not actually charging.
5. Adjusting Handles: To use the wheelchair, pull the handles upwards. To fold the handles, press the black button below and push the handle downwards simultaneously.

Image: The ACTFLAME Electric Wheelchair in its folded state, ready for transport or storage.

Image: Dimensions of the folded ACTFLAME Electric Wheelchair, showing its compact size for travel.

Image: Close-up of the 360° joystick controller for the ACTFLAME Electric Wheelchair, showing various control buttons.

Setup Video Guide:

Video: This video demonstrates the complete installation and setup process of the ACTFLAME Electric Wheelchair, including unfolding, attaching components, and initial checks.

3. Operating Instructions

Familiarize yourself with the controls and operating procedures for safe use.

• Power On/Off: Press the power button on the joystick controller to turn the wheelchair on or off.
• Driving: Use the 360° joystick to control direction and speed. Push forward to move forward, pull back to move backward, and move left or right to turn.
• Speed Adjustment: Use the '+' and '-' buttons on the controller to adjust the speed settings.
• Horn: Press the horn button to alert others.
• Manual Push Mode: To push the wheelchair without power, you need to press the manual brake and pull out the clutches on both sides of the wheelchair. This disengages the motors, allowing manual movement. Otherwise, you will not be able to push the wheelchair.
• Lifting Armrests: To lift the armrests for easier transfer, press the red button located on the side of the armrest.

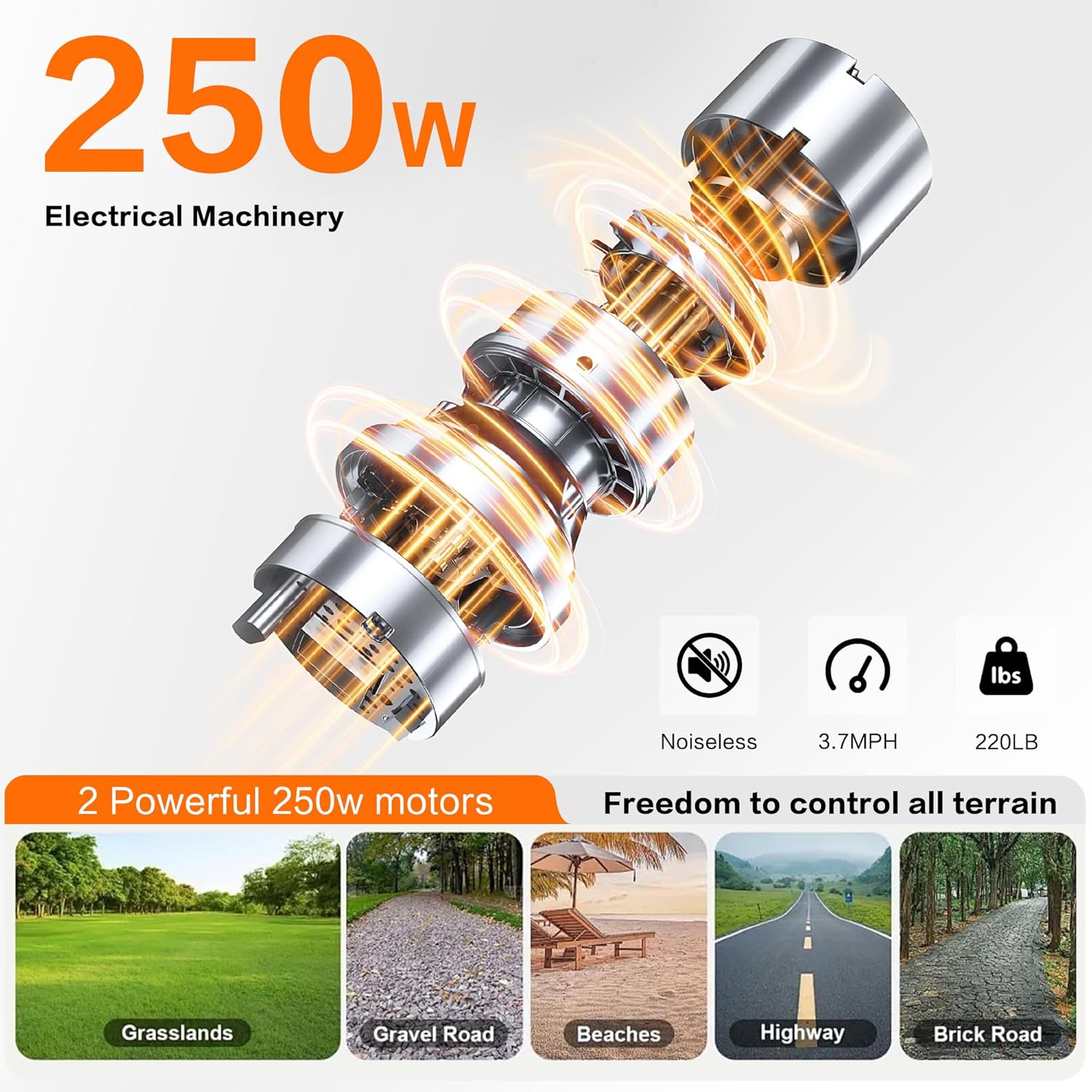

Image: Illustration of the dual 250W motors and the wheelchair's capability on various terrains like grasslands, gravel, beaches, highway, and brick roads.

Image: Visual representation of the wheelchair's long travel range, indicating suitability for extended use and sightseeing.

Image: Close-up of the durable rubber wheels, highlighting their quality and suitability for various surfaces.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric wheelchair.

• Cleaning: Wipe down the frame and seating surfaces with a damp cloth. Avoid using harsh chemicals that may damage materials.
• Battery Care: Charge the battery regularly, even if not in frequent use, to maintain battery health. Do not overcharge.
• Tire Inspection: Periodically check the tires for wear and tear. Ensure they are free from punctures or significant damage.
• Component Check: Regularly inspect all moving parts, connections, and fasteners to ensure they are secure and functioning correctly.

5. Troubleshooting

If you encounter issues with your ACTFLAME Electric Wheelchair, refer to the following common problems and solutions:

• Wheelchair Does Not Move When Powered On:
  • Ensure the handbrake is in the down position.
  • Verify that both clutches on the drive wheels are fully pressed down. If one or both clutches are not engaged, the wheelchair will not move or turn correctly.
  • Check all power connections, especially the red power cord, to ensure they are securely plugged in.
• Charging Indicator Lights Up But Battery Does Not Charge:
  • Confirm that the red power cord of the wheelchair is properly connected. An improper connection can cause the indicator to light up without actual charging.
• Wheelchair Operates in Reverse Direction:
  • Check the left and right motor wires. They might be plugged in backward. Correct their connections.

6. Specifications

Image: Detailed dimensions of the ACTFLAME Electric Wheelchair, including height, width, and length.

7. Warranty and Support

For any questions, technical assistance, or warranty claims, please contact ACTFLAME customer support.

• Email Support: cs@actflame.com (24-hour availability)
• Phone Support: +1 (831) 387-7981 (Monday-Sunday, 9 AM - 5 PM EST)
• Returns: ACTFLAME offers hassle-free returns within 30 days.
• Refunds: Quick refunds are processed upon return receipt.
• Price Match: 30-day price difference refund available.
