HOMCOM 72.5" Kitchen Pantry Cabinet Instruction Manual
Model: 835-115V81GY
Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMCOM 72.5" Kitchen Pantry Cabinet. Designed for versatile storage in dining rooms, kitchens, bathrooms, or hallways, this freestanding cabinet offers ample space with adjustable shelving and a traditional shaker style. Please read this manual thoroughly before assembly and use to ensure safe and proper installation and longevity of your product.
Safety Information
WARNING: Yes, safety warnings are provided. Always adhere to all safety guidelines during assembly and use.
- Constructed from good-quality P2 grade engineered wood, this cabinet includes a reinforced backboard and wall attachments for added stability.
- Always use the provided anti-tip kit to secure the cabinet to a wall, preventing accidental tipping, especially in households with children or pets.
- Ensure all components are correctly assembled and tightened before use. Periodically check and re-tighten fasteners as needed.
- Do not exceed the maximum weight capacity for each shelf (22 lbs) or the overall cabinet (220 lbs).
- Keep small parts and packaging materials away from children during assembly.

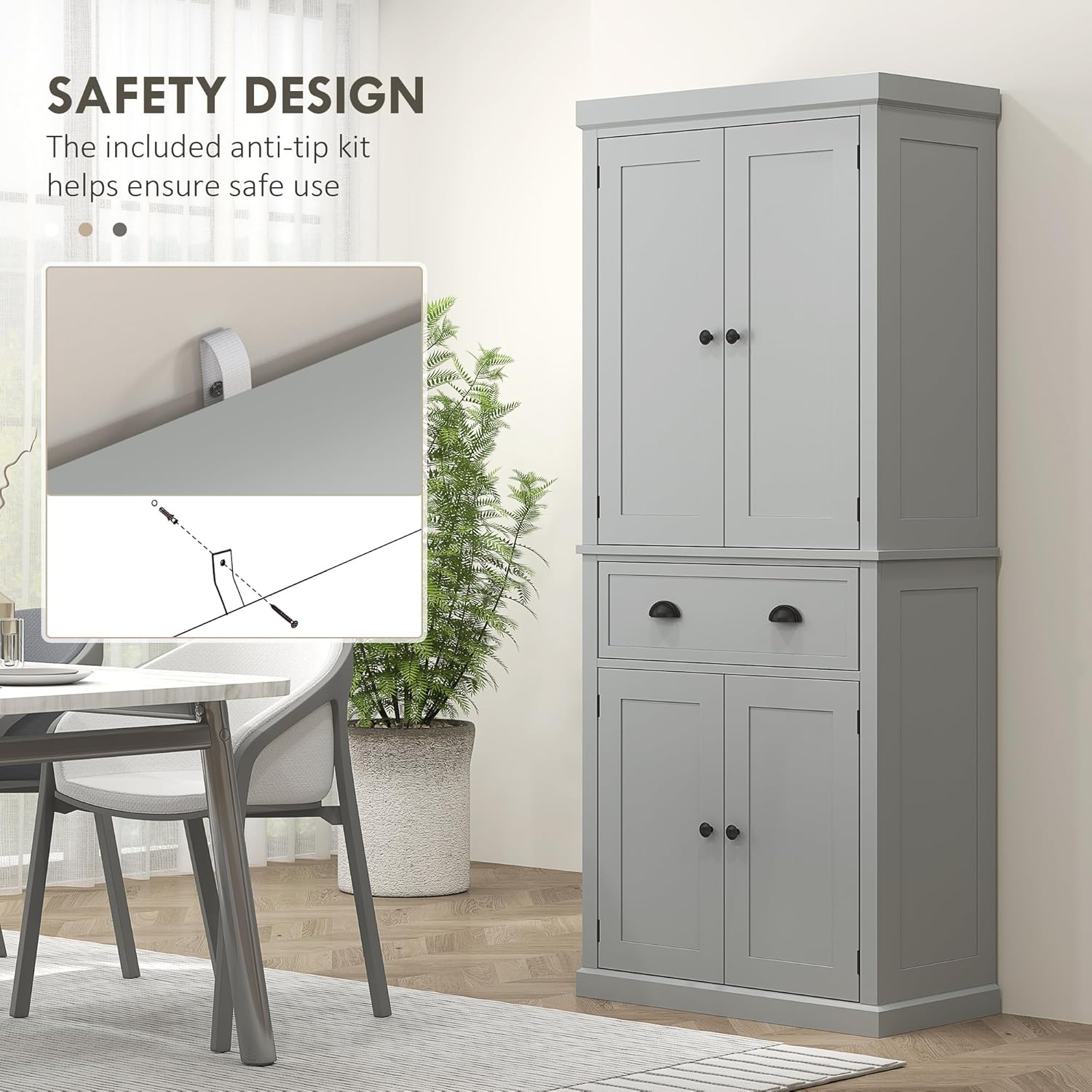

Figure 1: Safety Design with Anti-Tip Kit. This image illustrates the importance of securing the cabinet to the wall using the included anti-tip kit to ensure stability and prevent accidental tipping. The diagram shows how the strap connects the cabinet to the wall.
Product Features
- Ample Storage Space: The freestanding pantry features a deep, easy-gliding drawer and two large cabinets with magnetic closure doors, suitable for storing various household items such as silverware, knick-knacks, towels, and cookware.
- Adjustable Shelving: Includes four shelves, with the top fixed and the lower ones adjustable, allowing for storage of different sized items. Shelves can be removed to create larger compartments. Each shelf supports up to 22 lbs.
- Traditional Design: Features a shaker style panel and antique accents, adding a farmhouse-style elegance to any room.
- Durable Construction: Made from P2 grade engineered wood with a reinforced backboard for daily use.

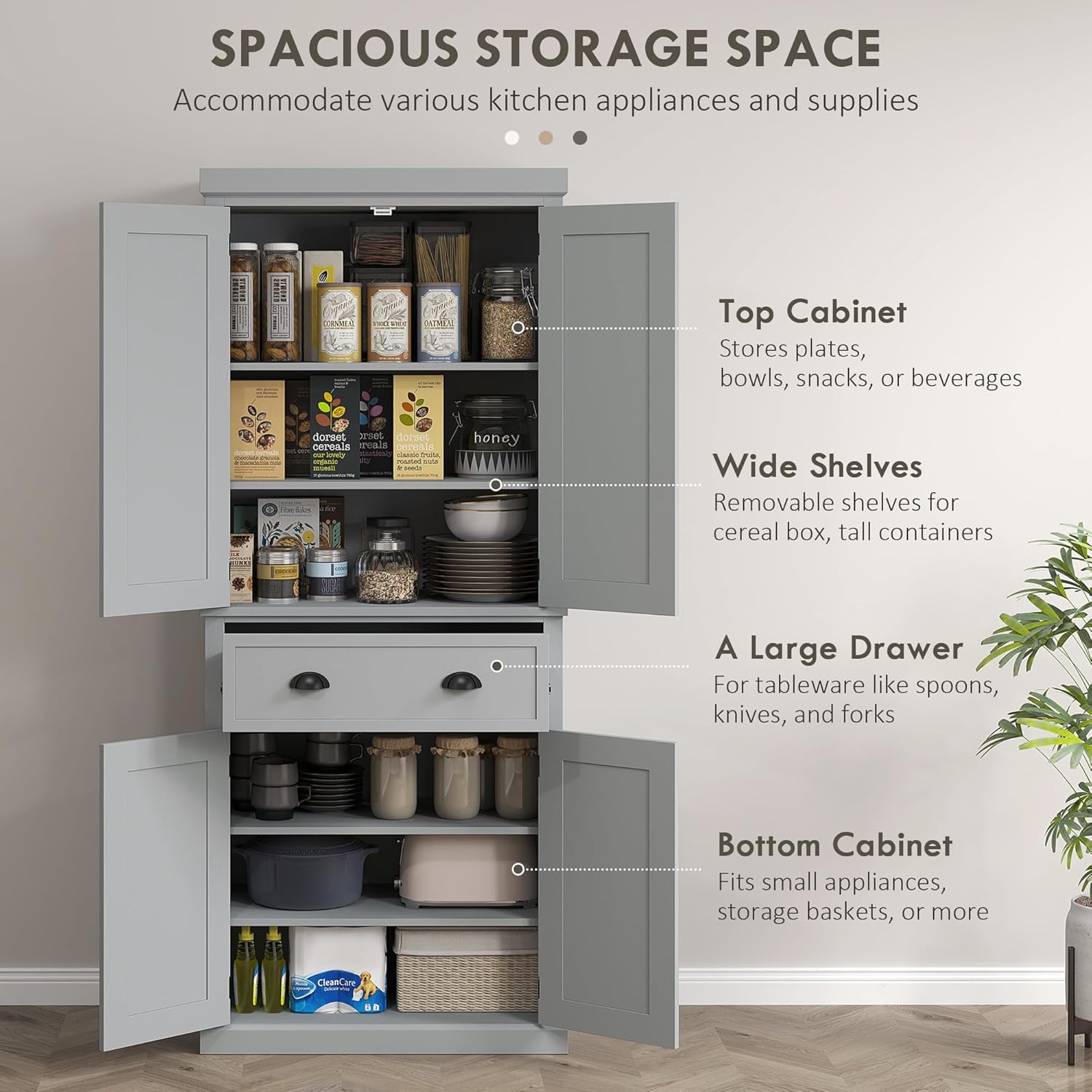

Figure 2: Spacious Storage Space. This image highlights the various storage areas within the cabinet, including the top cabinet for plates and beverages, wide shelves for various containers, a large drawer for cutlery, and a bottom cabinet for small appliances and baskets.
Figure 3: Adjustable Shelves. This image demonstrates the flexibility provided by the adjustable shelves, allowing users to customize the storage height for items of varying sizes. The diagram shows the specific adjustment increment.
Specifications
| Attribute | Detail |
|---|---|
| Brand | HOMCOM |
| Model Name | Kitchen Pantry |
| Model Number | 835-115V81GY |
| Color | Grey |
| Overall Size | 30" W x 16" D x 72.5" H |
| Product Dimensions (Amazon) | 16"D x 30"W x 43.5"H (Note: Discrepancy with overall size, refer to overall size for full height) |
| Item Weight | 110 Pounds |
| Overall Weight Capacity | 220 lbs |
| Each Shelf Weight Capacity | 22 lbs |
| Drawer Weight Capacity | 17.6 lbs |
| Mounting Type | Freestanding |
| Number of Shelves | 4 |
| Assembly Required | Yes |
| Material | Engineered Wood (P2 Grade) |
| Finish Type | Melamine Coated |
| Handle Material | Metal |
| UPC | 196393134405 |
Figure 4: Product Dimensions. This diagram provides a comprehensive overview of the cabinet's external and internal dimensions, including the height of each compartment and the drawer, crucial for planning placement and storage.
Setup and Assembly
The HOMCOM Kitchen Pantry Cabinet requires assembly. Please ensure you have all parts and tools listed in the packaging before beginning. It is recommended to have two people for assembly due to the size and weight of the components.
Before You Begin:
- Unpack all components and verify against the parts list provided in your product packaging.
- Clear a spacious, clean, and flat area for assembly.
- Gather necessary tools (e.g., screwdriver, hammer if required).
- Review the assembly instructions included in your product box thoroughly before starting.
Assembly Steps (General Guidance):
- Begin by assembling the base frame of the cabinet.
- Attach the side panels and backboard, ensuring they are securely fastened. The reinforced backboard contributes to overall stability.
- Assemble the drawer components, including the smooth drawer slides.
- Install the adjustable shelves into the desired positions. Ensure the shelf pins are fully inserted into the pre-drilled holes.
- Attach the doors using the quality metal hinges, ensuring proper alignment for magnetic closure.
- Install the antique black accents (knobs/pulls) on the doors and drawer.
- Once fully assembled, position the cabinet in its desired location and immediately install the anti-tip wall attachment kit as per the safety instructions.
Figure 5: Assembled Cabinet View. This image displays the fully assembled pantry cabinet, showcasing its functional design with open doors revealing organized storage for various kitchen and household items.
Operating Instructions
Your HOMCOM Kitchen Pantry Cabinet is designed for straightforward use and organization.
Utilizing Storage Space:
- Top Cabinet: Ideal for storing plates, bowls, snacks, or beverages.
- Wide Shelves: Use these removable shelves for cereal boxes, tall containers, or other pantry staples. Adjust their height as needed to accommodate different items.
- Large Drawer: Perfect for organizing silverware, kitchen utensils, or smaller accessories. The easy-gliding slides ensure smooth operation.
- Bottom Cabinet: Suitable for fitting small appliances, larger cookware, storage baskets, or other bulkier items.
Adjusting Shelves:
To adjust a shelf, carefully remove all items from the shelf. Lift the shelf slightly and pull it out. Reinsert the shelf pins into the desired pre-drilled holes at the new height. Place the shelf back onto the pins, ensuring it is level and secure.
Figure 6: Drawer Functionality. This close-up image demonstrates the practical use of the cabinet's drawer for storing smaller kitchen items like cutlery and spices, highlighting its smooth operation.
Maintenance and Care
Proper care will extend the life and appearance of your HOMCOM Kitchen Pantry Cabinet.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the melamine coated finish.
- Spills: Clean up spills immediately to prevent moisture damage to the engineered wood.
- Hardware: Periodically check all screws, bolts, and fasteners to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
- Placement: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause warping or discoloration over time.
- Weight Distribution: Distribute weight evenly across shelves and within the drawer to prevent strain on the structure.
Figure 7: Cabinet Details. This image provides a closer look at the cabinet's construction details, including the quality of the metal hinges, the smooth operation of the drawer slides, and the design of the antique black handles, all contributing to its durability and aesthetic.
Troubleshooting
If you encounter any issues with your cabinet, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet feels wobbly or unstable. | Loose fasteners; uneven floor; anti-tip kit not installed. | Ensure all assembly fasteners are tightened. Move to a level surface or use shims. Install the anti-tip kit securely to the wall. |
| Doors do not close properly or are misaligned. | Loose hinges; cabinet not level; magnetic closures misaligned. | Check and tighten hinge screws. Ensure the cabinet is on a level surface. Adjust magnetic closures if possible. |
| Drawer does not slide smoothly. | Obstruction in slides; loose drawer slides; overloaded drawer. | Check for any debris in the drawer slides. Ensure drawer slide screws are tight. Reduce the weight in the drawer. |
| Shelf sags or falls. | Overloaded shelf; shelf pins not fully inserted. | Do not exceed the 22 lbs weight limit per shelf. Ensure shelf pins are fully seated in the holes. |
Warranty and Support
For any questions, missing parts, or concerns regarding your HOMCOM Kitchen Pantry Cabinet, please contact HOMCOM customer support. Refer to the contact information provided in your product packaging or visit the official HOMCOM website for assistance.
HOMCOM is a brand of Aosom. You can find more information about Aosom and their brands on their official website.
- Customer Support: Refer to the contact details provided with your purchase.
- Returns: This product typically offers 30-day easy returns. Please check your purchase details for specific return policies.
