ConGamefun F180V2 RC Helicopter

1. Introduction

Thank you for purchasing the ConGamefun F180V2 RC Helicopter. This model is a 2.4G 6CH direct-drive dual brushless helicopter featuring 3D/6G flight modes and a 6-axis gyroscope for stable and precise control. Designed for both beginners and experienced pilots, it offers an engaging and dynamic flying experience.

Key features include a flybarless design for reduced damage probability, a 6-axis gyroscope for stable flight, a 2.4GHz communication protocol with LCD display remote control, and durable construction using nylon, carbon fiber, and high-precision CNC carved components.

Figure 1.1: The ConGamefun F180V2 RC Helicopter and its accompanying 2.4G 6CH LCD T6 Remote Control.

2. Safety Information

Operating this RC helicopter requires caution and adherence to safety guidelines. Failure to do so may result in injury or damage to property.

• Age Recommendation: This product is recommended for users aged 14 years and older. Adult supervision is advised for younger users within this age range.
• Flight Environment: Always fly in open areas, away from people, animals, buildings, trees, power lines, and water. Avoid flying in strong winds or adverse weather conditions.
• Battery Safety:
  • Use only the provided charger and battery.
  • Do not overcharge or over-discharge the battery.
  • Do not leave charging batteries unattended.
  • Keep batteries away from heat sources and direct sunlight.
  • Do not puncture, short-circuit, or disassemble batteries.
  • Dispose of batteries according to local regulations.
• Propeller Safety: Keep hands, face, and loose clothing away from rotating propellers. Always disconnect the battery when not in use or during maintenance.
• Pre-Flight Check: Before each flight, ensure all parts are securely attached, the battery is fully charged, and the remote control is functioning correctly.
• Respect Local Laws: Be aware of and comply with all local laws and regulations regarding RC aircraft operation.

3. Setup and Assembly

3.1 Package Contents

Verify that all components are present in the package:

• 1 x F180V2 Helicopter
• 1 x 2.4G/6CH LCD T6 Remote Control
• 1 x 3S 11.1V 700mAh 30C Smart Li-polymer Battery
• 1 x USB Charger
• 2 x Main Blades (spare)
• 1 x Tail Blades (spare)
• 1 x Instruction Manual

3.2 Battery Charging

The helicopter battery (3S 11.1V 700mAh Li-polymer) must be fully charged before first use.

1. Connect the helicopter battery to the provided USB charger.
2. Plug the USB charger into a compatible USB power source (e.g., computer USB port, USB wall adapter).
3. The charging indicator on the charger will show the charging status (refer to charger's specific LED behavior).
4. Charging time is approximately 90 minutes for a full charge. Do not exceed this time.
5. Once fully charged, disconnect the battery from the charger.

3.3 Remote Control Setup

Install the required batteries (not specified in product data, assume standard AA/AAA) into the remote control. Refer to the remote control's battery compartment for polarity and type. Ensure the remote control is powered on before attempting to bind with the helicopter.

Figure 3.1: The F180V2 utilizes a 2.4GHz communication protocol, compatible with FUTABA S-FHSS and expandable satellite receivers supporting DSMX, DSM2, PPM, and S-BUS formats.

4. Operating Instructions

4.1 Binding Procedure

Before first flight, the helicopter and remote control must be bound:

1. Ensure the helicopter battery is disconnected and the remote control is off.
2. Turn on the remote control.
3. Connect the helicopter battery. Place the helicopter on a flat, stable surface.
4. The helicopter's indicator light will flash, then turn solid once binding is successful.
5. If binding fails, repeat the steps.

4.2 Flight Modes: 3D and 6G

The F180V2 offers two distinct flight modes to cater to different skill levels:

• 6G Mode (6-Axis Gyroscope): This mode utilizes the 6-axis gyroscope for self-stabilization, making it ideal for beginners. When the joystick is released, the helicopter will automatically restore a stable flight attitude. This mode provides a stable, quick, and accurate flight experience.
• 3D Mode (3-Axis Gyroscope): For advanced pilots, the 3D mode uses a 3-axis gyroscope, offering full acrobatic capabilities such as inverted flight, hurricane vertical pendulum, side pendulum, and spinning pendulum. This mode provides fast response and no delay for stunt flying.

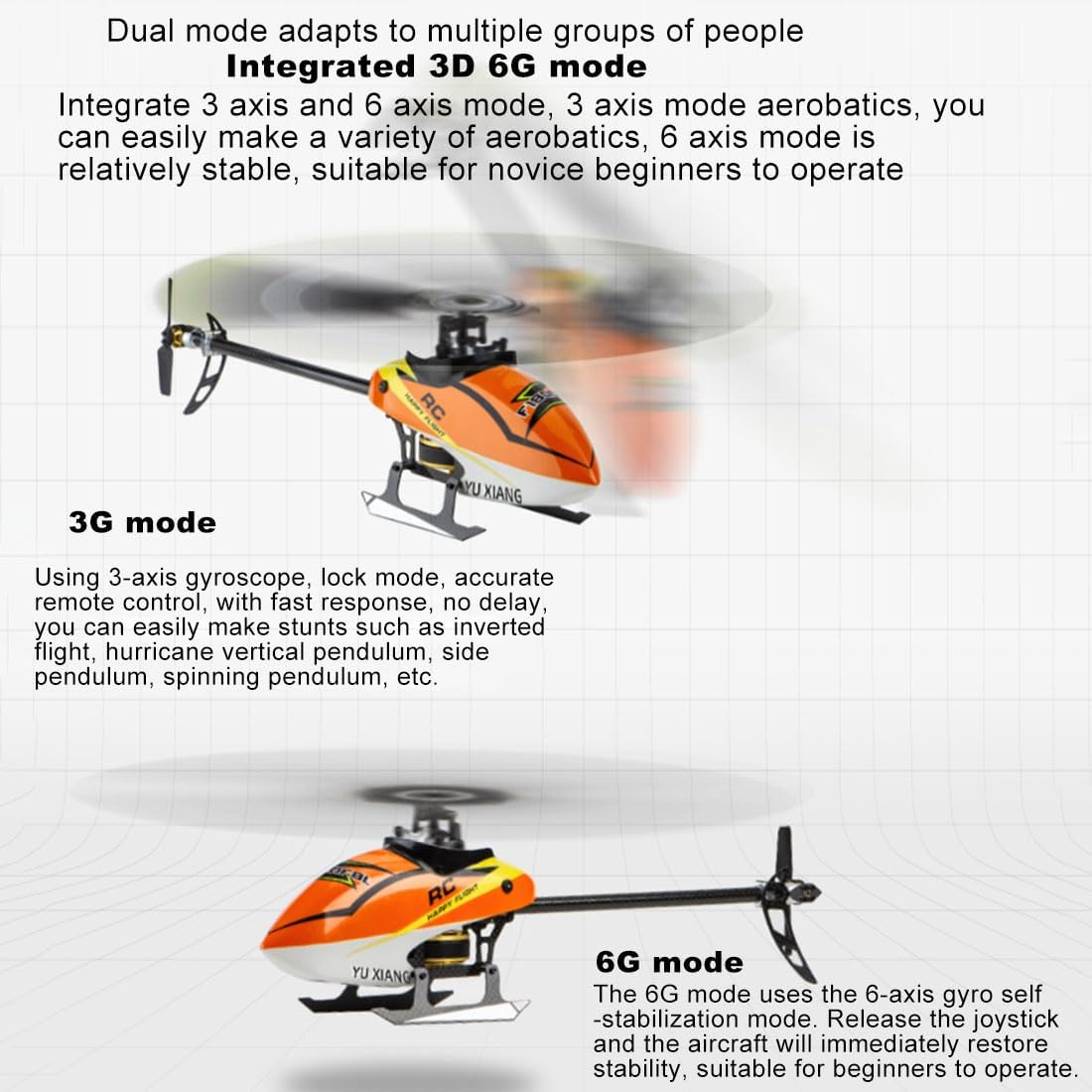

Figure 4.1: Visual explanation of the 3D and 6G flight modes, demonstrating their respective stability and acrobatic capabilities.

4.3 Basic Flight Controls

Familiarize yourself with the remote control's stick functions:

• Left Stick (Mode 2):
  • Up/Down: Throttle (Ascend/Descend)
  • Left/Right: Rudder (Yaw - Rotate left/right)
• Right Stick (Mode 2):
  • Up/Down: Elevator (Pitch - Move forward/backward)
  • Left/Right: Aileron (Roll - Move sideways left/right)

Refer to your remote control's specific manual for detailed stick configurations and digital parameter adjustments.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your F180V2 helicopter.

• Cleaning: Gently wipe the helicopter body with a soft, dry cloth after each flight to remove dust and debris. Avoid using water or chemical cleaners.
• Blade Inspection: Regularly inspect the main and tail blades for any signs of damage, cracks, or deformation. Replace damaged blades immediately using the provided spares. The blades are made of nylon + carbon fiber composite material for high strength and toughness.
• Motor Care: The F180V2 uses brushless motors (3606 Drive Motor, 1104 Tail Lock Motor) which require minimal maintenance. Keep them free from obstructions.
• Structural Integrity: Check the frame, rotor head, rotor clamp, and swashplate for any looseness or damage. The high-precision CNC carved frame and components are designed for durability.
• Storage: Store the helicopter and remote control in a cool, dry place, away from direct sunlight and extreme temperatures. Disconnect the battery from the helicopter during storage.

Figure 5.1: The propeller's aerodynamic design and the use of nylon + carbon fiber composite material contribute to the helicopter's high strength, toughness, and impact resistance.

Figure 5.2: Visual representation of key features including easy maintenance, brushless motors, and efficient propellers, highlighting the product's design for durability and performance.

6. Troubleshooting

If you encounter issues with your F180V2 helicopter, refer to the following common problems and solutions:

7. Specifications

Detailed specifications for the ConGamefun F180V2 RC Helicopter:

8. Warranty and Support

Specific warranty details for the ConGamefun F180V2 RC Helicopter are not provided in this manual. For warranty claims, technical support, or replacement parts, please contact the manufacturer or your point of purchase directly.

Manufacturer: ConGamefun
