Craimil Metal Dryer Lint Trap User Manual

Introduction

The Craimil Metal Dryer Lint Trap is designed to efficiently capture lint and dust before it escapes into your home environment or dryer ducting. This product helps maintain a cleaner living space, reduces the frequency of duct cleaning, improves dryer efficiency, and enhances safety by preventing lint buildup that can lead to overheating.

Image: The Craimil Metal Dryer Lint Trap, showcasing its durable metal construction and the pull-out mesh filter drawer.

Setup and Installation

The Craimil Metal Dryer Lint Trap offers two primary installation methods: hidden within a 2x4 wall frame or surface-mounted directly on the wall. Both methods require standard tools and proper connection to your dryer vent hose.

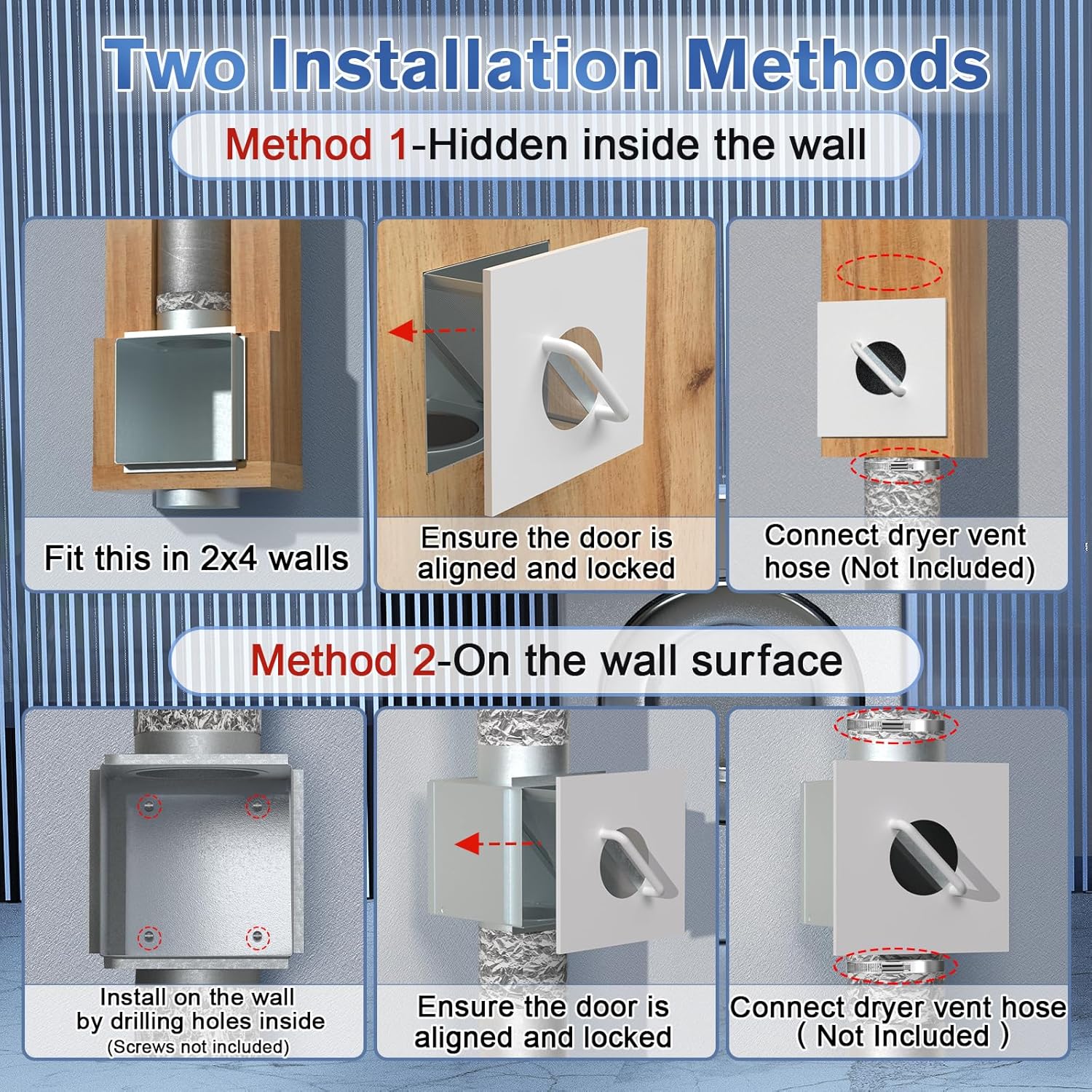

Image: Visual guide illustrating the two installation options: Method 1 for embedding within a 2x4 wall, and Method 2 for surface mounting.

Method 1: Hidden Inside the Wall (2x4 Wall Frame)

1. Prepare Wall Opening: Identify a suitable location within a 2x4 wall frame. Carefully cut an opening in the drywall to accommodate the lint trap's dimensions (refer to specifications for exact measurements). Ensure there are no electrical wires or plumbing in the chosen area.
2. Insert Lint Trap: Slide the lint trap box into the prepared wall opening. Ensure it fits snugly and is flush with the wall surface.
3. Secure in Place: Use appropriate fasteners (not included) to secure the lint trap to the wall studs. Ensure the door mechanism is aligned and can be locked properly.
4. Connect Dryer Vent Hose: Connect your existing 4-inch dryer vent hoses (not included) to the inlet and outlet ports of the lint trap using the provided 4-inch clamps. Ensure all connections are tight and secure to prevent air leaks.

Method 2: On the Wall Surface

1. Mark Drilling Points: Position the lint trap on the desired wall surface. Mark the drilling points for mounting screws (screws not included) through the designated holes on the unit.
2. Drill Pilot Holes: Drill pilot holes at the marked points. If mounting into drywall without a stud, use appropriate wall anchors (not included).
3. Mount Lint Trap: Secure the lint trap to the wall using screws. Ensure it is firmly attached and stable.
4. Connect Dryer Vent Hose: Connect your existing 4-inch dryer vent hoses (not included) to the inlet and outlet ports of the lint trap using the provided 4-inch clamps. Verify all connections are tight and secure.

Important: Always ensure proper ventilation and follow local building codes during installation. For optimal performance, use rigid or semi-rigid metal ducting for dryer vents.

Operation and Benefits

Once installed, the Craimil Metal Dryer Lint Trap operates passively, capturing lint as air flows through your dryer system. Its primary function is to intercept lint that bypasses your dryer's internal filter, preventing it from accumulating in your dryer ductwork or escaping into the environment.

• Prevent Lint from Escaping: The fine mesh filter effectively captures lint and dust, ensuring a cleaner and fresher home environment.
• Reduce Maintenance: By trapping lint, it prevents buildup in pipes, reducing the difficulty and frequency of duct cleaning. This also minimizes lint accumulation in outdoor areas like roofs, patios, and gardens.
• Improve Cost-effectiveness: Reduced blockage in dryer ducts and booster fans (if used) leads to improved machine operation efficiency, potentially shortening drying times and lowering energy consumption. This can also extend the lifespan of your dryer.
• Enhanced Safety: The durable metal construction helps prevent the risk of overheating caused by pipeline obstruction, mitigating fire hazards associated with lint buildup in dryer systems.

Image: The lint trap integrated into a dryer ventilation system, illustrating its role in capturing lint and maintaining efficient airflow.

Maintenance and Cleaning

Regular cleaning of the lint trap's mesh filter is essential to maintain optimal airflow and efficiency. The frequency of cleaning will depend on your dryer usage.

1. Access the Filter: Gently pull out the integrated drawer and mesh filter from the lint trap housing.
2. Remove Lint:
   • Manual Removal: Carefully remove accumulated lint by hand.
   • Vacuum Cleaning: Use a vacuum cleaner with a brush attachment to thoroughly remove lint from the mesh.
   • Water Flushing: For a deeper clean, the mesh filter can be rinsed under running water. Ensure it is completely dry before reinserting.
3. Reinsert Filter: Once clean and dry, slide the mesh filter drawer back into the lint trap housing until it clicks securely into place. Ensure it is properly seated to prevent rattling and maintain a proper seal.

Recommended Cleaning Frequency: For heavy dryer usage, clean the filter weekly. For moderate usage, monthly cleaning should suffice. A noticeable increase in drying time or reduced airflow indicates the filter needs immediate cleaning.

Troubleshooting

Product Specifications

• Manufacturer: Craimil
• Part Number: 002
• Item Weight: 2.38 pounds
• Product Dimensions: 1 x 1 x 0.98 inches (Note: These dimensions are from product data; visual inspection of product images suggests larger dimensions, e.g., approx. 9.92in height, 6.85in depth. Please refer to physical product or detailed diagrams for precise measurements.)
• Item Model Number: 002
• Included Components: Dryer Duct Lint Trap, 2 x 4" Clamps
• Material: Metal (Heat Resistant)
• Duct Compatibility: Designed for 4-inch dryer vent hoses.
• Installation: In-wall (2x4 frame) or Surface Mount

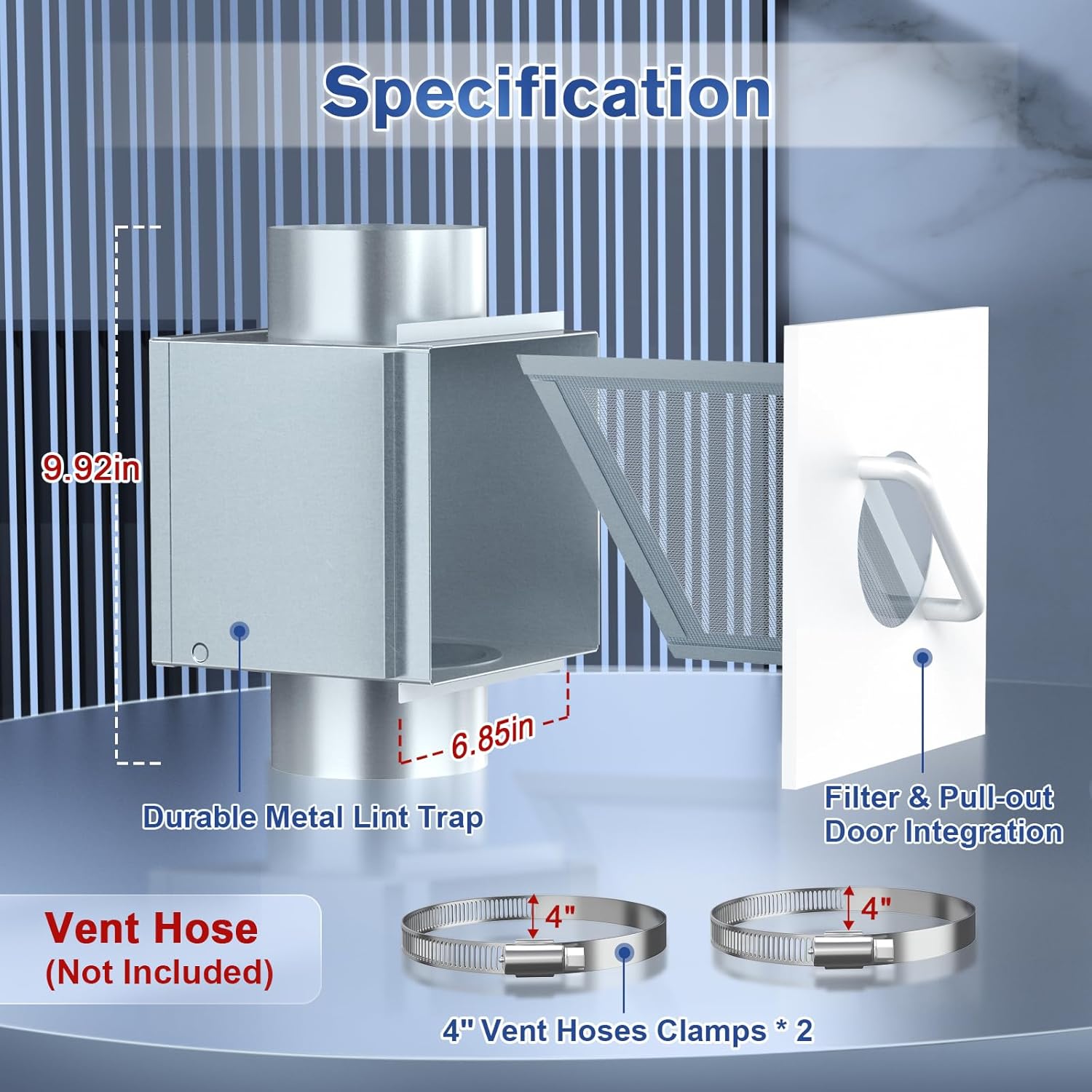

Image: Detailed specifications and dimensions of the lint trap, highlighting its durable metal construction and the included 4-inch vent hose clamps.

Warranty Information

The Craimil Metal Dryer Lint Trap comes with a 2-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, please refer to the product packaging or contact customer support.

Customer Support

For any questions, technical assistance, or warranty inquiries regarding your Craimil Metal Dryer Lint Trap, please contact Craimil customer support through the retailer's platform where the product was purchased or visit the official Craimil brand store online.
