MINRS SY-8 8L Electric Under-Sink Water Heater User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your MINRS SY-8 8L Electric Under-Sink Water Heater. Please read these instructions carefully before installation and use, and retain them for future reference. Proper installation, operation, and maintenance are crucial for optimal performance and user safety.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in electric shock, fire, property damage, or personal injury.

• Ensure the water heater is filled with water before connecting to power. Operating the unit dry can cause severe damage.
• Properly ground the power cable. Do not use mobile sockets or extension cords.
• This product is designed for water heating purposes only and is not suitable for showering.
• The unit features multiple safety protections: high temperature, high voltage, dry burning, grounding, insulation, and power failure mechanisms, along with a leakage circuit breaker plug.
• Do not attempt to repair or modify the appliance yourself. Contact qualified personnel for service.
• Keep children away from the appliance during operation.
• Ensure the installation location is stable and can support the weight of the unit when full.

3. Product Overview

The MINRS SY-8 is an 8-liter electric under-sink water heater designed for quick and efficient hot water supply in kitchens, bathrooms, or utility areas. It features a digital temperature display and an adjustable thermostat.

Key Features:

• Capacity: 8 Liters (2.11 Gallons)
• Power: 1500W for rapid heating (15-30 minutes)
• Temperature Range: Adjustable from 30-65 ℃ (86-149 ℉)
• Digital Display: Visualizes current water temperature.
• Safety: Equipped with multiple protection mechanisms including dry-burn and overheat protection.
• Low Water Pressure Start: Operates stably even at 0.75 Mpa water pressure.
• Durable Construction: High-quality plastic shell and stainless steel inner tank.

Components:

Familiarize yourself with the main components of your water heater.

Figure 1: Front Panel of the MINRS SY-8 Water Heater. The digital display shows the temperature, while the knob allows adjustment.

Package Contents:

Upon unpacking, ensure all items are present:

• 1 x Electric Water Heater
• 1 x Safety Relief Valve
• 2 x Screws
• 1 x Hose
• 1 x English Manual

Figure 2: Included components with the MINRS SY-8 Water Heater.

4. Setup and Installation

The MINRS SY-8 water heater can be wall-mounted or freestanding. For optimal performance and longevity, vertical installation is recommended. Clear plumbing connection marks simplify the process.

Installation Steps:

1. Choose Location: Select a suitable under-sink location that is stable, dry, and allows for proper ventilation. Ensure there is enough space for the unit and its connections.
2. Mounting (if applicable): If wall-mounting, securely attach the unit using the provided screws and appropriate wall anchors. Ensure the unit is level.
3. Water Connections: Connect the cold water inlet (blue) and hot water outlet (red) to your plumbing system. Install the safety relief valve on the cold water inlet line as per local codes. Ensure all connections are tight to prevent leaks.
4. Fill with Water: Before connecting to power, open a hot water faucet in your sink to allow air to escape and the tank to fill completely. Water should flow steadily from the faucet, indicating the tank is full. Close the faucet.
5. Electrical Connection: Plug the power cord into a properly grounded 220V outlet.

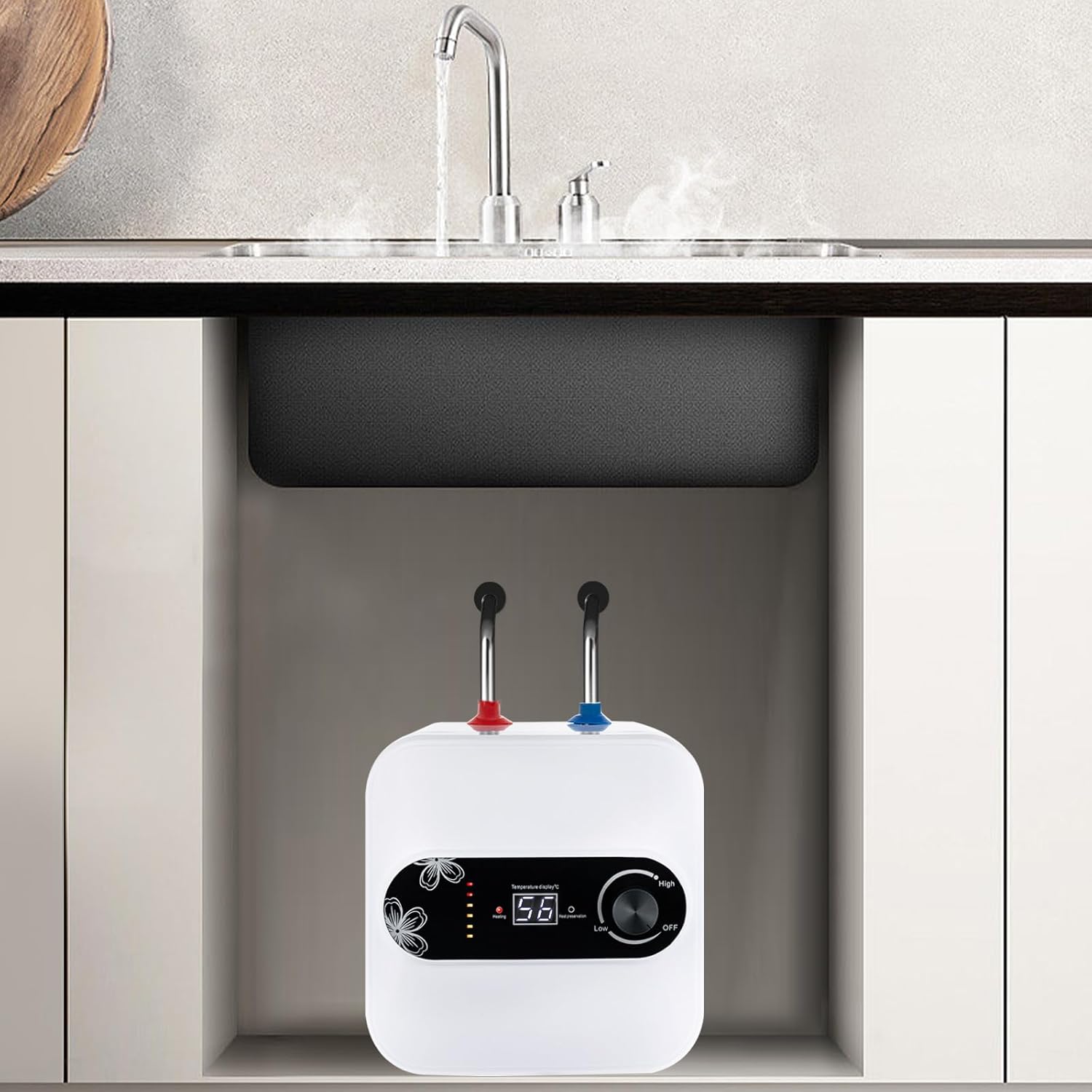

Figure 3: Example of under-sink installation.

5. Operating Instructions

The MINRS SY-8 water heater is designed for user-friendly operation with its digital display and temperature control knob.

Initial Start-up:

1. Ensure the unit is properly installed and filled with water (as per Section 4).
2. Plug the unit into a grounded power outlet. The digital display will illuminate.
3. Turn the control knob from 'OFF' to your desired temperature setting. The 'Heating' indicator light will turn on.

Temperature Adjustment:

• Rotate the control knob to set the desired water temperature between 30℃ and 65℃. The digital display will show the set temperature.
• The 'Heating' indicator will be lit when the unit is actively heating water.
• Once the set temperature is reached, the 'Heating' indicator will turn off, and the 'Heat Preservation' indicator may light up, indicating the unit is maintaining the temperature.

Figure 4: Water heater in operation, providing hot water.

6. Maintenance

Regular maintenance ensures the longevity and efficiency of your water heater.

• Cleaning: Periodically wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Descaling: Depending on your water quality, mineral deposits (scale) may accumulate inside the tank. It is recommended to have the unit descaled by a qualified technician every 1-2 years to maintain heating efficiency.
• Safety Valve Check: Annually check the safety relief valve by lifting the lever. Ensure water flows freely and then reseats properly. If it does not, replace the valve.
• Winterization (if applicable): If the unit will be exposed to freezing temperatures, it must be drained completely to prevent damage. Consult a professional plumber for proper winterization procedures.

7. Troubleshooting

If you encounter issues with your water heater, refer to the following common problems and solutions. For problems not listed here or if solutions do not resolve the issue, contact customer support.

• No Hot Water:
  • Check if the unit is plugged in and the power outlet is functional.
  • Ensure the temperature control knob is not set to 'OFF' and is at a desired temperature.
  • Verify that the circuit breaker has not tripped.
• Water Not Hot Enough:
  • Increase the temperature setting using the control knob.
  • Allow sufficient time for the water to heat up (15-30 minutes).
  • Check for excessive hot water usage that might deplete the tank faster than it can reheat.
• Water Leakage:
  • Inspect all plumbing connections for tightness.
  • Check the safety relief valve; it may be discharging due to excessive pressure or temperature.
  • If the leak is from the unit itself, immediately disconnect power and water supply, then contact customer support.
• Unusual Noises:
  • Popping or rumbling noises can indicate sediment buildup in the tank. Descaling may be required.

8. Specifications

Technical details for the MINRS SY-8 Electric Under-Sink Water Heater.

Figure 5: Product dimensions of the MINRS SY-8 Water Heater.

9. Warranty and Support

MINRS is committed to providing quality products and services. If you encounter any problems with your water heater, please do not hesitate to contact us. We will respond and resolve the issue as soon as possible.

Please refer to your purchase documentation or the seller's information for specific warranty terms and contact details.
