Wildeway FW11-3.0 32Ah Electric Bike Rear Motor Replacement Parts User Manual

1. Introduction

This manual provides essential information for the Wildeway FW11-3.0 32Ah Electric Bike Rear Motor Replacement Parts. It covers important safety guidelines, installation procedures, maintenance tips, troubleshooting, and product specifications. Please read this manual thoroughly before attempting any installation or maintenance.

Important: Before purchase and installation, confirm that your electric bike's motor model is compatible with this product. If you are unsure, please contact Wildeway support with a photo of your current motor label for verification. Wildeway is not responsible for issues arising from purchasing an incompatible model.

2. Safety Information

• Professional Installation Recommended: Due to the technical nature of motor replacement, professional installation by a qualified bicycle mechanic is highly recommended. Incorrect installation can lead to damage, injury, or voiding of warranty.
• Power Disconnection: Always ensure the electric bike's battery is completely disconnected and powered off before beginning any work on the motor or electrical components.
• Tool Usage: Use appropriate tools for all steps. Forcing components can cause damage.
• Wiring: Pay close attention to wiring connections. Incorrect wiring can cause electrical shorts, component failure, or fire hazards.
• Component Integrity: Inspect all components for damage before installation. Do not install damaged parts.

3. Product Components

The package includes the Wildeway FW11-3.0 32Ah Electric Bike Rear Motor Replacement Part. Please verify all components are present and undamaged upon receipt.

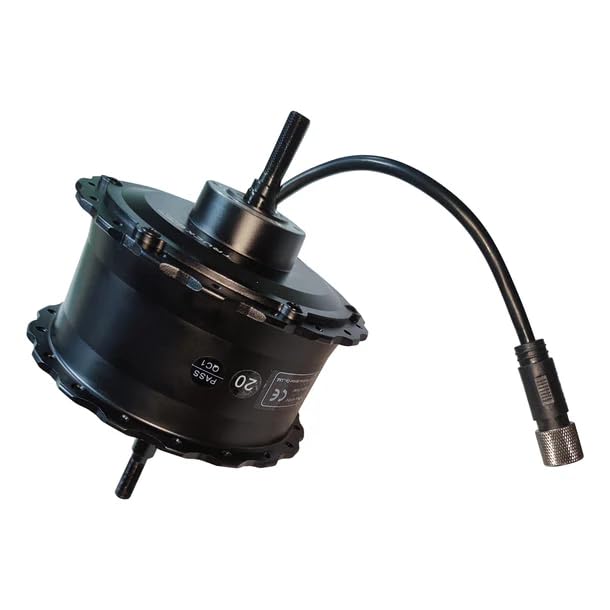

Image 1: Wildeway FW11-3.0 32Ah Electric Bike Rear Motor Replacement Part. This image displays the complete rear motor unit, ready for installation into a compatible electric bicycle.

4. Setup and Installation

Replacing an electric bike motor requires specific technical knowledge and tools. The following steps are a general guide. Always refer to your specific electric bike's service manual for detailed, model-specific instructions.

1. Preparation: Ensure the bike is stable, preferably on a repair stand. Disconnect the battery completely.
2. Wheel Removal: Carefully remove the rear wheel assembly from the bike frame. This typically involves disconnecting brake calipers, derailleur, and axle nuts.
3. Motor Disconnection: Disconnect all electrical cables leading to the old motor. Note the routing and connection points for reassembly.
4. Old Motor Removal: Remove the old motor from the wheel rim. This may involve unlacing spokes and disassembling the hub.
5. New Motor Installation: Install the new Wildeway FW11-3.0 32Ah motor into the wheel rim, ensuring proper alignment and lacing with new spokes if necessary.
6. Wiring Connection: Connect all electrical cables to the new motor, matching them precisely to the original connections. Secure all connections.
7. Wheel Reinstallation: Reinstall the rear wheel assembly onto the bike frame, ensuring proper alignment, brake caliper reattachment, and derailleur adjustment.
8. Final Checks: Reconnect the battery. Perform a functional test at low speed in a safe environment before riding. Check for any unusual noises, vibrations, or error codes.

5. Operating Considerations

Once the new motor is installed and verified, the electric bike should operate as intended. The motor provides 750 Watts of power, contributing to the bike's pedal assist and throttle functions. Ensure your bike's controller and battery are compatible and functioning correctly to maximize motor performance and longevity.

6. Maintenance

Proper maintenance extends the life of your electric bike motor. While the motor itself is largely sealed, regular checks are important:

• Cable Inspection: Periodically inspect all motor cables for wear, fraying, or damage. Ensure connections are secure and free from corrosion.
• Cleanliness: Keep the motor and surrounding area clean from dirt, mud, and debris. Avoid high-pressure washing directly on the motor or electrical components.
• Spoke Tension: If the motor is part of a wheel, regularly check spoke tension to ensure the wheel remains true and strong.
• Professional Servicing: Consider annual professional servicing for your electric bike, including inspection of the motor and electrical system.

7. Troubleshooting

If you encounter issues after motor replacement, consider the following common troubleshooting steps:

• No Power: Check battery connection, ensure the battery is charged, and verify all motor cable connections are secure.
• Intermittent Power: Inspect all wiring for loose connections or damage. Ensure the controller is functioning correctly.
• Unusual Noises: Stop riding immediately. Check for any physical obstructions, loose components, or signs of internal damage.
• Error Codes: Refer to your electric bike's display manual for specific error code meanings and recommended actions.

If troubleshooting does not resolve the issue, please contact Wildeway customer support.

8. Specifications

9. Warranty Information

This Wildeway motor replacement part comes with a Limited Warranty for 12 Months from the date of purchase.

This warranty does not cover:

• Water damage, collision, or impact.
• Unauthorized disassembly or modification.
• Damage caused by incompatible controller, battery, or incorrect wiring.
• Normal wear, cosmetic damage, or minor scratches.

Please retain your proof of purchase for warranty claims.

10. Customer Support

For any questions, technical assistance, or warranty claims, please contact Wildeway customer support. When contacting support, please provide the following information to expedite service:

• Your order number or proof of purchase.
• A detailed description of the issue.
• Relevant photos or videos illustrating the problem.
• The motor serial number or a photo of the motor label.

Wildeway is committed to providing high-performance, high-quality, and reliable e-bike components.
