DEKOPRO 1200W Circular Saw DKPCCSD120C1 Instruction Manual

1. Important Safety Instructions

Always observe basic safety precautions when operating electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before using this circular saw.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Always wear eye protection, hearing protection, and a dust mask. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Double Safety Switch: This circular saw is equipped with a double safety switch to prevent accidental startup. To operate, you must simultaneously press the safety lock button and the trigger.
• Blade Guard: Ensure the blade guard is always functioning correctly and never attempt to bypass it. The blade guard prevents accidental contact with the rotating blade.

Image: The blade guard is a critical safety feature, covering the saw blade when not in use to prevent accidental contact.

2. Product Overview and Components

The DEKOPRO 1200W Circular Saw is designed for efficient cutting of wood and PVC. Familiarize yourself with its components for safe and effective operation.

Image: Labeled diagram showing key components of the circular saw, including the start button, support grip, depth adjustment, bevel adjustment, fence lock button, and safety lock guarded trigger.

Key Components:

• Start Button: Activates the saw when pressed in conjunction with the safety lock.
• Support Grip: Provides an additional handhold for stability and control during operation.
• Depth Adjustment: Allows setting the desired cutting depth.
• Bevel Adjustment: Enables angle cuts from 0° to 45°.
• Fence Lock Button: Secures the guide rail for straight cuts.
• Safety Lock Guarded Trigger: Prevents accidental activation of the saw.
• Dust Chute: Connects to a vacuum cleaner for dust extraction.
• Cushioned Grip: Ergonomically designed handle for comfortable use.

Image: The cushioned ergonomic handle design provides comfort and reduces fatigue during extended use.

3. Setup

3.1 Blade Installation/Replacement

Always ensure the saw is unplugged from the power source before installing or changing the blade.

1. Step 1: Press and hold the spindle lock button to prevent the blade from rotating.
2. Step 2: Use the included hexagonal spanner to remove the nut securing the saw blade. Turn counter-clockwise to loosen.
3. Step 3: Carefully place the new 185mm (24T) saw blade onto the spindle. Ensure the side of the saw blade with the text pattern faces upward.
4. Step 4: Re-attach the nut and tighten it securely with the hexagonal spanner while holding the spindle lock button.

Image: Visual guide demonstrating the four steps for safely installing or replacing the saw blade.

3.2 Attaching the Guide Rail

The guide rail helps achieve straight and accurate cuts. Slide the guide rail into the designated slot on the saw's base plate and secure it using the fence lock button.

4. Operating Instructions

4.1 Powering On and Off

To turn on the saw, press the safety lock button and then squeeze the trigger. Release the trigger to turn off the saw.

Image: The double safety switch requires two buttons to be pressed for activation, enhancing user safety.

4.2 Adjusting Cutting Depth

The cutting depth can be adjusted up to 65mm at 90°. Loosen the depth adjustment lever, set the desired depth, and then securely tighten the lever.

Image: Illustration of the depth adjustment mechanism, allowing for precise control over cutting depth.

4.3 Adjusting Cutting Angle (Bevel)

The saw allows for bevel cuts from 0° to 45°. Loosen the bevel adjustment lever, tilt the saw to the desired angle, and then securely tighten the lever. The maximum cutting depth at 45° is 43mm.

Image: Diagram showing the saw's ability to adjust the cutting angle for bevel cuts.

4.4 Cutting Techniques

Ensure the workpiece is securely clamped. Guide the saw smoothly through the material, allowing the blade to do the work. Do not force the saw. The saw is suitable for cutting wood and PVC.

Image: The circular saw in action, demonstrating its capability to cut both wood and PVC materials.

4.5 Dust Collection

For a cleaner work environment, connect a vacuum cleaner to the dust chute. This helps to collect sawdust and debris during operation.

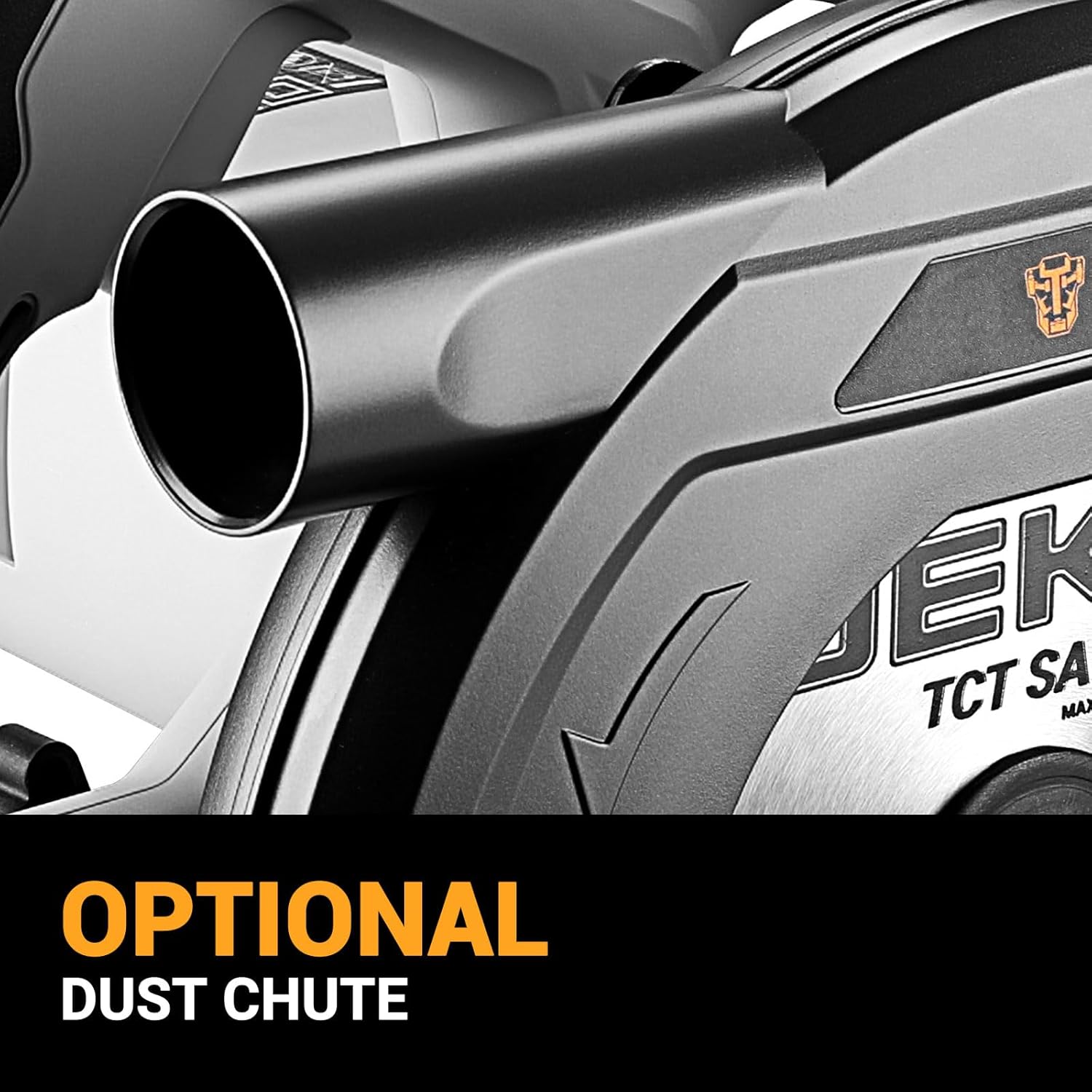

Image: The optional dust chute attachment, designed for connecting to a vacuum system to manage sawdust.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your circular saw. Always unplug the tool before performing any maintenance.

• Cleaning: After each use, clean the saw housing, base plate, and blade guard with a soft, damp cloth. Remove any sawdust or debris from ventilation openings.
• Blade Inspection: Regularly inspect the saw blade for sharpness and damage. A dull or damaged blade can cause kickback and poor cuts. Replace blades as necessary.
• Cord Inspection: Check the power cord for any signs of damage, cuts, or fraying. Do not use the saw if the cord is damaged.
• Storage: Store the saw in a dry, secure place, out of reach of children.

6. Troubleshooting

This section addresses common issues you might encounter with your circular saw.

7. Specifications

Technical specifications for the DEKOPRO 1200W Circular Saw.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official DEKOPRO website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you encounter any issues not covered in this manual, please contact DEKOPRO customer service for assistance.
