Bognajin ZR814 Vacuum Cleaner Dust Bags User Manual

Introduction

This manual provides essential information for the proper use, installation, and maintenance of your Bognajin ZR814 Vacuum Cleaner Dust Bags. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

These dust bags are designed as replacements for various vacuum cleaner models, including Rowenta RU100, RU101, RB820, RB880, RU630, RU1113, and Karcher A2204, A2656, WD00, WD3300. They are made from eco-friendly non-woven fabric, offering durability and reusability.

Product Overview

Figure 1: Front view of the Bognajin ZR814 Vacuum Cleaner Dust Bag. It features a light-colored non-woven fabric bag with a black plastic mounting plate and a white circular opening for vacuum hose connection.

Figure 2: Angled view of the dust bag, showing its rectangular shape and the black plastic attachment point with a white ring.

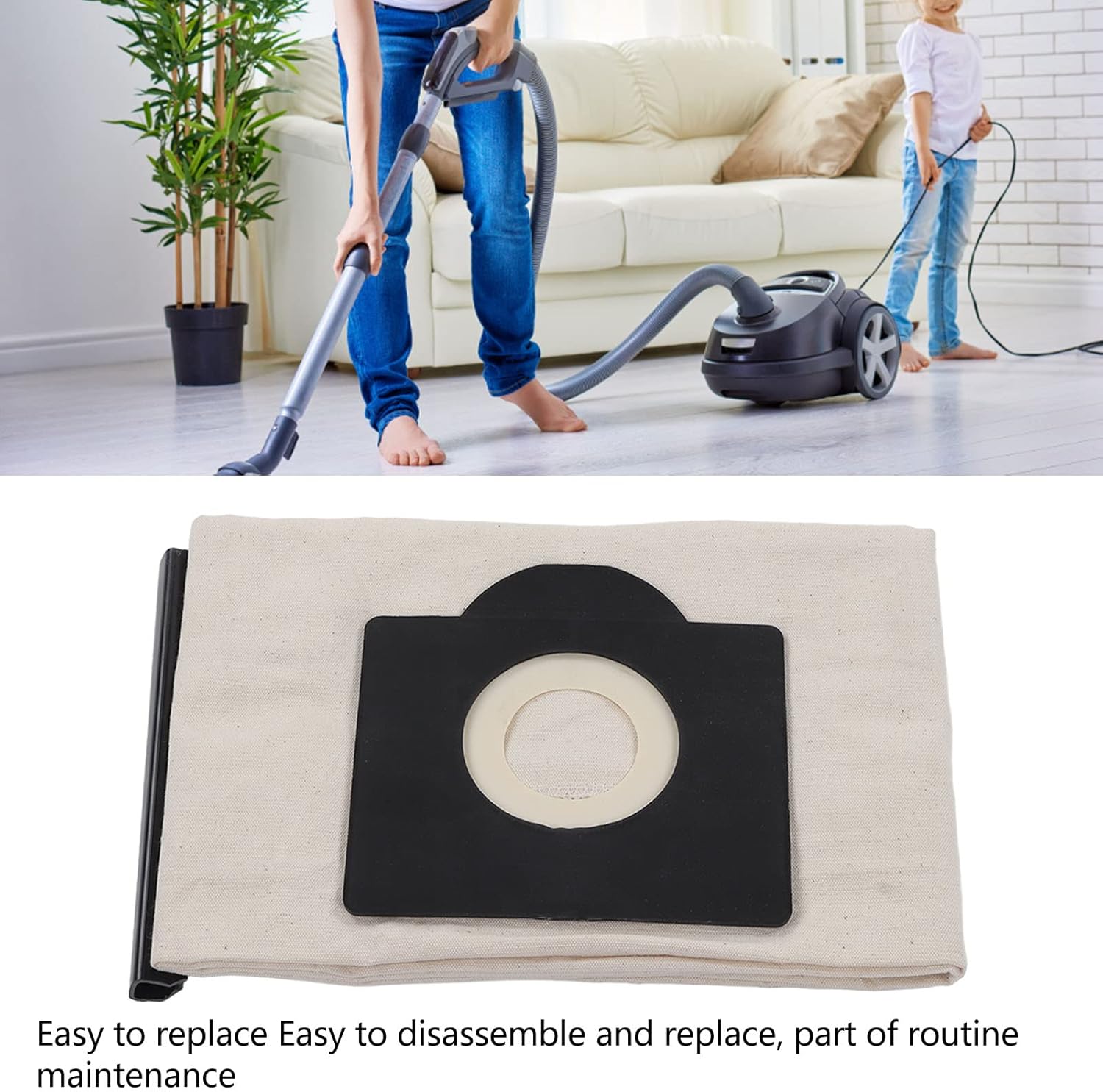

Figure 3: An illustration showing the dust bag in context with a vacuum cleaner. The image also highlights the ease of disassembly and replacement as part of routine maintenance.

Key Features:

• Eco-Friendly Material: Made of premium non-woven fabric, ensuring environmental friendliness and durability.
• Easy to Disassemble and Replace: Designed for convenient removal, replacement, and cleaning.
• Washable and Reusable: Can be cleaned and reused, providing a long service life.
• Improves Cleaning Efficiency: Contributes to more effective and thorough vacuuming.
• Wide Compatibility: Compatible with various Rowenta (RU101, RU630) and Karcher (A2204, A2656) vacuum cleaner models.

Setup and Installation

Follow these steps to properly install the Bognajin ZR814 Dust Bag into your compatible vacuum cleaner.

1. Power Off and Unplug: Before beginning, ensure your vacuum cleaner is turned off and unplugged from the power outlet to prevent accidental operation.
2. Locate Dust Bag Compartment: Open the dust bag compartment on your vacuum cleaner. Refer to your vacuum cleaner's specific user manual if you are unsure of its location.
3. Remove Old Dust Bag (if applicable): Carefully remove the old dust bag. Dispose of it according to local waste disposal guidelines.
4. Insert New Dust Bag: Align the black plastic mounting plate of the new Bognajin ZR814 Dust Bag with the corresponding slot or holder inside the vacuum cleaner's compartment. Gently push until it clicks securely into place. Ensure the bag is fully unfolded inside the compartment to maximize capacity.
5. Close Compartment: Close the dust bag compartment door firmly. Ensure it is properly sealed to maintain vacuum suction.

Figure 4: A close-up view of the dust bag's black plastic mounting plate and white circular opening, illustrating the part that connects to the vacuum cleaner's intake.

Operating Instructions

Once the dust bag is installed, your vacuum cleaner is ready for operation. The dust bag functions automatically as part of the vacuuming process.

• Regular Use: Use your vacuum cleaner as you normally would. The dust bag will collect dirt, dust, and debris.
• Monitor Bag Fullness: Some vacuum cleaners have an indicator light or gauge to show when the dust bag is full. If your vacuum cleaner does not have this feature, monitor suction power. A decrease in suction power often indicates a full dust bag.
• Optimal Performance: For optimal cleaning efficiency, it is recommended to replace or clean the dust bag before it becomes completely full.

Maintenance and Cleaning

The Bognajin ZR814 Dust Bag is designed for reusability. Proper cleaning will extend its lifespan and maintain vacuuming efficiency.

1. Removal: Turn off and unplug the vacuum cleaner. Open the dust bag compartment and carefully remove the full dust bag.
2. Emptying: Gently shake the bag over a waste bin to empty the collected debris. For thorough cleaning, you may need to invert the bag.
3. Washing: The dust bag can be machine washed. Use cold water and a mild detergent. Do not use bleach or harsh chemicals, as these can damage the fabric.
4. Drying: Air dry the dust bag completely before reinstallation. Do not tumble dry or use direct heat, as this can shrink or damage the fabric. Ensure the bag is completely dry to prevent mold or mildew growth.
5. Reinstallation: Once dry, reinstall the dust bag following the "Setup and Installation" steps.

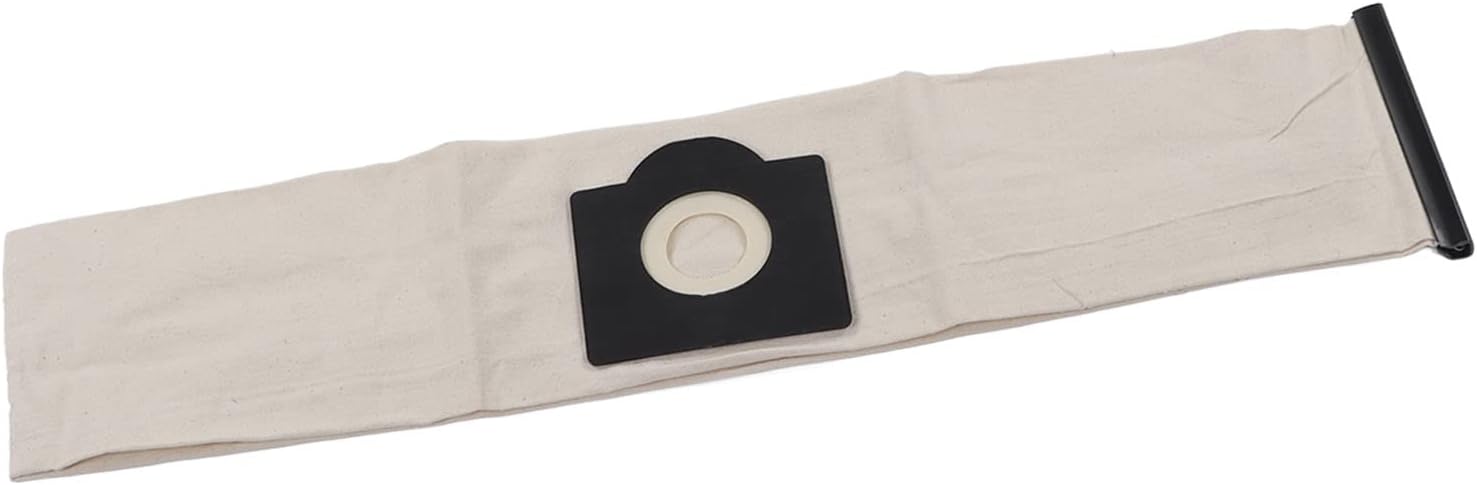

Figure 5: The dust bag laid flat, illustrating its full length and the integrated plastic attachment point. This view is useful for understanding the bag's capacity and how it unfolds inside the vacuum.

Troubleshooting

If you encounter issues with your vacuum cleaner's performance after installing the dust bag, refer to the following common problems and solutions.

Specifications

Warranty Information

Specific warranty details for this product are not provided in the available information. For warranty inquiries, please refer to the seller's return policy or contact the manufacturer directly.

The product is subject to a return policy of 30 days for refund/replacement as per the seller's terms.

Customer Support

For further assistance, questions, or concerns regarding your Bognajin ZR814 Vacuum Cleaner Dust Bags, please contact the seller or manufacturer through the platform where the product was purchased.

Seller: Ruitaiming lighting
