Mxtxmy Fireplace TV Stand Instruction Manual

1. Introduction

Thank you for choosing the Mxtxmy Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: Mxtxmy Fireplace TV Stand with a television.

2. Safety Information

• Always place the TV stand on a flat, stable surface to prevent tipping.
• Do not overload the shelves or the top surface. Refer to the specifications for weight limits.
• Ensure all electrical connections for the integrated power outlets and electric fireplace are properly secured and conform to local electrical codes.
• The electric fireplace generates heat. Maintain a safe distance from flammable materials. Do not cover the fireplace unit during operation.
• This TV stand is designed for electronic components and decorative items. It is not intended for sitting or climbing.
• Keep children and pets away from the electric fireplace and moving parts during operation.

3. Package Contents

The Mxtxmy Fireplace TV Stand and its 23-inch electric fireplace are shipped in two separate packages (Box A and Box B) and may arrive on different days. Please verify all components are present before beginning assembly.

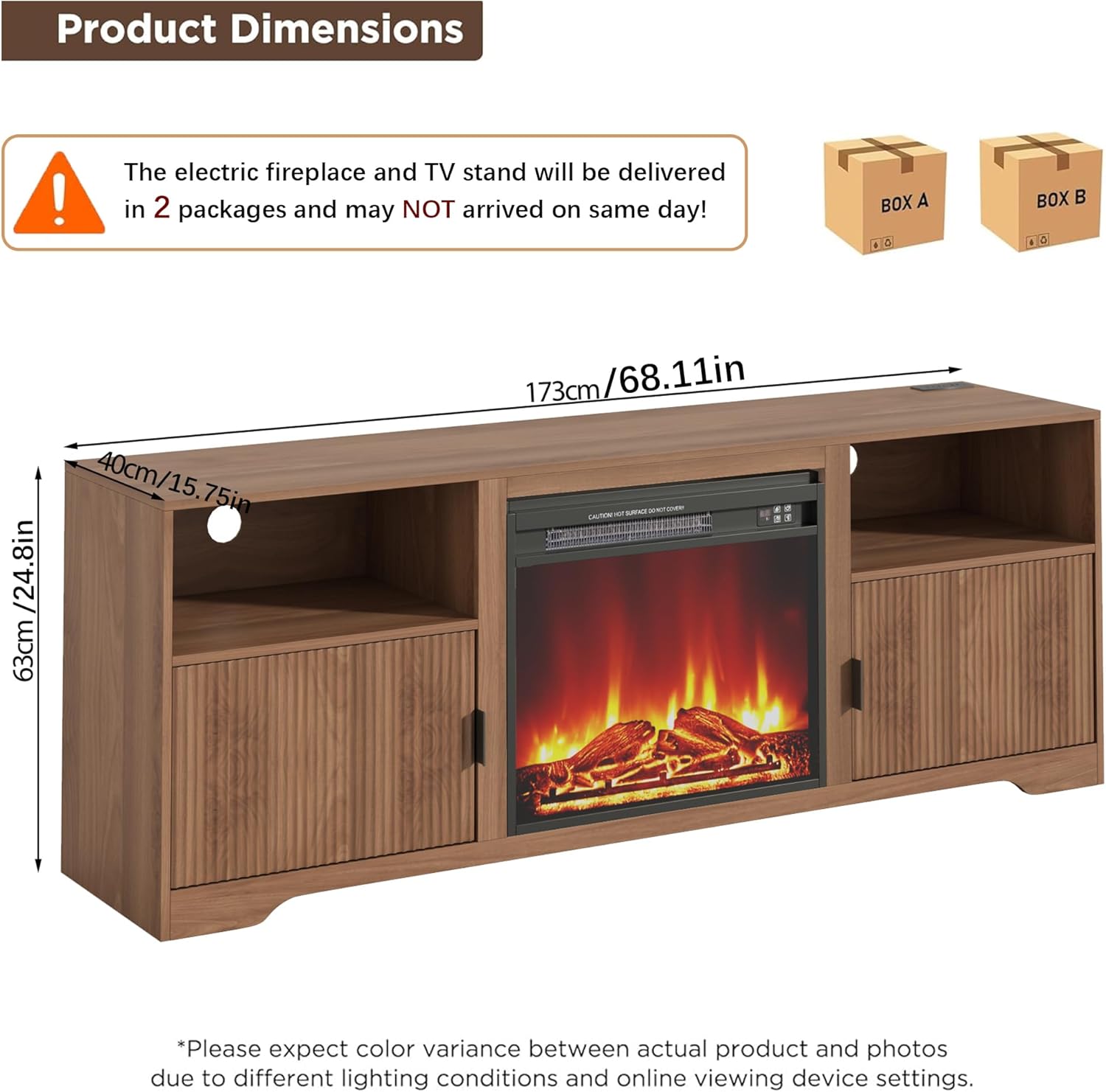

Image 3.1: Product dimensions and packaging information.

Included Components:

• TV Stand components (panels, hardware, handles, hinges, floor feet)
• 23-inch Electric Fireplace unit
• Installation Instructions (separate detailed guide)

4. Assembly Instructions

Assembly of the Mxtxmy Fireplace TV Stand is designed to be straightforward. A detailed installation guide with diagrams and numbered steps is included in your package. Please follow these instructions carefully.

General Assembly Steps:

1. Unpack all components and verify against the parts list in the detailed manual.
2. Assemble the main frame of the TV stand according to the provided diagrams.
3. Install the side cabinets, ensuring the fluted doors are correctly aligned. The metal hinges feature a hydraulic buffer for soft closing.
4. The central compartment features removable and adjustable shelves. Remove these shelves to create space for the 23-inch electric fireplace unit.
5. Carefully insert the electric fireplace into the designated central compartment.
6. Attach the solid wood floor feet to the base of the TV stand for stability.
7. Connect the power cord for the integrated power outlets and the electric fireplace to a suitable wall outlet.

Image 4.1: Illustration of the removable shelves for fireplace installation.

Image 4.2: Details of handles, feet, hinges, and fluted design.

5. Product Features

• Large TV Compatibility: Accommodates televisions up to 80 inches.
• Integrated Power Outlets: Features 2 standard electrical sockets and 2 USB ports on the desktop for convenient device charging and power supply.
• 23-inch Electric Fireplace:
  • LED technology with realistic logs and flames.
  • Adjustable flame settings with 12 color options and 5 brightness levels.
  • 5120 BTU heater for supplemental warmth.
  • Built-in timer with 0-8 hour settings.
  • CSA & CETL Certified for safety.
• Ample Storage: Includes two open compartments for media equipment and two side cabinets with fluted doors for concealed storage. The central fireplace compartment offers a removable adjustable partition for versatile use.
• Sturdy Construction: Crafted from high-quality engineered wood (MDF) with a walnut finish, ensuring durability and easy maintenance.

Image 5.1: Adjustable shelves and integrated power outlets.

Image 5.2: Electric fireplace features.

6. Operating Instructions

6.1. Power Outlets and USB Ports

The TV stand includes 2 standard electrical sockets and 2 USB ports located on the top surface. Plug the TV stand's main power cord into a grounded wall outlet. You can then plug your television, media devices, and charge mobile devices directly into the integrated outlets.

6.2. Electric Fireplace Operation

Refer to the separate instruction manual provided with the 23-inch electric fireplace unit for detailed operating instructions. Generally, the fireplace can be controlled via buttons on the unit or a remote control (if included). Key functions include:

• Power On/Off: Activates or deactivates the unit.
• Flame Settings: Adjusts flame color (12 options) and brightness (5 levels).
• Heat Settings: Turns the heater on/off and adjusts temperature.
• Timer: Sets an automatic shut-off time (0-8 hours).

Video 6.1: Demonstration of the Mxtxmy Fluted TV Stand, showcasing its design, storage capabilities, and suitability for televisions up to 80 inches.

7. Maintenance and Care

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Dusting: Regularly dust the unit to prevent buildup.
• Spills: Clean spills immediately to prevent staining.
• Fireplace Maintenance: Refer to the electric fireplace manual for specific cleaning and maintenance instructions. Ensure the unit is unplugged before cleaning.

8. Troubleshooting

• Missing Parts: If you find any missing parts during assembly, please contact Mxtxmy customer support immediately.
• Assembly Difficulties: Review the detailed installation instructions. If issues persist, contact customer support for assistance.
• Electric Fireplace Not Working: Ensure the fireplace is properly plugged into a functional outlet. Check the power switch on the unit and refer to the fireplace's specific troubleshooting guide.
• Power Outlets/USB Ports Not Functioning: Verify the main power cord of the TV stand is securely plugged into a live wall outlet.

9. Specifications

10. Warranty and Support

Mxtxmy is committed to providing high-quality products. For any questions, concerns, or issues regarding your Fireplace TV Stand, please contact Mxtxmy customer support. Our team is available to assist you with assembly, missing parts, or product functionality.

Please refer to your purchase documentation for specific warranty details and contact information.
