1. Introduction
This manual provides essential information for the safe and efficient use of your Harper & Bright Designs Queen Size Murphy Bed with Sofa and Storage Shelves. Please read these instructions thoroughly before assembly and operation to ensure proper functionality and longevity of your product. This multi-functional furniture piece is designed to optimize space in smaller living areas by combining a comfortable queen-size bed, a sofa, and integrated storage shelves.
2. Safety Information
- Weight Capacity: The bed is designed to support a maximum weight of 600 lbs (272 kg). Do not exceed this limit.
- Mattress Thickness: Use a mattress with a recommended thickness of 6-8 inches (15-20 cm). Using a mattress outside this range may affect the bed's operation and safety.
- Assembly: Proper assembly is critical for safety and stability. Ensure all components are securely fastened according to the assembly instructions.
- Children and Pets: Keep children and pets away from the bed during folding and unfolding operations to prevent injury.
- Wall Mounting: This Murphy bed must be securely anchored to a wall. Failure to do so can result in serious injury or property damage. Consult a professional if unsure about wall mounting procedures.
- Clearance: Ensure adequate clearance around the bed when operating to avoid obstructions.
3. Package Contents
Before beginning assembly, verify that all parts listed in the separate installation manual are present and undamaged. Typically, your package will include:
- Bed frame components (slats, side rails, support legs)
- Sofa components (cushions, frame)
- Wall unit and storage shelf components
- Hardware kit (screws, bolts, washers, nuts, wall anchors)
- Assembly tools (e.g., Allen wrench, screwdriver)
- Detailed Installation Manual
4. Setup and Assembly Instructions
Assembly of the Harper & Bright Designs Queen Size Murphy Bed requires two adults. Follow the step-by-step instructions provided in the separate Installation Manual included with your product. Ensure you have sufficient space for assembly and that all tools are readily available.
Figure 4.1: Initial assembly showing the wall unit structure and bed frame components.

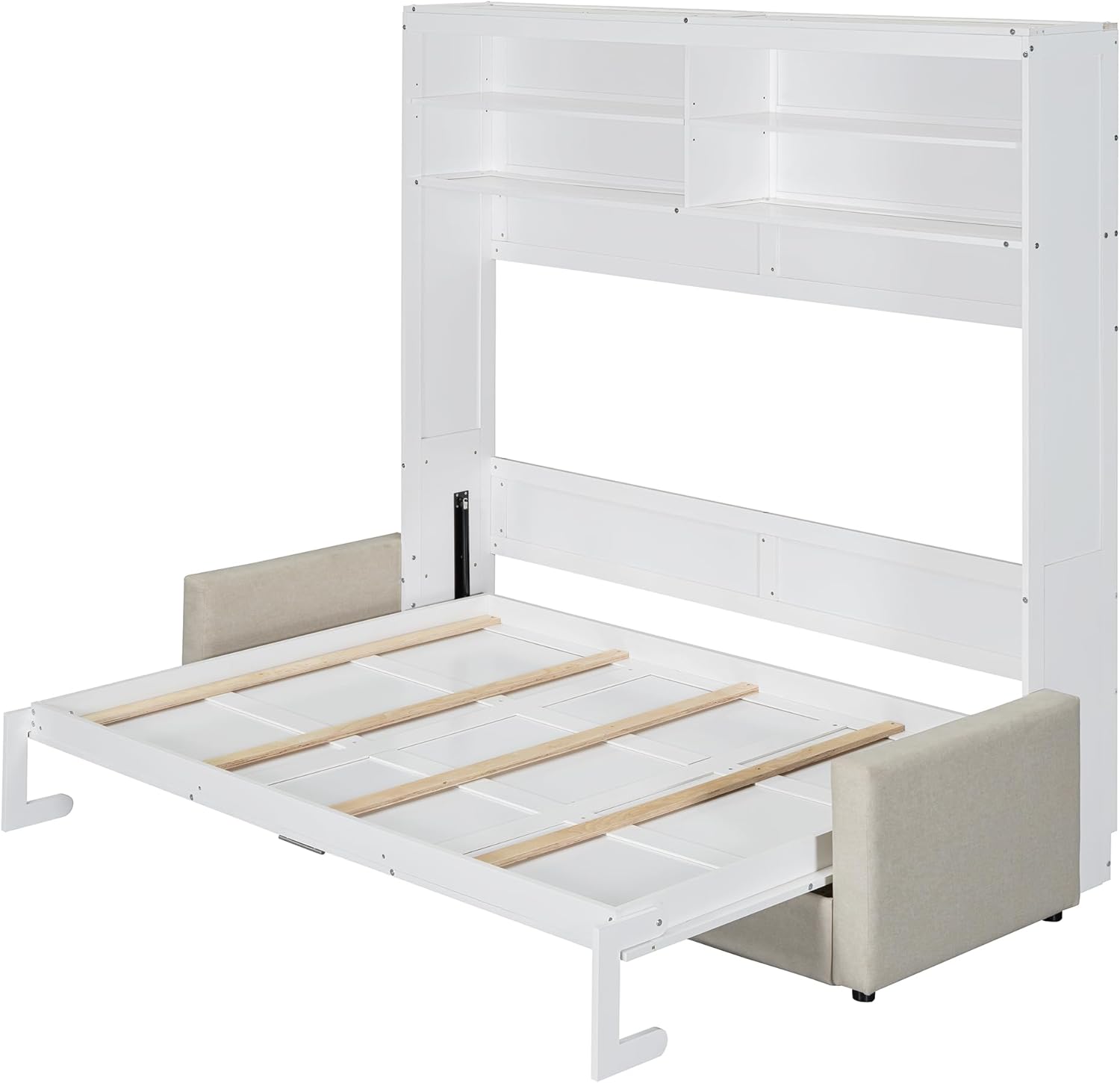

Figure 4.2: The bed frame with wooden slats, illustrating the mattress support structure.
Key Assembly Points:
- Identify all parts before starting.
- Do not overtighten screws during initial assembly; tighten fully once components are aligned.
- Ensure the wall unit is securely anchored to a sturdy wall stud using appropriate hardware.
- Test the folding mechanism gently after assembly to ensure smooth operation.
5. Operating Instructions
The Murphy bed is designed for easy conversion between a bed and a sofa. Always ensure the area is clear before operating the mechanism.
5.1. Converting from Sofa to Bed
- Ensure the sofa cushions are properly positioned and not obstructing the bed's path.
- Locate the handles on the front panel of the bed frame.
- Gently pull the handles downwards and outwards to release the bed from its upright position.
- As the bed frame lowers, flip the support legs down onto the floor to secure the bed in its horizontal position.
- Adjust the mattress and bedding as needed.
Figure 5.1: The Murphy bed in its fully unfolded, sleeping position.
5.2. Converting from Bed to Sofa
- Remove all bedding and pillows from the mattress.
- Lift the support legs and fold them back into their stored position.
- Using the handles, gently lift the bed frame upwards, guiding it back into the wall unit.
- Ensure the bed frame locks securely into the upright position.
- Arrange the sofa cushions for seating.
Figure 5.2: The Murphy bed in its folded, sofa position.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your Murphy bed.
- Cleaning: For wooden and MDF surfaces, wipe with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals. For linen sofa cushions, spot clean with a mild detergent and water, or follow specific fabric care instructions if available.
- Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they are tight. Retighten as necessary.
- Mechanism Inspection: Inspect the folding mechanism for any signs of wear or damage. If any issues are observed, discontinue use and contact customer support.
- Dusting: Regularly dust the storage shelves and other surfaces to prevent buildup.
7. Troubleshooting
If you encounter issues with your Murphy bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed difficult to fold/unfold | Obstruction, loose hardware, incorrect mattress thickness/weight. | Check for obstructions. Ensure all hardware is tight. Verify mattress meets recommended specifications. |
| Squeaking or creaking noises | Loose hardware, friction in moving parts. | Tighten all fasteners. Apply a silicone-based lubricant to moving metal parts if necessary (avoid oil-based lubricants). |
| Bed not staying in upright position | Locking mechanism not engaged, incorrect mattress weight. | Ensure the bed is pushed fully into the wall unit until the locking mechanism engages. Confirm mattress weight is within specified limits. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Type | Murphy Bed with Sofa and Storage Shelves |
| Size | Queen |
| Color | White (with Beige Sofa Cushions) |
| Material | Plywood, MDF, Linen |
| Overall Product Dimensions (Bed Unfolded) | 61.8" L x 93.3" W x 86.2" H |
| Overall Product Dimensions (Bed Folded as Sofa) | 93.6" L x 41.1" W x 86.2" H (approximate, based on sofa dimensions) |
| Weight Capacity | 600 LBS |
| Recommended Mattress Thickness | 6-8 inches |
| Assembly Required | Yes |
| Country of Origin | Vietnam |

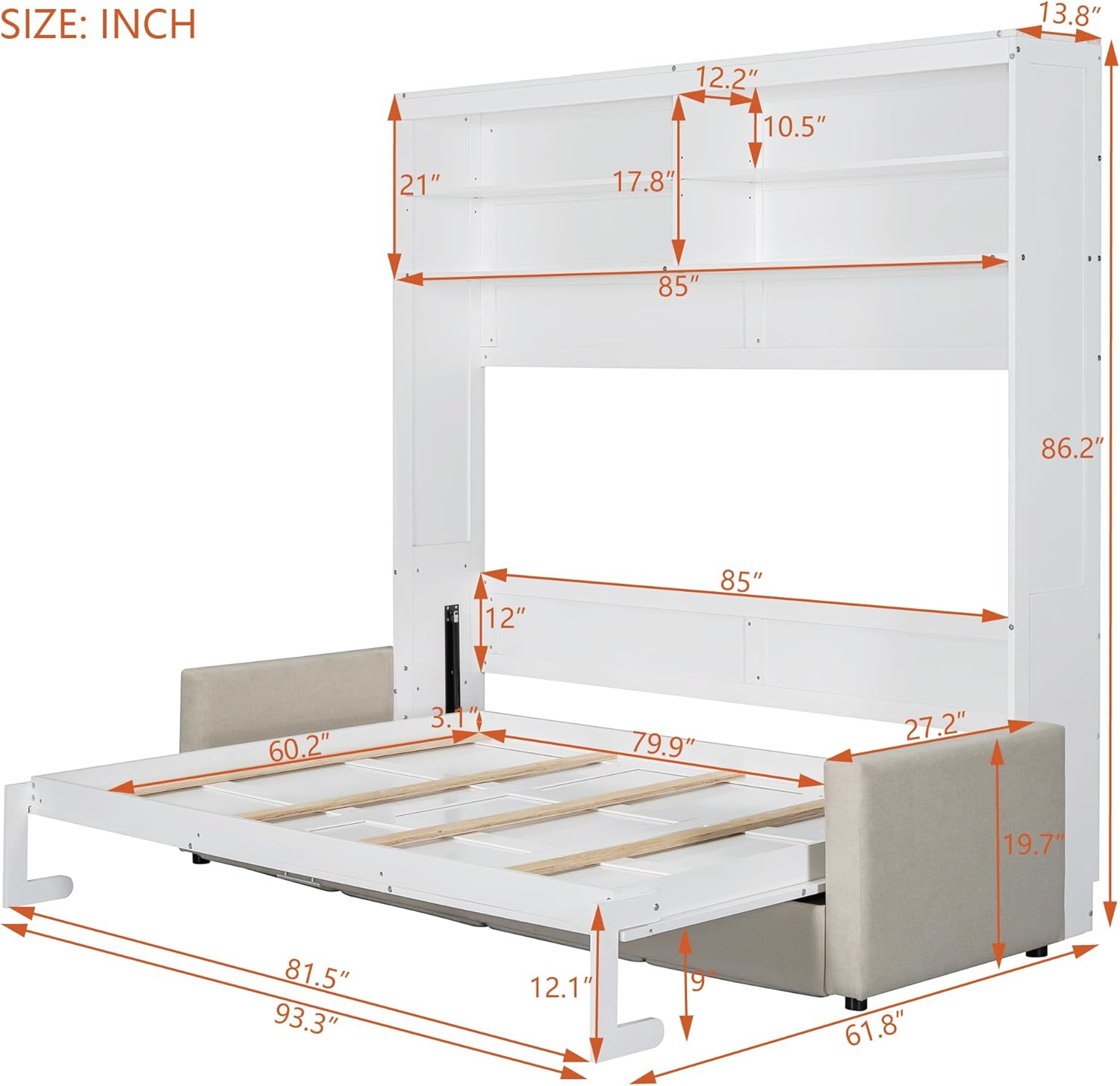

Figure 8.1: Dimensional diagram of the Murphy bed in the unfolded (bed) configuration.
Figure 8.2: Dimensional diagram of the Murphy bed in the folded (sofa) configuration.
9. Warranty and Support
For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Harper & Bright Designs is committed to customer satisfaction. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Harper & Bright Designs customer support through their official channels or the retailer from whom you purchased the product.
