MECHYIN Extendable Dining Room Table Instruction Manual

Introduction

This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your MECHYIN Extendable Dining Room Table. Designed for versatility, this table effortlessly transitions from a compact 4-6 seater to an extended 6-8 seater, featuring convenient hidden storage. Please read all instructions carefully before assembly and use.

Image: The MECHYIN Extendable Dining Table in its compact form, suitable for 4-6 people.

Safety Information

Always follow the assembly instructions provided. Do not exceed the weight limit of 500 pounds. Ensure the table is properly anchored to prevent tipping or collapse.

Parts List

Before beginning assembly, ensure all parts and hardware are present. Refer to the diagrams below for identification.

Hardware List

• M6x12mm Screws (x16)
• M8x20mm Screws (x4)
• 8x30mm Dowels (x5)
• M6x12mm Adjustable Feet (x4)
• Hex Key (x1)

Setup and Assembly

Your table comes with pre-attached legs and tool-free hardware. Follow the step-by-step guide included for easy setup. For visual guidance, please refer to the assembly videos below.

Assembly Video Guide

Key Assembly Steps

1. Attach Legs: Secure the metal X-legs to the tabletop using the provided hardware. Ensure screws are tightened to 80% initially, then fully tightened after all components are aligned.
2. Connect Crossbars: Install the crossbars between the legs for added stability.
3. Install Extension Mechanism: Attach the sliding extension rails to the underside of the tabletop.
4. Insert Hidden Storage: Place the hidden storage compartment into its designated slot within the extension mechanism.
5. Attach Adjustable Feet: Screw the adjustable foot pads into the bottom of each leg to ensure stability on uneven surfaces.

Image: Detail of the stable triangular design, sturdy metal legs, and rotatable foot pads for enhanced stability.

Operating Instructions

Extending the Table

1. Release Latches: Locate and release the safety latches underneath the tabletop that secure the two main sections.
2. Pull Tabletop Outward: Gently pull the two halves of the tabletop apart along the silent glide rails until a gap is created in the center.
3. Insert Extension Leaf: Take the extension leaf from the hidden storage compartment and carefully place it into the gap.
4. Align and Join: Push the two tabletop halves back together until they are flush with the extension leaf.
5. Engage Safety Locks: Re-engage the safety latches underneath the table to secure the extended tabletop.

Image: Visual guide showing the process of releasing latches, pulling the tabletop, inserting the extension leaf, and engaging safety locks.

Retracting the Table

To retract the table, follow the extension steps in reverse: release latches, pull tabletop apart, remove the extension leaf and store it in the hidden compartment, push tabletop halves together, and engage safety latches.

Using Hidden Storage

The table features a hidden compartment located beneath the extension leaf. To access it, extend the table as described above. The compartment is ideal for storing small items like tableware, table linens, or board games.

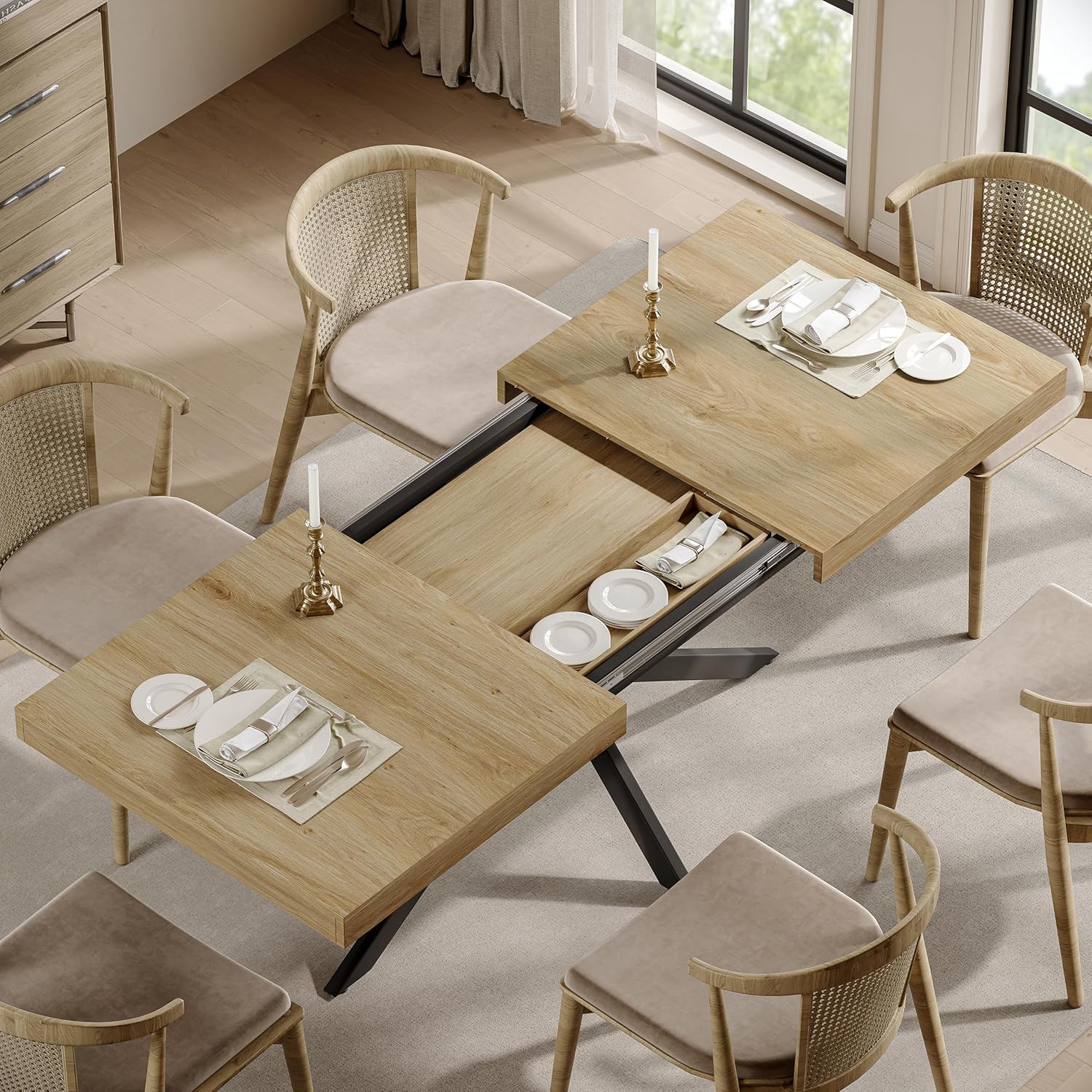

Image: The hidden storage compartment beneath the table, perfect for keeping small items organized.

Maintenance

To maintain the appearance and longevity of your MECHYIN dining table, follow these care instructions:

• Cleaning: Wipe the table surface with a damp cloth for general cleaning. For spills, use a dry cloth immediately.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals, as these can damage the waterproof and scratch-resistant MDF surface.
• Protect from Heat: While the surface is heat-resistant, it is recommended to use coasters or placemats for very hot items to prevent potential damage.

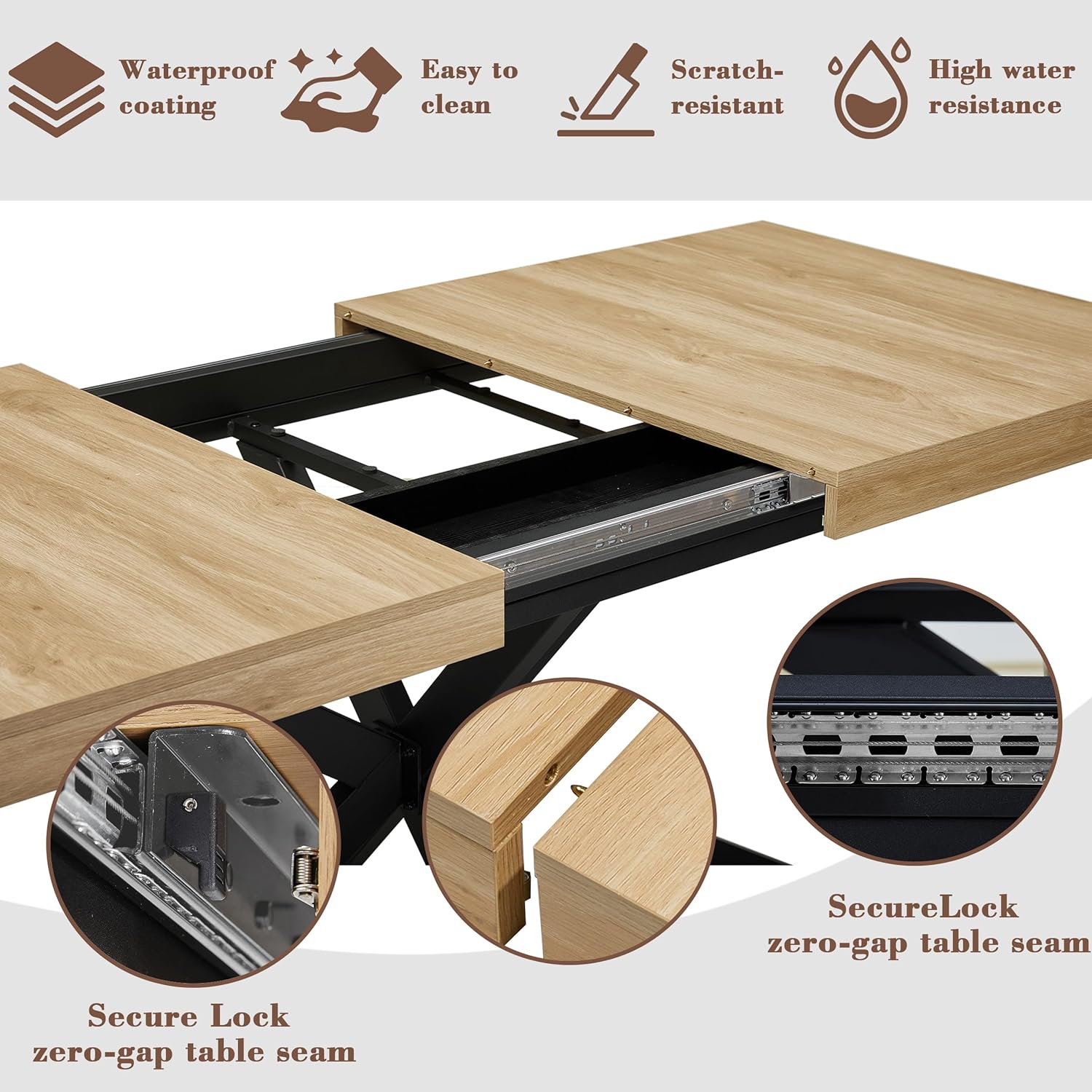

Image: The table's surface features a waterproof coating, is easy to clean, scratch-resistant, and offers high water resistance.

Troubleshooting

If you encounter any issues during assembly or operation, please refer to the detailed instructions provided in this manual. For persistent problems, contact customer support.

• Table Wobbles: Ensure all screws are fully tightened. Adjust the rotatable foot pads on the legs to stabilize the table on uneven floors.
• Extension Mechanism Sticks: Check for any obstructions in the glide rails. Ensure the latches are fully disengaged before pulling the tabletop.

Specifications

• Brand: MECHYIN
• Model: HH-11
• Material: Engineered Wood, Metal
• Color: Oak
• Dimensions (Compact): 55.11" L x 31.49" W x 29.53" H
• Dimensions (Extended): 70.86" L x 31.49" W x 29.53" H
• Item Weight: 75 Pounds
• Weight Capacity: 500 lbs
• Special Features: Adjustable Leg, Easy Assembly, Expandable, Extendable, Space Saving

Warranty and Support

For lifetime assistance, please reach out via the "Contact Seller" option on the product page. Our support team is available to help with any questions or concerns you may have.
