VEVOR 500 lbs Pickup Truck Hydraulic Crane User Manual

1. Introduction

This user manual provides essential information for the safe and efficient operation, setup, and maintenance of your VEVOR 500 lbs Pickup Truck Hydraulic Crane. Designed for lifting goods, this crane features a 1000 lbs manual winch, 360° swivel capability, and a convenient hitch mount for versatile use in various environments.

Figure 1: VEVOR 500 lbs Pickup Truck Hydraulic Crane, fully assembled.

2. Safety Information

Always prioritize safety when operating the hydraulic crane. Failure to follow safety guidelines can result in serious injury or property damage.

• Read and understand all instructions before assembly and operation.
• Ensure the crane is securely mounted to a 2-inch receiver hitch before use.
• Do not exceed the maximum load capacity of 500 lbs.
• Always wear appropriate personal protective equipment (PPE), including safety gloves and eye protection.
• Keep hands and body clear of moving parts during operation.
• Inspect the crane for any damage or wear before each use. Do not operate if damaged.
• Ensure the load is balanced and properly secured before lifting.
• Avoid operating the crane on uneven or unstable surfaces.

3. Product Overview

3.1. Components

The VEVOR Pickup Truck Hydraulic Crane includes the following main components:

• Truck Crane Assembly (Main Bar, Boom, Support Legs)
• Hydraulic Jack
• Manual Winch (1000 lbs capacity)
• Hook Chain with Wire Rope
• Mounting Hardware

For a visual representation of the main components, refer to Figure 2.

Figure 2: Close-up view of the manual winch and hydraulic ram.

3.2. Key Features

• Max 500 lbs Load Capacity: Capable of lifting up to 500 lbs with its robust boom and telescopic arm, constructed from high-strength alloy steel.
• Hitch-Mounted Convenience: Designed to mount into a standard 2-inch receiver hitch, offering full clearance during loading and versatile positioning. Features stowable support legs for compact storage.
• 360° Swivel Control: Allows for effortless pivoting and precise load positioning without needing to reposition the vehicle.
• Sturdy and Durable Construction: Made from durable alloy steel with a baking finish, providing resistance against harsh environments, weather, and corrosion.
• Manual Hydraulic & Winch Drive Lifting: Utilizes a hydraulic cylinder in conjunction with a 1,000 lb. hand winch for safe and efficient lifting operations without external power.

Figure 3: The crane demonstrating its 500 lbs stable load capacity.

Figure 4: Illustrating the 360° flexible rotation feature for precise positioning.

3.3. Specifications

Figure 5: Detailed product specifications.

4. Setup Instructions

Follow these steps to properly assemble and set up your VEVOR Pickup Truck Hydraulic Crane. Ensure all parts are present before beginning assembly.

1. Prepare All Parts: Unpack all components and verify against the parts list.
2. Assemble Support Legs: Attach the adjustable support legs to the base bar.
3. Insert Support Leg into Bar: Slide the support leg assembly into the main horizontal bar.
4. Align Bar with Vehicle: Position the main bar to align with your vehicle's 2-inch receiver hitch.
5. Adjust Support Leg Height: Adjust the height of the support leg to ensure stability and proper alignment.
6. Install Swivel Joint: Secure the swivel joint mechanism to the main vertical post.
7. Install Positioning Pin: Insert the positioning pin to lock the swivel joint in place.
8. Install Main Bar: Secure the main vertical bar to the base, ensuring all bolts are tightened.
9. Install the Boom: Attach the crane boom to the main vertical bar using the provided hardware.
10. Install the Hydraulic Jack: Mount the hydraulic jack between the main vertical bar and the boom.
11. Install the Manual Winch: Securely attach the 1000 lbs manual winch to the designated mounting points on the crane.
12. Release Wire Rope: Carefully release the wire rope from the winch.
13. Pass Wire Rope Through Boom: Thread the wire rope through the pulley system at the end of the boom.
14. Install Hook Chain: Attach the hook chain to the end of the wire rope.

For visual guidance on the assembly process, please refer to the product's official installation video if available from the seller.

Figure 6: The crane's hitch mount for vehicle attachment.

5. Operating Instructions

Before operating, ensure the crane is properly set up and all safety checks are completed.

5.1. Lifting a Load

1. Secure the Crane: Ensure the crane is firmly seated in the vehicle's hitch and the support legs are stable.

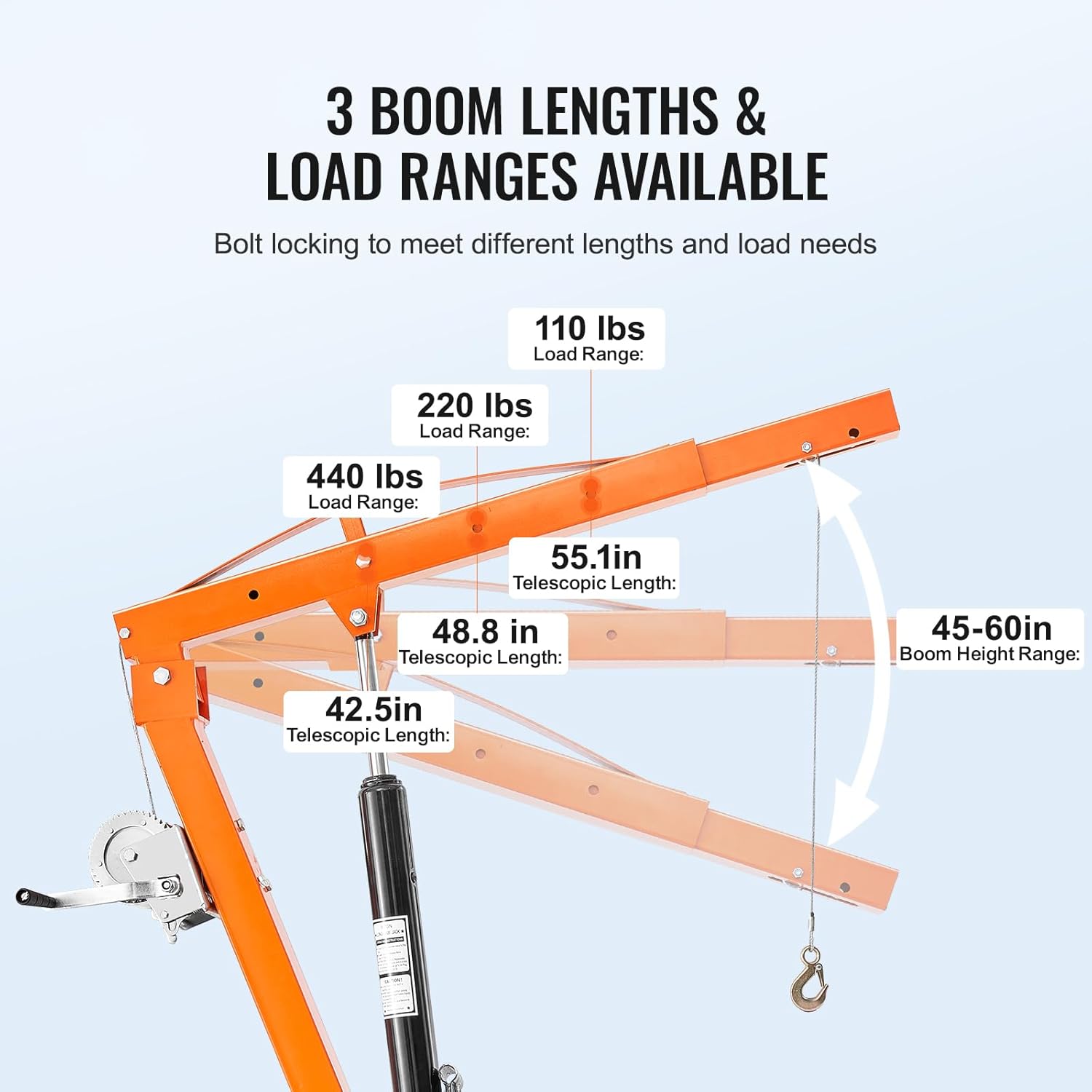

2. Extend the Boom (if necessary): Adjust the telescopic boom to the desired length. Note the load capacities for each boom extension (110 lbs, 220 lbs, 440 lbs).
3. Tighten Hydraulic Valve: Using the rocker, tighten the hydraulic valve clockwise to prepare for lifting.
4. Attach Load: Securely attach the load to the hook chain, ensuring it is balanced.
5. Lift Load: Use the rocker to pump the hydraulic jack, slowly raising the boom and the attached load.
6. Use Manual Winch: For additional control and safety, especially with heavier loads, operate the 1000 lbs manual winch to assist in lifting or lowering.

Figure 7: Manual winch and hydraulic ram for controlled lifting.

5.2. Lowering a Load

1. Control with Winch: If the winch is in use, slowly release the wire rope to begin lowering the load.
2. Rotate Hydraulic Valve: Slowly rotate the hydraulic valve counter-clockwise to gradually lower the boom and the load. Control the descent carefully to prevent sudden drops.
3. Detach Load: Once the load is safely on the ground or desired surface, detach it from the hook.

5.3. Swivel Operation

The crane features a 360° swivel for precise positioning. Once a load is lifted, the boom can be manually rotated to move the load horizontally without moving the vehicle. Ensure the area is clear before swiveling.

Figure 8: Demonstrating the 360° flexible rotation for precise load placement.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your VEVOR Hydraulic Crane.

• Cleaning: Clean the crane regularly to remove dirt, debris, and any corrosive substances.
• Lubrication: Lubricate all moving parts, including the hydraulic cylinder piston, winch gears, and swivel joint, periodically.
• Inspection: Regularly inspect the wire rope for fraying or damage. Check all bolts and connections for tightness. Inspect the hydraulic system for leaks.
• Storage: When not in use, store the crane in a dry, protected area. The stowable support legs allow for compact storage.
• Corrosion Protection: The baking finish provides corrosion resistance, but additional protective coatings can be applied in harsh environments.

Figure 9: High-strength alloy steel construction ensures durability and resistance to elements.

7. Troubleshooting

This section addresses common issues you might encounter with your hydraulic crane.

8. Warranty and Support

For warranty information, protection plans, or customer support, please refer to the purchase documentation or contact VEVOR customer service directly. Protection plans are available for extended coverage.

• Protection Plans: 3-Year and 4-Year Protection Plans are available for purchase.
• Returns: This product typically offers 30-day easy returns.
• Customer Support: Contact VEVOR for assistance with product inquiries or issues.
