Important Safety Instructions
Read all instructions before using this appliance to reduce the risk of fire, electric shock, or injury to persons.
- Always ground the dryer properly.
- Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances.
- Do not allow children to play on or in the appliance.
- Do not reach into the appliance if the drum is moving.
- Do not install or store this appliance where it will be exposed to the weather.
- Do not tamper with controls.
- Clean lint screen before or after each load.
- Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
Product Overview
The Guangshuohui GDZ60-618E is a 120V portable clothes dryer designed for efficient and convenient laundry drying in various living spaces such as apartments and dorms. It features a stainless steel tub and a user-friendly control knob interface.
Figure 1: Front view of the Guangshuohui GDZ60-618E Portable Clothes Dryer, showcasing its compact design and control panel.

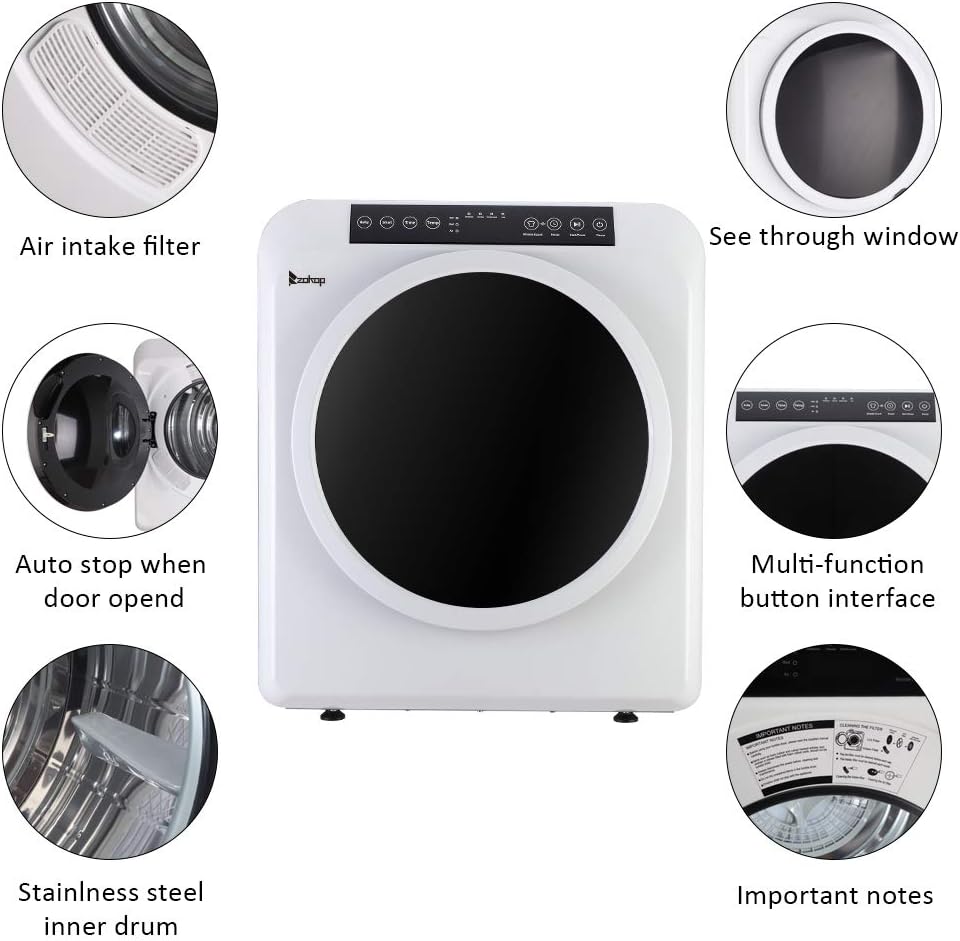

Figure 2: Detailed view highlighting key features including the air intake filter, see-through window, auto-stop safety mechanism when the door is opened, multi-function button interface, stainless steel inner drum, and important notes section.
Setup and Installation
This dryer offers flexible installation options to suit your space.
Unpacking
- Carefully remove the dryer from its packaging.
- Check for any shipping damage. Contact your retailer immediately if damage is found.
- Ensure all accessories are present: 1 x Dryer, 1 x Instruction Manual, 1 x Plastic Exhaust Pipe.
Placement Options
The dryer can be installed in three primary ways:
- Freestanding: Place the dryer on a stable, level surface.
- Stacking/Rack: Position the dryer on a compatible rack or stacked above a washing machine (ensure proper stacking kit is used, if applicable, and the surface is stable).
- Wall Mounted: Securely mount the dryer to a sturdy wall using appropriate mounting hardware (not included, consult a professional for wall mounting).
Figure 3: Visual representation of the dryer's versatile installation options: freestanding on a counter, stacked on a rack, or wall-mounted.
Ventilation
Connect the provided plastic exhaust pipe to the dryer's exhaust outlet and direct it to an outdoor vent or a well-ventilated area. Ensure the exhaust path is clear and unobstructed to prevent lint buildup and ensure efficient drying.
Electrical Connection
Ensure the dryer is connected to a 120V power outlet. The rated input power is 1300W. Do not use extension cords or adapters.
Operating Instructions
Follow these steps for optimal drying performance.
Before Each Load
- Clean the lint filter.
- Sort laundry by fabric type and desired drying temperature.
- Ensure all items are suitable for tumble drying.
Loading the Dryer
- Open the dryer door. The dryer features an auto-stop safety mechanism when the door is opened.
- Load clothes into the stainless steel inner drum. Do not overload the dryer; the capacity is 3.5 CUFT / 13.23 lbs / 6 kg.
- Close the door securely.
Figure 4: A user loading clothes into the dryer, demonstrating the ease of access and the forward and reverse tumble action for tangle-free drying.
Control Panel Operation
The dryer features an easy-to-use button panel for selecting drying modes and settings.
Figure 5: Close-up of the dryer's control panel with intuitive buttons for various functions.
- Power Button: Press to turn the dryer on/off.
- Mode Selection: Use the mode button to select desired drying cycle (e.g., Auto, Smart, Temp, Time).
- Start/Pause Button: Press to start or pause the drying cycle.
- Reset Button: Used to reset settings or clear errors.
- Wrinkle Guard: Activates a feature to minimize wrinkles after the drying cycle.
Drying Cycles and Features
- Superior Drying Performance: Designed for efficient and thorough drying.
- Reverse Tumble Action: The dryer utilizes a reverse tumble action to keep clothing fluffy, wrinkle-free, and ensures proper rotation, assisting clothes rotation for shorter drying times and energy saving.
- Anti-wrinkle, Soft and Fluffy: This feature helps maintain the clothing's elasticity and reduces wrinkles.

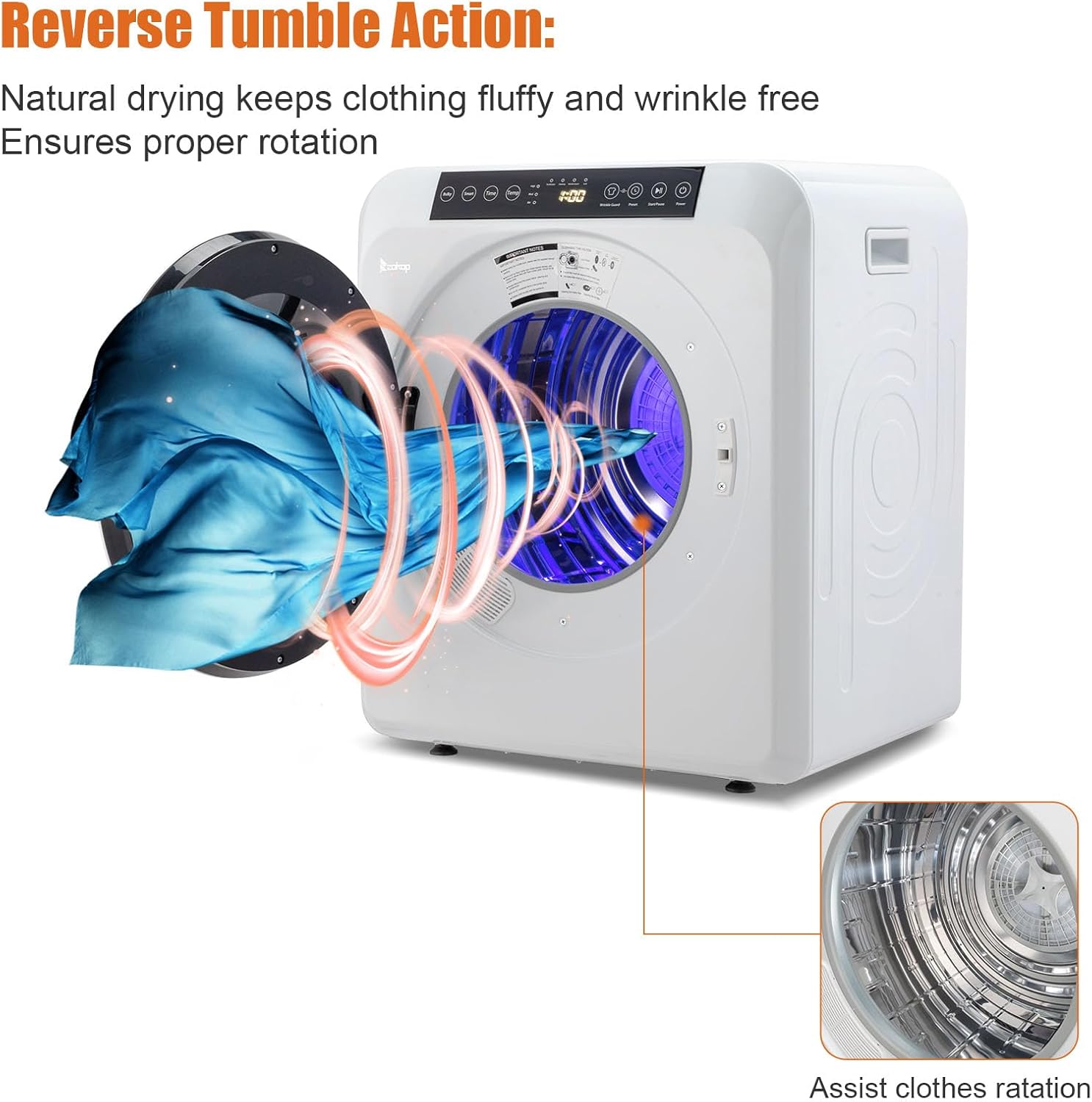

Figure 6: Illustration of the reverse tumble action, which helps prevent tangling and ensures even drying.
Figure 7: Comparison showing the effect of the dryer's anti-wrinkle feature, resulting in soft and fluffy clothes.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your dryer.
Cleaning the Lint Filter
The lint filter should be cleaned before or after every load. A clogged lint filter reduces drying efficiency and increases energy consumption.
- Open the dryer door.
- Locate the lint filter, typically inside the door opening or at the front of the drum.
- Remove the filter and gently pull off any accumulated lint.
- Reinsert the clean filter securely.

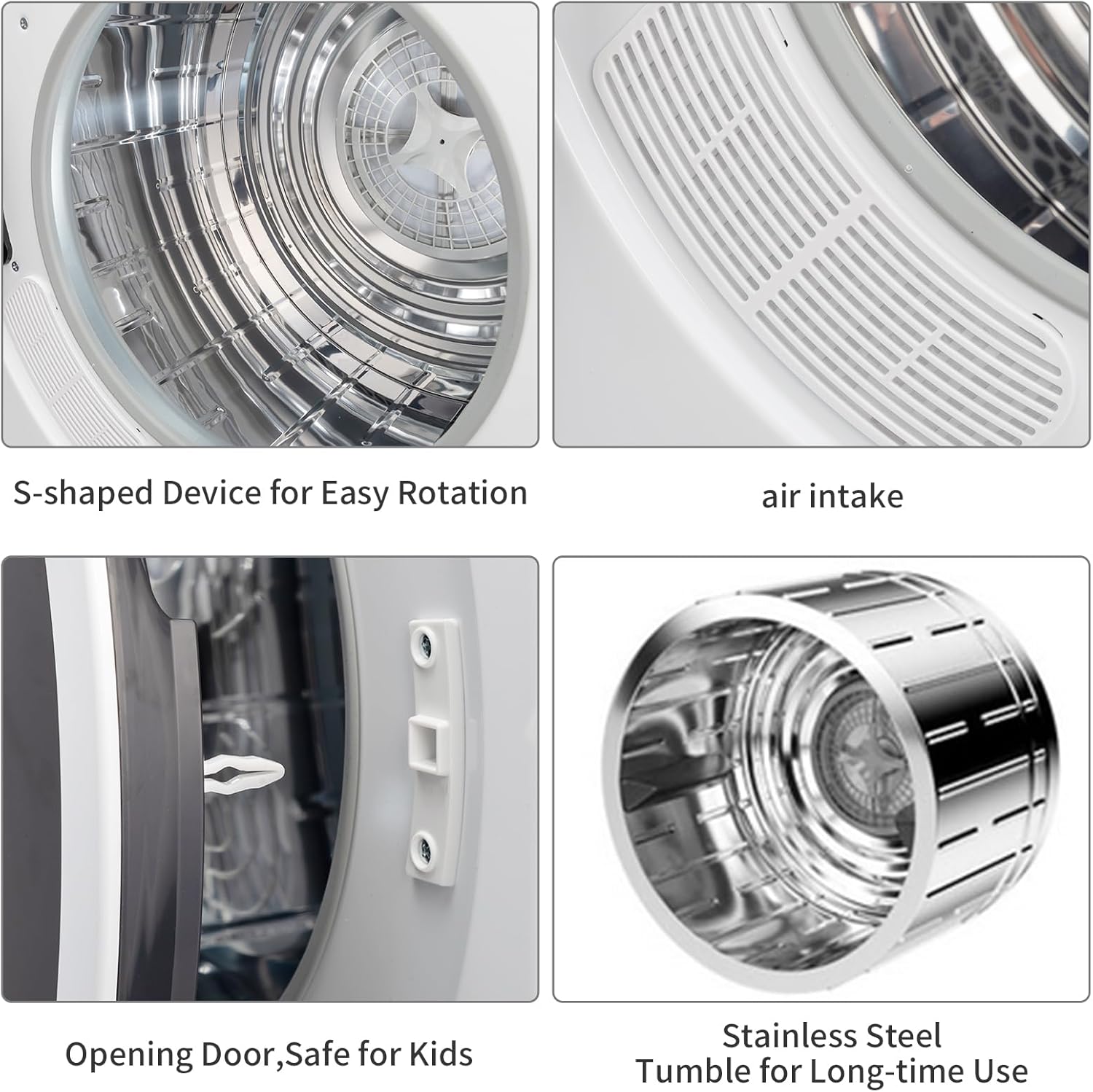

Figure 8: Close-up of the air intake filter and the durable stainless steel tumble drum, designed for long-term use.
Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
Cleaning the Exhaust System
Periodically check and clean the exhaust pipe and external vent to prevent lint buildup, which can be a fire hazard and reduce drying efficiency.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | No power; Door not closed; Start button not pressed. | Check power cord connection; Ensure door is securely latched; Press the Start/Pause button. |
| Clothes not drying properly | Lint filter clogged; Overloaded dryer; Exhaust vent blocked; Incorrect cycle selected. | Clean lint filter; Reduce load size; Check and clear exhaust path; Select appropriate drying cycle. |
| Dryer is noisy | Foreign objects in drum; Dryer not level. | Check drum for loose items; Ensure dryer is on a stable, level surface. |
| Dryer stops unexpectedly | Door opened; Overheating. | Close door securely; Check for blocked vents and clean lint filter. Allow to cool before restarting. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Specification | Detail |
|---|---|
| Model | GDZ60-618E |
| Dimensions (L x W x H) | (23.43 x 20.08 x 26.81) inches / (59.50 x 51.00 x 68.10) cm |
| Weight | 59.52 lbs / 27 kg |
| Material | Steel, Stainless Steel, ABS (Acrylonitrile Butadiene Styrene) |
| Color | White |
| Capacity | 3.5 CUFT / 13.23 lbs / 6 kg |
| Rated Input Power | 1300W |
| Voltage | 120V |

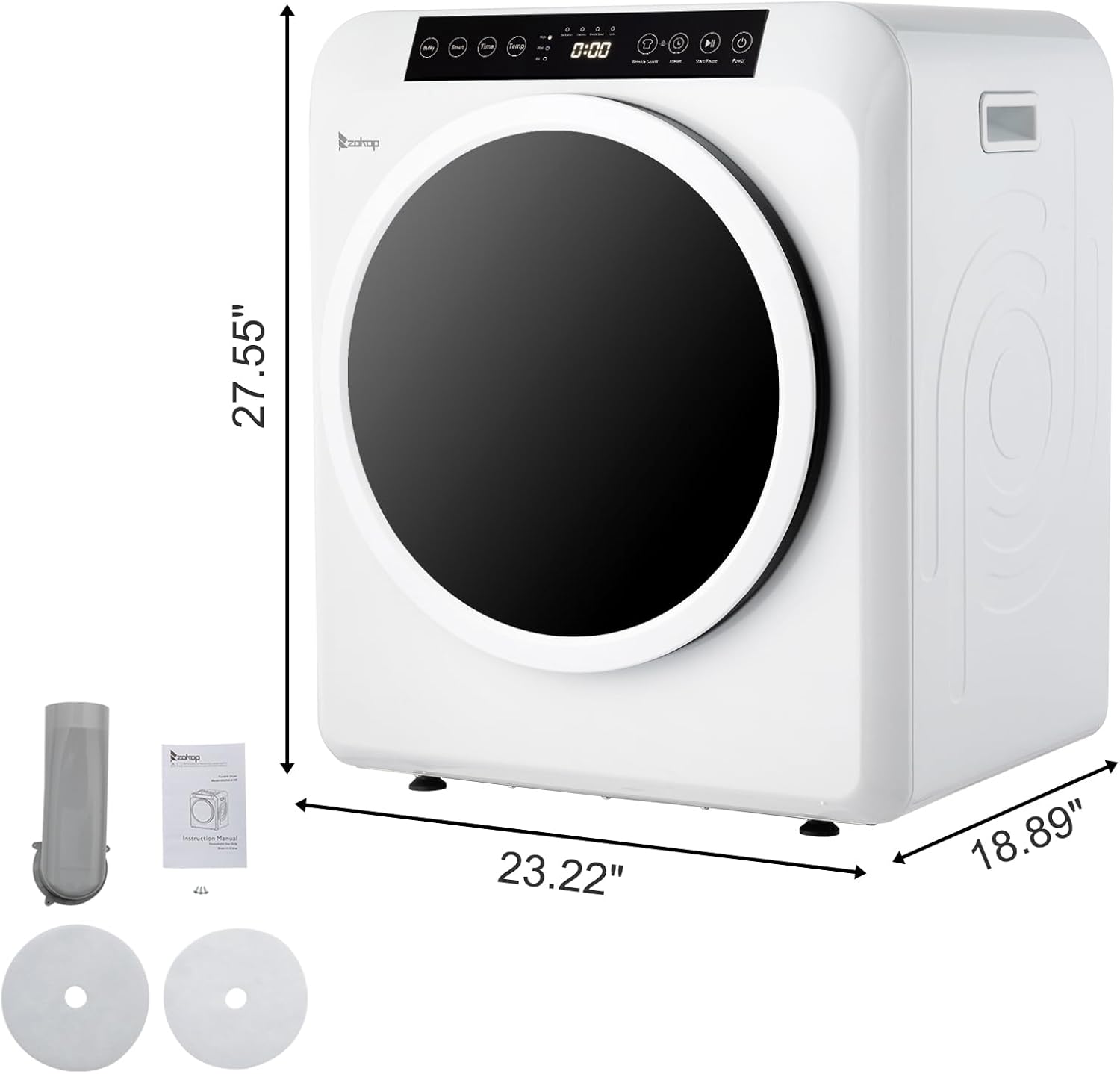

Figure 9: Diagram illustrating the dimensions of the dryer (27.55" H x 23.22" W x 18.89" D) and showing included accessories like the instruction manual, exhaust pipe, and lint filters.
Figure 10: Side view of the dryer with key dimensions indicated: 27.55 inches height, 23.22 inches width, and 18.89 inches depth.
Warranty and Support
For warranty information and customer support, please refer to the contact details provided with your purchase documentation or visit the official Guangshuohui website. Keep your purchase receipt for warranty claims.
Protection plans are available for extended coverage:
- 2-Year Protection Plan
- 3-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases (monthly billing)
These plans are offered separately and provide additional coverage beyond the standard manufacturer's warranty.
