Introduction
This manual provides comprehensive instructions for the Akko MG75 ABNT2 Mechanical Keyboard. Designed for efficiency and customization, this 75% layout keyboard features Akko Silver V3 Pro mechanical switches, full RGB backlighting, and hot-swappable switch sockets. Please read this manual carefully to ensure proper use and maintenance of your device.
1. Setup
1.1 Package Contents
- Akko MG75 ABNT2 Mechanical Keyboard
- USB-C Cable (Removable)
- Keycap Puller
- Switch Puller
- Extra Switches
- User Manual (this document)
1.2 Connecting the Keyboard
- Locate the USB-C port on the back of the keyboard.
- Connect the provided USB-C cable to the keyboard.
- Connect the other end of the USB-C cable to an available USB port on your computer.
- The keyboard will be automatically recognized by your operating system. No additional drivers are typically required for basic functionality.
Image: USB-C port for connecting the keyboard.
1.3 Adjusting Keyboard Height
The Akko MG75 keyboard features three levels of adjustable height. Flip out the feet located on the underside of the keyboard to select your preferred typing angle.

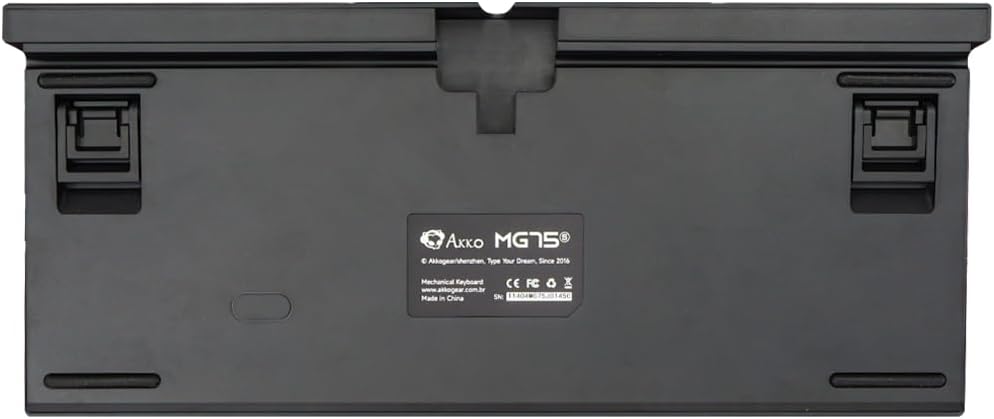

Image: Underside of the keyboard with adjustable feet.
2. Operating Instructions
2.1 RGB Lighting Control
The Akko MG75 keyboard features full RGB backlighting with multiple effects and customization options. Refer to the included quick guide or the official Akko software for detailed instructions on changing lighting modes, colors, and brightness. Typically, lighting effects can be cycled using specific key combinations (e.g., Fn + certain keys).
Image: Akko MG75 keyboard displaying RGB lighting.
2.2 Hot-Swappable Switches
The Akko MG75 supports hot-swappable mechanical switches, compatible with both 3-pin and 5-pin switches. This allows for easy customization of your typing experience without soldering.
Changing Switches:
- Use the provided switch puller to carefully remove the desired switch from the keyboard. Grip the switch firmly and pull straight up.
- Align the pins of the new switch with the holes on the PCB. Ensure the pins are straight.
- Gently press the new switch into place until it clicks securely. Do not force the switch if it does not go in easily; check pin alignment.
Image: Akko mechanical switches, illustrating their design for hot-swapping.
2.3 ABNT2 Layout
This keyboard features the ABNT2 layout, which includes specific keys for Portuguese language characters and punctuation, such as 'Ç' and dedicated keys for accents. This layout is standard for Brazilian Portuguese users.
Image: Top-down view of the Akko MG75 keyboard, highlighting the ABNT2 layout.
3. Maintenance
3.1 Cleaning the Keyboard
- Disconnect the keyboard from your computer before cleaning.
- Use a soft brush or compressed air to remove dust and debris from between the keycaps.
- For stubborn dirt, gently wipe the keycaps and keyboard surface with a slightly damp cloth (water only). Avoid excessive moisture.
- Do not use harsh chemicals or abrasive cleaners.
3.2 Keycap Replacement
To replace keycaps, use the provided keycap puller. Gently hook the puller onto the keycap and pull straight up. To install a new keycap, align it with the switch stem and press down firmly until it is seated.
4. Troubleshooting
4.1 Keyboard Not Responding
- Ensure the USB-C cable is securely connected to both the keyboard and your computer.
- Try disconnecting and reconnecting the USB-C cable multiple times. Some users have reported this resolves initial connection issues.
- Test the keyboard on a different USB port on your computer.
- If possible, test the keyboard on another computer to rule out system-specific issues.
- Check if the cable itself is damaged by trying a different USB-C cable if available.
4.2 RGB Lighting Not Working Correctly
- Ensure the keyboard is properly connected and receiving power.
- Refer to the quick guide for key combinations to cycle through lighting modes and adjust brightness.
- If using Akko software, ensure it is up-to-date and correctly configured.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | Akko |
| Model | MG75 |
| Layout | 75% ABNT2 |
| Switches | Akko Silver V3 Pro Mechanical |
| Hot-Swap | Yes (3-pin and 5-pin compatible) |
| Connectivity | USB-C (Removable Cable) |
| Backlighting | RGB |
| Anti-Ghosting | N-keys Rollover |
| Keycaps | ABS Laser |
| Adjustable Height | Yes, 3 levels |
| Compatible Devices | PC |
| Color | Black |
| Number of Keys | 84 |
| Gross Weight | 1582 g |
| Net Weight | 1451 g |
| Package Dimensions (L x H x D) | 350mm x 250mm x 50mm |
6. Warranty and Support
6.1 Product Warranty
The Akko MG75 Mechanical Keyboard comes with a 12-month warranty against manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
6.2 Customer Support
For technical assistance, warranty claims, or further inquiries, please visit the official Akko website or contact your local retailer. You may find additional resources, FAQs, and software downloads on the manufacturer's support page.
Official Akko Website: www.akkogear.com
