VEVOR 8KW Portable Diesel Air Heater User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your VEVOR 8KW Portable Diesel Air Heater. Please read this manual thoroughly before using the product and retain it for future reference.

The VEVOR 8KW Portable Diesel Air Heater is designed to provide efficient heating for various applications, including trucks, vans, RVs, campers, and garages. It features an all-in-one design for portability, dual power compatibility (12V/24V DC and 110V AC), and multiple safety mechanisms.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in fire, electric shock, serious injury, or death.

• Ensure adequate ventilation when operating the heater to prevent carbon monoxide buildup. The unit includes a CO alarm, but proper ventilation is crucial.
• Do not operate the heater in enclosed spaces without proper exhaust ventilation.
• Keep flammable materials at a safe distance from the heater and its exhaust pipe. The exhaust pipe can become extremely hot.
• Always use the specified fuel type (diesel). Do not use gasoline or other volatile fuels.
• Verify power supply voltage (12V/24V DC or 110V AC) matches the heater's requirements before connection.
• Do not block the air intake or outlet vents.
• Regularly inspect the fuel lines and connections for leaks or damage.
• In case of malfunction or unusual odors, immediately turn off the heater and disconnect the power supply.
• Keep children and pets away from the operating heater.
• The heater is equipped with overheat shutoff (≥536℉), reverse polarity, and overvoltage protection. Do not attempt to bypass these safety features.

3. Product Overview

3.1 Components

The VEVOR 8KW Portable Diesel Air Heater comes with the following components:

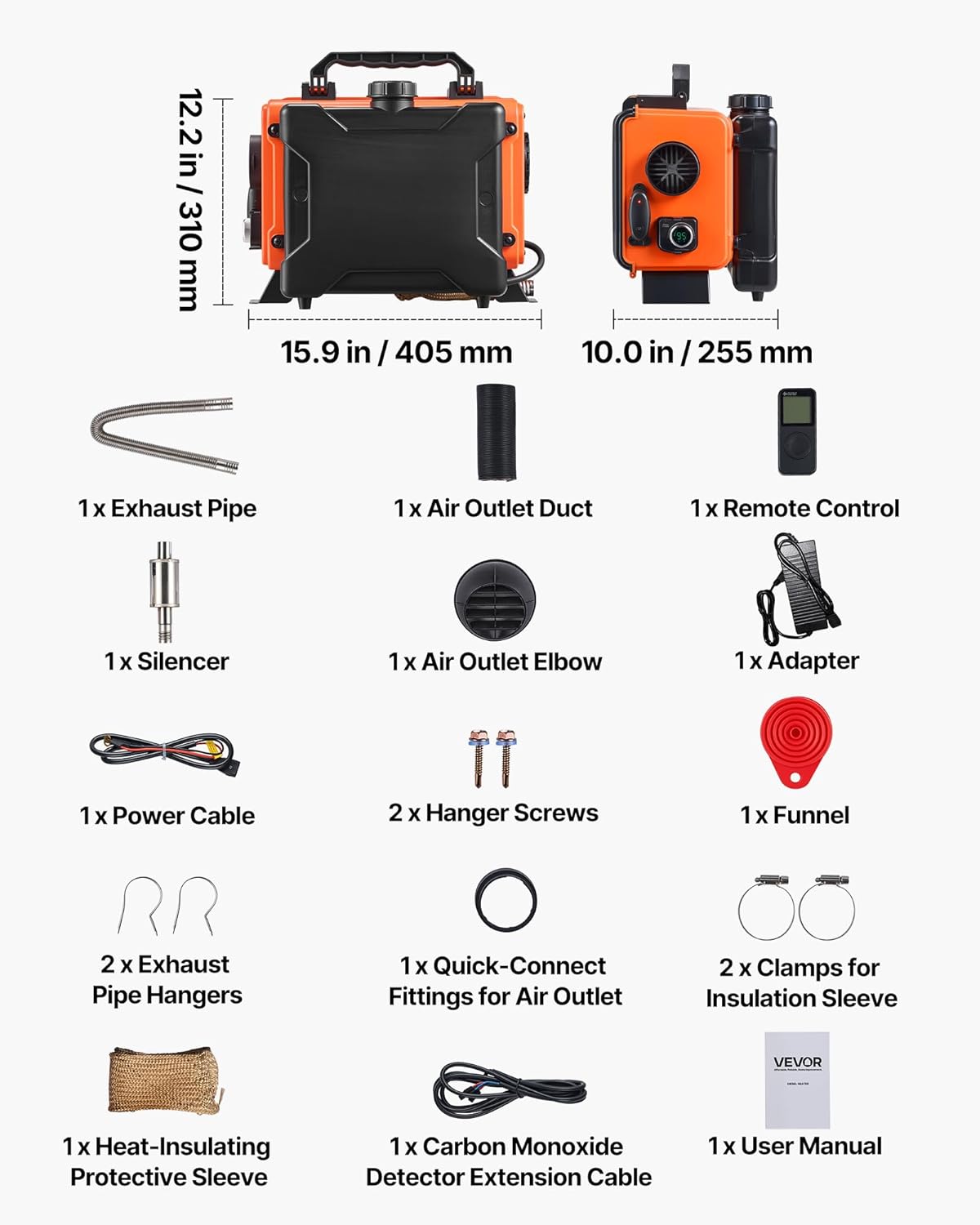

Figure 1: Included Components and Dimensions

• 1 x Diesel Air Heater Unit
• 1 x Exhaust Pipe
• 1 x Silencer
• 1 x Air Outlet Duct
• 1 x Air Outlet Elbow
• 1 x Remote Control
• 1 x Adapter (for AC power)
• 1 x Power Cable
• 2 x Hanger Screws
• 1 x Funnel
• 2 x Exhaust Pipe Hangers
• 1 x Quick-Connect Fittings for Air Outlet
• 1 x Heat-Insulating Protective Sleeve
• 2 x Clamps for Insulation Sleeve
• 1 x Carbon Monoxide Detector Extension Cable (CO detector not always included, check packaging)
• 1 x User Manual (this document)

3.2 Key Features

• Fast Heating: Heats spaces of 108–161 ft² rapidly, reaching up to 210℉ in 5 minutes.
• Fuel Efficiency: Burns 0.04–0.1 gal/h with over 90% efficiency. The 1.2-gallon fuel tank supports extended operation.
• Dual Power Options: Operates on 12V/24V DC or 110V AC power.
• Enhanced Safety: Features CO alarm, exhaust pipe heat sleeve, sealed fuel cap, overheat shutoff (≥536℉), reverse polarity, and overvoltage protection.
• Dual Control: Adjustable temperature (46.4–96.8℉) via LCD screen or remote control (up to 98 ft range).
• Portable Design: All-in-one unit for easy transport and setup.
• Wide Compatibility: Suitable for RVs, trucks, SUVs, vans, tents, and garages.

Figure 2: VEVOR 8KW Portable Diesel Air Heater Unit

4. Setup Instructions

Follow these steps to set up your VEVOR diesel heater:

1. Unpack Components: Carefully remove all items from the packaging and verify against the components list in Section 3.1.
2. Positioning: Place the heater on a stable, level, non-flammable surface. Ensure there is sufficient clearance around the unit for proper airflow and heat dissipation.
3. Exhaust System Installation:
   • Connect the exhaust pipe to the heater's exhaust port. Secure it with the provided clamps.
   • Install the silencer onto the exhaust pipe if desired.
   • Route the exhaust pipe safely outdoors, away from windows, doors, and flammable materials. Use the heat-insulating protective sleeve and clamps where the pipe might contact surfaces or pass through openings.
   • Ensure the exhaust pipe is angled downwards slightly to prevent condensation from flowing back into the heater.
4. Air Outlet Duct Installation:
   • Attach the air outlet duct to the heater's hot air outlet using the quick-connect fittings.
   • Direct the hot air duct towards the area to be heated.
5. Fuel Filling:
   • Unscrew the sealed fuel cap.
   • Using the provided funnel, carefully fill the fuel tank with clean diesel fuel. Do not overfill.
   • Securely replace the fuel cap to prevent spills.
6. Power Connection:
   • For DC power (12V/24V): Connect the power cable directly to a compatible vehicle battery or power station. Ensure correct polarity.
   • For AC power (110V): Connect the power cable to the provided adapter, then plug the adapter into a standard 110V AC outlet.
7. CO Alarm (if applicable): Connect the CO detector extension cable if your unit includes a separate CO detector. Position the detector according to its instructions.

Figure 3: Key Setup Features for Safety and Convenience

5. Operating Instructions

The heater can be controlled via the integrated LCD screen or the remote control.

5.1 Initial Start-up (Priming)

For the first use or after refueling, the fuel pump may need to be primed:

1. Turn on the heater.
2. The heater will attempt to start. If it fails to ignite after a few attempts, it may be due to air in the fuel line.
3. Allow the heater to run through its start-up cycle a few times. The fuel pump will audibly click as it attempts to draw fuel. It may take several minutes for the fuel to reach the combustion chamber.
4. Once fuel is supplied, the heater should ignite and begin producing heat.

5.2 Using the LCD Control Panel

The LCD control panel allows direct control of the heater's functions.

• Power On/Off: Press and hold the power button (usually integrated with the knob) to turn the heater on or off.
• Temperature Adjustment: Rotate the knob or use the +/- buttons to set the desired temperature (range: 46.4–96.8℉ / 8–36℃). The heater will automatically adjust its output to maintain the set temperature.
• Mode Selection: Some models may offer different modes (e.g., fan mode). Refer to the on-screen prompts or specific button functions for your model.
• Display Information: The LCD screen displays current temperature, set temperature, and operational status.

Figure 4: LCD Control Panel and Remote Control

5.3 Using the Remote Control

The remote control allows convenient operation from a distance of up to 98 feet.

• Power On/Off: Use the designated power button on the remote.
• Temperature Adjustment: Use the +/- buttons to adjust the desired temperature.
• Preheat Function: The remote can be used to preheat your vehicle or space before entry.
• Ensure the remote control has working batteries and a clear line of sight to the heater's receiver for optimal performance.

Figure 5: Remote Control Operation

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your diesel heater.

• Fuel Quality: Always use clean, high-quality diesel fuel. Poor fuel quality can lead to carbon buildup and reduced efficiency.
• Filter Cleaning: Periodically check and clean the air intake filter and fuel filter (if accessible) to ensure unrestricted airflow and fuel supply.
• Exhaust System: Inspect the exhaust pipe and connections for any blockages, leaks, or damage. Ensure the heat-insulating sleeve is intact.
• General Cleaning: Keep the exterior of the heater clean. Do not use abrasive cleaners or solvents.
• Storage: When storing the heater for extended periods, ensure the fuel tank is either completely empty or filled with fresh, stabilized diesel. Store in a dry, protected area.

7. Troubleshooting

This section addresses common issues you might encounter with your diesel heater.

If the problem persists after attempting these solutions, please contact VEVOR customer support.

8. Specifications

9. Warranty and Support

VEVOR products are designed for durability and performance. For warranty information, product registration, or technical support, please visit the official VEVOR website or contact their customer service department.

VEVOR Official Website: www.vevor.com

Please have your model number and purchase date available when contacting support.
