1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Startbuymore Wind Turbine Hub. This hub is a critical component designed to connect the main shaft of a wind turbine to its blades, efficiently transmitting torque and withstanding wind loads. It is compatible with both 3-blade and 5-blade wind turbine configurations.

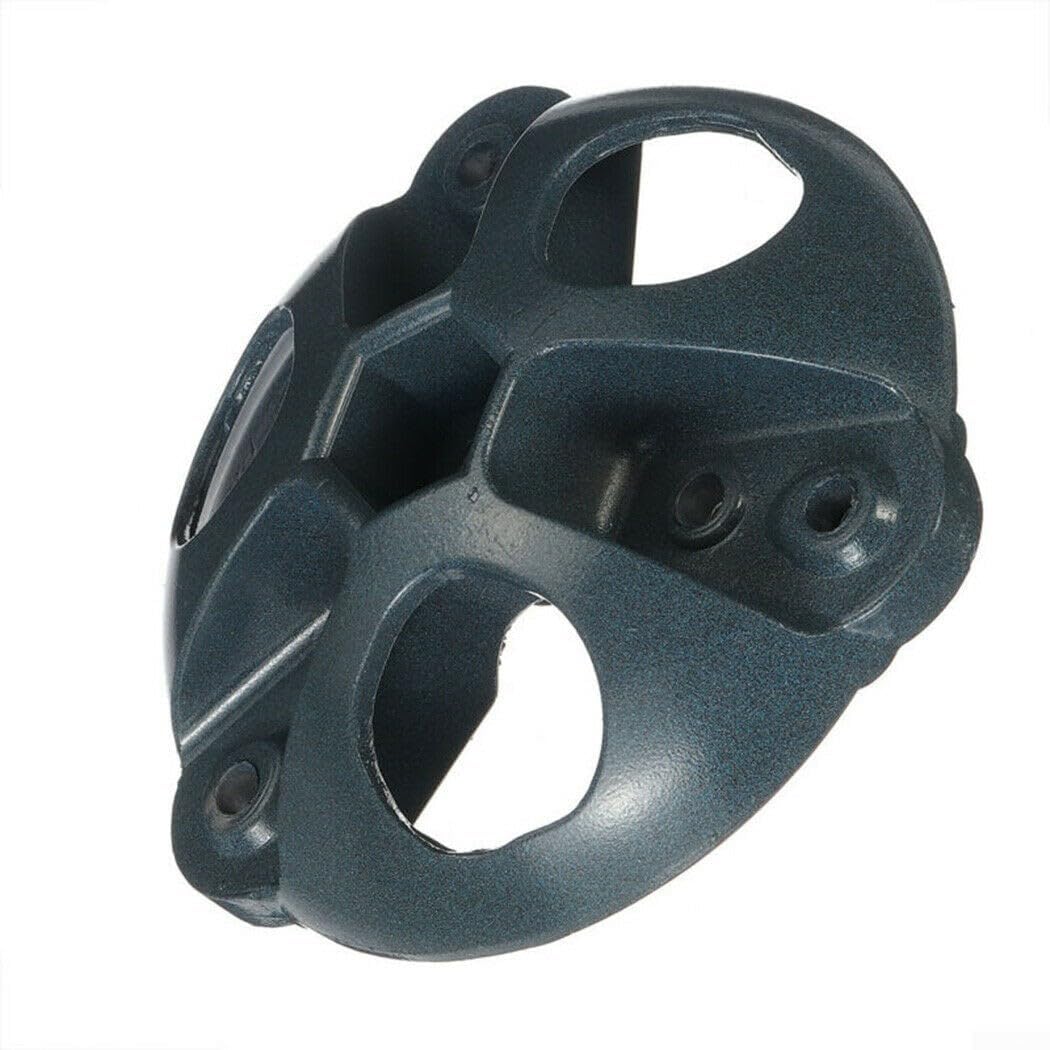

Figure 1: Overview of the Startbuymore Wind Turbine Hub.
2. Safety Information
Please read and understand all safety instructions before installing or operating the wind turbine hub. Failure to follow these instructions may result in personal injury or damage to equipment.
- Always wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Ensure the wind turbine is completely shut down and secured before performing any work on the hub or blades.
- Consult a qualified professional if you are unsure about any installation or maintenance procedures.
- Keep children and unauthorized personnel away from the wind turbine during operation and maintenance.
3. Package Contents
Verify that all components are present and undamaged upon unpacking.
- 1 x Startbuymore Wind Turbine Hub
Note: Blades, main shaft, and other wind turbine components are sold separately.
4. Specifications
| Feature | Detail |
|---|---|
| Product Name | Wind Turbine Hub |
| Material | Metal (High-grade steel construction) |
| Compatibility | 3-blade or 5-blade wind turbine configurations |
| Product Dimensions | 5.91 x 5.91 x 1.97 inches |
| Item Weight | 10.4 ounces |
| Model Number | C60P9V6RCRBNA3M4D6A42ARL9 |
| Manufacturer | Startbuymore |
Figure 2: Detail of the central shaft connection point on the hub.
5. Setup and Installation
The Startbuymore Wind Turbine Hub is designed for straightforward installation. It serves as the crucial link between the wind turbine's main shaft and its blades.
- Preparation: Ensure the wind turbine's main shaft is securely mounted and accessible. Gather all necessary tools and the wind turbine blades (not included).
- Attach to Main Shaft: Align the central opening of the hub with the main shaft of your wind turbine. Secure the hub to the shaft using appropriate fasteners (not included) as per your wind turbine's design. Ensure a tight and stable connection to prevent vibration and ensure efficient torque transfer.
- Blade Attachment: Position the wind turbine blades onto the designated mounting points on the hub. The hub is designed to accommodate either 3 or 5 blades. Secure each blade firmly using the appropriate hardware (not included). Verify that all blades are evenly spaced and securely fastened.
- Final Check: After installation, manually rotate the hub and blades to check for any obstructions, wobbling, or loose connections. Ensure smooth rotation.

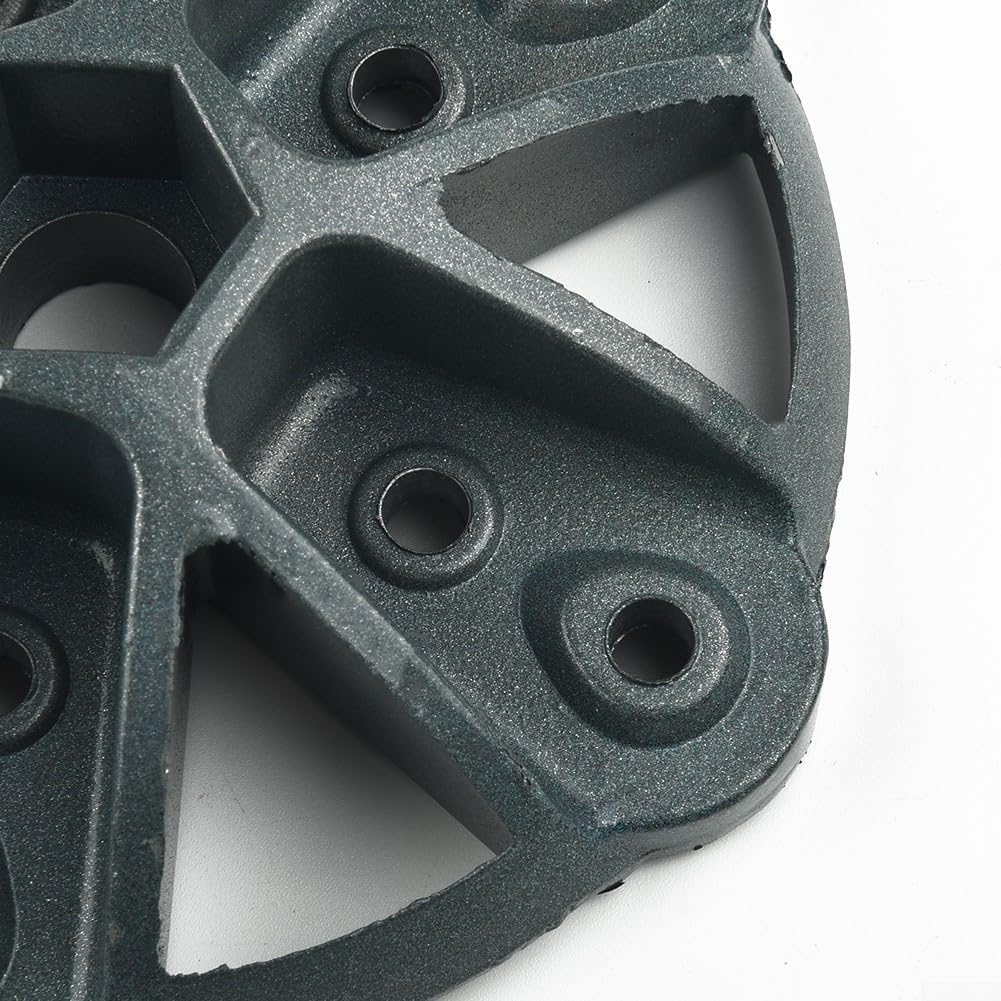

Figure 3: Blade attachment points on the hub, designed for secure fastening.
6. Operating Instructions
Once properly installed, the wind turbine hub operates as an integral part of your wind turbine system.
- The hub facilitates the rotation of the blades, converting wind energy into rotational motion for the main shaft.
- Its robust design ensures steady running and efficient torque transmission under varying wind conditions.
- The high-grade steel construction contributes to lower operational noise and a long service life.
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your wind turbine hub.
- Periodic Inspection: Annually inspect the hub for any signs of wear, corrosion, cracks, or deformation.
- Fastener Check: Verify that all bolts and fasteners connecting the hub to the main shaft and the blades are tight and secure. Re-tighten if necessary, following the torque specifications of your wind turbine system.
- Cleaning: Keep the hub clean from dirt, debris, and ice accumulation, which can affect balance and performance.
- Lubrication: If your wind turbine system requires lubrication for the main shaft connection, follow the manufacturer's guidelines. The hub itself typically does not require lubrication.
8. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Vibration/Noise | Loose fasteners, unbalanced blades, damaged hub. | Check and tighten all fasteners. Inspect blades for damage or imbalance. Inspect the hub for cracks or deformation. Replace damaged components. |
| Blades not rotating freely | Obstruction, seized main shaft bearing (not hub issue), improper installation. | Inspect for physical obstructions. Ensure the hub is correctly aligned and not binding. Consult your wind turbine's main shaft manual if bearing issues are suspected. |
| Visible damage to hub | Impact, material fatigue. | Immediately cease operation. Replace the damaged hub to prevent further system failure. |
9. Warranty and Support
Specific warranty information for the Startbuymore Wind Turbine Hub is not provided in the product details. Please refer to the retailer or manufacturer's official website for warranty terms and conditions. For technical support or inquiries, contact Startbuymore customer service through their official channels.
