MINRS SY-8 8L 1500W Electric Instant Water Heater User Manual

1. Introduction

Thank you for choosing the MINRS SY-8 Electric Instant Water Heater. This compact and efficient water heater is designed to provide hot water for various household needs. Please read this manual thoroughly before installation and operation to ensure proper use, safety, and longevity of the appliance.

Image 1.1: Front view of the MINRS SY-8 Electric Instant Water Heater, showing the temperature control knob and indicator lights.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This appliance is for domestic use only.

• Read all instructions: Before operating the water heater, read all instructions carefully.
• Electrical Safety: Ensure the power supply matches the voltage specified on the appliance (220-240V). Use a three-prong grounded outlet. Do not use extension cords.
• Water Before Electricity: Always ensure the water heater is filled with water before connecting it to the power supply to prevent dry burning.
• Installation: Installation must be performed by a qualified professional in accordance with local plumbing and electrical codes.
• Placement: Install the unit vertically. The water outlet must be parallel to the wall. Do not install horizontally, flat, or upside down.
• Water Pressure: Ensure tap water pressure is at least 0.1 MPa.
• Proximity to Faucet: Install the unit as close as possible to the faucet to minimize heat loss in the pipes.
• Drainage: Ensure adequate floor drainage is available near the installation site.
• Not for Bathtub Use: This appliance is not intended for use with bathtubs.
• Protection Features: The unit includes error self-test, high-temperature protection, high-voltage protection, earth protection, dry burning protection, and leakage protection. Do not attempt to bypass these features.
• Pressure Limiting Valve: The included pressure limiting valve must be installed to protect the equipment and piping from overpressure damage.
• Children and Supervision: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Please check the package for the following items:

• 1 x MINRS SY-8 Electric Instant Water Heater
• 1 x Pressure Limiting Valve
• 1 x User Manual (English)
• Other necessary mounting parts (screws, anchors, etc.)

If any items are missing or damaged, please contact customer support.

4. Product Specifications

Image 4.1: Dimensions of the MINRS SY-8 Electric Instant Water Heater.

5. Installation

Important: Installation should only be performed by a qualified professional. Ensure all safety instructions in Section 2 are followed.

5.1 Installation Requirements

• Tap water pressure must be 0.1 MPa or higher.
• A three-prong grounded electrical outlet is required.
• Sufficient floor drainage must be available at the installation location.
• The installation area must provide adequate space for the unit and its connections.
• Hot and cold water faucets (not included) are necessary for connection.

5.2 Installation Steps

1. Choose Location: Select a suitable location, typically under a sink or cabinet, ensuring it is as close as possible to the faucet to minimize pipe length and heat loss.
2. Mounting: Securely mount the water heater vertically using the provided mounting parts. Ensure the unit is stable and level.
3. Connect Water Inlet/Outlet: Connect the cold water supply to the blue inlet and the hot water outlet to your faucet using G1/2" interfaces. Install the pressure limiting valve on the cold water inlet line.
4. Fill with Water: Before connecting to power, open the hot water faucet to allow the unit to fill completely with water and purge any air from the system. Wait until water flows steadily from the hot water faucet.
5. Electrical Connection: Once the unit is filled with water, plug the power cord into a grounded three-prong outlet.
6. Check for Leaks: Inspect all connections for leaks. Tighten if necessary.

5.3 Installation Examples

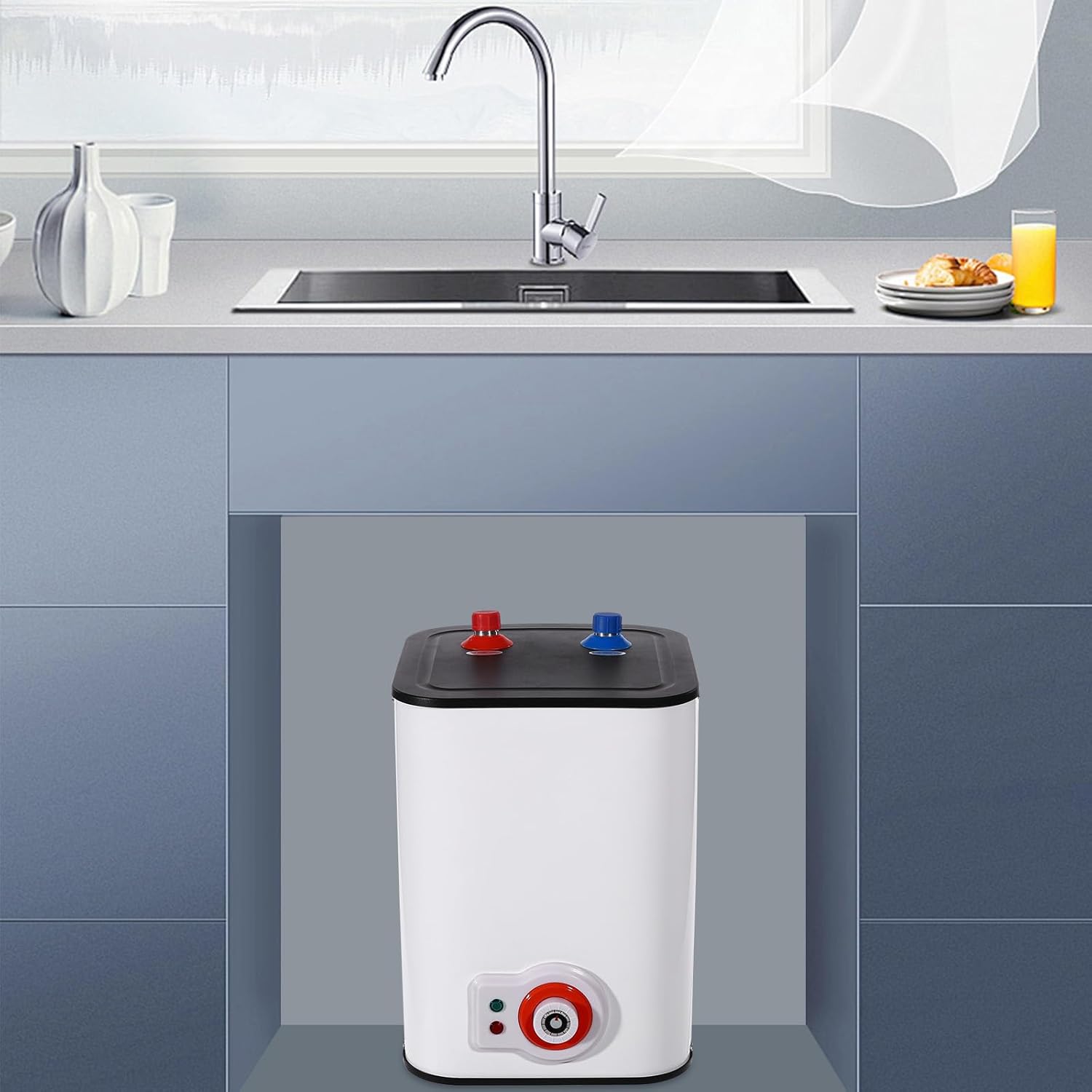

Image 5.1: Installation under a kitchen sink.

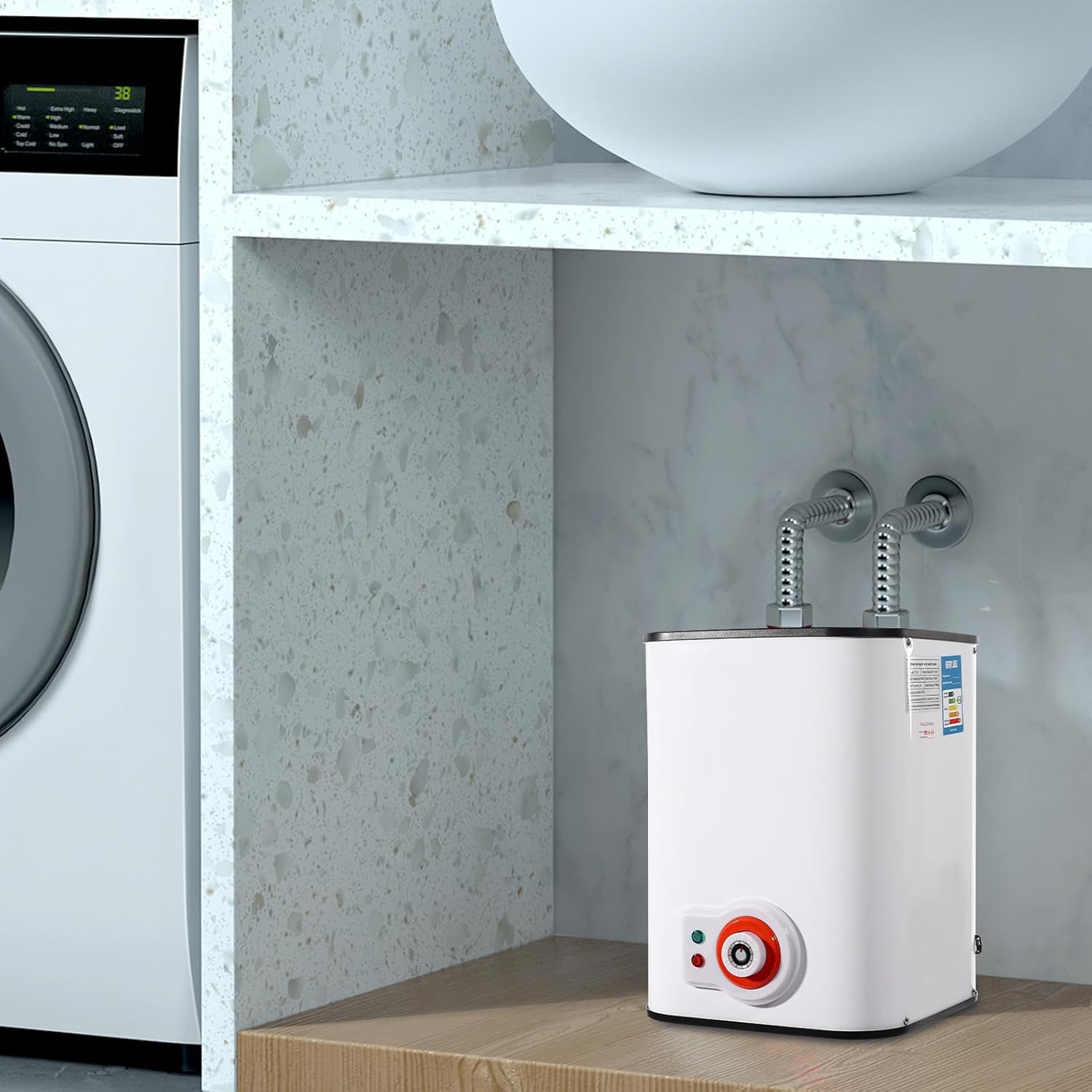

Image 5.2: Installation on a shelf in a utility area.

Image 5.3: Installation under a double kitchen sink.

Image 5.4: Installation under a kitchen sink with white cabinets.

6. Operating Instructions

The MINRS SY-8 water heater is designed for simple operation.

6.1 Power On/Off

• To turn on the unit, ensure it is properly installed and filled with water, then plug it into the power outlet. The indicator light will illuminate.
• To turn off the unit, unplug it from the power outlet.

6.2 Temperature Adjustment

The water temperature can be adjusted using the rotary knob on the front of the unit. The temperature range is 30°C to 65°C.

• Rotate the knob clockwise to increase the temperature.
• Rotate the knob counter-clockwise to decrease the temperature.
• Low Temperature (e.g., 30-40°C): Suitable for hand washing or delicate tasks.
• Medium Temperature (e.g., 40-55°C): Ideal for dishwashing.
• High Temperature (e.g., 55-65°C): For tasks requiring hotter water, such as soaking feet.

Image 6.1: Temperature settings for various uses, including face washing, dish washing, and foot soaking.

Note: The actual outlet temperature may be affected by incoming water temperature, water pressure, and voltage fluctuations.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your water heater.

• Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Descaling: Depending on your water hardness, periodic descaling may be necessary. This should be performed by a qualified technician.
• Pressure Limiting Valve: Periodically check the pressure limiting valve for proper operation. Refer to the valve manufacturer's instructions for maintenance.
• Winterization (if applicable): If the unit is in an area subject to freezing temperatures and will not be used for an extended period, drain the unit completely to prevent damage from freezing water.

Caution: Always unplug the unit from the power supply before performing any cleaning or maintenance.

8. Troubleshooting

If you encounter issues with your water heater, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact customer support or a qualified technician.

9. Warranty and Support

The MINRS SY-8 Electric Instant Water Heater comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, spare parts, or warranty claims, please contact your retailer or the MINRS customer service department. Keep your purchase receipt as proof of purchase.

Note: Information regarding spare parts availability is currently unavailable. Please contact customer support for further details.
