Doltoro King Size Platform Bed Frame User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Doltoro King Size Platform Bed Frame. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

Important Safety Information

WARNING:

• Exceeding the recommended maximum weight capacity of 800 pounds may cause damage to the bed frame or pose a safety risk.
• Improper assembly may lead to instability or collapse, posing a hazard. Always follow the provided assembly instructions and ensure all parts are securely connected.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Doltoro customer service.

• Headboard x 1
• Metal Bed Frame x 1
• Slats (Quantity as per design)
• 4 Storage Drawers
• Installation Manual x 1
• Installation Tools & Accessories (Allen wrench, screws, etc.)

Assembly Instructions

Assembly is designed to be straightforward. It is recommended to have two people for assembly. Please follow these steps carefully.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify all parts against the package contents list.
2. Assemble the Headboard: Attach the upholstered headboard sections as per the diagrams in the included installation manual. Ensure all connections are secure.
3. Construct the Bed Frame: Assemble the main metal bed frame structure. Connect the side rails and support beams using the provided hardware. Refer to the detailed diagrams in your installation manual.
4. Install Slats: Place the metal slats onto the bed frame. Ensure they are properly seated and secured to provide a stable foundation for your mattress. The design incorporates 11 embedded sturdy steel slats.
5. Attach Storage Drawers: Assemble the 4 storage drawers. Attach the wheels to the bottom of each drawer as shown in the diagram below. The drawers are designed to slide under the bed frame.
6. Connect LED Lighting and Charging Station: Once the frame is assembled, connect the LED light strip and charging station power cable. Ensure the power cord is routed safely and not pinched.

Figure 1: Heavy Duty Metal Bed Frame Structure. This image details the strong metal support, sturdy metal slats, and noise-free design for easy assembly.

Figure 2: Slat Installation. This diagram illustrates the process of installing the metal slats into the bed frame.

Figure 3: Drawer Wheel Assembly Step 1. Snapping the wheel into the slot.

Figure 4: Drawer Wheel Assembly Steps 2-4. Fixing the wheel, screwing in the screws, and completing the secondary fixation.

Operating Instructions

LED Headboard Lights

The integrated RGB LED strip lights offer customizable ambiance for your bedroom.

• Power On/Off: Use the provided remote control to turn the LED lights on or off.
• Brightness Adjustment: Adjust the light intensity using the brightness controls on the remote.
• Color Selection: Choose from multiple colors to match your preference or mood.
• Mode Selection: Select various dynamic modes (e.g., flash, strobe, fade, smooth) for different lighting effects.
• Timer Function: Set a timer for the lights to automatically turn off.

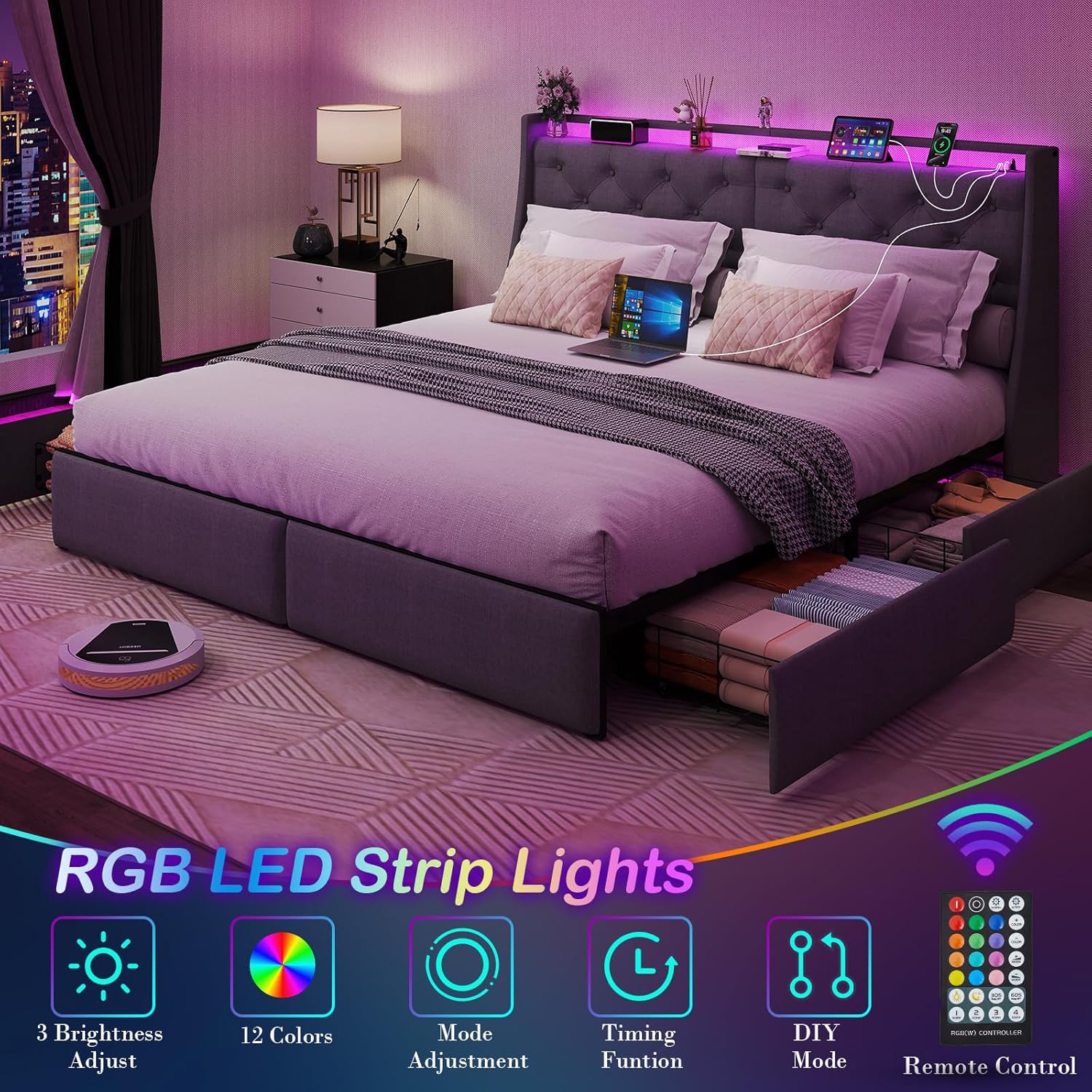

Figure 5: LED Headboard Lights. A nighttime view of the bed frame with the LED headboard illuminated in purple, showcasing the RGB LED strip lights and remote control functions.

Charging Station

The headboard features a multi-function charging station for your electronic devices.

• Power Outlets: Two standard electrical outlets (120V/7.5A) are available for powering devices.
• USB Ports: Two USB ports (5V/2A) are provided for charging smartphones, tablets, and other USB-powered devices.
• Usage: Simply plug your device's power adapter or USB cable into the appropriate port.

Figure 6: Built-in Charging Station. A close-up of the headboard's charging station, featuring AC outlets and USB ports.

Storage Drawers

The four sliding storage drawers provide convenient under-bed storage.

• Access: Gently pull the drawers out from under the bed frame to access contents.
• Capacity: Each drawer is designed for storing items such as seasonal bedding, spare pillows, or clothing.
• Smooth Operation: The drawers are equipped with wheels for easy sliding in and out.

Figure 7: Sliding Storage Drawer. A close-up showing one of the sliding storage drawers with its wheel mechanism.

Maintenance

• Cleaning the Upholstery: For the upholstered headboard and frame, spot clean with a damp cloth and mild detergent. Avoid harsh chemicals. The manufacturer recommends "Hand Wash Only" for fabric components.
• Cleaning the Metal Frame: Wipe down metal parts with a soft, dry cloth.
• Checking Connections: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent noise.
• LED Lights: Keep the LED strip and remote control clean and dry.

Troubleshooting

Specifications

Figure 8: Bed Frame Dimensions. A diagram illustrating the dimensions and key features of the King size bed frame.

Figure 9: Mattress Fit. An image of the bed frame with a mattress, indicating the recommended mattress thickness range of 10-14 inches.

Warranty and Support

Doltoro is committed to providing quality products and customer satisfaction.

• Customer Service: For any questions, missing parts, or damaged components, please contact Doltoro customer service. You can expect a prompt reply within 24 hours.
• Contact Information: Refer to your purchase documentation or the Doltoro brand store on Amazon for specific contact details.
