1. Product Overview
The AAOBOSI 17 Inch Wine Cooler is a freestanding appliance designed for optimal wine preservation. Its compact dimensions (17.7" D x 16.9" W x 33.1" H) make it suitable for various spaces, including homes, kitchens, bars, and restaurants. This wine fridge features a low-noise compressor, adjustable temperature range, double-paned tempered glass door, adjustable shelves, and blue LED interior lighting, all contributing to a stable and ideal environment for your wine collection.
Front view of the AAOBOSI 17 Inch Wine Fridge, showcasing its sleek design and capacity for 28 bottles.
The wine fridge seamlessly integrated into a modern kitchen island, demonstrating its compact and versatile placement options.
2. Setup and Installation
Upon receiving your AAOBOSI Wine Fridge, allow it to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle. Choose a location with adequate ventilation, away from direct sunlight or heat sources. Ensure the surface is level to prevent vibrations and ensure proper door sealing.
Detailed dimensions of the wine fridge: 16.9" W x 17.7" D x 33.1" H, with a total capacity of 28 bottles.
2.1 Initial Placement
- Place the wine fridge on a flat, stable surface capable of supporting its weight when fully loaded.
- Allow at least 2-3 inches of space around the sides and back for proper air circulation.
- Adjust the leveling feet at the bottom of the unit to ensure it is perfectly level.
2.2 Power Connection
Connect the power cord to a dedicated grounded electrical outlet. Do not use extension cords or adapter plugs.
3. Operating Instructions
3.1 Temperature Control
The wine cooler features a digital touch display screen for easy temperature adjustment. The adjustable temperature range is 41°F to 64°F (5°C to 18°C). Press the 'Up' or 'Down' arrows on the control panel to set your desired temperature. The unit will automatically adjust to maintain this temperature.

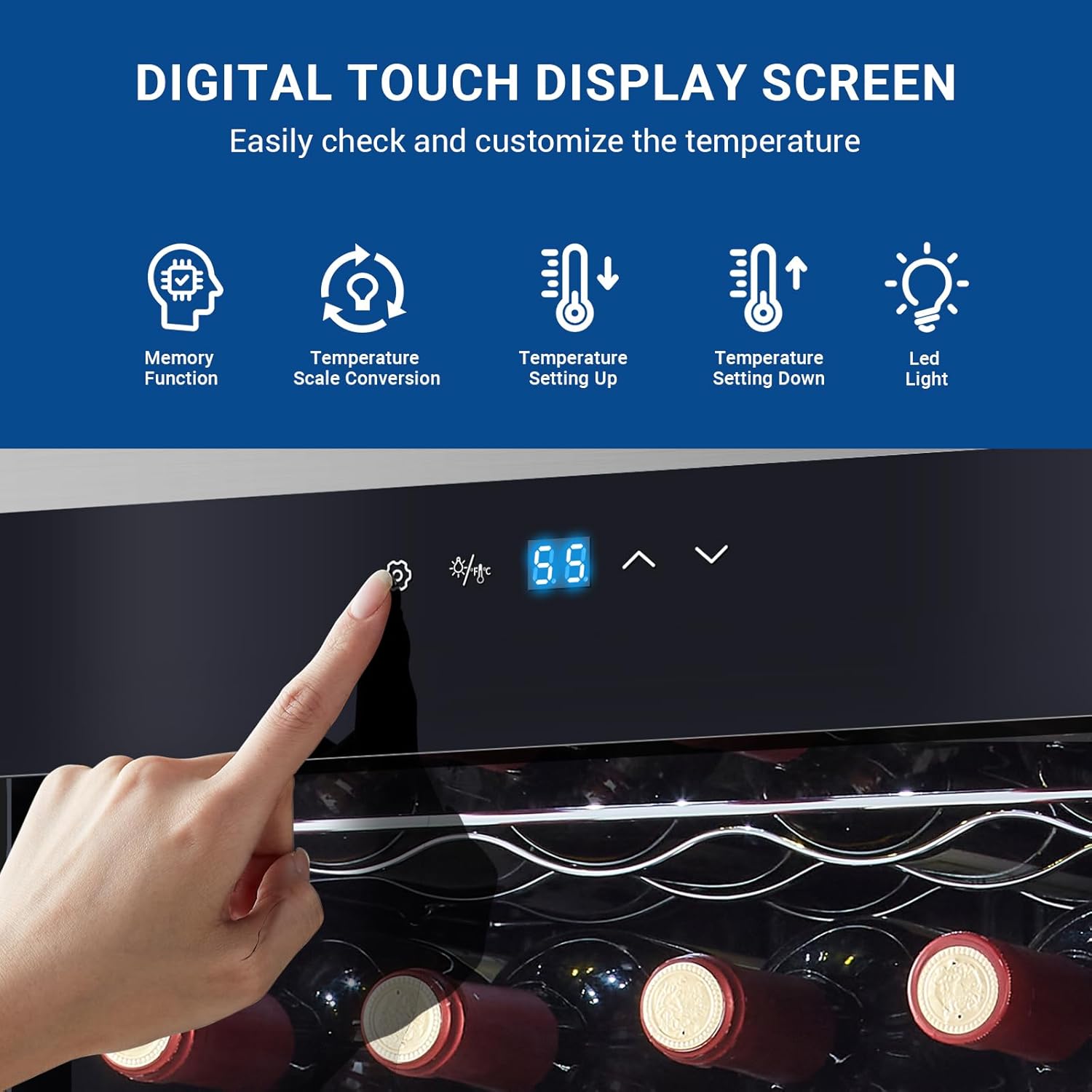

The digital touch display screen allows for easy checking and customization of the internal temperature, featuring memory function, temperature scale conversion, and setting controls.
The wine fridge offers an adjustable temperature range between 41°F and 64°F, providing superior temperature protection for your finest wines.
3.2 Adjustable Shelves
The wine refrigerator is equipped with 5 adjustable shelves. These shelves can be flexibly adjusted to accommodate different heights and sizes of wine bottles, maximizing storage space and organizing your wine collection efficiently.
Key features include soft LED lighting, removable wire racks for flexible storage, adjustable balance feet for stability, and a premium door gasket for optimal sealing.
3.3 Interior LED Lighting
The blue LED interior light illuminates the cabinet, creating an appealing display for your wine bottles and allowing for easy visibility without opening the door.
3.4 Low Noise Operation
This wine cooler operates at a low noise level of 45dB, ensuring a peaceful environment. The high-efficiency compressor provides fast cooling with minimal vibration.
The high-efficiency compressor ensures low noise, fast cooling, low vibration, and energy saving, allowing for undisturbed wine aging.
3.5 Double-Paned Tempered Glass Door
The double-paned tempered glass door provides excellent thermal insulation and protects your wine from harmful UV rays, maintaining a stable internal temperature.

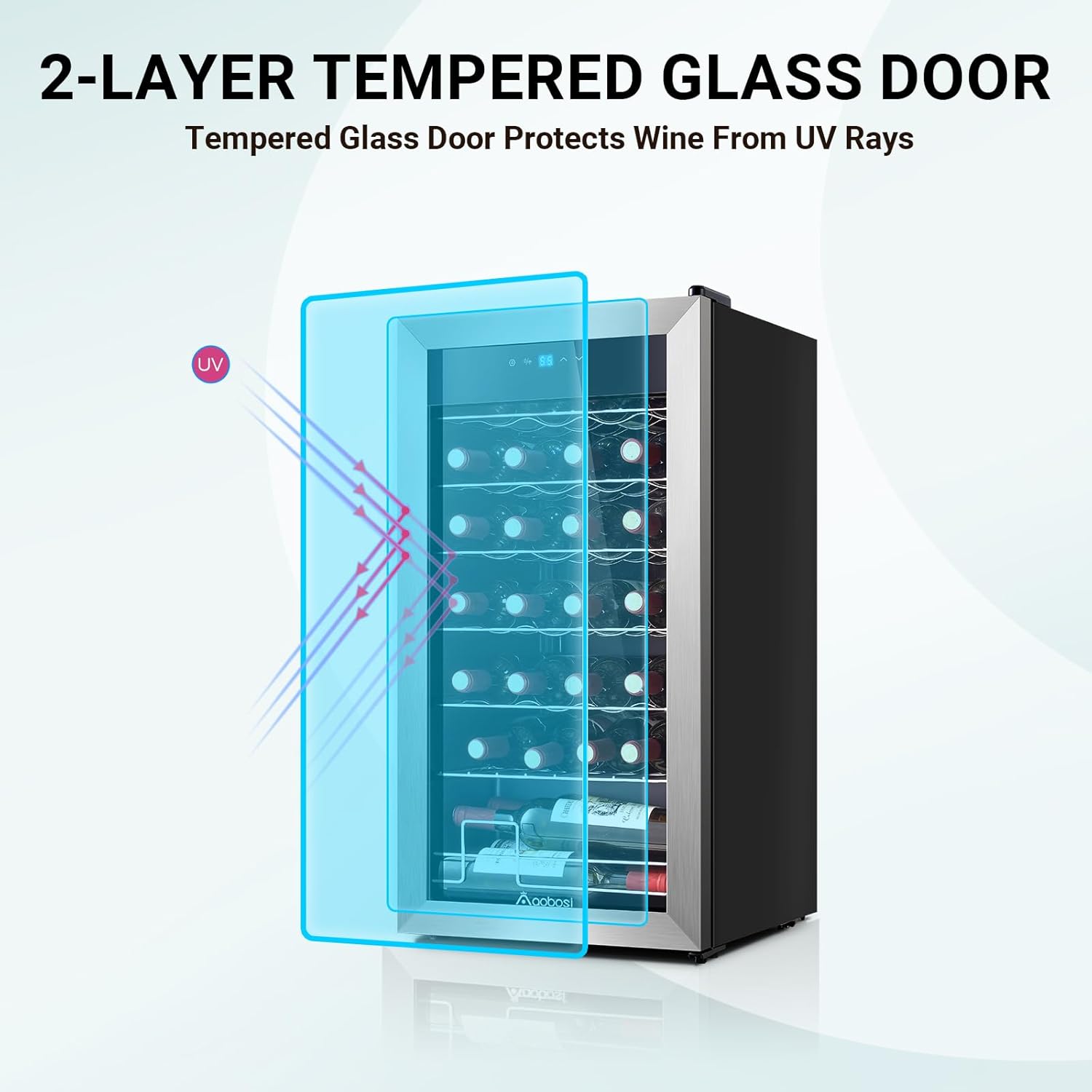

The 2-layer tempered glass door effectively protects wine from harmful UV rays, preserving its quality.
3.6 Product Demonstration Video
Official product video demonstrating key features and operation of the AAOBOSI Wine Cooler, including temperature adjustment and shelf usage.
4. Maintenance
4.1 Cleaning
- Always unplug the unit before cleaning.
- Clean the interior with a soft cloth and a mild detergent solution. Avoid abrasive cleaners.
- Wipe down the exterior with a soft, damp cloth.
- The removable shelves can be cleaned with warm soapy water. Ensure they are completely dry before placing them back in the unit.
4.2 Defrosting
The AAOBOSI Wine Fridge features an automatic defrosting function. During operation, frost may accumulate on the rear wall of the unit. This frost will periodically melt and drain into a tray at the back of the unit, where it evaporates. If excessive ice buildup occurs, manually defrost the unit by unplugging it and leaving the door open until the ice melts. Clean and dry the interior before restarting.
5. Troubleshooting
If you experience issues with your wine fridge, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | No power; circuit breaker tripped; power switch off. | Check power supply; reset circuit breaker; ensure power switch is on. |
| Temperature is not cold enough | Door not closed properly; excessive door opening; warm items added; poor ventilation; unit in direct sunlight. | Ensure door is sealed; reduce door openings; allow warm items to cool before storing; ensure proper clearance; relocate unit. |
| Excessive noise | Unit not level; loose parts; fan obstruction. | Adjust leveling feet; check for loose components; ensure fan is clear. |
For issues not listed or if problems persist, please contact customer support.
6. Specifications
- Brand Name: AAOBOSI
- Model Info: 15 Inch, 28 Bottles Black
- Item Weight: 45 pounds
- Product Dimensions: 17.7" D x 16.9" W x 33.1" H (as per feature bullets, overriding conflicting spec)
- Item model number: UL-JC-82S
- Installation Type: Freestanding
- Form Factor: Compact
- Special Features: Adjustable
- Color: Black
- Voltage: 1.1E+2 Volts (110V)
- Racks: 5
- Defrost: Frost Free (Automatic)
- Door Material Type: Tempered Glass
- Number Of Doors: 1
- Refrigerant: R-134A or R-404A
7. Warranty and Support
Your AAOBOSI Wine Fridge comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service inquiries, or replacement parts, please contact AAOBOSI customer service through the platform where you purchased the product or visit the official AAOBOSI website for contact information.
We are committed to providing high-quality products and excellent service. Your satisfaction is our priority.
