1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Mytee Products Forged Excavator Track Bottom Roller. This component is crucial for the undercarriage system of compatible mini excavators, supporting the machine's weight and ensuring track alignment. Adhering to these instructions will help ensure optimal performance and longevity of the roller.
2. Product Overview
The track bottom roller, also known as a track roller or track idler, is a vital part of an excavator's undercarriage. It facilitates smooth track movement and distributes the machine's weight evenly across the track links. This specific roller is engineered for durability and precise fit.
- High-Quality Material: Constructed from premium 50Mn Carbon steel, designed to withstand demanding conditions.
- Robust Strength and Durability: Forged design for heavy-duty applications, minimizing wear and tear. Expected lifespan ranges from 1,000 to 3,000 operational hours.
- Seamless Operation: Engineered to enhance vehicle performance, reduce vibration, and provide stability.
- Reliable Seals: Features Nitrile Butadiene Rubber (NBR) seals to protect bearings from contaminants and ensure lubrication retention.
Figure 1: Mytee Products Forged Excavator Track Bottom Roller. This image shows the complete roller assembly, highlighting its robust construction and design.
3. Compatibility
This track bottom roller is designed as a direct replacement for specific OEM part numbers and is compatible with the following Kubota mini excavator models:
- Replaces OEM Part Numbers: RD118-21700, RD148-21700
- Compatible Kubota Mini Excavator Models:
- KX 121-3
- KX 121-3S
- KX 121-3ST
- Kubota KX 040-4
- Kx161-3
- Kx057-4
Important: Always verify the part number and compatibility with your specific excavator model before installation to ensure a precise fit.

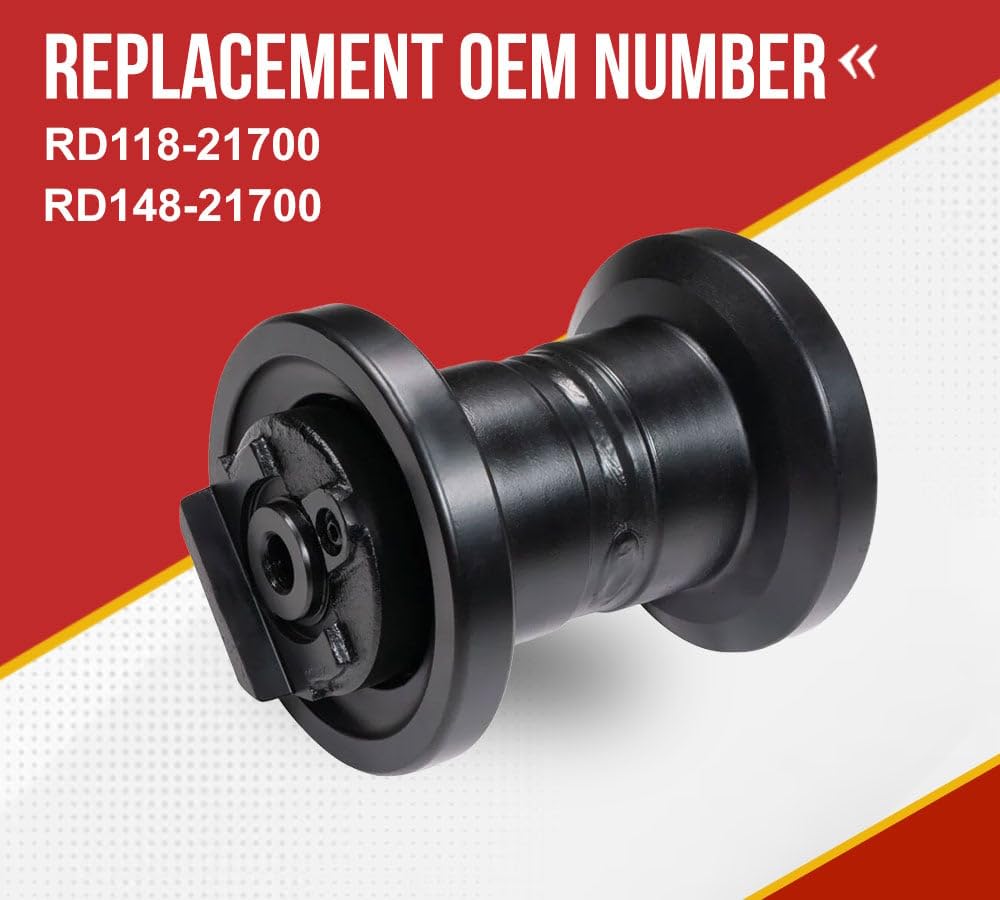

Figure 2: Image indicating the OEM replacement numbers RD118-21700 and RD148-21700.
Figure 3: Visual representation of compatible Kubota mini excavator models for this track roller.
4. Setup and Installation
Installation of a track bottom roller requires specialized tools and knowledge of excavator undercarriage systems. It is recommended that installation be performed by qualified personnel or a certified mechanic.
- Safety First: Ensure the excavator is on stable, level ground and properly secured. Disengage the engine and apply parking brakes. Refer to your excavator's primary service manual for specific safety procedures.
- Prepare the Undercarriage: Relieve track tension and remove the track chain as per your excavator's service manual.
- Remove Old Roller: Carefully unbolt and remove the worn or damaged track bottom roller. Note the orientation and any shims or spacers.
- Inspect Mounting Area: Clean the mounting surface and inspect for any damage or wear that could affect the new roller's performance.
- Install New Roller: Position the new Mytee Products track bottom roller (Model MPBR-RD148-21700) into place. Ensure proper alignment with the track frame.
- Secure Roller: Fasten the roller using the appropriate bolts and torque specifications as outlined in your excavator's service manual.
- Reassemble Track: Reinstall the track chain and adjust track tension to the manufacturer's specifications.
- Final Check: Perform a visual inspection to ensure all components are correctly installed and secured. Operate the excavator slowly to confirm proper function before full use.
Figure 4: An excavator track system with the location of the bottom roller indicated. This illustrates where the component is installed.
Figure 5: A detailed view of the bottom roller integrated into an excavator's track system, showing its position relative to the track links.
5. Operation
Once installed, the track bottom roller operates as an integral part of the excavator's undercarriage, guiding the track and supporting the machine's weight. No specific operational steps are required for the roller itself, as its function is passive within the track system. Ensure that the excavator is operated within its recommended load and speed limits to prevent undue stress on undercarriage components.
6. Maintenance
Regular inspection and maintenance are crucial for extending the lifespan of your track bottom rollers and the overall undercarriage system.
- Daily Visual Inspection: Before each operation, visually inspect the rollers for any signs of damage, excessive wear, or leaks from the seals.
- Cleanliness: Keep the undercarriage clean, especially in muddy or abrasive conditions. Accumulated debris can accelerate wear on rollers and tracks.
- Track Tension: Regularly check and adjust track tension according to the excavator manufacturer's guidelines. Incorrect tension can lead to premature wear of rollers and other undercarriage components.
- Wear Monitoring: Monitor the wear on the roller treads and flanges. Replace rollers when they reach their wear limit to prevent damage to other undercarriage parts. The expected lifespan of these rollers is between 1,000 to 3,000 operational hours, but this can vary based on operating conditions.
- Seal Integrity: The NBR seals are designed to prevent contaminants. If any oil leaks are observed around the roller, it indicates a seal failure, and the roller should be inspected and replaced if necessary.
7. Troubleshooting
Common issues related to track bottom rollers and potential solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Noise/Squeaking | Lack of lubrication, worn bearings, debris accumulation. | Inspect for debris, check for seal leaks. If worn, replace the roller. |
| Uneven Track Wear | Misaligned rollers, uneven roller wear, incorrect track tension. | Check track tension and roller alignment. Replace severely worn rollers. |
| Roller Seizure/Sticking | Bearing failure, severe debris ingress, seal failure leading to lubricant loss. | Immediate replacement is required to prevent further undercarriage damage. |
| Oil Leaks from Roller | Damaged NBR seals. | Replace the roller to prevent bearing damage from contamination and lubricant loss. |
For issues not listed or if solutions do not resolve the problem, consult a qualified mechanic or contact Mytee Products customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Material | 50Mn Carbon Steel |
| Technique | Forging |
| Color | Black |
| Finish | Smooth |
| Surface Hardness | HRC 52-56 |
| Product Dimensions | 10 x 10 x 5 inches (25.4 x 25.4 x 12.7 cm) |
| Weight | 16.14 Pounds (7.32 kg) |
| OEM Replacement Part No. | RD118-21700, RD148-21700 |
| Model Number | MPBR-RD148-21700 |
Figure 6: Top view of the Mytee Products track bottom roller, showing its symmetrical design.
Figure 7: End view of the Mytee Products track bottom roller, detailing the central bearing and mounting structure.
9. Support and Contact Information
For technical assistance, compatibility questions, or any other inquiries regarding your Mytee Products Forged Excavator Track Bottom Roller, please contact our customer support team.
- Manufacturer: Mytee Products
- Customer Service: 1 (888) 705 - 8277 (Monday - Friday, 7 AM to 5 PM EST)
- Headquarters: 30701 Carter Street, Solon, OH 44139, USA
- Website: Visit Mytee Products Store on Amazon
Please have your product model number (MPBR-RD148-21700) and any relevant OEM part numbers ready when contacting support.
