Berlinger Haus BH-9546 Digital Air Fryer User Manual

1. Introduction

Thank you for choosing the Berlinger Haus BH-9546 Digital Air Fryer. This appliance is designed to provide a healthy and convenient way to cook your favorite meals with little to no oil. Please read this manual thoroughly before first use to ensure safe and optimal operation. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

3. Product Overview

The Berlinger Haus BH-9546 Digital Air Fryer features a sleek design with intuitive controls and a transparent window for monitoring your cooking progress.

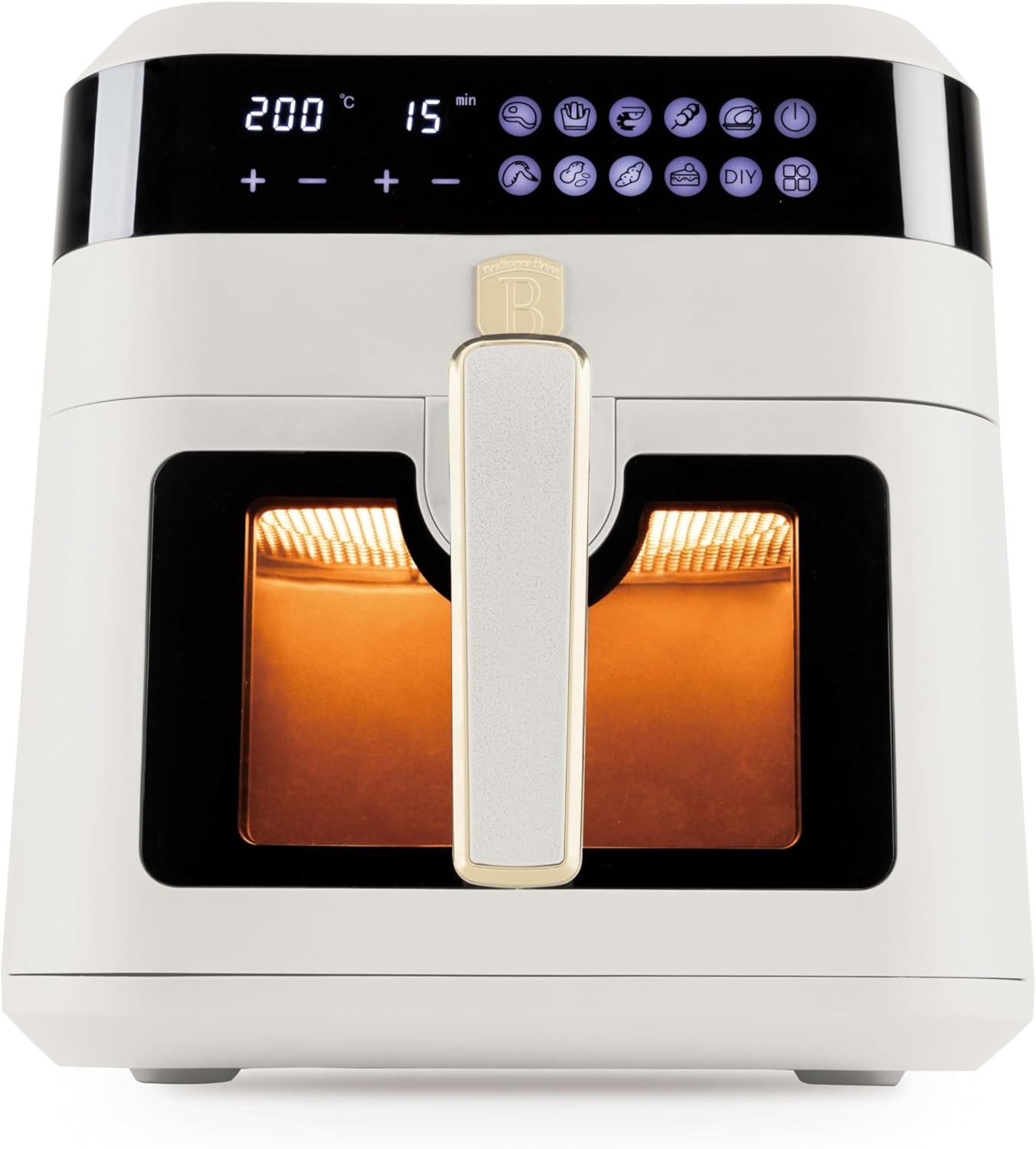

Figure 1: Front view of the Berlinger Haus BH-9546 Digital Air Fryer, displaying the LED touch screen with temperature (200°C) and time (15 min) settings, along with various preset cooking icons. The appliance is a matte cream color with a gold handle accent.

Figure 2: An illustrative diagram highlighting the main features of the air fryer. It shows temperature control up to 200°C, 8L capacity (note: product specs state 6.3L), hot air circulation, a transparent window, 220-240V~50Hz 1300W power, an LED display with touch screen, TitanPro non-stick coating, and a crisper plate.

Components:

• Main Unit: Houses the heating element and control panel.
• Control Panel: Digital LED touch screen for setting temperature, time, and selecting preset functions.
• Frying Basket: Removable basket with a handle for holding food.
• Crisper Plate: Non-stick plate inserted into the basket for optimal air circulation and crisping.
• Transparent Window: Allows visual monitoring of food during cooking.

Figure 3: An exploded view of the air fryer, illustrating its main components: the outer housing, the removable frying basket with its handle, and the crisper plate that fits inside the basket.

4. Setup and First Use

1. Unpacking: Carefully remove all packaging materials and promotional labels from the air fryer.
2. Cleaning: Before first use, clean the frying basket and crisper plate with warm soapy water. Wipe the main unit with a damp cloth. Ensure all parts are completely dry before assembly.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 10 cm of free space on the back and sides, and 20 cm above the appliance.
4. Power Connection: Plug the power cord into a grounded wall outlet (220-240V ~ 50/60 Hz).
5. Initial Run (Optional but Recommended): To eliminate any manufacturing odors, run the air fryer empty for about 10-15 minutes at 180°C (350°F). A slight odor may be present, which is normal and will dissipate.

5. Operating Instructions

Control Panel Overview:

The digital LED touch screen allows for precise control over cooking settings.

• Power Button: Turns the appliance on/off.
• Temperature Control (+/-): Adjusts cooking temperature from 40°C to 200°C.
• Time Control (+/-): Adjusts cooking time up to 60 minutes.
• Preset Functions: Icons representing various food types (e.g., fries, chicken, fish, cake) for quick selection of optimized settings.
• Keep Warm Function: Maintains food temperature after cooking.
• Delay Function: Allows you to set a delayed start for cooking.

Cooking Process:

1. Prepare Food: Place your ingredients into the frying basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the frying basket firmly into the main unit. The appliance will not operate if the basket is not correctly inserted.
3. Power On: Press the Power button to turn on the air fryer.
4. Set Temperature and Time:
   • Manual Setting: Use the Temperature (+/-) and Time (+/-) buttons to set your desired cooking parameters.
   • Preset Function: Select one of the 8 preset cooking icons. The air fryer will automatically set the recommended temperature and time. You can adjust these settings manually if needed.
5. Start Cooking: Press the Start/Pause button (often the Power button again or a dedicated play icon) to begin cooking.
6. Monitor Progress: Use the transparent window to visually check on your food without opening the basket.
7. Shaking/Flipping (Optional): For some foods, it is recommended to shake or flip the contents halfway through cooking. The air fryer will automatically pause when the basket is removed and resume when reinserted.
8. Completion: The air fryer will beep when the cooking time is complete. Carefully pull out the basket using the handle.
9. Serve: Transfer the cooked food to a plate. Be cautious of hot oil or juices.

Figure 4: The air fryer with its basket partially extended, showing the interior cooking chamber and the crisper plate designed for optimal air circulation.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your air fryer.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Cleaning the Basket and Crisper Plate: The frying basket and crisper plate are dishwasher-safe. Alternatively, they can be washed by hand with warm water and a mild dishwashing liquid. The TitaniPro non-stick coating makes cleaning easy. Avoid using abrasive cleaning materials or metal utensils that could damage the non-stick surface.
3. Cleaning the Main Unit: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
4. Cleaning the Interior: If necessary, wipe the interior of the appliance with a damp cloth. For stubborn residue, use a non-abrasive sponge and mild detergent.
5. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

7. Troubleshooting

If you encounter any issues with your Berlinger Haus Air Fryer, please refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

Berlinger Haus products are manufactured with quality and durability in mind. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Berlinger Haus website. For technical support, spare parts, or service inquiries, please contact Berlinger Haus customer service through their official channels.

You can find more information and contact details on the Berlinger Haus Store on Amazon.
